Imaging biofilms in three dimensions: modalities, quantitative readouts, and the path to four-dimensional measurement

T0 review · 3 major / 4 minor · reviewed 2026-08-02 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read This paper argues that antimicrobial action on biofilms is a four-dimensional imaging problem, reducible to four structured questions, and that the live, label-free, four-dimensional imaging quadrant — though occupied by five complementary

desk verdict A genuinely useful organizing frame for biofilm imaging, but the central 'unreported gap' claims are undercut by an internal inconsistency about what counts as label-free. read the letter →

arxiv 2606.15254 v2 pith:TRVSYJK7 submitted 2026-06-13 physics.bio-ph

Seongsoo Lee , YongKeun Park This is my paper · ORCID
classification physics.bio-ph
keywords biofilmantimicrobialresistancelabel-freeimagingholotomographyfour-dimensionalpeptidesquantitativeopticalcoherencetomography
topics The Measurement Problem
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This review claims that the standard planktonic MIC and bulk endpoint assays are the wrong measurement paradigm for biofilms, which are three-dimensional by definition and four-dimensional whenever an antimicrobial engages them. It reorganizes the imaging landscape into four quadrants defined by two axes — static 3D vs live 4D, and label-based vs label-free — and argues that the live, label-free, 4D quadrant is the best-aligned with four structured questions that matter: where the drug goes, where it kills, what it does to the matrix, and whether the community reassembles. Five modalities occupy that quadrant — OCT, holotomography, SRS, Brillouin microscopy, and in-liquid AFM — but none answers all four questions, and several combinations (e.g., live label-free 4D antimicrobial penetration in a mature biofilm) remain, to the authors' knowledge, unpublished. If correct, the field should reorient around a validated measurement architecture that pairs a low-perturbation label-free volumetric backbone with sparse, spatially registered molecular validation, and should build a community-standard quantitative parameter set for label-free 3D biofilm images.

What carries the argument

The organizing device is a two-axis classification of biofilm imaging: the temporal axis (3D static vs 4D live) and the contrast axis (label-based vs label-free intrinsic). Their intersection defines the live, label-free, four-dimensional quadrant that the paper treats as the actionable space. Within that quadrant, the argument is carried by four structured questions — where the antimicrobial goes, where it kills, what it does to the matrix, and whether the community reassembles — which serve as the evaluation criteria for each modality's demonstrated capability. The paper also relies on the quantitative relation between refractive-index increment and dry-mass concentration as the basis for

What would settle it

A single published report of live, label-free, four-dimensional tracking of an antimicrobial penetrating a mature multilayer biofilm — or a controlled experiment showing that a fluorescently tagged cationic AMP penetrates and kills identically to its unlabeled parent — would directly contradict the paper's central gap and label-perturbation claims.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central discovery is a mapping: biofilm–antimicrobial evaluation is a four-dimensional measurement problem that can be decomposed into four spatially and temporally structured questions (penetration, depth-resolved killing, matrix remodeling, community reassembly), and the imaging technology landscape, sorted by temporal capability and label dependence, exposes a single live, label-free, four-dimensional quadrant. The quadrant is occupied by five complementary modalities — optical coherence tomography, holotomography, stimulated Raman scattering, Brillouin microscopy, and in-liquid atomic force microscopy — none of which individually answers all four questions.

Load-bearing premise

The load-bearing premise is that the 'unreported' gaps are genuinely absent from the literature — the authors define 'unreported' as no published demonstration known to them at the time of writing, not as the result of a formal systematic search; if any key combination (e.g., live, label-free, 4D antimicrobial penetration in a mature biofilm) has in fact been published, the opportunity map and the quadrant's uniqueness claims are overstated.

Editorial extensions

If this is right

  • Antimicrobial efficacy against biofilms should be reported as four spatially and temporally resolved answers, not a single MIC value; bulk endpoints average away depth-stratified tolerance and post-treatment regrowth.
  • For cationic antimicrobial peptides, fluorescent conjugation should be treated as a perturbing variable; label-free intrinsic-contrast modalities are the appropriate primary measurements when the unperturbed dynamics matter.
  • A community-standard set of quantitative parameters for label-free 3D biofilm images is needed to make results cross-laboratory comparable, analogous to the standardization that confocal biofilm image analysis achieved.
  • Correlative multimodal acquisition on a single biofilm specimen — pairing refractive-index dry mass with Raman chemical specificity, Brillouin modulus, or atmospheric-SEM ultrastructure — would let each contrast supply what the others cannot.
  • Live, label-free, 4D tracking of antimicrobial penetration in mature biofilms is an open opportunity; demonstrating it would directly test the paper's central gap claim.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the paper's 'unreported' gaps are real, then the first laboratory that demonstrates live, label-free 4D antimicrobial penetration in a mature multilayer biofilm will not only fill a gap but also establish the measurement architecture as a standard; the paper itself stops at identifying the opportunity.
  • The two-axis formalism can be transferred to other spatially structured microbial or tissue systems — e.g., fungal biofilms, tumor spheroids, or gut mucosal communities — where depth-stratified drug action and label perturbation are equally at issue; the paper only discusses bacterial biofilms.
  • The emphasis on refractive-index and dry-mass readouts suggests that AI-based virtual staining of label-free 3D images could eventually replace fixation-dependent FISH for polymicrobial biofilm identity, but this is an extrapolation the paper flags as an open question.
  • The weakest point is the absence claim: because 'unreported' is defined as 'no published demonstration known to us at the time of writing,' a single missed prior report would shrink the opportunity map; readers should treat the gap list as a hypothesis to be tested, not an established fact.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. This Perspective argues that biofilm–antimicrobial evaluation should be reorganized around four spatially and temporally structured questions—penetration, depth-resolved killing, matrix remodeling, and community reassembly—and that the modality landscape can be organized along two orthogonal axes (temporal capability and label dependence). The intersection of these axes, the live, label-free, four-dimensional quadrant, is occupied by five complementary modalities (OCT, holotomography, SRS, Brillouin microscopy, in-liquid AFM), none of which individually answers all four questions. The paper proposes an integrated measurement architecture pairing a low-perturbation volumetric backbone with sparse molecularly specific validation, a community-wide label-free quantification standard, and a bench-to-bedside pipeline via bioluminescence and 99mTc-UBI SPECT/PET. The central opportunity claims rest on assertions that several key combinations are 'unreported' in the literature, with the caveat that 'unreported' means not known to the authors rather than established by systematic search.

Significance. If the gap map is correct, the paper provides a useful synthesis and a concrete research agenda that could shift biofilm antimicrobial evaluation away from bulk planktonic assays. Strengths include the explicit disclosure of the non-systematic search, the separation in Table 1 between demonstrated and extrapolated capability, the clear conflict-of-interest statement, and the emphasis on quantitative readouts and standardization. The four-question framing is a genuinely useful organizing device. However, the load-bearing opportunity claims are absence-of-literature assertions, and at least one such assertion appears internally inconsistent with the paper's own modality classification; the lack of a systematic search compounds this risk. The framework itself would survive a single counterexample, but the specific 'unreported' claims would not.

major comments (3)
  1. ['The label-dependency axis' vs Table 1] The paper's label-free classification is internally inconsistent. The text explicitly places SRS with D2O or alkyne tags in a 'minimally perturbative ... not strictly intrinsic' class, yet Table 1 Group 1 lists SRS under 'Label-free: Yes — intrinsic via isotopic tag'. Since SRS is one of the five anchor modalities in the live, label-free quadrant, this contradiction changes the quadrant's composition. On the inclusive Table 1 reading, Ref. 20 (hyperspectral SRS of alkyne-tagged vancomycin in live S. aureus biofilm) appears to be a published live, label-free 4D antimicrobial-penetration measurement, contradicting the Introduction's claim that none exists. On the exclusive reading, SRS should not be in the focus quadrant, reducing the claimed five modalities to four. This needs to be resolved explicitly.
  2. [Introduction and Modality survey (absence claims)] The paper states that 'unreported' means 'no published demonstration is known to us at the time of writing, rather than as the result of a formal systematic search.' Yet the Introduction's strong claim—'To our knowledge, no published report tracks antimicrobial penetration in a mature biofilm live, label-free, in four dimensions'—and the Concluding remarks' uniqueness claims are factual absence assertions. Given that Ref. 20 is described in the same paper as real-time monitoring of antibiotic pharmacokinetics in biofilm with Raman-tagged SRS, the authors must either demonstrate that Ref. 20 fails the mature-biofilm/4D criteria, or qualify the claim. Without this, the central opportunity map is not internally secured. A formalized search protocol or a precise scoping of exclusion criteria is needed.
  3. [Figure 3f] Figure 3f presents previously unpublished time-lapse RI tomograms of a live P. aeruginosa biofilm as evidence that holotomography reaches the live-biofilm regime. No methods are provided: culture conditions, sample preparation, acquisition parameters, RI reconstruction procedure, scale bar definition, number of replicates, or any quantitative readout. In a Perspective that repeatedly emphasizes quantitative standards, presenting unreviewed original data without methods or reproducibility details is an evidentiary gap. At minimum, the authors should either provide a methods paragraph or re-label this as an illustrative example and remove any quantitative claim based on it.
minor comments (4)
  1. [Figure 2] The caption states that fill encodes label dependence, with SRS hatched as minimally perturbative. This is consistent with the text but conflicts with Table 1, where SRS is listed as label-free. Please harmonize the two representations.
  2. [Introduction, sentence containing Ref. 21] Ref. 21 (Stewart, Growth rates of bacteria in vivo) does not appear to support the sentence 'To our knowledge, no published report tracks antimicrobial penetration...'; it seems thematically unrelated. Please verify the citation or replace it.
  3. [Figure 1 caption and text] The text refers to 'Fig s. 1b−c' but the figure appears to have panels (a)–(c). Please correct the typo and ensure panel references are consistent.
  4. [Table 1, Group 1 SRS row] The 'Label-free' entry 'Yes — intrinsic via isotopic tag' is internally oxymoronic and should be reworded to reflect the three-tier classification described in the text.

Circularity Check

0 steps flagged · score 2.0 of 10

No circular derivation chain: the quadrant/four-question framework is a literature synthesis, holotomography support is partly external, and the only close concern is minor non-load-bearing self-citation plus an internal SRS label-free classification inconsistency that is a factual caveat, not a circular step.

full rationale

This is a Perspective/review paper, not a derivation with equations or fitted parameters, so most circularity patterns do not apply. The load-bearing claims are literature-absence claims, and the authors explicitly limit them: 'we describe a combination as unreported when no published demonstration is known to us at the time of writing, rather than as the result of a formal systematic search' (Modality survey). That is an honest epistemic limitation, not a circular reduction. The two-axis quadrant and four-question decomposition are organizational claims, not predictions derived from their own inputs. Holotomography, the area with the most author self-citation, is supported by external Wroclaw-group studies (refs 28, 55) as well as self-cited work, and the previously unpublished HT-X1 time-lapse data (Fig. 3f) is new data rather than a fitted parameter renamed as a prediction. The senior author's Tomocube affiliation is disclosed in the Conflict of Interest statement and is a financial-conflict concern, not a circularity of reasoning. The skeptical concern that SRS with isotopic tags is called both label-free (Table 1: 'Yes — intrinsic via isotopic tag') and not strictly intrinsic ('We place stimulated Raman scattering with its tracers in the second class', The label-dependency axis) is a genuine internal inconsistency that could affect the truth of the central 'no published report' claim, but it is a definitional/factual correctness issue rather than a case of a result being equivalent to its inputs by construction. Accordingly, I find no specific circular step satisfying the quoted-reduction standard; the score reflects only the minor, non-load-bearing self-citation overlap.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

No free parameters or invented entities; the paper is a review. The framework rests on domain assumptions about the burden and mechanism of biofilm infections, the sufficiency of the four-question decomposition, and the accuracy of the authors' informal gap search; the gap-search assumption is the most load-bearing.

assumptions (4)
  • domain assumption Biofilm-associated infection is predominantly a chronic-infection problem with substantial clinical/economic burden (65–80% of chronic infections; ~$4T annually).
    Introduction cites estimates (refs 5,6,8); central motivation for the framework, not derived in the paper.
  • ad hoc to paper The four structured questions (penetration, depth-resolved killing, matrix remodeling, reassembly) are sufficient to isolate the spatially/temporally distributed processes that imaging can resolve for antimicrobial evaluation.
    Authors state this is an 'imaging-centered decomposition rather than a complete mechanistic account' (Introduction); the sufficiency of the four-question set is a framing choice.
  • domain assumption Fluorescent conjugation of cationic AMPs systematically alters partitioning, kill kinetics, and penetration, so label-free modalities are the appropriate primary measurement for AMP–biofilm encounters.
    Based on cited ref 43 (Choi et al.) for planktonic systems; extrapolated to 3D biofilm matrix interactions (section 'Why label perturbation matters').
  • ad hoc to paper The 'unreported' status of key combinations is accurate despite the absence of a systematic search.
    Authors disclose they did not perform a formal systematic search; the gap claims carry the paper's opportunity analysis.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Imaging biofilms in three dimensions: modalities, quantitative readouts, and the path to four-dimensional measurement." pith.science (2026). https://pith.science/paper/TRVSYJK7

@misc{pith2026260615254,
  author       = {Pith},
  title        = {Pith review of: Imaging biofilms in three dimensions: modalities, quantitative readouts, and the path to four-dimensional measurement},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/TRVSYJK7}},
  note         = {Machine review of arXiv:2606.15254}
}
read the original abstract

Biofilms are spatially structured microbial communities whose architecture, chemistry, mechanics, and cellular states evolve over time. Bulk assays and two-dimensional projections remain useful, but cannot alone resolve how these properties vary with depth or change during growth, treatment, dispersal, and regrowth. Imaging provides complementary routes to three-dimensional measurement: fluorescence microscopy supplies molecular, taxonomic, and functional specificity; optical coherence tomography resolves mesoscale architecture and dynamics; quantitative phase imaging and holotomography report refractive index and biomass-related changes; Raman methods provide chemical and metabolic contrast; and Brillouin microscopy probes mechanical response. We compare these modalities using four independent descriptors-contrast provenance, live volumetric capability, perturbation, and demonstrated biofilm use-and connect their signals to quantitative biological readouts. No single modality simultaneously maximizes spatial coverage, resolution, acquisition speed, molecular specificity, and low perturbation. Implementations from any contrast class can serve as a longitudinal backbone when perturbation is empirically controlled at the relevant spatial and temporal scale, while molecularly specific measurements remain indispensable for identifying species, molecules, and functional states. We therefore frame four-dimensional biofilm measurement as a validated measurement architecture that integrates a low-perturbation volumetric backbone with spatially registered, molecularly specific measurements acquired continuously or at predefined validation points. Achieving this integration will require compatible cultivation formats, controlled imaging dose, shared quantitative parameters, and robust cross-modality registration.

Figures

Figures reproduced from arXiv: 2606.15254 by the authors.

Figure 1
Figure 1. Antimicrobial action on a biofilm is a four [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2
Figure 2. The live, label-free, four-dimensional gap in biofilm imaging. Spatial resolution (vertical axis; finer upward) versus volumetric acquisition speed (horizontal axis; shorter time per three-dimensional volume, hence faster, toward the right) for the principal imaging modalities applied to biofilms. Each modality is drawn as a box spanning its lateral-to-axial resolution and its fastest-to-slowest reported acquisition… view at source ↗
Figure 3

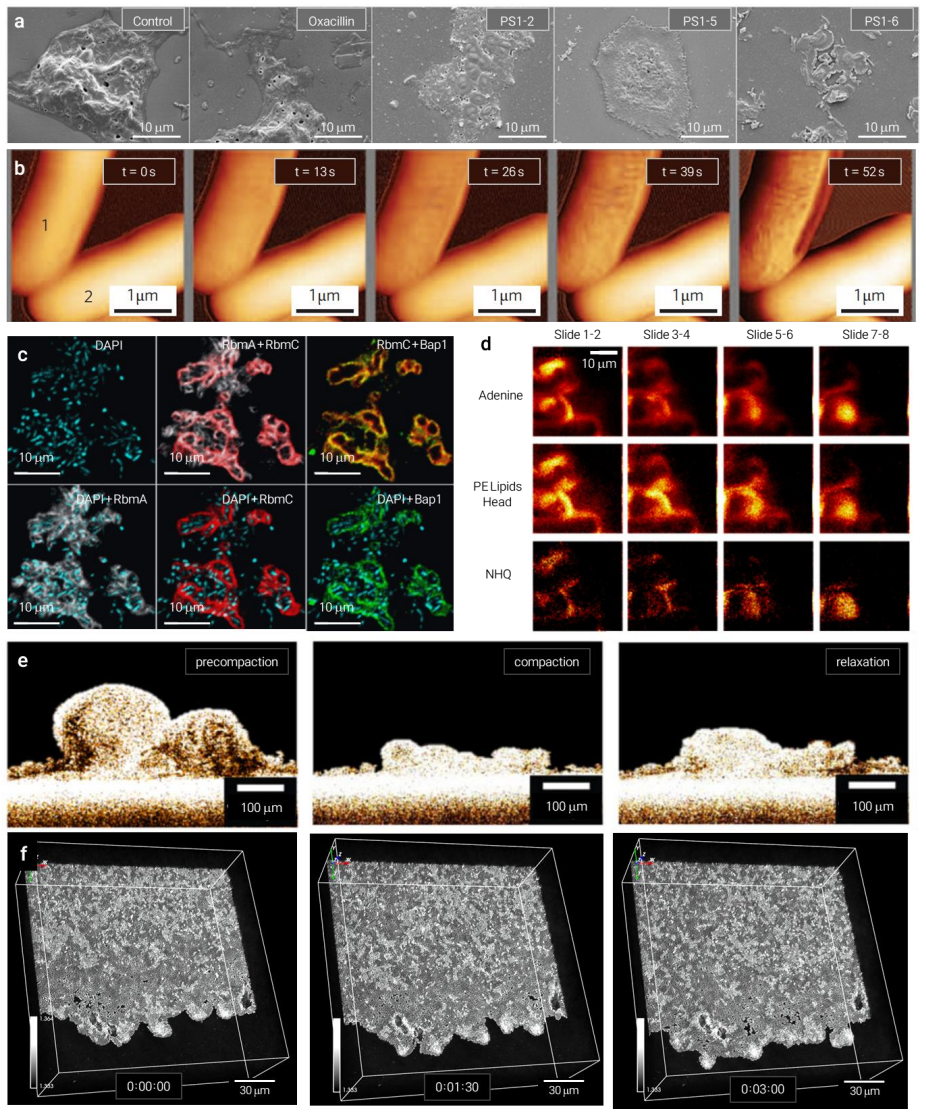

Figure 3. Multimodal visualization of biofilm structure, disruption, molecular composition, mechanics, and label-free three-dimensional dynamics. Representative imaging modalities used to study bacterial biofilms across length scales and contrast mechanisms. (a) Scanning electron microscopy of preformed Pseudomonas aeruginosa DRPa 4007 biofilm, showing the disruptive effect of oxacillin and PS antimicrobial peptides (PS1-2/5/… view at source ↗
