This paper claims that decomposing INT8-quantized LLM weights into bit-slice matrices exposes ~70% sparsity and repeated column vectors that a co-designed accelerator can exploit, delivering 9.43x speedup and 31.1x energy efficiency over an

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

A bit-slice-based accelerator (MCBP) jointly reduces GEMM computation, weight traffic, and KV cache traffic for LLM inference, claiming 9.43x speedup and 31.1x energy efficiency over A100.

T0 review reviewed 2026-08-04 challenge →

load-bearing objection Bit-level repetition and prediction ideas are new, but the A100 comparison is overprovisioned and the energy metric is suspect. the 4 major comments →

arxiv 2509.10372 v1 pith:TWMJCLWO submitted 2025-09-12 cs.AR

MCBP: A Memory-Compute Efficient LLM Inference Accelerator Leveraging Bit-Slice-enabled Sparsity and Repetitiveness

Huizheng Wang , Zichuan Wang , Zhiheng Yue , Yousheng Long , Taiquan Wei , Jianxun Yang , Yang Wang , Chao Li
show 3 more authors
Shaojun Wei Yang Hu Shouyi Yin
This is my paper
classification cs.AR
keywords LLM inference acceleratorbit-slice sparsitybit repetitionGEMM computation reductionweight compressionKV cache accesstop-k attention predictionalgorithm-hardware co-design
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Dense value-level storage hides two cheap sources of efficiency in quantized LLM weights: most bits in high-order bit-slices are zero, and many bit-slice column vectors repeat. MCBP claims that decomposing INT8 weights into bit slices, grouping rows into small matrices, and treating identical bit columns as one computation can cut GEMM work, weight traffic, and KV-cache traffic simultaneously, across both prefill and decoding. To keep accuracy, the costly attention top-k prediction is replaced by bit-grained progressive filtering that stops loading Keys once the partial score is hopeless. The paper backs the claim with a 28nm accelerator design and reports 9.43x speedup and 31.1x energy efficiency over A100 on 26 benchmarks, with 35x, 5.2x, and 3.2x energy savings over prior transformer accelerators. A sympathetic reader would take the core claim as: the bit-slice level is where LLM inference redundancy actually lives, and a co-designed architecture can extract it.

Core claim

On the paper's own terms, MCBP's central discovery is that INT8-quantized LLM weight matrices, when decomposed into bit-slice matrices, exhibit about 70% average bit-sparsity and abundant repeated column vectors, while value-level sparsity is only around 7%. The paper establishes that rewriting a grouped bit-slice matrix W as E x I, where E is an enumeration matrix of unique column vectors and I maps each column to its representative, turns redundant GEMM additions into a merge step (I x X) and a reconstruction step (E x X'), cutting additions by up to 12.1x versus value sparsity and 3.8x versus naive bit-serial computing. It further claims BSTC losslessly compresses high-order bit-slices wi

What carries the argument

Grouped bit-slice matrices with enumeration-index factorization. An INT8 weight tile is decomposed into eight bit-slice matrices; m=4 rows are grouped so each column is a 4-bit vector with at most 16 possible types. The pigeonhole principle guarantees repetition because hidden dimension H (4k-12k) vastly exceeds 2^m. Multiplication G x X becomes E x (I x X): I x X merges activations that share a bit-column type in H(1-bs) additions, and E x X' reconstructs outputs in m x 2^{m-1} additions. A CAM-based match unit finds matching columns in one cycle; BSTC's two-state code (0 versus {1,data}) compresses the sparse high-order slices; BGPP's progressive threshold theta = max(A_hat) - alpha*radius

Load-bearing premise

The whole design rests on the empirical observation that bit-slice matrices of INT8-quantized LLM weights are highly sparse (about 70%) with many repeated column vectors, and that attention can be pruned bit-by-bit at a tuned threshold without losing accuracy; if quantized weights had near-random bit distributions or attention were dense, the reported speedups would shrink or vanish.

What would settle it

Compute the average bit-slice sparsity and column-repetition rate for a target model under a specific quantization scheme: BRCR's operation-count formula shows the advantage disappears as bit sparsity approaches 50%, and BSTC's compression ratio drops below 1 when sparsity falls below about 65%. Alternatively, run BGPP on a long-context task where attention is dense (e.g., retrieval across many similar tokens) and measure whether KV-load reduction falls to near zero while generation quality drops.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

  • BRCR and BSTC are lossless: they remove operations and bytes, so the gains transfer directly to any INT8-quantized model whose bit slices show the claimed ~70% sparsity and repetition.
  • BGPP is lossy: its pruning strength is controlled by alpha_r, and the paper shows accuracy can be held at 0% or 1% loss relative to INT8 by tuning alpha_r per benchmark.
  • Across 26 benchmarks, MCBP's standard/aggressive configurations give average 8.72x/9.43x speedup and 29.2x/31.1x energy efficiency over A100 at the same batch size; on GPU the algorithms alone give 1.03x, so the custom hardware is what realizes the gains.
  • MCBP reports 75.8% average memory-access reduction, with BSTC cutting weight traffic in decoding and BGPP cutting KV traffic, addressing the bottleneck that shifts with prompt length.
  • The scheme extends to INT4: bit sparsity remains about 4x higher than value sparsity, yielding 51% computation and 41% memory-access reduction under PTQ INT4, and MCBP is reported to beat a reproduced INT4 lookup accelerator by 1.5-1.8x while consuming 33-50% less energy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The empirical basis (bit sparsity ~70%, abundant repetition) is measured on five LLMs, not guaranteed by theory; quantization schemes that whiten or balance bit distributions could erase BRCR/BSTC's advantage, so the obvious stress test is measuring bit statistics on more diverse models and quantizers.
  • The group-size sweet spot m=4 balances repetition against the exponential 2^m reconstruction cost; a natural extension is hierarchical or approximate matching that keeps repetition high for larger m, which the fixed m=4 design would miss.
  • BGPP's threshold depends on per-benchmark alpha_r tuning; an accuracy-aware adaptive alpha that self-adjusts during decoding could make the technique parameter-free and extend its KV-traffic savings to longer contexts.
  • The same enumeration-index factorization could in principle apply to activations or KV cache entries, not just static weights; MCBP limits BRCR to weights, so exploiting bit repetition on dynamic values is an open direction.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper proposes MCBP, a bit-slice-level algorithm-hardware co-design for LLM inference targeting GEMM computation, weight access, and KV-cache access. Three mechanisms are introduced: BRCR reduces GEMM work by grouping bit-slice weight vectors and reusing repeated column-vector computations via a CAM-based matcher; BSTC losslessly compresses high-order bit-slice weight matrices using a two-state coding aligned with the BRCR group granularity; BGPP performs progressive bit-level top-k prediction with early termination to reduce KV-cache traffic. The authors implement the design in RTL (TSMC 28nm, with CACTI/Ramulator modeling) and evaluate it on five LLMs and 26 benchmark settings, reporting a 9.43x inference speedup and 31.1x energy-efficiency improvement over an NVIDIA A100, and 35x/5.2x/3.2x energy savings over SpAtten/FACT/SOFA.

Significance. If the headline comparisons are made rigorous, MCBP would be a valuable contribution: the bit-slice repetition and sparsity observations are clearly demonstrated across several LLMs (Figs. 5, 8, 25), the BRCR/BSTC mechanisms are lossless, and the hardware designs (CAM match, lightweight codec, clock-gated BGPP) are concrete and backed by RTL simulation and area/power characterization. The paper also ships a thorough ablation study and a sensitivity analysis across PTQ/QAT/INT4 quantization, which are strengths. However, the contribution is not yet fully supported because the A100 comparison uses an inconsistent processor-scaling calculation, the BGPP threshold is tuned per benchmark on the test set to achieve the reported 0%/1% accuracy loss, and the cross-accelerator GOPS/W comparisons rely on heterogeneous operation definitions. These issues directly affect the claimed speedup and energy numbers, so the evaluation needs substantial revision before the central claims can be accepted.

major comments (4)
  1. [§5.3, Table 4, Fig. 20] The A100 comparison is arithmetically inconsistent as printed. The text says: 'Given the INT8 compute power of A100 is 624 TOPS, we use 148 MCBP processors (total with 622TOPS@INT8)'. Table 4 lists one MCBP processor as 54,463 GOPS ≈ 54.5 TOPS. 148 such processors would provide ≈8,060 TOPS, not 622; their total area/power would be ≈1,409 mm² and ≈354 W, versus the A100's 826 mm² and 400 W. If 'processor' instead means a PE cluster (20 per chip, Table 3), then 148 clusters correspond to 7.4 chips and provide ≈403 TOPS—again not 622. Neither reading supports the stated 622 TOPS, and the comparison is neither iso-area nor iso-power. Moreover, MCBP's GOPS likely counts bit-level additions/shifts rather than INT8 MACs, so normalizing to A100 INT8 TOPS is not established. The 8.72x/9.43x speedup and 31.1x efficiency claims need a corrected scaling and a common metric definition.
  2. [§5.2 and §6 (Fig. 24a)] The 'standard (0% loss)' configuration is obtained by per-benchmark tuning of alpha_r on the test set. Section 5.2 states: 'we adjust the value of alpha_r in 0.1 increments to evaluate the accuracy and overhead for each benchmark. This yields two MCBP configurations: standard (0% loss), aggressive (1% loss)'. Section 6 acknowledges that BGPP introduces alpha_r and that accuracy is affected. Thus the reported latency/KV-reduction numbers are not achieved by a single fixed configuration; they depend on thresholds selected to meet an accuracy target on the evaluation benchmarks. Fig. 24(a) even shows MBPP accuracy already degrading at alpha_r=0.6, so a global alpha_r in the claimed 0.5–0.6 range may not give 0% loss. Please report results for a fixed alpha_r (or a validation-set selection) and show per-benchmark accuracy relative to the INT8 baseline without test-set tuning.
  3. [Table 4, §5.4] The cross-accelerator energy-efficiency comparison is not apples-to-apples. The text states that 'the average energy efficiency is evaluated using the metric from each respective paper'. MCBP's GOPS/W is a bit-level operation count, whereas SpAtten/FACT/SOFA report value-level MAC-based GOPS/W. Different papers also use different workloads, memory systems, and technology normalizations. Comparing these absolute GOPS/W numbers (35x, 5.2x, 3.2x savings) is therefore not a reliable measure of relative efficiency. The authors should normalize all designs to a common operation definition (e.g., INT8 MAC-equivalents) and, ideally, report per-workload energy and latency rather than only aggregate GOPS/W.
  4. [§3.1 (BRCR complexity)] The printed complexity comparison for the value-based sparsity scheme is inconsistent with the stated conclusion. The text says the value-based scheme consumes H×m×k×vs additions, where vs≈0.07 is the value sparsity ratio (fraction of zeros). For H=4000, m=4, k=8, this gives 8960 additions for a k-bit GEMV, which is far less than the claimed 12.1x reduction relative to BRCR's k(H(1−bs)+m·2^{m−1}) ≈ 9856 additions. The claim requires H×m×k×(1−vs) additions. Please correct the formula and re-derive the 12.1x/3.8x ratios.
minor comments (5)
  1. [Fig. 5(g), §3.3] The label 'Theoretically optimal' in Fig. 5(g) is not defined. Clarify what bound this represents (e.g., lower bound on KV traffic given bit-level early termination).
  2. [Table 2] The '0% loss' standard configuration is not reflected exactly in the table: several MCBP(S) entries are 0.1–0.2 absolute points below the corresponding INT8 baseline (e.g., MMLU 34.6 vs 34.7, MBPP 17.1 vs 17.2). State whether 0% loss means rounding to one decimal or a tolerance, and report the actual worst-case delta.
  3. [Fig. 9 / §3.3] The bit ordering for BGPP is described inconsistently: the text says 'fetch the MSB of all Ks' while the figure caption says 'Load 1st bit (K)'. Since weights are stored in sign-magnitude format (§3.2), clarify whether bit 0 is the sign bit and which bit is fetched in round 1.
  4. [§4.1] The text says the workflow operates through 'eight key steps' with numbered markers ❶–❽, but the paragraph only enumerates ❶–❺ and ❻–❽ in the BGPP description. Make the correspondence between markers and steps explicit in the text.
  5. [§7 / abstract] The claim that MCBP is 'the first work that uses bit-level strategies for LLM inference' is too strong given that FuseKNA and Bitwave are bit-level accelerators and are adapted to GEMV in this paper. Soften the novelty claim to 'first to jointly apply bit-level repetition, sparsity, and prediction to both prefill and decoding'.

Circularity Check

1 steps flagged

BGPP's accuracy-preservation claim is fitted per benchmark via alpha_r, making the '0% loss' label true by construction; headline speedups are reported at these tuned operating points.

specific steps
  1. fitted input called prediction [Section 5.2 (Algorithm settings); used in Table 2, Fig. 20 and Abstract/Section 5.3 headline numbers.]
    "we adjust the value of αr in 0.1 increments to evaluate the accuracy and overhead for each benchmark. This yields two MCBP configurations: standard (0% loss), aggressive (1% loss), representing the minimal and maximal performance optimizations, respectively."

    The 0%/1% loss targets are the selection criteria for αr, not outputs of an independent prediction. 'Standard' and 'aggressive' are defined by the loss achieved after tuning αr on the same benchmark, so Table 2's accuracy preservation is an input constraint. Since αr directly sets the BGPP pruning threshold (Eq. 1), the per-benchmark tuned αr determines the KV reduction; the subsequent 8.72×/9.43× speedup and 29.2×/31.1× efficiency gains are measured at these fitted operating points rather than at a single pre-specified threshold, making the accuracy part of the claim circular and the performance claims contingent on in-sample tuning.

full rationale

BRCR and BSTC are self-contained: the bit-slice decomposition, pigeonhole argument, and operation-count formulas (Sec. 3.1, 3.2) derive reductions from measured bit-level sparsity/repetition without circularity. The softmax-gap property is cited to the authors' FACT [72], but it is a standard mathematical fact and not load-bearing. The main circularity is confined to BGPP evaluation: alpha_r is tuned per benchmark to hit 0%/1% loss, so the 'standard (0% loss)' accuracy is true by construction, and the headline speedups are reported at these benchmark-specific operating points. The DSE for group size m on the same workloads is a design choice rather than a prediction, and the A100 comparison contains an internal scaling inconsistency (148 MCBP processors vs Table 4 throughput) that is a validity concern but not circularity. Overall, the central algorithmic derivation is mostly independent, so the score is moderate rather than high.

Axiom & Free-Parameter Ledger

5 free parameters · 5 axioms · 0 invented entities

The central claims rest on a handful of design parameters (m, alpha_r, radius, compressed bit positions, number of BGPP rounds) and on empirical assumptions about weight distribution and attention sparsity. No new physical entities are posited; the CAM and codec units are hardware components, not invented entities in the scientific sense.

free parameters (5)
  • Group size m (BRCR/BSTC) = 4
    Selected via DSE on the five evaluated LLMs to balance computation reduction and compression rate (Fig. 18); also chosen because it divides common hidden dimensions. This is a tunable design parameter, not derived from first principles.
  • BGPP threshold coefficient alpha_r = 0.5-0.6 per benchmark (standard config 0% loss; aggressive 1% loss)
    Controls the filtering threshold in Eq. (1). The paper adjusts it in 0.1 increments per benchmark to achieve target accuracy (Sec. 5.2), so the reported KV-access reduction is not parameter-free.
  • BGPP radius = 3
    Empirically set default radius in Eq. (1) (Sec. 3.3).
  • BSTC compressed bit-slice set = bits 3-7 compressed; bits 1, 2, 8 uncompressed
    Based on measured sparsity ratios greater than 65% in Fig. 8(c); a data-dependent choice of which bit planes to two-state encode.
  • BGPP number of filtering rounds = unreported
    The text says a 'predetermined number of rounds' but never states the value; the KV traffic reduction depends on it.
axioms (5)
  • standard math Pigeonhole principle: any m-row binary matrix has at most 2^m distinct column vectors, so with H >> 2^m repetitions must occur.
    Used in Sec. 3.1 to justify group-wise merging and the existence of repetitive BS vectors.
  • standard math For large H, all 2^m possible column vectors appear, bounding the reconstruction add cost by m*2^(m-1).
    Assumed in the BRCR complexity formula in Sec. 3.1 ('we can reasonably assume').
  • domain assumption Quantized LLM weights are near-Gaussian, so high-order bit-slices are mostly zero and lower-order slices are roughly uniform, giving high bit sparsity and repetition.
    Basis for BSTC and BRCR; referenced to [35,52] and empirically measured on five LLMs (Figs. 5, 8).
  • domain assumption Attention scores are sparse, and a low-bit progressive estimate with early termination can select the true top-k keys without accuracy loss.
    Basis for BGPP; validated only empirically through the tuned alpha_r experiments (Sec. 5.2, Fig. 24).
  • domain assumption The RTL/Verilator + CACTI + Ramulator + TSMC 28nm synthesis flow accurately represents the performance, power, and area of a real MCBP chip.
    All quantitative claims (speedup, GOPS/W, area) come from this simulation flow; no silicon measurement is provided.

reviewed 2026-08-04 · how reviews work

0 comments
Cite this review

Pith. "Pith review of MCBP: A Memory-Compute Efficient LLM Inference Accelerator Leveraging Bit-Slice-enabled Sparsity and Repetitiveness." pith.science (2026). https://pith.science/paper/TWMJCLWO

@misc{pith2026250910372,
  author       = {Pith},
  title        = {Pith review of: MCBP: A Memory-Compute Efficient LLM Inference Accelerator Leveraging Bit-Slice-enabled Sparsity and Repetitiveness},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/TWMJCLWO}},
  note         = {Machine review of arXiv:2509.10372}
}
Share X Bluesky LinkedIn Reddit HN
read the original abstract

Large language models (LLMs) face significant inference latency due to inefficiencies in GEMM operations, weight access, and KV cache access, especially in real-time scenarios. This highlights the need for a versatile compute-memory efficient accelerator. Unfortunately, existing Transformer accelerators struggle to address both aspects simultaneously, as they focus on value-level processing, missing fine-grained opportunities to optimize computation and memory collaboratively. This paper introduces MCBP, a bit-grained compute-memory efficient algorithm-hardware co-design that leverages bit-slice (BS) enabled repetitiveness and sparsity to accelerate LLM inference. MCBP features three key innovations: 1) BS-repetitiveness-enabled computation reduction (BRCR), which eliminates redundant GEMM computations via leveraging redundancy hidden among BS vectors; 2) BS-sparsity-enabled two-state coding (BSTC), which reduces weight access via exploiting significant sparsity in high-order bit-slice weight; 3) Bit-grained progressive prediction (BGPP), which reduces KV cache access by leveraging early-termination-based bit-grained prediction. These techniques, supported by custom accelerator designs, effectively alleviate the burden in GEMM, weight access, and KV cache access. Extensive experiments on 26 benchmarks show that MCBP achieves 9.43x speed up and 31.1x higher energy efficiency than Nvidia A100 GPU. Compared to SOTA Transformer accelerators, MCBP achieves 35x, 5.2x and 3.2x energy saving than Spatten, FACT and SOFA, respectively.

Figures

Figures reproduced from arXiv: 2509.10372 by Chao Li, Huizheng Wang, Jianxun Yang, Shaojun Wei, Shouyi Yin, Taiquan Wei, Yang Hu, Yang Wang, Yousheng Long, Zhiheng Yue, Zichuan Wang.

Figure 1
Figure 1. Figure 1: (a) Key bottleneck breakdown of end-to-end latency [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Top-𝑘 sparsity prediction for attention acceleration. weight and activation quantization for LLMs with up to 530B. In 2024, Atom [112] implements 8-bit KV cache quantization. Quan￾tization has become a prominent trend for deploying LLMs, sup￾ported by frameworks like TensorRT [66]. Thus, optimizing com￾pute and memory access for integer-quantized LLMs is an increas￾ingly critical topic. 2.2 Attention Spars… view at source ↗
Figure 4
Figure 4. Figure 4: Bit-level sparsity and repetition opportunities. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Challenges and our strategies for applying bit-level computing to computation-memory-efficient LLM inference. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The preparation and execution flow of MCBP. [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Bit-slice-repetitiveness-enabled computation for GEMM (BRCR). [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Bit-grained progressive top-𝑘 prediction (BGPP). 3.2 BS-Sparsity-enabled two-state Coding (BSTC) While numerous studies [28, 29, 62, 63, 73] have explored coding techniques for sparse weight compression, they largely focus on value-level sparsity, limiting their effectiveness. In contrast, BSTC exploits the key insight that quantized weights exhibit Gaussian￾like distribution [52], thus most non-zero weigh… view at source ↗
Figure 11
Figure 11. Figure 11: Illustration for quantization process in MCBP. [PITH_FULL_IMAGE:figures/full_fig_p007_11.png] view at source ↗
Figure 10
Figure 10. Figure 10: High-level block diagram for MCBP accelerator. [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 13

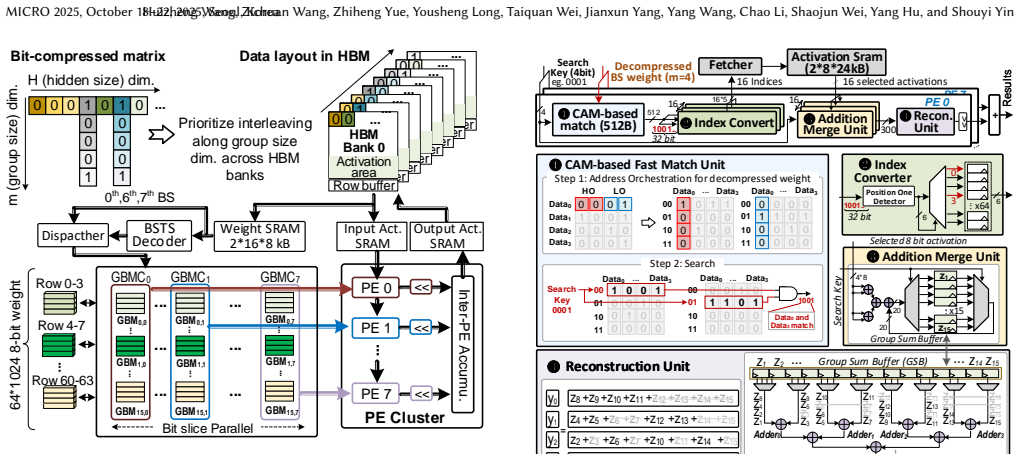

Figure 13. Figure 13: The bit-grained computation dataflow of MCBP. [PITH_FULL_IMAGE:figures/full_fig_p008_13.png] view at source ↗
Figure 16
Figure 16. Figure 16: shows the architecture of BGPP unit. First, 16 bit-serial inner product units compute Q (1*64) × K (64*16), each with a psum max < min > Clipping module Vital K indices A W63(bit) > > > ... > 1 0 1 0 0 0 1 1 0 1 0 ...1 0 1 1 A[0] A[1] A[3] Vital K indices: [0,2,6,…60,62,63] A[63] Radius (3) Clock-gated Progressive Filter Threshold Updating com Bit-serial based IP Unit + <<1 Neg X0 MSB? 0 1 ... x64 X63 W0(… view at source ↗
Figure 17
Figure 17. Figure 17: Normalized computation (prefill stage) and memory access (decoding stage) of LLM inference. 0 1 2 3 4 1 2 3 4 5 6 7 8 9 0 5 10 15 20 25 30 Compression Rate (CR) Group size (m) Comp Reduction (CPR) 0 1 2 3 4 1 2 3 4 5 6 7 8 9 0 5 10 15 20 25 30 Compression Rate (CR) Group size (m) Comp Reduction (CPR) Min comp reduce Max comp reduce Compression rate Optimal Balance Comp Reduction (CPR) Compression Rate (CR… view at source ↗
Figure 18
Figure 18. Figure 18: Design space exploration of the optimal group size [PITH_FULL_IMAGE:figures/full_fig_p010_18.png] view at source ↗
Figure 20
Figure 20. Figure 20: (a) Throughput and (b) energy efficiency gain of [PITH_FULL_IMAGE:figures/full_fig_p011_20.png] view at source ↗
Figure 22

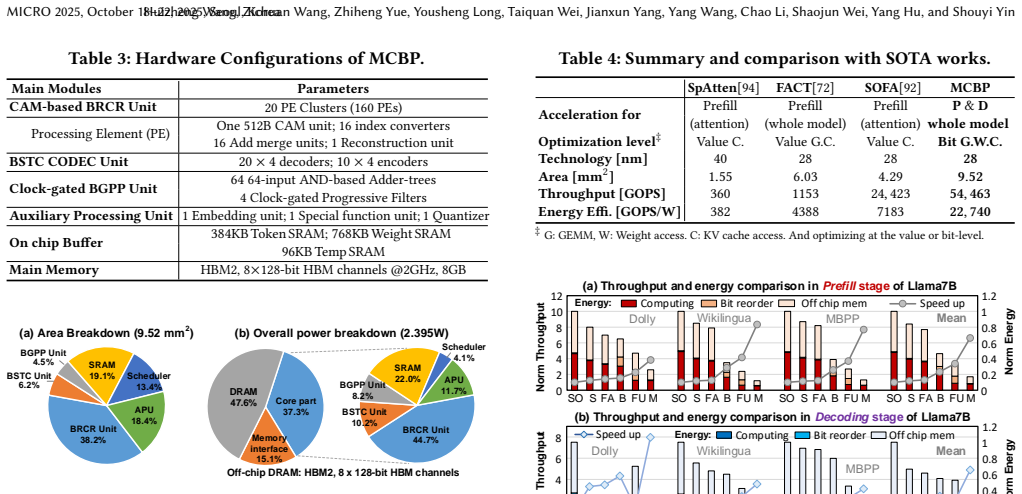

Figure 22. Figure 22: Area/Power of MCBP at TSMC 28nm, 1GHz. breakdown. Software-hardware co-design BRCR, TSBC and BGPP bring 4.24×, 2.98× and 2.44× efficiency gain, respectively. 5.4 Comparison with SOTA Accelerators [PITH_FULL_IMAGE:figures/full_fig_p012_22.png] view at source ↗
Figure 24
Figure 24. Figure 24: (a) Evaluation of MCBP’s optimization impact [PITH_FULL_IMAGE:figures/full_fig_p013_24.png] view at source ↗
Figure 26
Figure 26. Figure 26: Compared with SOTA INT4 accelerator. repetition, while in the decoding stage, it minimizes memory access through bit sparsity and bit-grained early termination. Value sparsity accelerator. Numerous accelerators [16, 21, 22, 24, 28–30, 39, 45, 49, 55, 56, 60, 62, 63, 71, 82, 86, 89, 100, 102, 107, 108, 110] exploit value sparsity to improve NNs performance. EIE [28] utilizes dynamic input and static weight… view at source ↗
