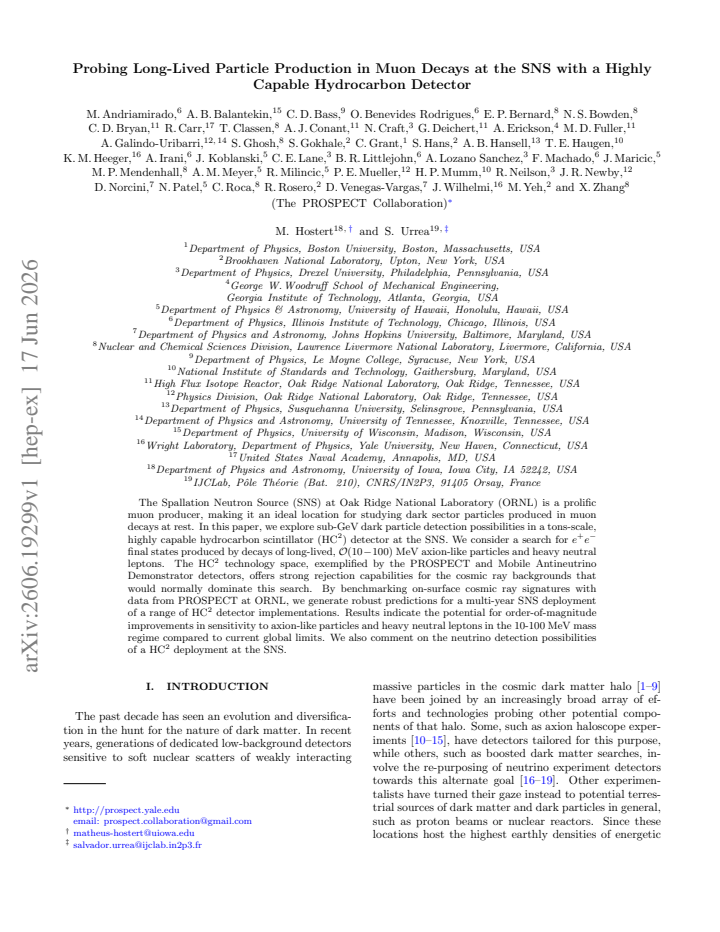

Probing Long-Lived Particle Production in Muon Decays at the SNS with a Highly Capable Hydrocarbon Detector
Pith reviewed 2026-06-26 18:33 UTC · model grok-4.3
The pith
A hydrocarbon scintillator at the SNS could improve sensitivity to 10-100 MeV axion-like particles and heavy neutral leptons by an order of magnitude.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Deploying a highly capable hydrocarbon (HC^2) detector at the SNS allows searches for e+e- final states from long-lived particle decays, achieving order-of-magnitude improvements in sensitivity to axion-like particles and heavy neutral leptons in the 10-100 MeV mass range compared to current global limits, with robust background predictions from PROSPECT data.
What carries the argument
The HC^2 hydrocarbon scintillator detector, which combines large mass with strong cosmic ray background rejection to identify e+e- pairs from long-lived dark particle decays.
If this is right
- Order-of-magnitude gains in sensitivity to axion-like particles and heavy neutral leptons.
- Multi-year operation yielding new constraints on dark sector models.
- Complementary neutrino detection capabilities at the SNS site.

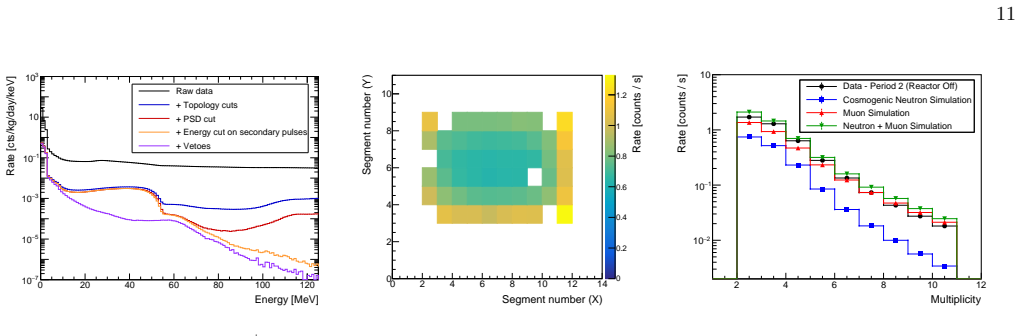

- Validated background rejection based on existing PROSPECT measurements.
Where Pith is reading between the lines
- Similar detector concepts could be applied at other high-intensity muon sources to cross-check results.
- The approach might extend to other decay channels or particle types not covered in the main analysis.
- Improved limits could indirectly constrain cosmological models involving these particles.
Load-bearing premise

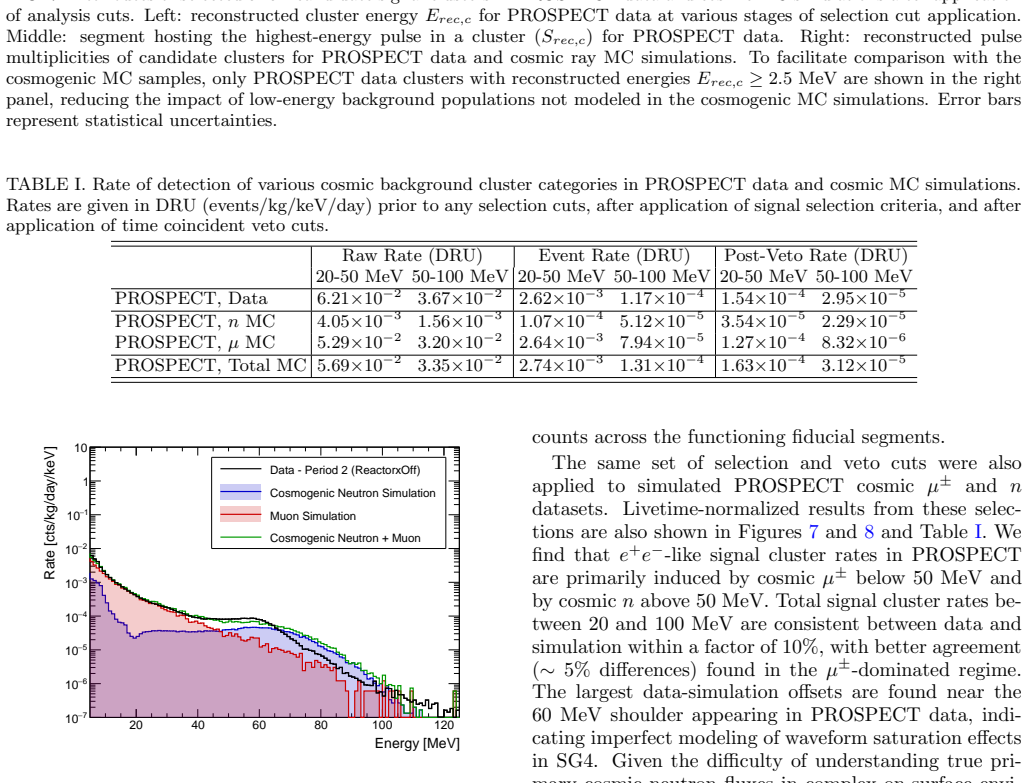

The cosmic ray background signatures measured by PROSPECT at ORNL accurately forecast the rejection performance of an HC^2 detector at the SNS.
What would settle it
Data from a prototype HC^2 detector at SNS showing cosmic ray rejection rates substantially worse than those extrapolated from PROSPECT, leading to no sensitivity improvement.
Figures
read the original abstract
The Spallation Neutron Source (SNS) at Oak Ridge National Laboratory (ORNL) is a prolific muon producer, making it an ideal location for studying dark sector particles produced in muon decays at rest. In this paper, we explore sub-GeV dark particle detection possibilities in a tons-scale, highly capable hydrocarbon scintillator ($HC^2$) detector at the SNS. We consider a search for $e^+e^-$ final states produced by decays of long-lived, $O(10-100)$ MeV axion-like particles and heavy neutral leptons. The $HC^2$ technology space, exemplified by the PROSPECT and Mobile Antineutrino Demonstrator detectors, offers strong rejection capabilities for the cosmic ray backgrounds that would normally dominate this search. By benchmarking on-surface cosmic ray signatures with data from PROSPECT at ORNL, we generate robust predictions for a multi-year SNS deployment of a range of $HC^2$ detector implementations. Results indicate the potential for order-of-magnitude improvements in sensitivity to axion-like particles and heavy neutral leptons in the 10-100 MeV mass regime compared to current global limits. We also comment on the neutrino detection possibilities of a $HC^2$ deployment at the SNS.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes deploying a tons-scale highly capable hydrocarbon scintillator (HC²) detector at the SNS to search for e⁺e⁻ final states from decays of long-lived O(10-100) MeV axion-like particles and heavy neutral leptons produced in muon decays at rest. It benchmarks on-surface cosmic-ray backgrounds using PROSPECT data taken at ORNL to project background rejection for a multi-year SNS run, claiming order-of-magnitude improvements in sensitivity relative to current global limits in the stated mass range, and briefly comments on neutrino detection prospects.
Significance. If the projected background suppression and sensitivity gains hold after site-specific validation, the work would open a new production channel for sub-GeV dark-sector searches at a high-intensity pulsed muon source and could meaningfully extend existing limits on ALPs and HNLs.
major comments (1)
- [Benchmarking and background model (referenced in abstract)] The central sensitivity projections rest on extrapolating cosmic-ray background rejection from PROSPECT data at the HFIR reactor site to an SNS deployment. The manuscript must demonstrate, with quantitative modeling, that differences in prompt neutron/gamma fluxes, shielding geometry, and the pulsed versus steady-state environment do not introduce unaccounted backgrounds in the 10-100 MeV e⁺e⁻ signal region; without this, the order-of-magnitude improvement claim is not yet load-bearing.
minor comments (1)
- Clarify the exact detector mass and run duration assumptions used for the sensitivity curves, as these appear among the free parameters.
Simulated Author's Rebuttal
We thank the referee for the careful review and constructive feedback. The major comment on background extrapolation is addressed point-by-point below. We agree that additional quantitative detail is warranted and will revise the manuscript accordingly.
read point-by-point responses
-
Referee: [Benchmarking and background model (referenced in abstract)] The central sensitivity projections rest on extrapolating cosmic-ray background rejection from PROSPECT data at the HFIR reactor site to an SNS deployment. The manuscript must demonstrate, with quantitative modeling, that differences in prompt neutron/gamma fluxes, shielding geometry, and the pulsed versus steady-state environment do not introduce unaccounted backgrounds in the 10-100 MeV e⁺e⁻ signal region; without this, the order-of-magnitude improvement claim is not yet load-bearing.
Authors: We thank the referee for this important observation. The manuscript benchmarks cosmic-ray backgrounds using PROSPECT data taken at ORNL, which shares the same geographic location and thus similar cosmic-ray flux as the SNS. The dominant backgrounds in the 10-100 MeV e⁺e⁻ region for an on-surface detector are indeed cosmic-ray induced, and the HC² detector's pulse-shape discrimination and timing capabilities are characterized directly from that data. The pulsed SNS beam provides an additional handle not available at the steady-state HFIR reactor: the muon production is prompt, allowing the long-lived particle decays (with ~2.2 μs muon lifetime) to be selected in a delayed window after the beam pulse, suppressing continuous cosmic backgrounds further. Prompt beam-related neutron/gamma fluxes at SNS are absent at HFIR; however, these can be mitigated by the same timing cuts and by the detector's ability to reject prompt activity. We acknowledge that the current text does not include explicit quantitative modeling (e.g., Monte Carlo estimates or flux comparisons drawn from published SNS and HFIR radiation surveys) of how these site differences affect the final background rate in the signal region. We will add such modeling, including rate estimates and the impact on sensitivity, to the revised manuscript. This will make the order-of-magnitude improvement claim more robust. revision: yes
Circularity Check
No significant circularity; sensitivity projections use independent PROSPECT data for extrapolation
full rationale
The paper derives its order-of-magnitude sensitivity claims for ALPs and HNLs by benchmarking cosmic-ray rejection on existing PROSPECT detector data collected at the ORNL HFIR site and then modeling performance for a new HC^2 deployment at the SNS. This constitutes an external data-driven extrapolation rather than any self-definitional loop, fitted subset renamed as prediction, or load-bearing self-citation of an unverified theorem. No equations or claims reduce by construction to the paper's own inputs; the central result remains dependent on real, independently collected experimental signatures outside the present analysis.
Axiom & Free-Parameter Ledger
free parameters (2)
- detector mass =
tons-scale
- run duration =
multi-year
axioms (2)
- domain assumption Muon decay at rest at the SNS produces long-lived particles in the dark sector with couplings that allow e+e- decays
- domain assumption PROSPECT data provides a reliable benchmark for cosmic ray backgrounds at the SNS location
