Collection, characterization, and precision measurement of levitated charged nanoparticles

B. E. Kane , Joyce Coppock , Sunghyun Kim , Sarah Westgate This is my paper

Pith reviewed 2026-06-29 01:05 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall physics.ins-det
keywords levitated nanoparticlesion trapcharge-to-mass ratioprecision measurementhigh vacuumelectrospraythermostatic control
0
0 comments X

The pith

Transferring nanoparticles to a separate high-vacuum analysis trap with thermostatic amplitude control enables Q/M measurements with precision approaching 10^{-5}.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes methods to generate charged nanoparticles by electrospray, collect them in an ion trap, characterize their thermal motion by imaging, and transfer them to a second trap. In the analysis trap at pressures around 10^{-8} Torr, thermostatic control stabilizes oscillation amplitudes for extended periods. This stability permits repeated frequency measurements from which the charge-to-mass ratio is extracted. The resulting precision reaches nearly one part in 10^5 and is presented as sufficient to begin surface-chemistry studies on micrometer-scale levitated objects.

Core claim

The authors establish that particle transfer to an isolated analysis trap at p ≃ 10^{-8} Torr, combined with active control of oscillation amplitude, permits long-term, low-noise frequency measurements from which Q/M can be deduced to a relative precision of approximately 10^{-5}.

What carries the argument

Two-trap architecture with transfer step: collection trap for electrospray loading and optical imaging, followed by transfer to analysis trap for high-vacuum thermostatic frequency metrology.

If this is right

  • Q/M precision near 10^{-5} is presented as adequate for surface-chemistry measurements on levitated micrometer particles.
  • Thermostatic amplitude control enables continuous frequency tracking over long intervals at 10^{-8} Torr.
  • Direct imaging of thermal motion in the collection trap provides rapid initial characterization before transfer.
  • The procedure separates particle generation from precision metrology to reduce noise.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If charge remains stable after transfer, repeated measurements could track slow mass changes from adsorption or reaction.
  • The dual-trap isolation technique could be applied to other trapped-particle systems that need to decouple loading from measurement environments.
  • Frequency stability at this level might support tests of whether surface forces or charge patches affect levitation dynamics.

Load-bearing premise

Moving the particle between traps improves vacuum and noise performance without changing its charge, mass, or introducing new instabilities.

What would settle it

Record Q/M of the same particle immediately before and after transfer; any systematic shift larger than 10^{-5} would falsify the claim that transfer preserves particle properties.

Figures

Figures reproduced from arXiv: 2606.27478 by B. E. Kane, Joyce Coppock, Sarah Westgate, Sunghyun Kim.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) COMSOL [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

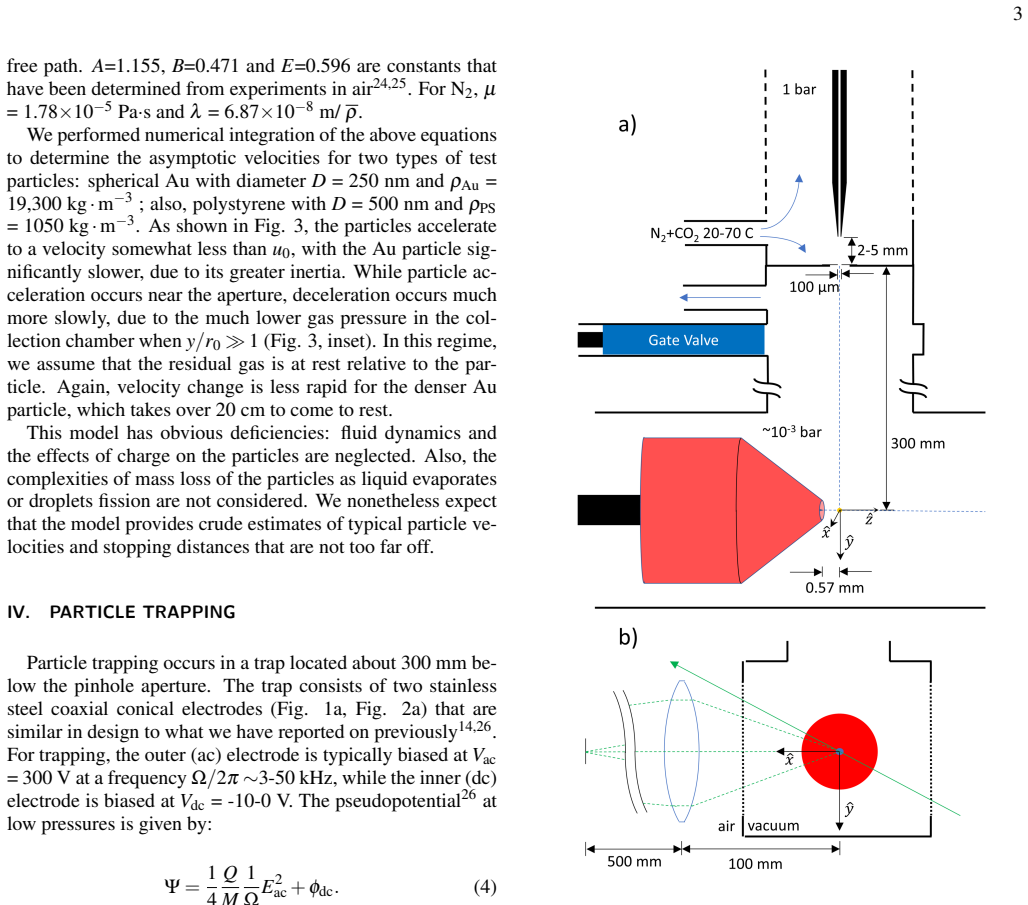

Figure 2
Figure 2. Figure 2: FIG. 2. (a) Particles are generated for collection in an ion trap by a Pt [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

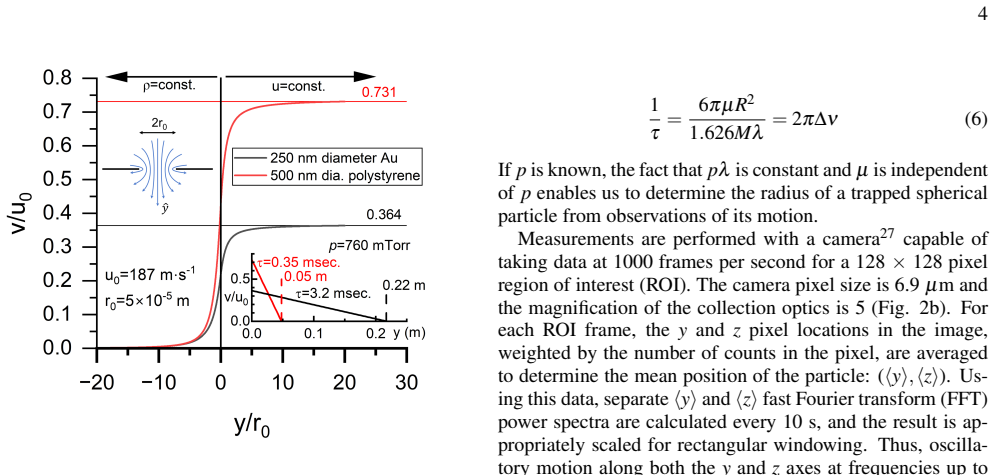

Figure 3
Figure 3. Figure 3: FIG. 3. Simple model of the acceleration and deceleration of a parti [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

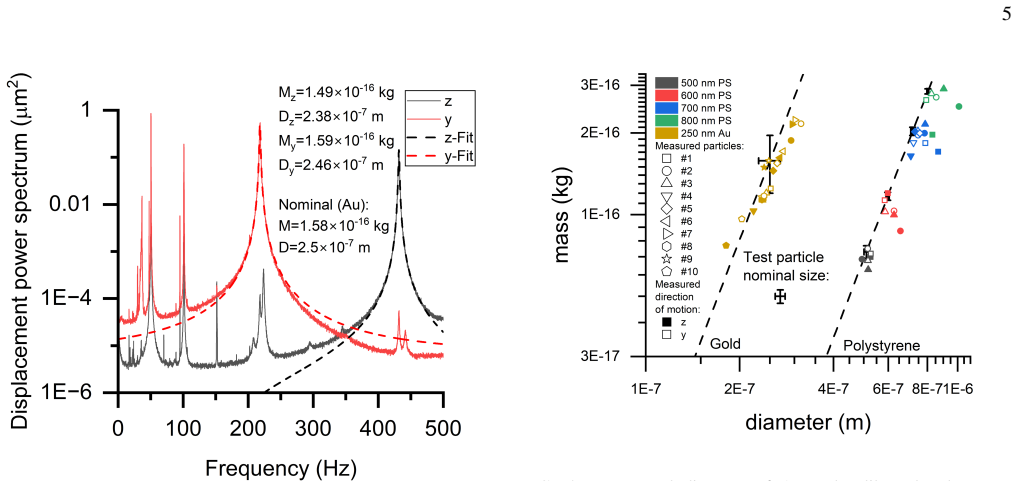

Figure 5
Figure 5. Figure 5: FIG. 5. Mass and diameter of Au and calibrated polystyrene [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

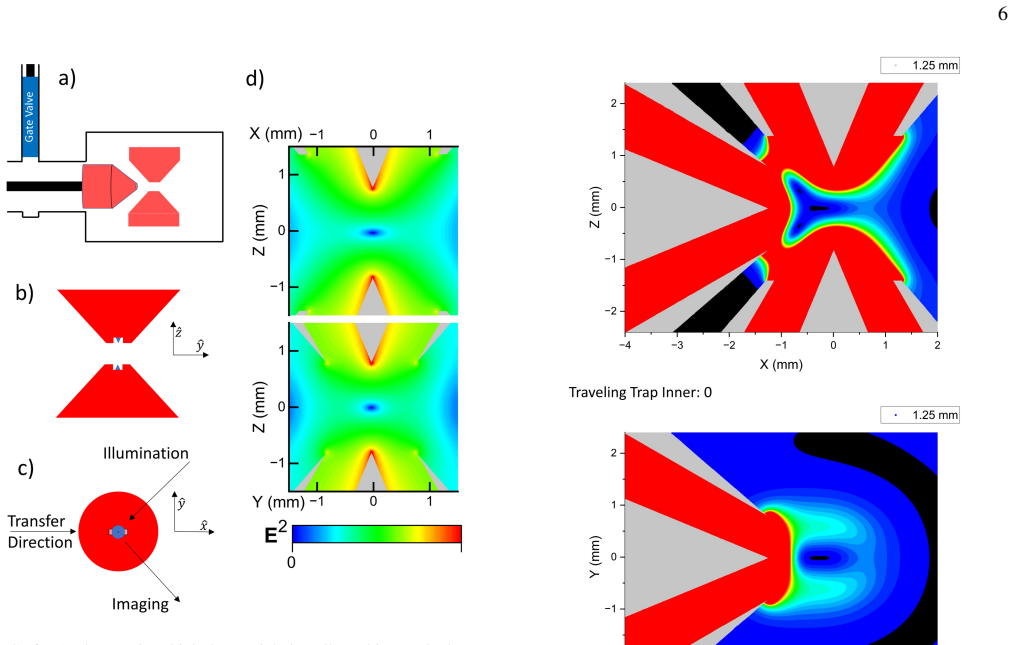

Figure 6
Figure 6. Figure 6: FIG. 6. (a) The trap in which the particle is collected is attached to a [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Spectra of motion of a particle transferred to the analysis trap. [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Schematic diagram of the optics and electronics used to measure and control oscillatory motion of a trapped particle. A lens (located [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. Photograph of the trap used for precision measurements of [PITH_FULL_IMAGE:figures/full_fig_p009_11.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. (a) Schematic depiction of the principle of parametric heat [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: c (inset)). This means that it is possible to take high precision data ranging from the ∼30 s response time indicated in Fig. 12a to long data sets encompassing hours of averaging taken over many days. For averaging times greater than ∼ 10 minutes, δ(Q/M)/⟨Q/M⟩ < 10−5 . Finally, to determine precisely the number of charges, n, on a particle by measuring the Q/M difference across m consec￾utive discharge (… view at source ↗
read the original abstract

We describe apparatus and experimental procedures for high stability precision measurements of levitated nanoscale particles confined in an ion trap in high vacuum. We discuss methods for particle generation and collection using electrospray emission, for rapid characterization by direct imaging of thermal motion, and for transfer of the particle from the trap where it is collected to a separate analysis trap in order to achieve better vacuum and lower noise. In the analysis trap at high vacuum (pressure $p\simeq10^{-8}$ Torr), we employ thermostatic control of the trapped particle oscillation amplitudes, allowing long-term, precision measurements of oscillation frequencies, from which the charge to mass ratio ($Q/M$) can be deduced. Under these conditions, we achieve $Q/M$ measurement precision approaching $10^{-5}$. This sensitivity will enable, for example, investigations of the surface chemistry of $\mu$m-scale levitated materials in ultra-high vacuum environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript describes apparatus and procedures for electrospray generation and collection of charged nanoparticles in an ion trap, rapid characterization via imaging of thermal motion, transfer to a separate analysis trap for improved vacuum (p ≃ 10^{-8} Torr), and long-term Q/M measurements via thermostatic control of oscillation amplitudes, claiming a resulting precision approaching 10^{-5}.

Significance. If the claimed precision is demonstrated with supporting data, the approach could enable new studies of surface chemistry on levitated μm-scale particles in UHV, extending capabilities in trapped nanoparticle experiments.

major comments (2)
  1. [Abstract] Abstract: The central claim of Q/M measurement precision approaching 10^{-5} is asserted without reference to any data, error bars, measurement statistics, frequency time series, or verification steps; this leaves the headline result unsupported by presented evidence.
  2. [Abstract / experimental procedures] Procedure description (transfer step): No pre- and post-transfer comparison of oscillation frequencies on the same particle is referenced to confirm that Q and M remain invariant during transfer from collection trap to analysis trap; any charge exchange or mechanical perturbation would directly undermine the target precision.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their comments. We address each major point below and indicate planned revisions.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim of Q/M measurement precision approaching 10^{-5} is asserted without reference to any data, error bars, measurement statistics, frequency time series, or verification steps; this leaves the headline result unsupported by presented evidence.

    Authors: The body of the manuscript presents the supporting data, including frequency time series, error bars, and statistical analysis in Section 4 and Figure 5 that establish the reported precision. We will revise the abstract to include an explicit reference to this section and figure. revision: yes

  2. Referee: [Abstract / experimental procedures] Procedure description (transfer step): No pre- and post-transfer comparison of oscillation frequencies on the same particle is referenced to confirm that Q and M remain invariant during transfer from collection trap to analysis trap; any charge exchange or mechanical perturbation would directly undermine the target precision.

    Authors: We agree that explicit verification of Q/M invariance during transfer is important to support the target precision. The current manuscript does not include such pre- and post-transfer comparisons. We will add these data for multiple particles in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental procedure paper with no derivations or fitted predictions

full rationale

The manuscript describes apparatus, particle generation via electrospray, imaging-based characterization, trap transfer for vacuum improvement, thermostatic amplitude control, and frequency measurements to deduce Q/M. No equations, ansatzes, uniqueness theorems, or parameter fits appear that could reduce a claimed result to its own inputs by construction. The 10^{-5} precision is presented as an achieved experimental outcome under stated conditions, not as a derived prediction. Self-citations (if any) are irrelevant because no load-bearing theoretical claim depends on them. This is a standard non-circular experimental methods paper.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No mathematical model, free parameters, or new physical entities are introduced in the abstract; the work is purely experimental description.
