arxiv: 2606.21357 · v2 · pith:UKBTS2FMnew · submitted 2026-06-19 · 🪐 quant-ph · physics.atom-ph

Quantum Beam-Splitter Cooling and Thermometry in Large Trapped-Ion Crystals

Kirthik Rajakumar , Ansh Das , Abhinay Pandey , Athreya Shankar This is my paper

Pith reviewed 2026-07-01 07:15 UTC · model grok-4.3

classification 🪐 quant-ph physics.atom-ph
keywords quantum beam-splitter coolingtrapped ionscenter-of-mass modesideband coolingquantum thermometrycollective spinion crystals
0
0 comments X

The pith

A red sideband drive implements a beam-splitter SWAP between the center-of-mass mode and collective ion spins to cool large trapped-ion crystals near ground state when thermal occupation is small compared to ion number.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes quantum beam-splitter cooling for the center-of-mass mode in large ion crystals. When the initial thermal occupation is much smaller than the number of ions, a red sideband drive swaps the mode's state with the collective spin treated as a harmonic oscillator. Resetting the spins then removes the entropy, achieving near-ground-state cooling. The same SWAP allows thermometry by measuring ion populations, approaching optimal quantum limits. The work examines effects of imperfections like off-resonant drives and spectator modes.

Core claim

When the initial mean thermal occupation of the mode is small compared to the number of ions, a red sideband drive implements a beam-splitter type SWAP operation between the mode and the collective spin of the N ions, with the latter effectively serving as a quantum harmonic oscillator. Subsequently, a reset of the spins removes the entropy, leading to near-ground state cooling of the c.m. mode. Measuring the population statistics of the ions at the end of the SWAP enables near-optimal quantum beam-splitter thermometry.

What carries the argument

The beam-splitter type SWAP operation under red sideband drive between the center-of-mass mode and the collective spin of the ions.

If this is right

  • Near-ground state cooling is achieved when initial mean thermal occupation is much smaller than ion number.
  • Ion population statistics after the SWAP yield classical Fisher information approaching the quantum Fisher information for a thermal state.
  • Finite ion number, off-resonant carrier and blue-sideband drives, and spectator-mode sidebands limit the final temperature.
  • Practical strategies exist to eliminate the unwanted carrier drive contribution.
  • The protocol connects to continuous sideband cooling and to a rapid adiabatic passage thermometry scheme.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The SWAP-plus-reset sequence could be repeated multiple times to reach lower temperatures even when initial occupation is not small compared to ion number.
  • The collective-spin thermometry readout might be integrated with existing ion-trap quantum computing gates without additional hardware.
  • Similar many-body swap cooling could be tested in other systems where a bosonic mode couples to a large spin ensemble.

Load-bearing premise

The collective spin of the N ions can be treated as an effective quantum harmonic oscillator that undergoes a clean beam-splitter SWAP with the center-of-mass mode under the red sideband drive.

What would settle it

An experiment that applies one cycle of the red sideband drive followed by spin reset and measures whether the final mean occupation of the center-of-mass mode drops by the factor expected from a thermal-state swap with N oscillators.

Figures

Figures reproduced from arXiv: 2606.21357 by Abhinay Pandey, Ansh Das, Athreya Shankar, Kirthik Rajakumar.

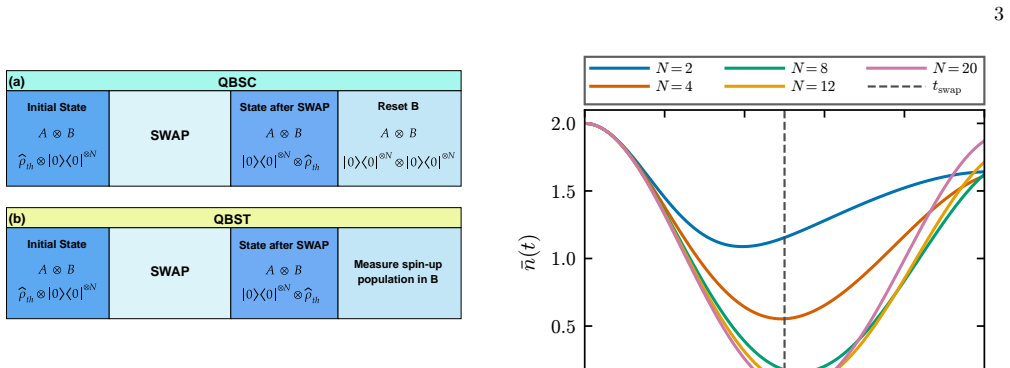

Figure 1
Figure 1. Figure 1: FIG. 1. Schematic of the two QBS protocols. Both begin from [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

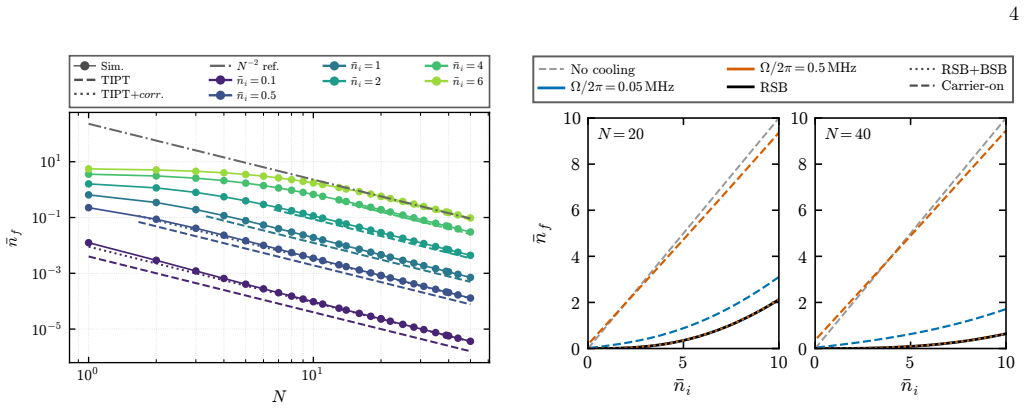

Figure 4
Figure 4. Figure 4: shows ¯nf versus ¯ni for N = 20, 40 ions for the three simulation protocols described above. First, we fix Ω = 0.05 MHz and η = 0.1, and simulate only the RSB and RSB+BSB protocols, shown as the solid and dot￾ted lines in the two panels of [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Final mean phonon occupation ¯n [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

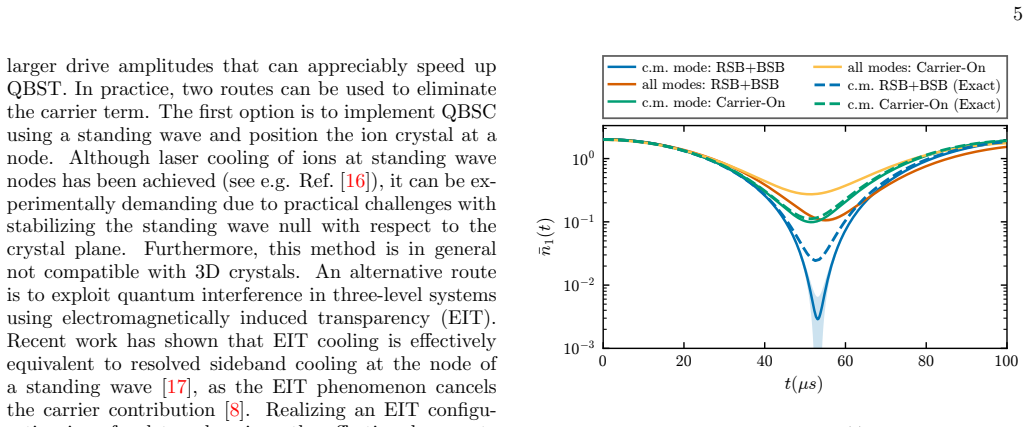

Figure 5
Figure 5. Figure 5: summarizes our study of the impact of spec￾tator modes on QBSC. We first benchmark the perfor￾mance of the TWA (solid lines) for the c.m. mode-only dynamics, where numerically exact solutions are possible (dashed lines). In the RSB+BSB case, the TWA sim￾ulations (blue solid) closely follow the exact dynamics (blue dashed) except in the vicinity of t = tswap, where it underestimates the final thermal occupa… view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Mean phonon occupation ¯n [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

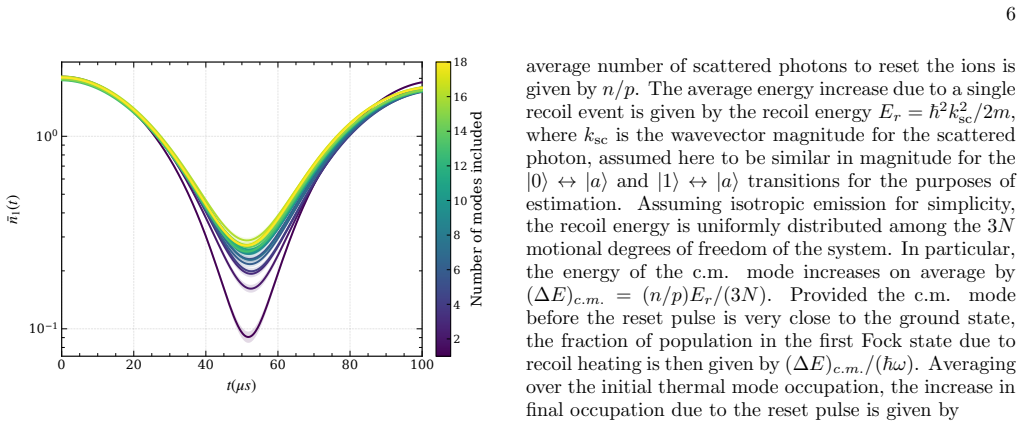

Figure 6
Figure 6. Figure 6: FIG. 6. Mean occupation number of the c.m. mode under the [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

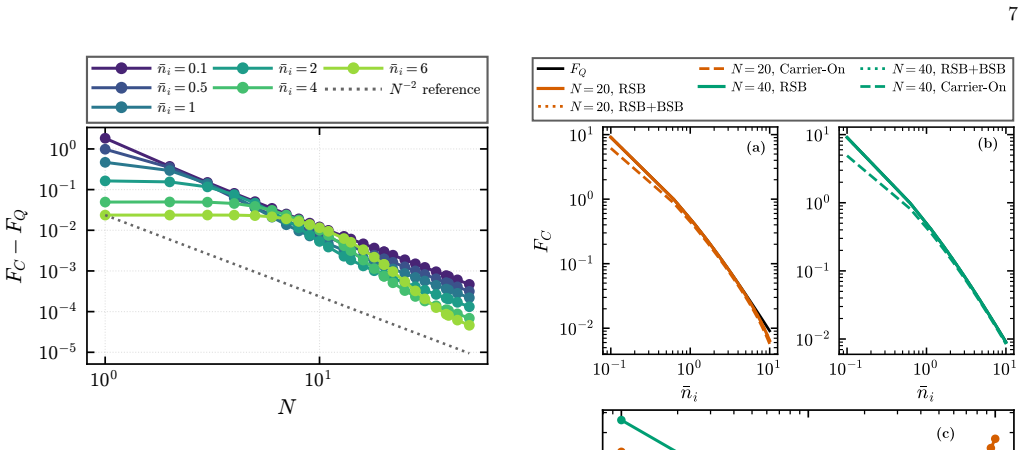

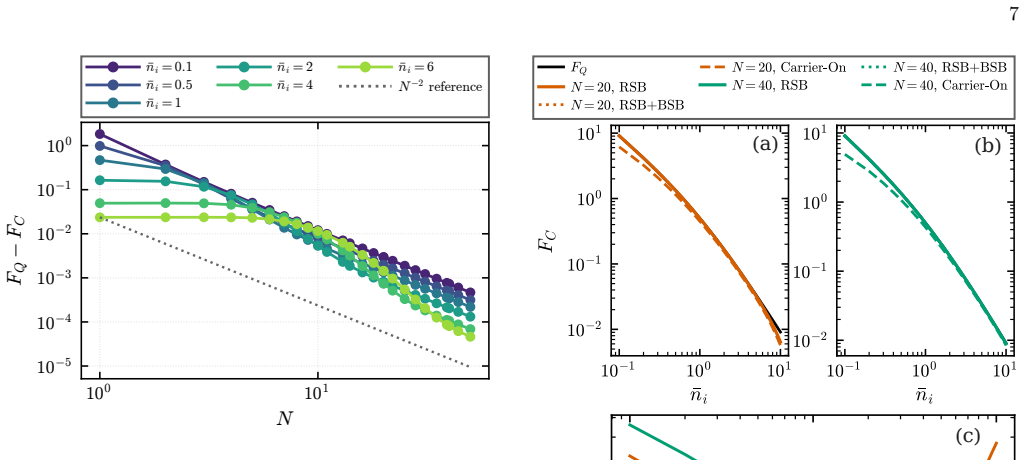

Figure 7
Figure 7. Figure 7: FIG. 7. CFI - QFI difference ( [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

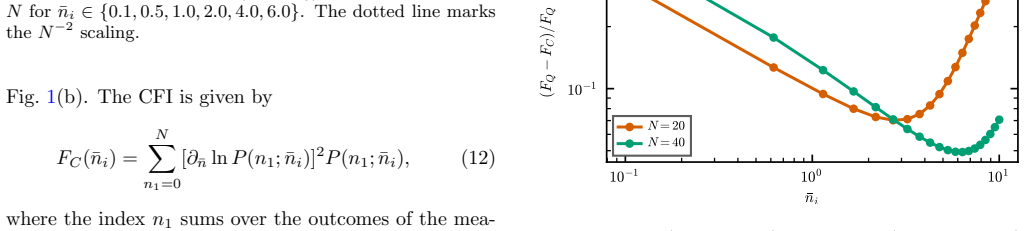

Figure 8
Figure 8. Figure 8: FIG. 8. CFI [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. ¯n [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗

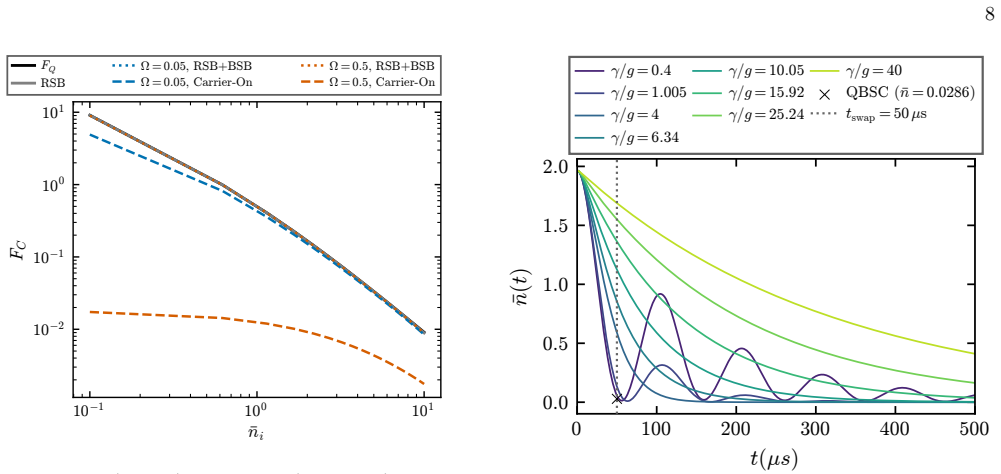

Figure 9
Figure 9. Figure 9: FIG. 9. CFI [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗

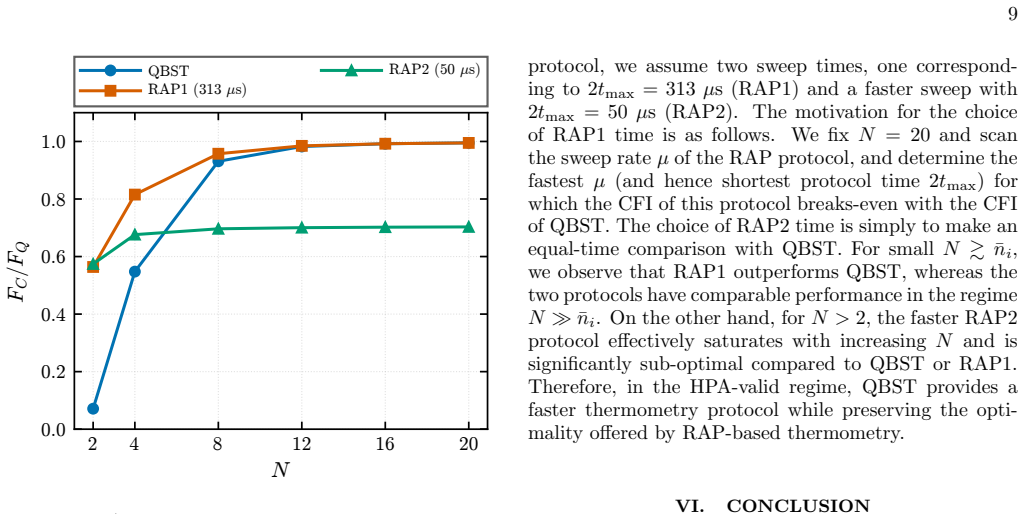

Figure 11
Figure 11. Figure 11: summarizes a comparison of the two proto￾cols. We assume ¯ni = 2 and study the ratio of FC /FQ for the two protocols as a function of N. In both cases, we neglect off-resonant carrier and BSB terms as well as spectator modes. We assume that the SWAP op￾eration of QBST takes tswap = 50 µs. For the RAP protocol, we assume two sweep times, one correspond￾ing to 2tmax = 313 µs (RAP1) and a faster sweep with 2… view at source ↗

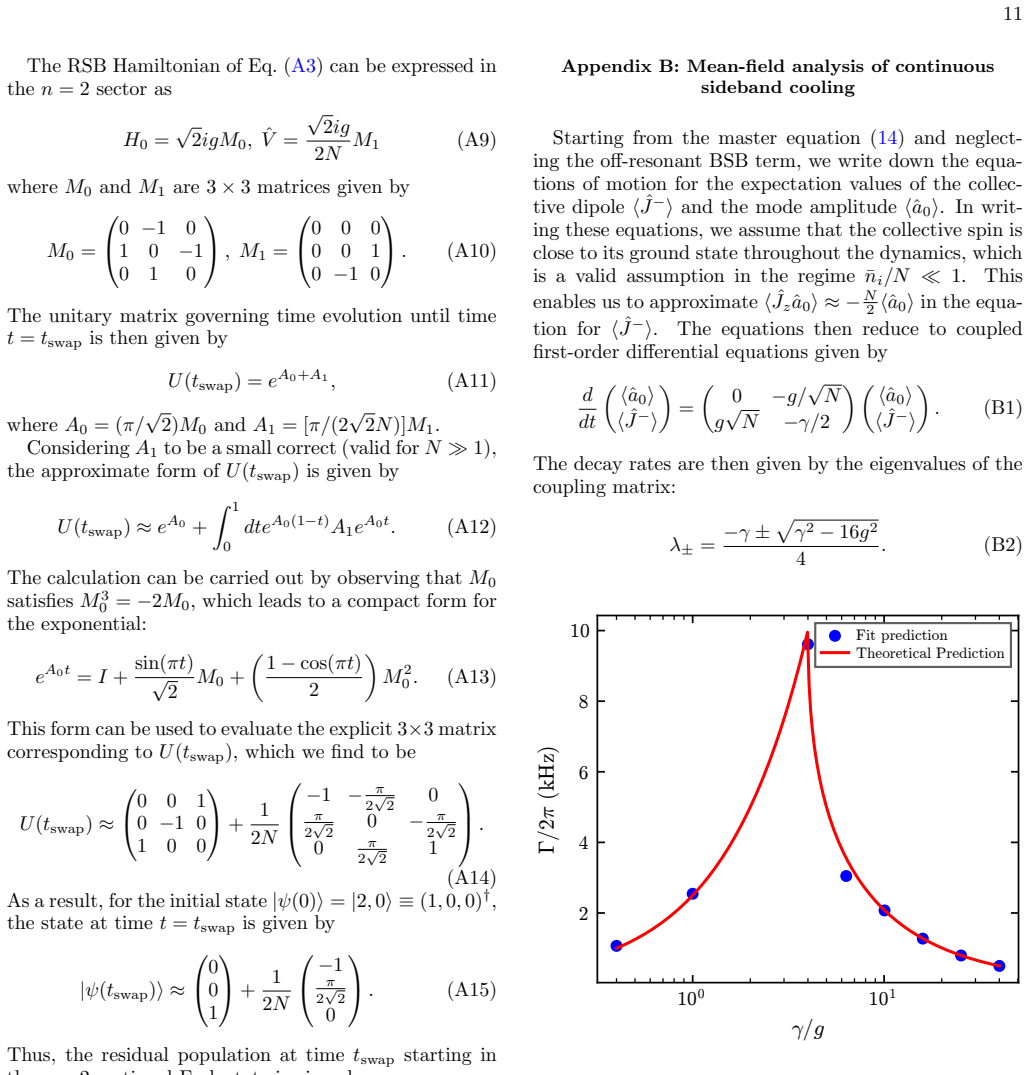

Figure 12
Figure 12. Figure 12: FIG. 12. Population decay rate Γ from single-exponential fits [PITH_FULL_IMAGE:figures/full_fig_p012_12.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12. Population decay rate Γ from single-exponential fits [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗
read the original abstract

We propose and characterize a protocol for rapid near-ground state cooling of the center-of-mass (c.m.) mode of a large trapped ion crystal. When the initial mean thermal occupation of the mode $\bar{n}_i$ is small compared to the number of ions $N$, a red sideband drive implements a beam-splitter type SWAP operation between the mode and the collective spin of the $N$ ions, with the latter effectively serving as a quantum harmonic oscillator. Subsequently, a reset of the spins removes the entropy, leading to near-ground state cooling of the c.m. mode. We term this protocol as quantum beam-splitter cooling (QBSC). We analyze the impact of several practical imperfections on the final temperature achievable under QBSC, including finite ion number, off-resonant carrier and blue-sideband contributions, and the impact of the sideband drives arising from spectator modes. In addition, we outline practical strategies to eliminate the carrier drive. Furthermore, we show that measuring the population statistics of the ions at the end of the SWAP operation can enable near-optimal quantum beam-splitter thermometry (QBST), with the classical Fisher information approaching the quantum Fisher information of a thermal state. We discuss the connection of QBSC with continuous sideband cooling and compare QBST with a recently proposed rapid adiabatic passage-based thermometry scheme. Our work constitutes an example of harnessing many-body effects to open new routes to laser cooling and thermometry in large trapped ion crystals.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes quantum beam-splitter cooling (QBSC) for the center-of-mass mode of large trapped-ion crystals. When the initial mean phonon number ar{n}_i ≪ N, a red-sideband drive realizes an effective beam-splitter SWAP between the mode and the collective spin (mapped to a bosonic mode via Holstein-Primakoff), after which optical pumping resets the spins and removes entropy. The authors analyze the effects of finite N, off-resonant carrier and blue-sideband terms, and spectator-mode drives, outline carrier-suppression strategies, and show that post-SWAP ion population statistics enable near-optimal quantum beam-splitter thermometry (QBST) whose classical Fisher information approaches the quantum Fisher information of a thermal state. They compare QBSC to continuous sideband cooling and QBST to rapid-adiabatic-passage thermometry.

Significance. If the Holstein-Primakoff mapping and error budgets are shown to be quantitatively controlled, the protocol supplies a many-body route to rapid, near-ground-state cooling and thermometry that scales favorably with crystal size and could be integrated with existing trapped-ion hardware for quantum simulation and metrology.

major comments (2)
  1. [Abstract and finite-ion-number analysis section] The central claim rests on the red-sideband Tavis-Cummings interaction producing dynamics indistinguishable from a bosonic beam-splitter when ar{n}_i ≪ N. The manuscript must therefore quantify the accumulated O(1/N) corrections from the Holstein-Primakoff expansion (S^- ≈ √N b + higher-order terms) over the finite-duration SWAP pulse, including any transient population of states where the approximation degrades. The finite-N analysis mentioned in the abstract should report the residual mean occupation after spin reset as a function of N and ar{n}_i, with explicit bounds showing it remains ≪ 1 for the targeted parameter regime.
  2. [QBST section] The thermometry claim states that the classical Fisher information extracted from ion population statistics approaches the quantum Fisher information of the thermal state. This requires an explicit comparison (e.g., a plot or table) of the two quantities versus ar{n}_i and N, together with the measurement model used to obtain the classical FI; without these data the “near-optimal” assertion cannot be verified.
minor comments (2)
  1. [Introduction or theory section] Notation for the collective spin operators and the effective bosonic mode should be introduced with a clear mapping equation at first use.
  2. [Abstract] The abstract refers to “practical strategies to eliminate the carrier drive” but does not list them; a short enumerated list in the main text would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and agree that additional explicit quantification will strengthen the presentation.

read point-by-point responses

  1. Referee: [Abstract and finite-ion-number analysis section] The central claim rests on the red-sideband Tavis-Cummings interaction producing dynamics indistinguishable from a bosonic beam-splitter when ar{n}_i ≪ N. The manuscript must therefore quantify the accumulated O(1/N) corrections from the Holstein-Primakoff expansion (S^- ≈ √N b + higher-order terms) over the finite-duration SWAP pulse, including any transient population of states where the approximation degrades. The finite-N analysis mentioned in the abstract should report the residual mean occupation after spin reset as a function of N and ar{n}_i, with explicit bounds showing it remains ≪ 1 for the targeted parameter regime.

    Authors: We agree that a more quantitative treatment of the O(1/N) corrections accumulated during the finite-duration SWAP is needed to fully substantiate the central claim. In the revised manuscript we will add an explicit calculation of the residual mean occupation after the SWAP and subsequent spin reset, presented as a function of both N and ar{n}_i, together with analytic bounds demonstrating that the residual remains ≪ 1 throughout the targeted regime ar{n}_i ≪ N. We will also include a brief discussion of transient population in states where the Holstein-Primakoff approximation is least accurate. revision: yes

  2. Referee: [QBST section] The thermometry claim states that the classical Fisher information extracted from ion population statistics approaches the quantum Fisher information of the thermal state. This requires an explicit comparison (e.g., a plot or table) of the two quantities versus ar{n}_i and N, together with the measurement model used to obtain the classical FI; without these data the “near-optimal” assertion cannot be verified.

    Authors: We accept that an explicit side-by-side comparison is required to support the “near-optimal” claim. In the revised version we will include a figure (or table) that directly compares the classical Fisher information obtained from the post-SWAP ion population statistics against the quantum Fisher information of the corresponding thermal state, plotted versus both ar{n}_i and N. The measurement model (projective readout of the collective spin populations) will be stated explicitly in the caption and surrounding text. revision: yes

Circularity Check

0 steps flagged

No circularity: proposal rests on standard Tavis-Cummings + Holstein-Primakoff mapping

full rationale

The paper's central claim is that a red-sideband drive on the Tavis-Cummings Hamiltonian produces an effective beam-splitter SWAP when ar n_i << N, followed by spin reset. This mapping is introduced via the conventional Holstein-Primakoff expansion S^- ≈ √N b (leading order), which is an external approximation from quantum optics literature and is not derived from or fitted to the paper's own results. Subsequent analysis of finite-N corrections, off-resonant terms, and spectator modes proceeds by direct expansion or numerical simulation of the same Hamiltonian; none of these steps rename a fitted parameter as a prediction or close a self-citation loop. No load-bearing self-citations appear in the provided text, and the thermometry Fisher-information comparison is likewise a direct calculation on the thermal state. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the domain assumption that the collective spin behaves as an effective harmonic oscillator under sideband driving and that spin reset can be performed independently of the mode. No free parameters or new entities are introduced in the abstract.

axioms (2)
  • domain assumption The collective spin of the N ions can be treated as an effective quantum harmonic oscillator for the beam-splitter interaction
    Explicitly stated in the abstract as the basis for the SWAP operation.
  • domain assumption A reset of the spins removes the entropy transferred from the c.m. mode
    Core step of the cooling protocol described in the abstract.
