General circuit mapping algorithm for neutral atom quantum computers

Neven Gentil , Lous S. Rianne , Aida Todri-Sanial This is my paper

Pith reviewed 2026-06-26 16:46 UTC · model grok-4.3

classification 🪐 quant-ph
keywords neutral atom quantum computersqubit mappingcircuit compilationgenetic algorithmcombinatorial optimizationgraph theoryquantum hardware mapping
0
0 comments X

The pith

Graph optimization framework maps circuits to neutral atom computers with fewer qubit transfers than prior methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a mathematical framework using graph theory to minimize the physical movements of qubits required to execute quantum circuits on neutral atom platforms. It formulates the mapping task as a nonlinear integer program that accounts for hardware zones and multi-qubit gates, then applies a genetic algorithm to find solutions that trade off total distance traveled against the number of parallel transfer steps. A reader would care because fewer transfers mean fewer opportunities for errors and more efficient use of the hardware's parallelism in moving atoms. The approach claims consistent improvements over existing compilers for zoned architectures.

Core claim

The central claim is that modeling the qubit mapping problem for neutral atom quantum computers as a graph-theoretic combinatorial optimization problem, which captures zone-limited gate operations and multi-qubit gates, and then solving the resulting nonlinear integer program with a genetic algorithm, produces mappings that require fewer transfers than the state-of-the-art scalable compiler, while allowing optimization either for shorter total traveled distances or for fewer parallel transfer operations.

What carries the argument

A graph-theoretic combinatorial optimization model encoded as a nonlinear integer program and solved using a genetic algorithm to minimize qubit transfers under spatial constraints.

If this is right

  • Mappings can be generated that reduce movement-induced errors on NAQC devices.
  • Atom transfer parallelism can be better exploited depending on the chosen optimization focus.
  • Execution efficiency improves through hardware-aware compilation.
  • Theoretical guarantees support identification of the minimal number of required transfers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same graph model could be adapted to evaluate zoning choices during hardware design.
  • Testing the solver on circuits larger than those in the benchmarks would reveal where the genetic algorithm stops scaling well.
  • Similar combinatorial encoding might apply to other platforms that move qubits between fixed interaction sites.

Load-bearing premise

The genetic algorithm reliably finds mappings that are near-optimal or better than prior methods for realistic circuit sizes and hardware constraints.

What would settle it

A side-by-side run on the same benchmark circuits where the new method requires more transfers than the prior compiler on any instance would falsify the performance claim.

Figures

Figures reproduced from arXiv: 2606.20503 by Aida Todri-Sanial, Lous S. Rianne, Neven Gentil.

Figure 1

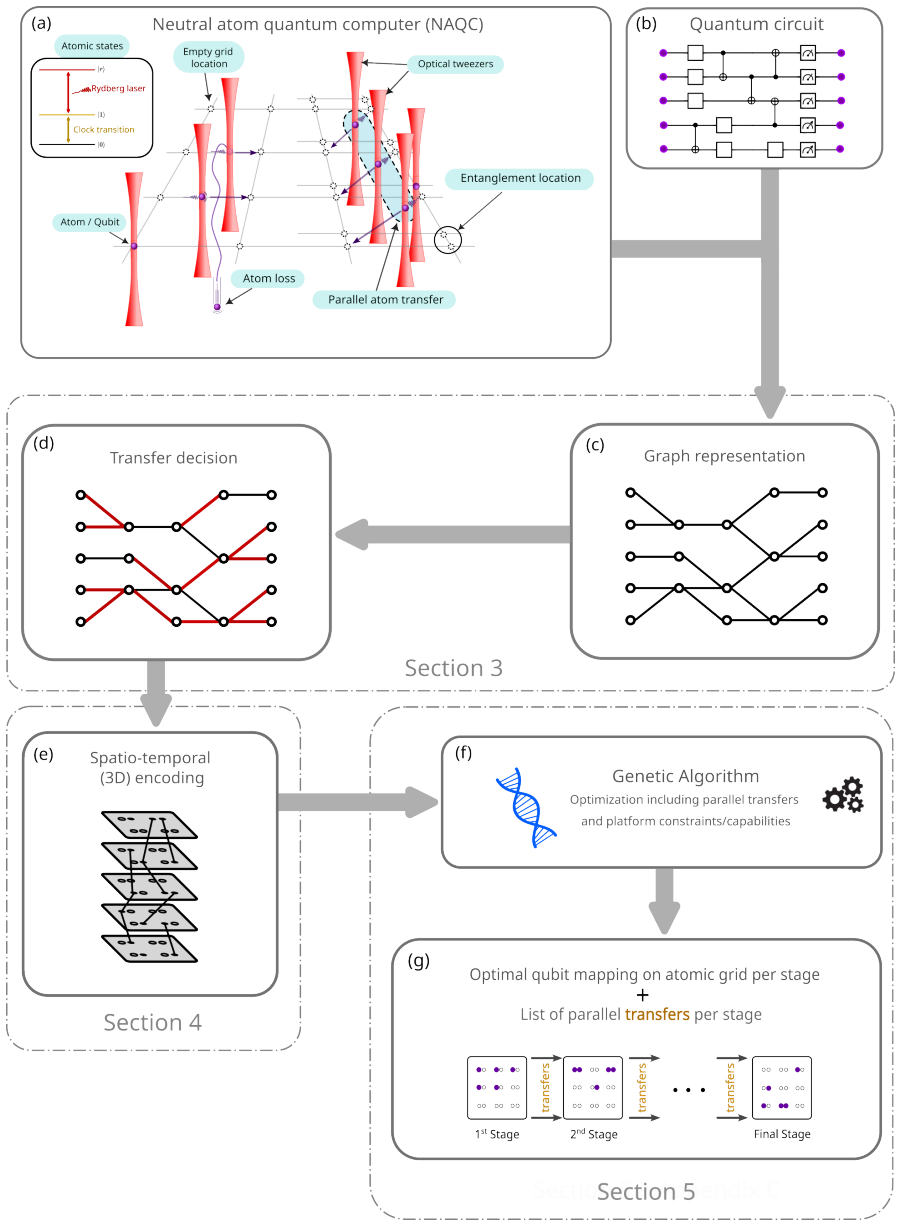

Figure 1. Figure 1: Schematic overview of the proposed mapper algorithm. Given a specific neutral atom platform (a) and a [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

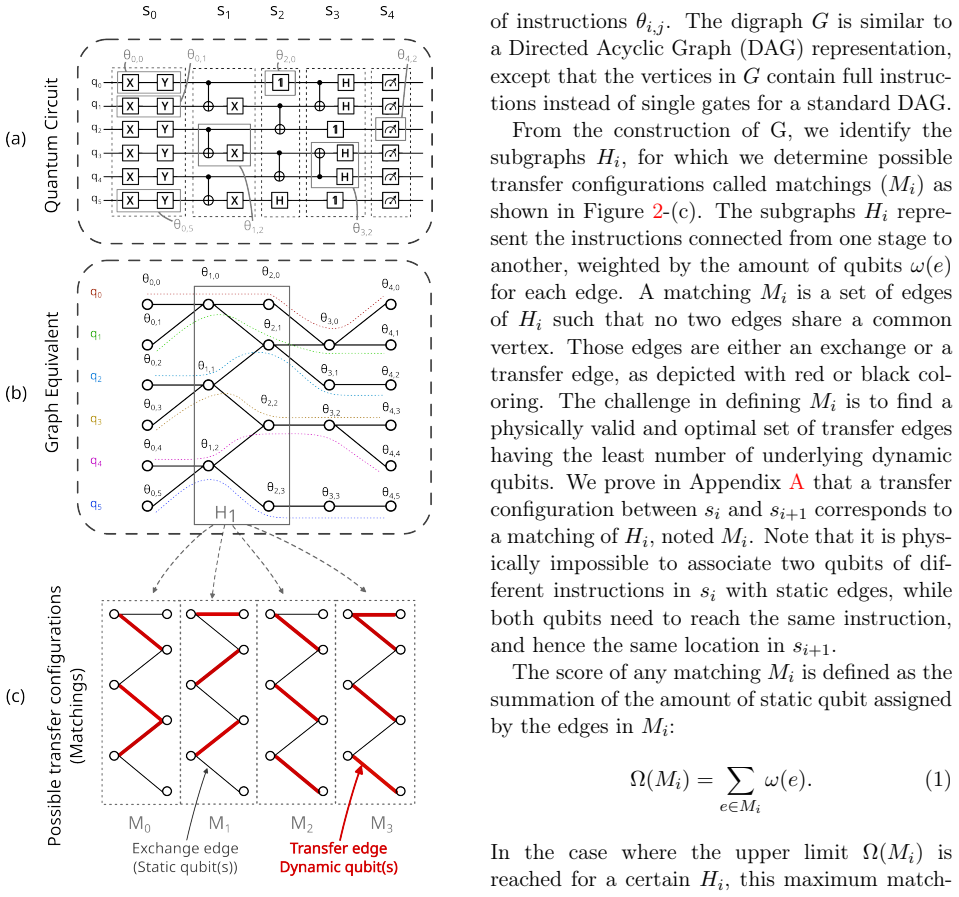

Figure 2
Figure 2. Figure 2: Example of quantum circuit transformed into [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

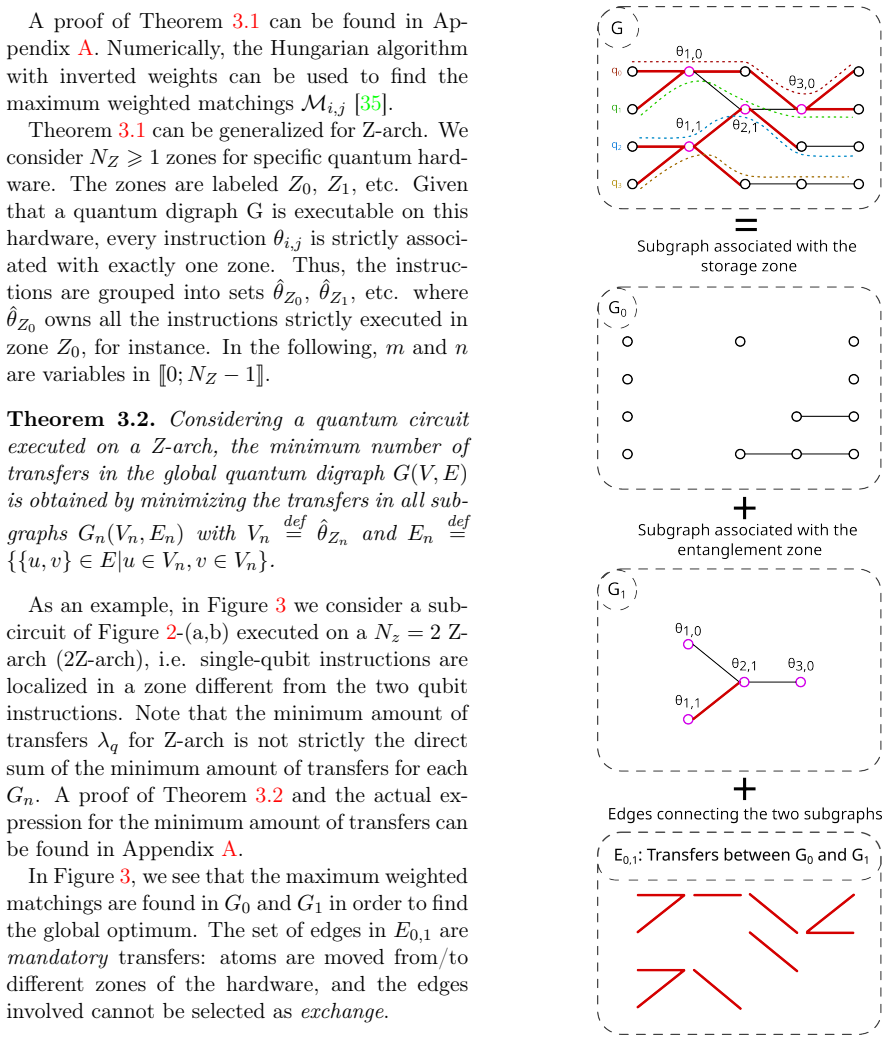

Figure 3. Figure 3: Decomposition of part of the quantum cir [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

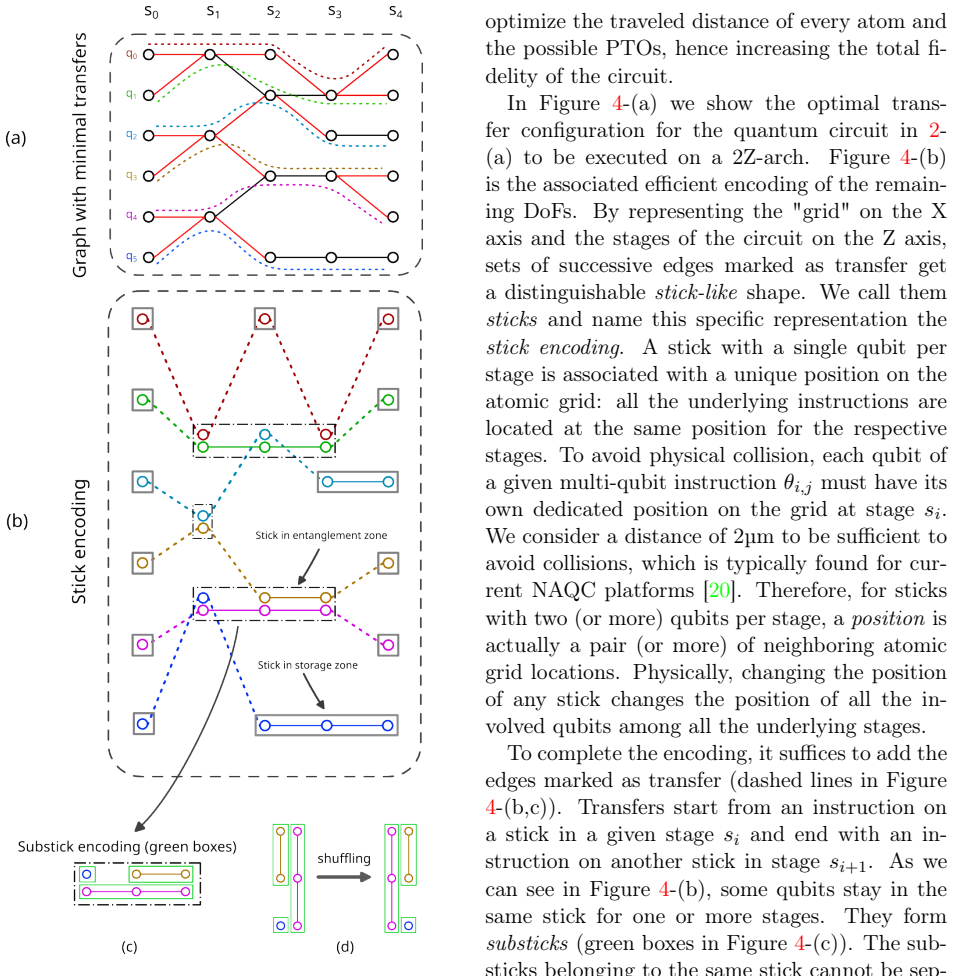

Figure 4. Figure 4: Transforming the graph representation into [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

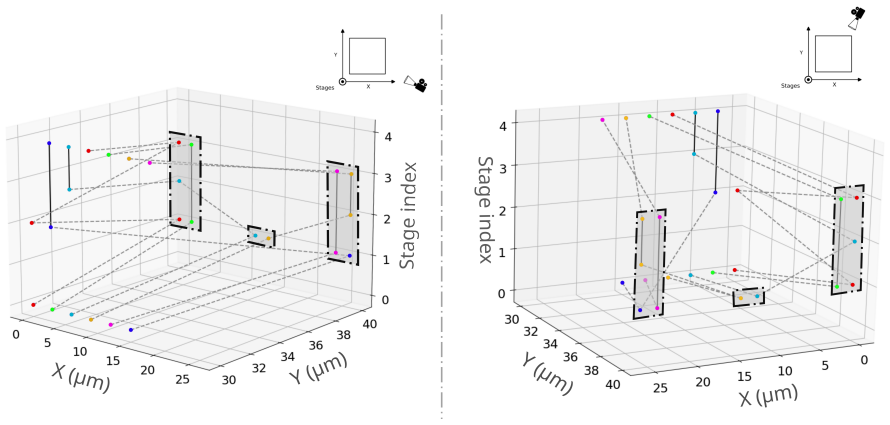

Figure 5
Figure 5. Figure 5: A 3D view of the stick encoding described in Figure [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

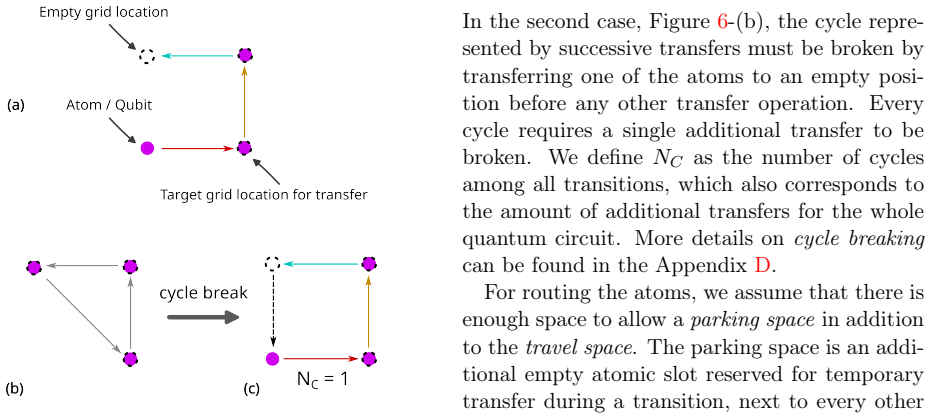

Figure 6. Figure 6: Simple GT without cycle (a), with cycle (b), and once the cycle is broken (c). The atoms are pur￾ple dots. The ending positions are dashed black circles. The transfers are represented by directed edges / arrows. In sub-figure (a), the time-ordered sequence of transfers is: cyan edge, gold edge and red edge. Sub-figure (b) is a simple example of GT where the unique path is a cycle. The edges are gray: no tr… view at source ↗

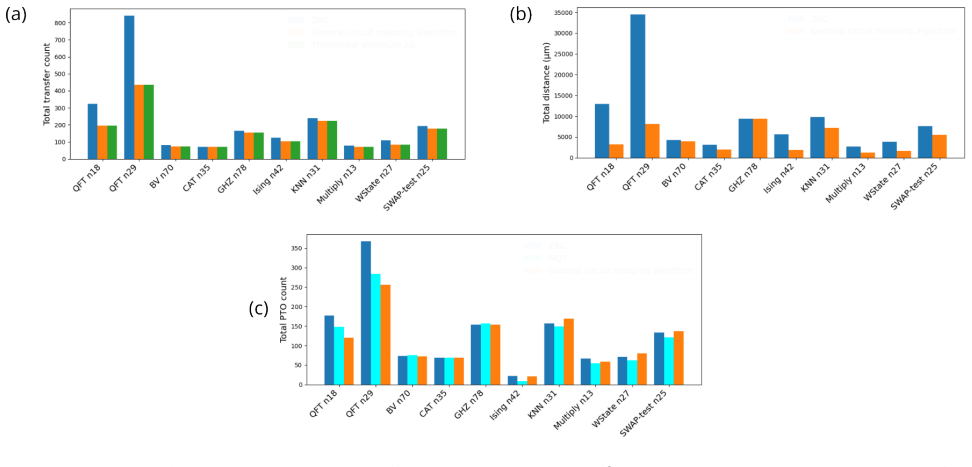

Figure 7
Figure 7. Figure 7: Results of the benchmark for ten different quantum circuits. Our mapping algorithm is in orange, ZAC is [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8

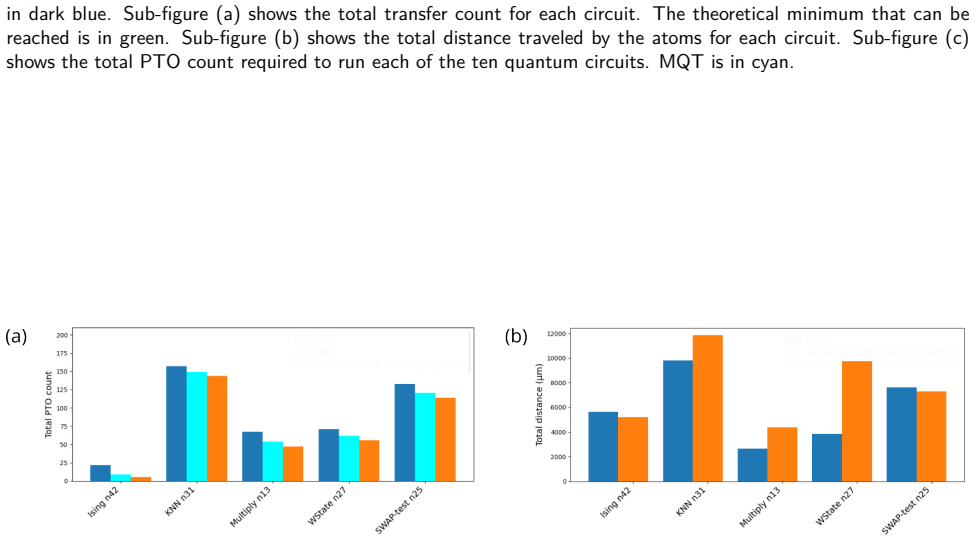

Figure 8. Figure 8: Benchmark results for different GA parameters. For Ising circuit, the GA is not executed. For KNN, [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗

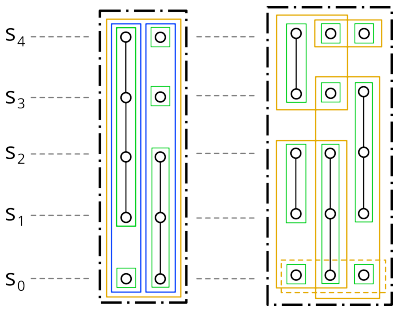

Figure 9
Figure 9. Figure 9: The dashed black box on the left is an example of stick where the substicks are represented as green boxes. [PITH_FULL_IMAGE:figures/full_fig_p017_9.png] view at source ↗
Figure 11

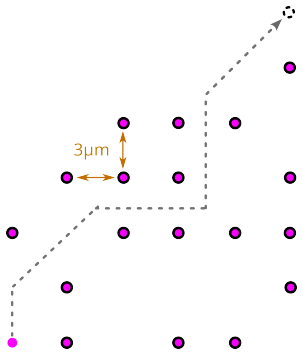

Figure 11. Figure 11: Example of grid routing that can be executed on real hardware. The atoms are purple dots. The black [PITH_FULL_IMAGE:figures/full_fig_p021_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Construction of Parallel Transfer Operations (PTOs) [PITH_FULL_IMAGE:figures/full_fig_p021_12.png] view at source ↗

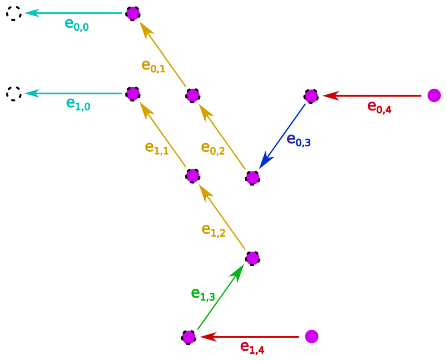

Figure 13
Figure 13. Figure 13: Example of parallel transfer operations (PTOs). The atoms are purple dots. The ending positions are [PITH_FULL_IMAGE:figures/full_fig_p022_13.png] view at source ↗
Figure 14

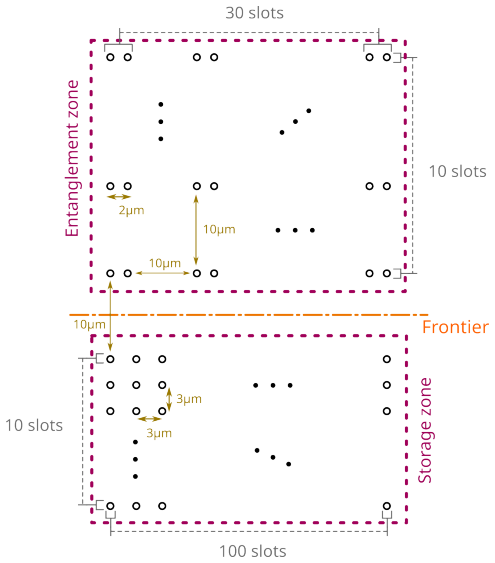

Figure 14. Figure 14: Atomic grid configuration using for the benchmark. Spacing between slots in the storage zone is 3 [PITH_FULL_IMAGE:figures/full_fig_p023_14.png] view at source ↗

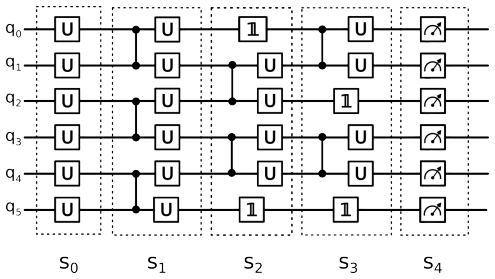

Figure 15
Figure 15. Figure 15: Quantum circuit from Figure [PITH_FULL_IMAGE:figures/full_fig_p024_15.png] view at source ↗
read the original abstract

Neutral atom quantum computers (NAQC) are emerging as a promising, scalable quantum computing platform because of their long qubit coherence, flexible qubit arrangement, and multiqubit gate capabilities. However, circuit execution often requires physically moving qubits, making compilation a critical optimization challenge. We propose a circuit independent mathematical framework built on graph-theoretic combinatorial optimization that determines the minimal number of required qubit transfers. This model captures spatial constraints specific to NAQC platforms with zone-limited gate operations and multi-qubit gates. From this framework, we encode the qubit mapping problem as a nonlinear integer program and solve it using a genetic algorithm, enabling trade-offs between minimizing the total traveled distance and the number of parallel transfer operations. Compared to the state-of-the-art scalable compiler for zoned architectures, our approach consistently finds fewer transfers. Depending on the optimization focus, our method produces shorter traveled distances or fewer parallel transfer operations. This work provides both theoretical guaranties and a practical tool for efficient, architecture-aware quantum circuit compilation. As a result, practitioners can generate hardware-aware mappings that reduce movement-induced errors and better exploit atom transfer parallelism, directly improving execution efficiency on NAQC devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces a graph-theoretic combinatorial optimization framework for qubit mapping on neutral-atom quantum computers with zoned architectures and multi-qubit gates. It formulates the problem as a nonlinear integer program that minimizes transfers while respecting spatial constraints, solves it via a genetic algorithm to trade off total distance versus parallel operations, and reports consistent reductions in transfers relative to the prior zoned-architecture compiler together with theoretical guarantees.

Significance. A sound modeling framework that explicitly incorporates zone-limited gates and atom-transfer parallelism would be a useful addition to NAQC compilation literature; if the reported empirical gains are reproducible on standard benchmark suites with documented GA parameters, the work could directly reduce movement-induced errors on current hardware.

major comments (2)
  1. [Abstract] Abstract: the claim of 'theoretical guaranties' is not reconciled with the choice of a genetic algorithm, which is a stochastic meta-heuristic possessing neither convergence nor approximation guarantees. The manuscript must state precisely which theoretical results (if any) are proven about the integer-program formulation versus which statements rest on solver output.
  2. [Abstract] Abstract: the central empirical claim that the method 'consistently finds fewer transfers' than the SOTA zoned compiler is unsupported by any description of benchmark circuits, circuit sizes, GA population/mutation/termination settings, number of runs, or statistical tests. Without these details the superiority statement cannot be evaluated.
minor comments (1)
  1. [Abstract] Abstract: 'guaranties' is a misspelling of 'guarantees'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed comments. We agree that the abstract requires clarification on the distinction between theoretical aspects of the model and the heuristic solver, as well as better contextualization of the empirical claims. We address each point below and will revise the abstract accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim of 'theoretical guaranties' is not reconciled with the choice of a genetic algorithm, which is a stochastic meta-heuristic possessing neither convergence nor approximation guarantees. The manuscript must state precisely which theoretical results (if any) are proven about the integer-program formulation versus which statements rest on solver output.

    Authors: We agree the abstract phrasing is imprecise. The proven theoretical results concern the nonlinear integer program formulation, which exactly encodes the minimal-transfer qubit mapping problem under zone-limited gates, spatial constraints, and multi-qubit operations; any feasible solution to the IP is a valid mapping, and an optimal solution yields the true minimum transfers. The genetic algorithm is presented only as a practical heuristic solver without convergence or approximation guarantees. We will revise the abstract to explicitly separate these elements and remove any implication that the GA outputs carry theoretical guarantees. revision: yes

  2. Referee: [Abstract] Abstract: the central empirical claim that the method 'consistently finds fewer transfers' than the SOTA zoned compiler is unsupported by any description of benchmark circuits, circuit sizes, GA population/mutation/termination settings, number of runs, or statistical tests. Without these details the superiority statement cannot be evaluated.

    Authors: The full manuscript contains dedicated experimental sections that specify the benchmark circuits (standard suites from prior NAQC literature), circuit sizes, GA hyperparameters (population size, mutation/crossover rates, termination criteria), number of independent runs, and statistical comparisons. The abstract claim is therefore supported by those results. To address the referee's concern, we will add a concise clause to the abstract directing readers to the experimental evaluation for these details. revision: partial

Circularity Check

0 steps flagged

No significant circularity; independent modeling and heuristic solver

full rationale

The paper defines a graph-theoretic combinatorial optimization framework for qubit mapping, encodes the problem as a nonlinear integer program, and applies a genetic algorithm to solve it, with empirical comparison to an external SOTA compiler. No derivation step reduces by construction to its own inputs, no fitted parameters are relabeled as predictions, and no load-bearing self-citations or uniqueness theorems appear. The central claims rest on the modeling choices and solver outputs rather than tautological equivalence.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard graph theory and combinatorial optimization; no free parameters, new axioms, or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Graph theory can accurately capture spatial constraints and transfer costs in zoned neutral-atom architectures
    The framework is built on graph-theoretic combinatorial optimization to model qubit transfers.

pith-pipeline@v0.9.1-grok · 5734 in / 1086 out tokens · 33054 ms · 2026-06-26T16:46:44.328269+00:00 · methodology
