Characterizing Mott Insulators in the Interacting One-Body Picture

T0 review · 3 major / 5 minor · reviewed 2026-08-03 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A single-particle quantity detects transitions between correlated insulating phases in the Hubbard diamond chain.

desk verdict Solid DMRG phase diagram and symmetry framework; the purity-discontinuity claim is plausible but under-supported by a single 4-site CDMFT cluster and Γ/X-only average. read the letter →

arxiv 2511.07331 v3 pith:XAWW6HG4 submitted 2025-11-10 cond-mat.str-el

Theo N. Dionne , Santiago Villodre , Mikel Iraola , Maia G. Vergniory This is my paper · ORCID
classification cond-mat.str-el MSC 81V7082B2082B27 PACS 71.10.Fd71.27.+a71.70.Ej
keywords one-bodyreduceddensitymatrixpurityMottinsulatorspin-orbitcouplingGreen'sfunctionHubbarddiamondchainCDMFTDMRG
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to establish that correlated insulating phases can be distinguished using only single-particle Green's function data, without solving the full many-body problem. It develops a framework built on the one-body reduced density matrix (1RDM) and symmetry-labelled spectral functions, and applies it to the Hubbard diamond chain, a one-dimensional model with Hubbard interactions and spin-orbit coupling. Using tensor networks to confirm the phase diagram and cellular dynamical mean-field theory to compute Green's functions, the authors show that the purity of the 1RDM is discontinuous precisely at the Mott-to-spin-orbit-insulator transitions. If correct, this gives a simple scalar indicator, computable from standard Green's function methods and accessible to experiments such as ARPES, for locating phase boundaries in correlated materials.

What carries the argument

The 1RDM purity is the key object: the one-body reduced density matrix γ is obtained by contour integration of the interacting single-particle Green's function at zero temperature, and its purity Tr{γ²} equals 1 only for a Slater determinant, so it quantifies how far the ground state is from a non-interacting picture. The second machinery is the symmetry decomposition of the Green's function into irreducible representations of the little group at high-symmetry points, which labels spectral weight by irrep (Γ5, Γ6, X5, X6) and provides complementary phase identification. The third is a 12-orbital cluster-plus-bath CDMFT setup (four-site diamond cluster, four bath orbitals per C2 irrep) that s

What would settle it

Compute the 1RDM purity of the same Hubbard diamond chain directly with DMRG (or iTEBD) across the U=4, φ∈[0,π/2] sweep, using the ground-state wavefunction; if the purity varies smoothly through φ≈0.046π and φ≈0.453π instead of showing discontinuities, the reported jumps are CDMFT artifacts of the bath parametrization and the central claim fails.

Watch

Extended reading notes

Core claim

The central claim is that the purity Tr{γ²} of the orbital-resolved one-body reduced density matrix jumps discontinuously at the phase boundaries between the Mott insulating phases (Mott-I and Mott-II) and the spin-orbit-induced atomic insulator phase (SAI+U) in the Hubbard diamond chain. The purity stays symmetric about φ=π/4 and the trace of the 1RDM remains constant, confirming that the jump is not a filling artifact. This makes 1RDM purity a single-particle-level order-parameter-like indicator that distinguishes the correlated Mott insulators from the SOC-driven atomic insulator, which otherwise look similar in their charge gaps and symmetry labels.

Load-bearing premise

The cluster-plus-bath truncation of CDMFT (four-site diamond with four baths per C2 irrep, 12 orbitals total) faithfully reproduces the 1RDM purity of the infinite chain, so the observed purity jumps are properties of the model rather than artifacts of the solver.

Editorial extensions

If this is right

  • The purity jump gives a concrete diagnostic for locating Mott-to-SOC-insulator transitions from single-particle Green's functions alone, without constructing trial wavefunctions.
  • Since the framework works from the fully dressed Green's function, it can be applied to ab initio DFT+DMFT outputs where the interacting Green's function is routinely available.
  • The symmetry-resolved spectral decomposition offers a model-agnostic way to label correlated bands by irrep at high-symmetry points, extending topological quantum chemistry ideas to interacting spectra.
  • The qualitative orbital pictures drawn from 1RDM eigenvectors (s, p, d-like effective orbitals, and spin-dependent rotating modes) provide an intuitive real-space language for describing correlated phases.
  • The extension of the DMRG phase diagram from t2/|t1|=0.5 to 0.8 confirms that the three-phase structure is robust to changes in hopping anisotropy, with phase boundaries shifting predictably.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The purity discontinuity could serve as a generic marker in other correlated models where two insulating mechanisms compete, provided the 1RDM is computed at a fixed filling; a testable extension is to scan a Hubbard model with different SOC strengths and check whether purity jumps always coincide with gap-closing lines.
  • Because purity is computed from natural orbitals, it may also flag spontaneous symmetry breaking: a jump in purity could indicate a change in the number of effectively entangled single-particle modes, which might correlate with changes in local moment formation.
  • The single-cluster CDMFT result is a prediction about the infinite chain; a direct DMRG computation of the 1RDM purity along the same φ sweep would settle whether the sharp discontinuity survives the cluster truncation and whether its magnitude is quantitatively correct.
  • The symmetry-decomposition method could be combined with the purity diagnostic to construct a two-dimensional phase fingerprint (irrep labels plus purity value) for characterizing unknown correlated materials from ARPES or DMFT data.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes a framework for characterizing correlated insulating phases from single-particle Green's functions, using symmetry-resolved spectral functions and the one-body reduced density matrix (1RDM). The model is the one-dimensional Hubbard diamond chain with spin-orbit coupling phase φ. Density matrix renormalization group (DMRG) calculations map the phase diagram and confirm three insulating phases (Mott-I, SAI+U, Mott-II) for t2/|t1|=0.8. Cellular dynamical mean-field theory (CDMFT) with a four-site diamond cluster is used to compute symmetry-labelled spectral functions, effective one-body orbitals, and the 1RDM purity. The central claim, stated in the Conclusion, is that the 1RDM purity is discontinuous at the Mott/SAI+U transitions, providing a simple scalar indicator of the phase boundaries.

Significance. If the central claim is robust, the paper offers a transferable way to distinguish correlated insulating phases using quantities available from ab initio Green's-function methods, and the symmetry decomposition of the spectral function is a useful tool. Strengths include the combination of two independent numerical approaches (DMRG and CDMFT), agreement with previously reported phase structure, and detailed appendices deriving the symmetry constraints and the contour-integral expression for the 1RDM. However, the headline purity-discontinuity claim currently rests on a single approximate CDMFT calculation without error bars, cluster-size scaling, or DMRG cross-validation of the 1RDM quantity. The phase names and phase diagram largely come from the authors' prior work [6,11], so the incremental novelty is the single-particle characterization, which is precisely where the evidence is thinnest.

major comments (3)
  1. [§5.4 / Fig. 6] The plotted quantity is not the purity defined in §2.2. The figure caption says 'Average of the traces and purities of the orbital 1RDM at Γ and X', while Eq. (8) and Eq. (11) define the 1RDM through a full momentum-space sum and the purity as Tr{γ²} of that operator. The discontinuity is therefore found in an average of scalar Tr{γ(k)²} at two momenta, not in the purity of the full 1RDM. This is load-bearing: the Γ/X average may behave differently from the full-BZ quantity, so the Conclusion's 'simple single-particle level tool' is not yet supported as stated. Please compute the full momentum-space 1RDM purity, or explicitly redefine the indicator and justify its relevance.
  2. [§4.2.2 / §5.4] The CDMFT calculation uses a single four-site diamond cluster with four bath orbitals per C₂ irrep, and no cluster-size scaling, bath-size convergence, or comparison with DMRG-computed 1RDM data is provided. Because ED solvers can have multiple self-consistent solutions, the jumps in Fig. 6 could reflect branch switches of the bath parametrization rather than properties of the infinite chain. Please provide at least one of: (i) a larger-cluster CDMFT calculation (e.g., two diamonds, eight sites); (ii) a DMRG computation of the 1RDM and its purity on long chains; (iii) a study of bath-size dependence or multiple bath initializations. Without this, the central claim is unsupported.
  3. [§5.1 / §5.4] The DMRG calculation is used only to determine the phase boundaries, and the purity jumps are then identified after those boundaries are known. To support the claim that the purity is an independent detector of the transition, the paper should show that the jumps coincide with the DMRG boundaries within a quantified resolution, and that they sharpen with system size or cluster size. No error bars or finite-size scaling are given for Fig. 6, so the correspondence remains qualitative. Overlaying the DMRG transition points (e.g., φ=0.057π and 0.443π for t2/|t1|=0.5, or 0.046π and 0.453π for 0.8) on Fig. 6 and reporting uncertainties would be a concrete improvement.
minor comments (5)
  1. [§5.2–5.4] The value of t2/|t1| used in the CDMFT calculations and in Fig. 6 is not stated. Since the transition points at U=4 differ for t2/|t1|=0.5 and 0.8, this is needed for reproducibility. Please specify the parameter in the text and figure caption.
  2. [Abstract / §3] The acronym SAI+U is used without definition. Please define it at first use (e.g., 'spin-orbit-induced atomic insulator plus Hubbard U').
  3. [Eq. (16)] The notation for the induced double little-group irreps, (Eg↑G)_2i ⊕ (Eg↑G)_2m, is not explained. A brief definition or a pointer to the Bilbao notation would help the non-specialist reader.
  4. [Appendix E] The heading 'T eNPy simulation details' contains a typographical artifact ('T eNPy').
  5. [References] References [35]–[41] do not appear to be cited in the body of the text. Please either cite them where relevant or remove them from the bibliography.

Circularity Check

0 steps flagged · score 2.0 of 10

Self-citations supply the model and phase names, but the central 1RDM-purity claim is independently computed from CDMFT and compared with DMRG boundaries; no construction-level circularity is exhibited.

full rationale

The derivation chain for the central result is: (i) construct the Hubbard diamond chain with a symmetry-derived SOC term (§3); (ii) locate the Mott-I/SAI+U/Mott-II boundaries with DMRG by gap and mirror-operator expectation values (§5.1); (iii) compute the CDMFT Green's function with an ED impurity solver (§4.2) and obtain the 1RDM from the contour integral (Eq. 8, Annex F); (iv) evaluate Tr{γ²} at Γ and X (§5.4). No equation in this chain defines the purity in terms of the DMRG phase boundaries, and no parameter is fitted so as to force the discontinuities in Fig. 6. The phase nomenclature and the single-diamond cluster motivation are taken from the authors' prior works [6,11], so there is a self-citation burden; however, the phase existence is re-established here with an independent DMRG calculation, and the purity jump is produced by a separate numerical method (CDMFT) rather than read off from [6,11]. Thus the central claim does not reduce to its inputs by construction. The absence of cluster-size scaling and the Γ/X-only k-average are legitimate numerical-robustness concerns, but they are not circularity: they question whether the CDMFT approximation faithfully represents the infinite system, not whether the paper assumes the result it claims to find.

Assumptions & free parameters 2 free parameters · 5 assumptions · 0 invented entities

No new particles, forces, or dimensions are introduced. The effective one-body orbitals are eigenvectors of the 1RDM, not independently postulated entities. The free parameters are the unstated hopping t3 and the fitted CDMFT bath parameters; the axioms are the standard Green's-function machinery, the model-specific SOC assumptions, and the unvalidated CDMFT cluster truncation.

free parameters (2)
  • intercell hopping t3 = not stated
    The Hamiltonian in Eq. (14) includes t3 but its value is never given; the phase diagram and purity results depend on the full hopping set and presumably inherit t3 from prior work [6,11].
  • CDMFT bath hybridization parameters = not reported
    The 12-orbital Anderson impurity model in §4.2.2 requires fitting bath levels and hybridizations to the lattice Weiss field; the resulting spectral functions and purity discontinuities are computed with these fitted parameters.
assumptions (5)
  • domain assumption Schur's lemma block diagonalization applies to the interacting single-particle Green's function when the unitary symmetry preserves the Hamiltonian and the ground-state (SSB) subspace (Eq. C.1).
    This is the basis for decomposing spectral functions into irreps in §2.1 and Annex C; it requires the symmetry to act within the ground-state subspace in the case of spontaneously broken symmetry.
  • standard math The one-body reduced density matrix is obtained from the zero-temperature contour integral of the Green's function (Eq. 8/F.3), and its eigenvalues are classical occupations.
    Standard result cited to [15,16]; used in §2.2 to construct effective orbitals and purity.
  • ad hoc to paper A single-diamond four-site CDMFT cluster with four baths per C2 irrep captures the physics of the infinite chain.
    Chosen in §4.2.2 because the authors argue the phases arise from single-diamond physics; this heuristic approximation is not validated by cluster-size scaling.
  • domain assumption The microscopic SOC derivation assumes radial ionic potentials and real s-like orbitals, so SOC contributions to t2 and t3 cancel by parity.
    Invoked in §3.2 to justify the final tight-binding form in Eqs. (14)-(15); different orbital content could introduce additional SOC terms.
  • domain assumption Finite-size DMRG gaps on open chains with bond dimension up to about 300 reflect the thermodynamic gap.
    Annex E gives convergence criteria but no system-size scaling or extrapolation; the phase boundaries in Fig. 3 rely on this assumption.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Characterizing Mott Insulators in the Interacting One-Body Picture." pith.science (2026). https://pith.science/paper/XAWW6HG4

@misc{pith2026251107331,
  author       = {Pith},
  title        = {Pith review of: Characterizing Mott Insulators in the Interacting One-Body Picture},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XAWW6HG4}},
  note         = {Machine review of arXiv:2511.07331}
}
read the original abstract

The one-body picture underlies our understanding of weakly interacting solids but breaks down in strongly correlated systems. We develop a general framework, based on the single-particle Green's function and the one-body reduced density matrix (1RDM), to characterize correlated electronic phases. Applying it to the Hubbard diamond chain, we combine density matrix renormalization group and cellular dynamical mean-field theory to construct symmetry-resolved effective orbitals and track their evolution across its Mott transitions, while the 1RDM purity provides a scalar indicator of the phase boundaries. These tools offer a general route to extend one-body concepts to correlated materials.

Figures

Figures reproduced from arXiv: 2511.07331 by the authors.

Figure 1
Figure 1. The Hubbard diamond chain (space group 47). Each site contains one [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

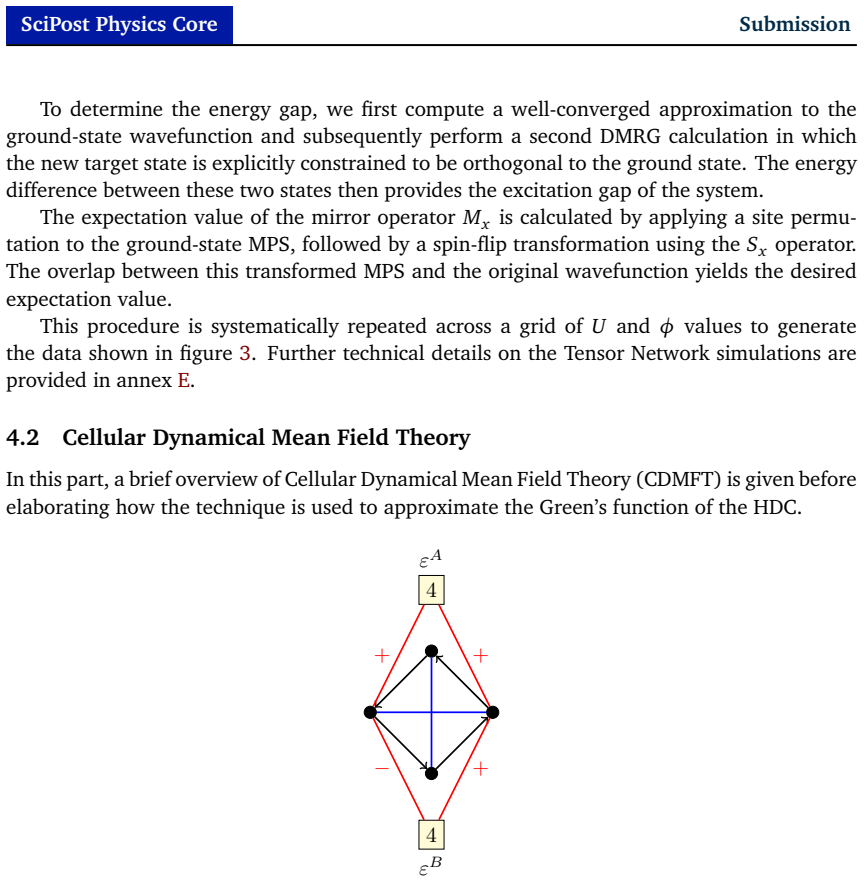

Figure 2. The cluster and bath configuration of the effective AIM solved via ED. 4 sites [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Energy gap between the four-particle ground state and the first excited [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: Representative spectral functions for each phase at [PITH_FULL_IMAGE:figures/full_fig_p011_4.png]
Figure 5
Figure 5. Figure 5: Effective one-body orbitals of the occupied states for all phases at [PITH_FULL_IMAGE:figures/full_fig_p012_5.png]
Figure 6
Figure 6. Figure 6: Average of the traces and purities of the orbital 1RDM at [PITH_FULL_IMAGE:figures/full_fig_p012_6.png]
Figure 7
Figure 7. Figure 7: Spectral functions of the three non-interacting phases directly associated [PITH_FULL_IMAGE:figures/full_fig_p014_7.png]
Figure 8
Figure 8. Figure 8: Ordering of the Hubbard diamond lattice for a chain consisting of two [PITH_FULL_IMAGE:figures/full_fig_p018_8.png]
Figure 9
Figure 9. Figure 9: Schematic representation of the mirror operator. In the left part we can see [PITH_FULL_IMAGE:figures/full_fig_p019_9.png]
Figure 10
Figure 10. Figure 10: Contours used in the evaluation of the fermionic bilinear expectation [PITH_FULL_IMAGE:figures/full_fig_p020_10.png]
