Point-Cloud-Assistant Localized Statistical Channel Prediction by Tangent Gaussian Splatting

Ye Xue , Yiheng Wang , Xinhua Shao , Qi Yan , Shutao Zhang , Tsung-Hui Chang This is my paper

Pith reviewed 2026-06-26 19:51 UTC · model grok-4.3

classification 📡 eess.SP cs.LG
keywords channel predictionGaussian splattingpoint cloudangular power spectrumLiDARRSRPextrapolationwireless networks
0
0 comments X

The pith

Point-cloud-assisted tangent Gaussian splatting extrapolates angular power spectra to unmeasured outdoor locations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces PC-TGS to predict the angular power spectrum of wireless channels at the great majority of locations where no radio measurements exist. It combines sparse RSRP samples with dense LiDAR point clouds to model scatterers as 3D Gaussians. These Gaussians are refined from the raw point cloud, projected onto local tangent planes, and aggregated through depth-aware electromagnetic splatting. A closed-form weighted average and error bound are derived to support deployment. The approach addresses the core restriction of prior localized statistical channel models that cannot operate beyond measured sites.

Core claim

PC-TGS represents environmental scatterers as anisotropic 3D Gaussians initialized and refined through a relaxed-mean reparameterization of the raw point cloud. A tangent-plane projection accurately maps each Gaussian into the local angular domain, while a depth-aware electromagnetic splatting process aggregates their contributions. A closed-form Gaussian-weighted average for APS bin integration and a provable error bound are derived. Evaluations on a LiDAR-scanned city-scale dataset with 5M points and 6310 RSRP samples show better APS and RSRP prediction performance than state-of-the-art baselines along with faster inference.

What carries the argument

Point-cloud-assisted tangent Gaussian splatting, which models scatterers as anisotropic 3D Gaussians from LiDAR data and uses tangent projection plus depth-aware splatting to compute APS.

If this is right

  • APS predictions become possible across the vast majority of outdoor grids that lack radio measurements.
  • Performance exceeds prior baselines on city-scale LiDAR and RSRP data while inference remains faster.
  • Closed-form integration and provable error bound support practical large-scale use.
  • Geometry from LiDAR enables data-efficient, site-specific channel modeling for wireless digital twins.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same Gaussian representation could be tested on indoor or mixed environments where point clouds are also available.
  • Lower measurement density might become viable if the geometry prior is strong enough.
  • Periodic refresh of the point cloud could allow tracking of slowly changing scatterers without new radio campaigns.

Load-bearing premise

Anisotropic 3D Gaussians initialized from the point cloud, refined, projected on tangent planes, and splatted with depth awareness will produce accurate APS predictions at locations without any RSRP measurements.

What would settle it

Gather fresh RSRP measurements at a set of previously unmeasured grid points and check whether the PC-TGS predictions match those measurements within the claimed error bound.

Figures

Figures reproduced from arXiv: 2606.18734 by Qi Yan, Shutao Zhang, Tsung-Hui Chang, Xinhua Shao, Ye Xue, Yiheng Wang.

Figure 1

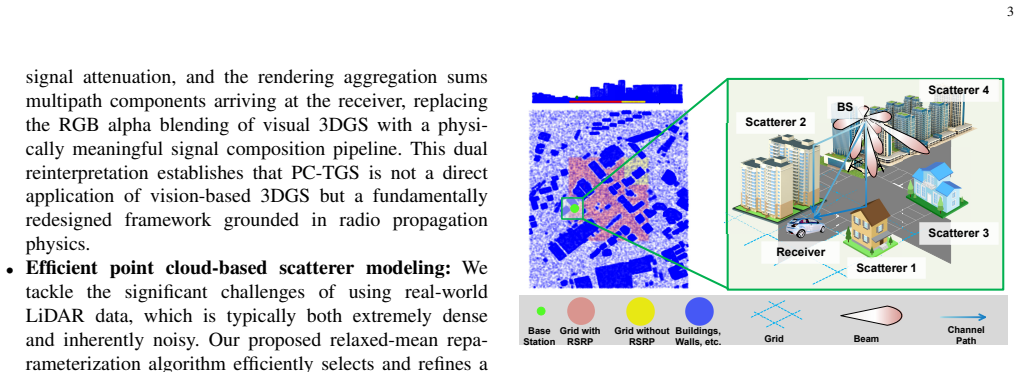

Figure 1. Figure 1: Illustration of the system scenario and channel mod [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

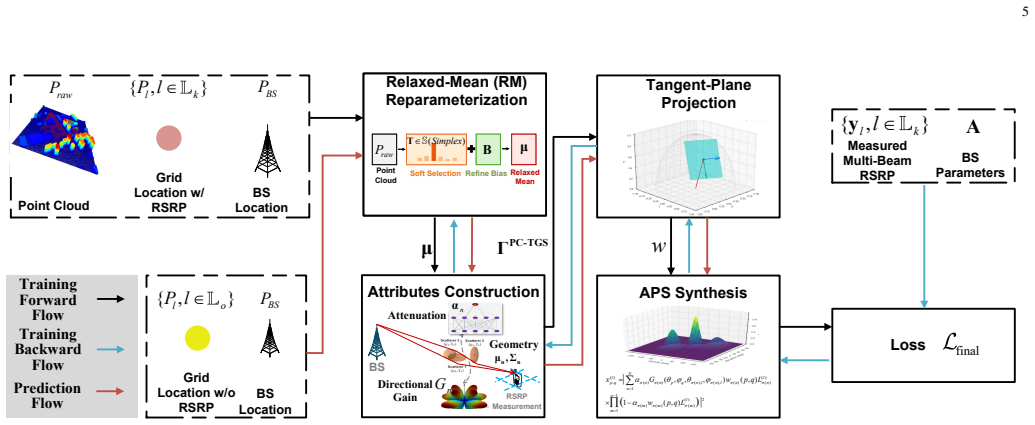

Figure 2. Figure 2: Overview of the proposed PC-TGS (Point-Cloud-Assisted Tangent Gaussian Splatting) framework. Given sparse, low-dimensional RSRP measurements, base station information, and dense 3D point clouds, PC-TGS extracts a set of mean positions of the virtual scatterers via relaxed-mean reparameterization, constructs physical and signal attributes, projects them onto the local tangent plane at each angular bin, and … view at source ↗
Figure 3

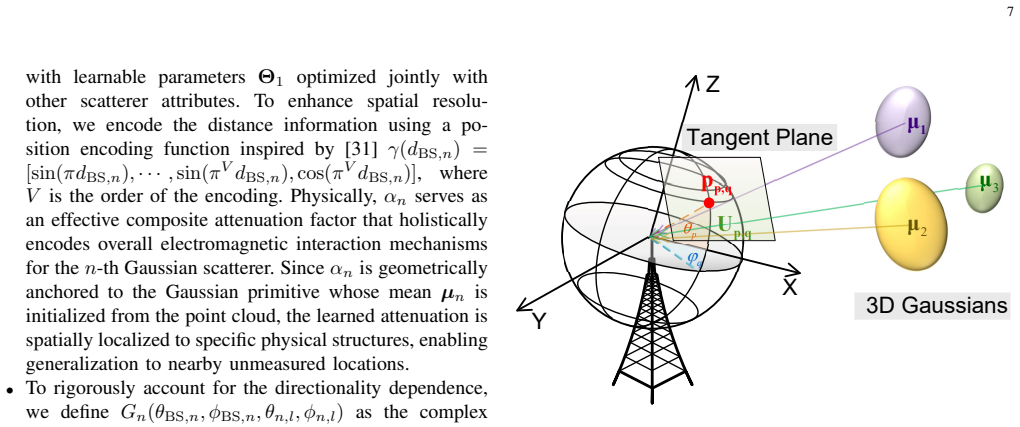

Figure 3. Figure 3: Illustration of the tangent-plane projection. [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

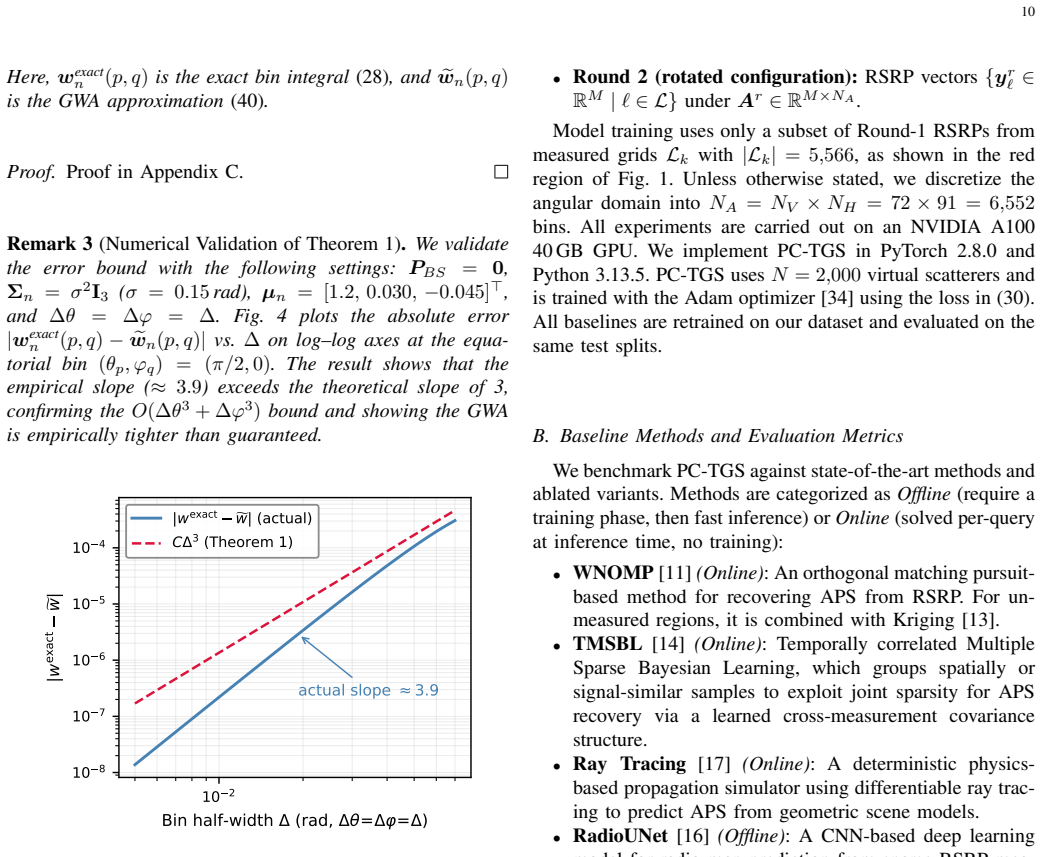

Figure 4. Figure 4: Numerical validation of Theorem 1: log–log plot of [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5

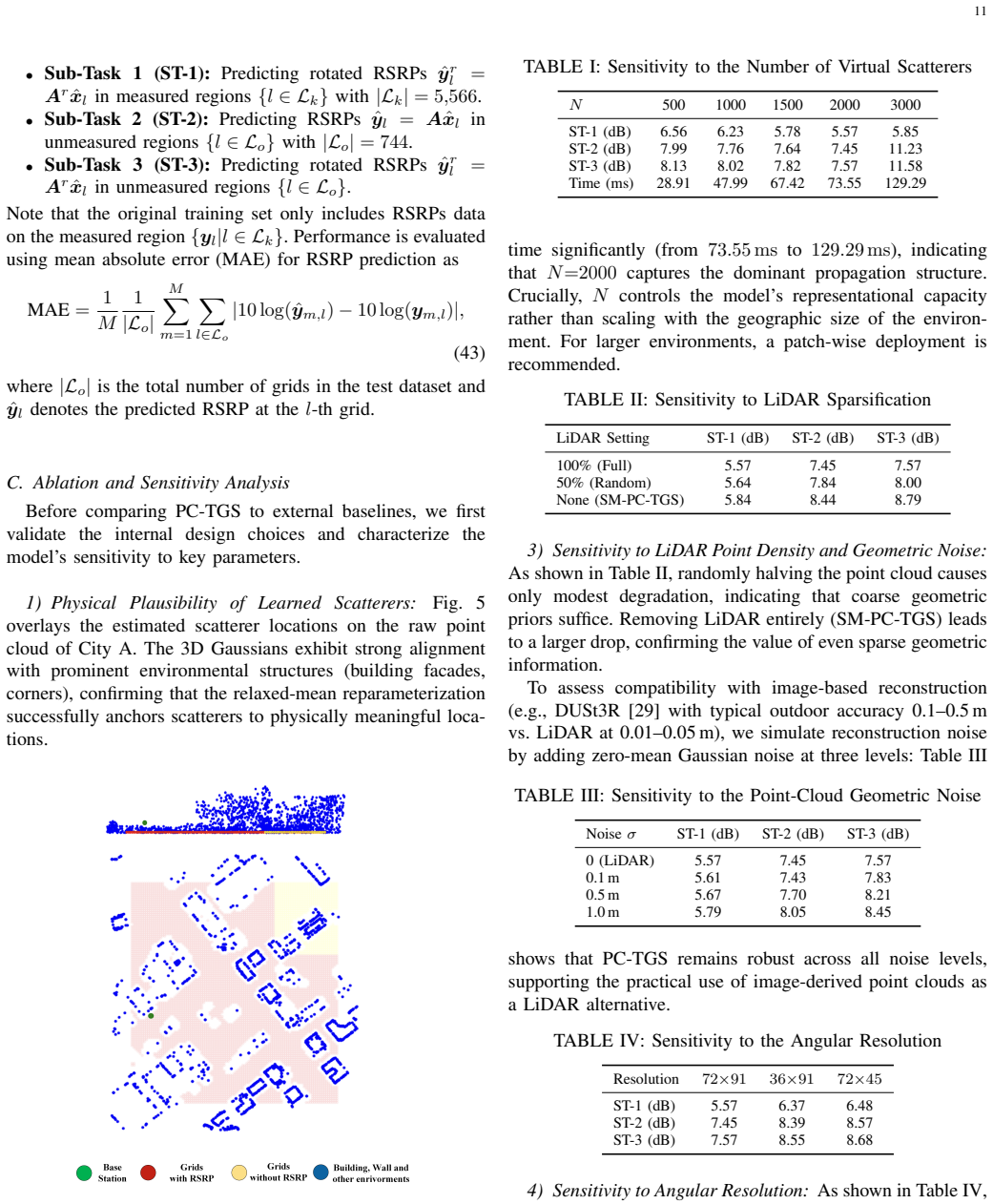

Figure 5. Figure 5: Visualization of extracted virtual scatterers by PC-TGS [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6

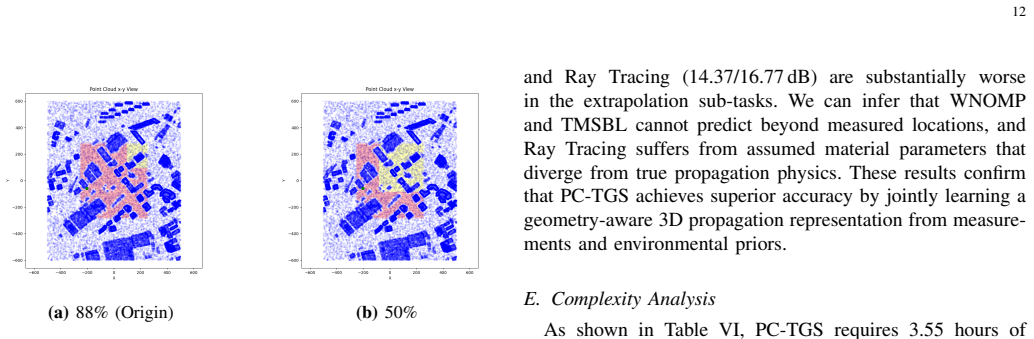

Figure 6. Figure 6: Training/test data splits. Red: training; yellow: test. [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
read the original abstract

Accurate, site-specific channel information is crucial for optimizing next-generation wireless networks. Among various approaches, localized statistical channel modeling (LSCM), which models the channel multipath angular power spectrum (APS) from the reference signal received power (RSRP) measurement, has emerged as a state-of-the-art method tailored for efficient network optimization. However, despite its effectiveness, LSCM cannot predict APS at the vast majority of locations where no measurements are available, which significantly restricts its applicability in large-scale, real-world scenarios. To address this challenge, we present \emph{point-cloud-assisted tangent Gaussian splatting} (PC-TGS), the first framework to \emph{extrapolate} APS to unmeasured outdoor grids by integrating sparse radio measurements with dense LiDAR-based geometry. PC-TGS represents environmental scatterers as anisotropic 3D Gaussians, initialized and refined through a relaxed-mean reparameterization of the raw point cloud. A tangent-plane projection accurately maps each Gaussian into the local angular domain, while a depth-aware electromagnetic splatting process aggregates their contributions. To ensure practical deployment, we derive a closed-form Gaussian-weighted average (GWA) for APS bin integration and provide a provable error bound. { Evaluations on a LiDAR-scanned city-scale dataset (5M points, 6,310 RSRP samples) demonstrate that PC-TGS achieves better APS and RSRP prediction performance compared to state-of-the-art baselines and faster inference time for APS extrapolation task. These results highlight the potential of PC-TGS to enable geometry-aware and data-efficient channel prediction in large-scale wireless digital twins.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript introduces point-cloud-assisted tangent Gaussian splatting (PC-TGS) as a framework to extrapolate the angular power spectrum (APS) to unmeasured outdoor locations. It represents scatterers via anisotropic 3D Gaussians initialized from LiDAR point clouds via relaxed-mean reparameterization, applies tangent-plane projection and depth-aware electromagnetic splatting to aggregate contributions, derives a closed-form Gaussian-weighted average (GWA) for APS bin integration together with a provable error bound, and reports improved APS/RSRP prediction and faster inference versus baselines on a city-scale dataset containing 5M LiDAR points and 6310 RSRP samples.

Significance. If the extrapolation performance holds under proper spatial separation, the integration of dense geometry with sparse radio measurements via Gaussian splatting could materially advance site-specific statistical channel modeling for large-scale wireless networks and digital twins. The closed-form GWA and accompanying error bound constitute a concrete technical contribution that would support practical deployment.

major comments (1)
  1. [§5] §5 (Experimental Evaluation): The manuscript does not report the spatial distribution of the 6310 RSRP samples, the train/test split procedure, or the minimum distance between training and held-out test locations. This information is load-bearing for the central claim of true extrapolation to unmeasured grids; without it, reported gains could reflect local interpolation near measured points rather than geometry-driven prediction across distant unmeasured areas.
minor comments (2)
  1. [Abstract, §3] Abstract and §3: The phrase 'relaxed-mean reparameterization' is introduced without a concise definition or reference to the exact optimization objective used for Gaussian initialization.
  2. [§3] Notation throughout: The mapping from 3D Gaussian parameters to the local angular domain via tangent-plane projection would benefit from an explicit equation relating the covariance matrix to the APS bin centers.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive comment and the positive assessment of the technical contributions. We address the concern on experimental evaluation below.

read point-by-point responses

  1. Referee: [§5] §5 (Experimental Evaluation): The manuscript does not report the spatial distribution of the 6310 RSRP samples, the train/test split procedure, or the minimum distance between training and held-out test locations. This information is load-bearing for the central claim of true extrapolation to unmeasured grids; without it, reported gains could reflect local interpolation near measured points rather than geometry-driven prediction across distant unmeasured areas.

    Authors: We agree that these details are essential to substantiate the extrapolation claim. The current manuscript does not explicitly report the spatial distribution of the 6310 RSRP samples, the train/test split procedure, or the minimum distance between training and test locations. In the revised version we will add a geographic map of all sample locations with train/test labels, describe the split procedure including any spatial constraints applied, and report the minimum distance between any training and held-out test location. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation uses independent geometry and derives closed-form expressions

full rationale

The abstract describes a new PC-TGS framework that initializes Gaussians from LiDAR point clouds, applies tangent projection and depth-aware splatting, then derives a closed-form GWA for APS integration with a provable error bound. No equations or steps are shown reducing a claimed prediction to a fitted parameter by construction, nor any self-citation load-bearing the central result. The integration of sparse RSRP with dense geometry is presented as an independent modeling choice, not a renaming or self-definition. This is the common case of a self-contained technical derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

Only the abstract is available; no explicit free parameters, axioms, or invented physical entities are detailed beyond the modeling choice of anisotropic 3D Gaussians.

invented entities (1)
  • Anisotropic 3D Gaussians representing scatterers no independent evidence
    purpose: To model environmental geometry for APS extrapolation from LiDAR point clouds
    Introduced as the core representation in the PC-TGS framework
