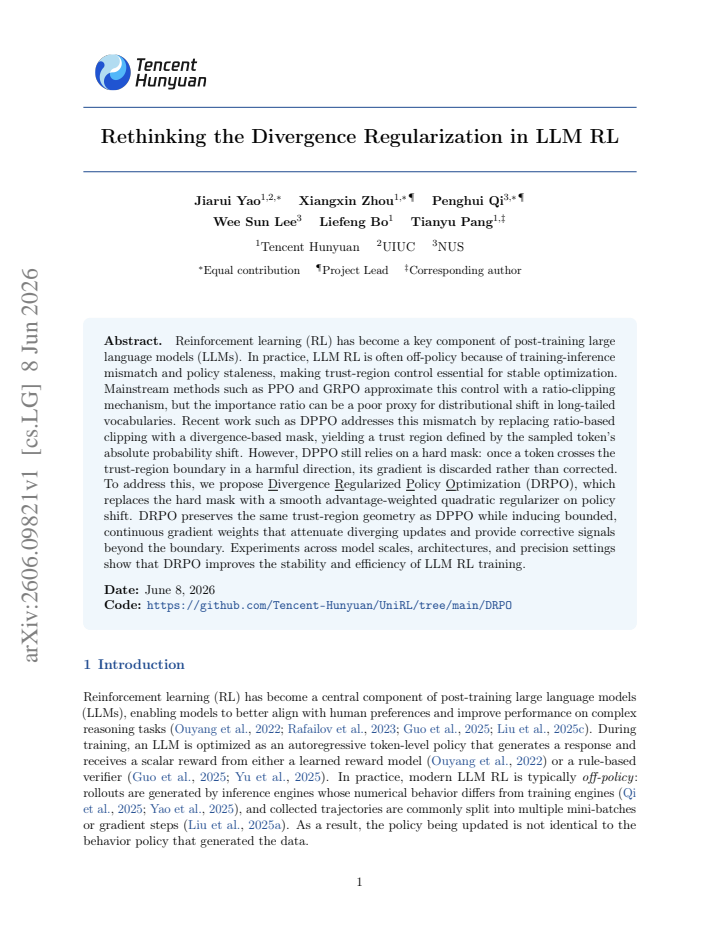

Rethinking the Divergence Regularization in LLM RL

Jiarui Yao , Xiangxin Zhou , Penghui Qi , Wee Sun Lee , Liefeng Bo , Tianyu Pang This is my paper

Pith reviewed 2026-06-27 17:12 UTC · model grok-4.3

classification 💻 cs.LG
keywords divergence regularizationpolicy optimizationtrust regionLLM RLoff-policy learninggradient weighting
0
0 comments X

The pith

DRPO replaces DPPO's hard divergence mask with a smooth advantage-weighted quadratic regularizer while preserving the same trust-region geometry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Current divergence-based trust regions in LLM RL discard gradients abruptly once a token's absolute probability shift crosses a boundary. DRPO replaces this hard mask with an advantage-weighted quadratic regularizer on policy shift. The change keeps the trust region identical yet produces bounded continuous gradient weights. These weights attenuate diverging updates and supply corrective signals for harmful moves that would otherwise be ignored. Experiments across scales and settings show improved stability and efficiency without added tuning parameters.

Core claim

DRPO replaces the hard mask in DPPO with a smooth advantage-weighted quadratic regularizer on policy shift. It preserves the same trust-region geometry defined by the sampled token's absolute probability shift while inducing bounded, continuous gradient weights that attenuate diverging updates and provide corrective signals beyond the boundary.

What carries the argument

Advantage-weighted quadratic regularizer on absolute probability shift

If this is right

  • DRPO preserves the exact trust-region geometry of DPPO.
  • Gradient weights remain bounded and continuous rather than abruptly zeroed.
  • Corrective gradient signals are supplied for updates that cross the boundary in harmful directions.
  • Training stability and efficiency improve across model scales, architectures, and precision settings.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same regularizer form might substitute for ratio clipping in non-LLM off-policy methods that face long-tailed action spaces.
  • Empirical measurement of how often the regularizer activates on real training trajectories would quantify its corrective contribution.

Load-bearing premise

Replacing the hard mask with an advantage-weighted quadratic regularizer on absolute probability shift will maintain the intended trust region without introducing new instabilities or requiring additional tuning parameters that dominate performance.

What would settle it

A controlled comparison on the same LLM, tasks, and hyperparameters where DRPO training shows higher variance or lower final reward than DPPO.

Figures

Figures reproduced from arXiv: 2606.09821 by Jiarui Yao, Liefeng Bo, Penghui Qi, Tianyu Pang, Wee Sun Lee, Xiangxin Zhou.

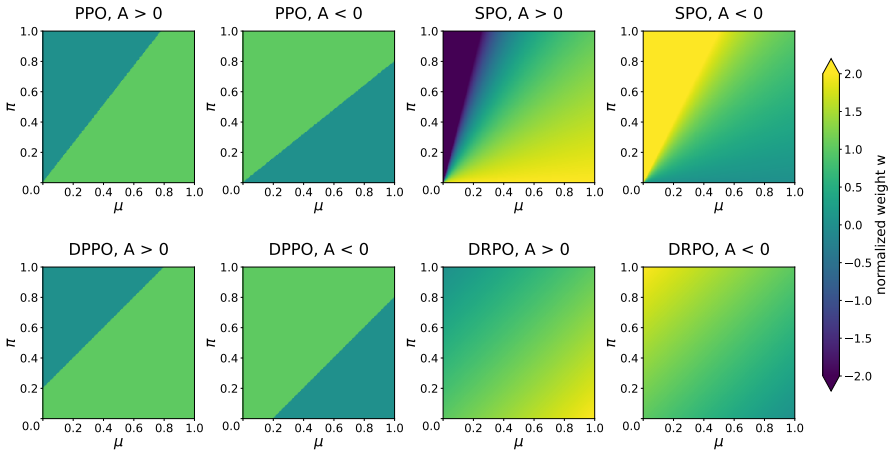

Figure 1
Figure 1. Figure 1: Per-token gradient weights of different algorithms as a function of the current probability [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

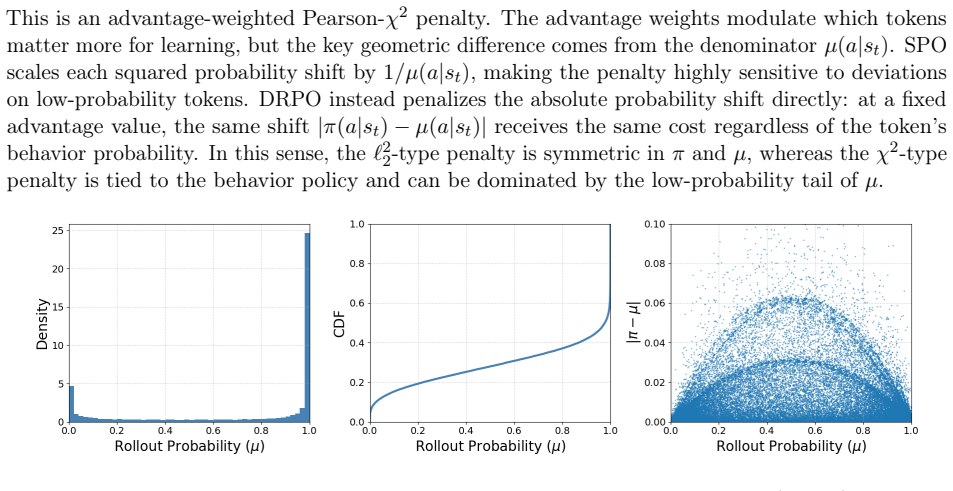

Figure 2. Figure 2: Histogram, cumulative distribution, and absolute probability shift [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

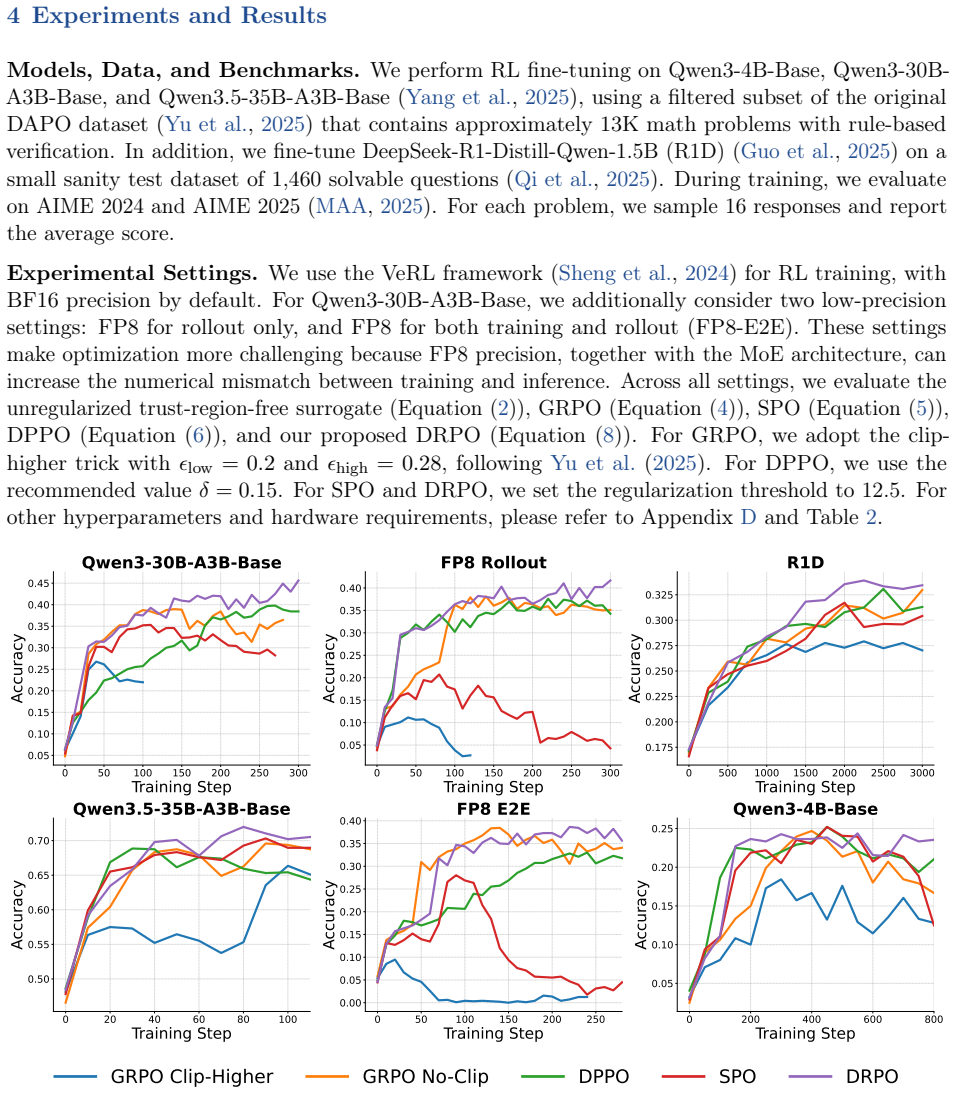

Figure 3
Figure 3. Figure 3: Average accuracy across all main experiment settings on AIME24 and AIME25. [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗

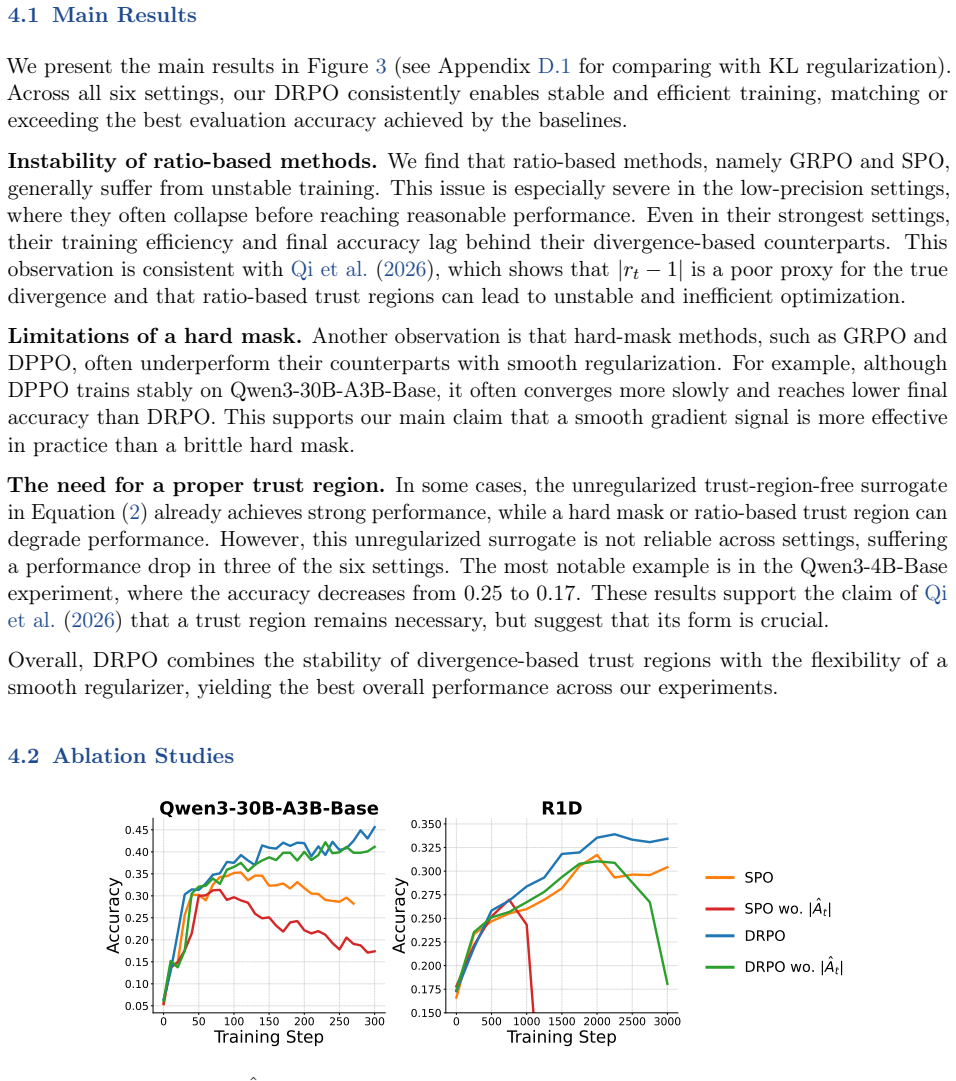

Figure 4
Figure 4. Figure 4: Ablation on |Aˆ t |. Removing this term degrades performance and destabilizes training. To further evaluate the effectiveness of our proposed method, we conduct a series of ablation studies on the design considerations of the regularizer. Advantage weight. In both SPO and DRPO, the regularization term is weighted by the absolute advantage |Aˆ t |. This weighting ensures that the per-token optimum lies on a… view at source ↗
Figure 5

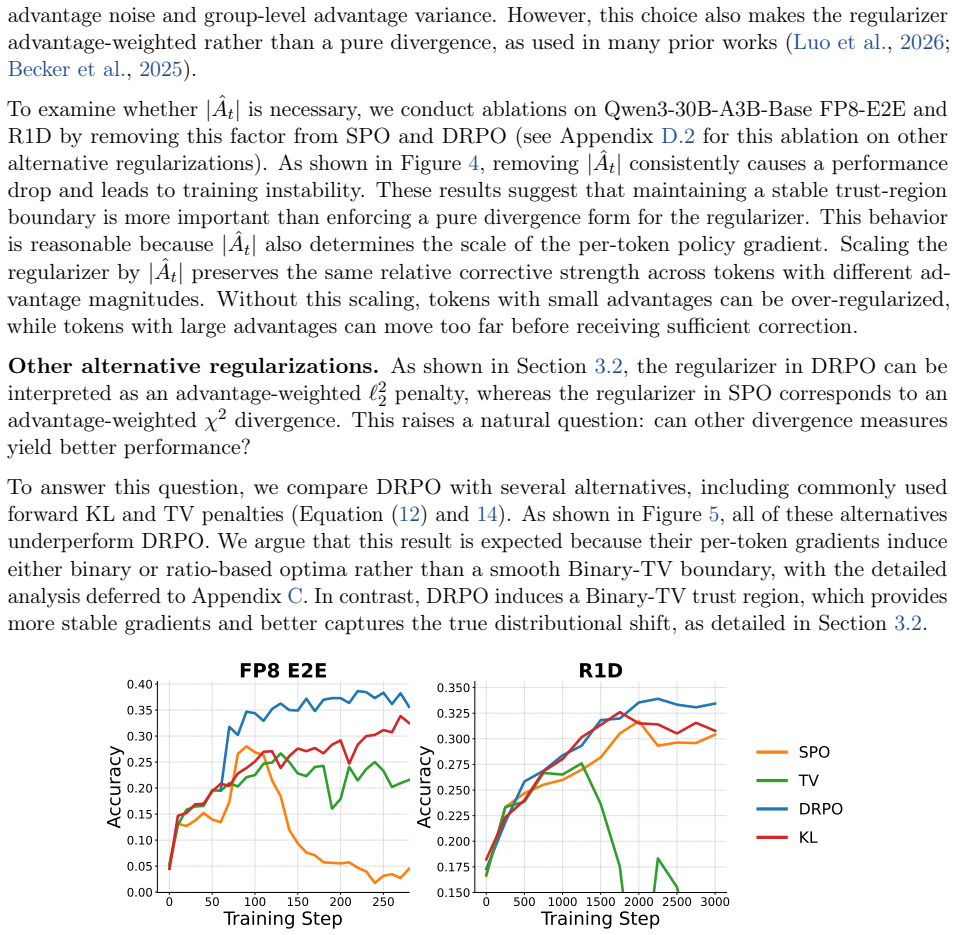

Figure 5. Figure 5: Ablation on alternative divergence metrics. DRPO achieves the best performance. [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗

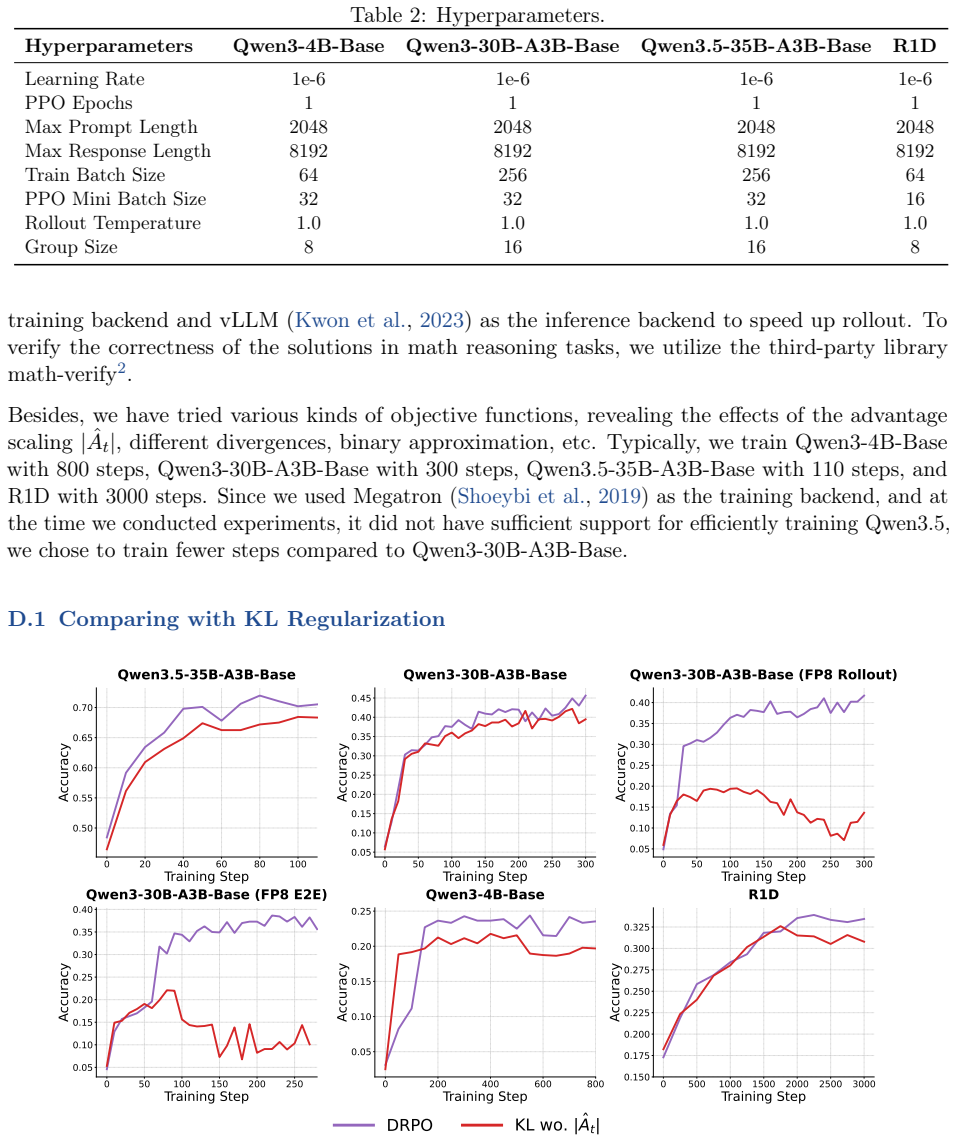

Figure 6
Figure 6. Figure 6: Training dynamics for DRPO and directly applying a KL penalty term without introducing [PITH_FULL_IMAGE:figures/full_fig_p021_6.png] view at source ↗

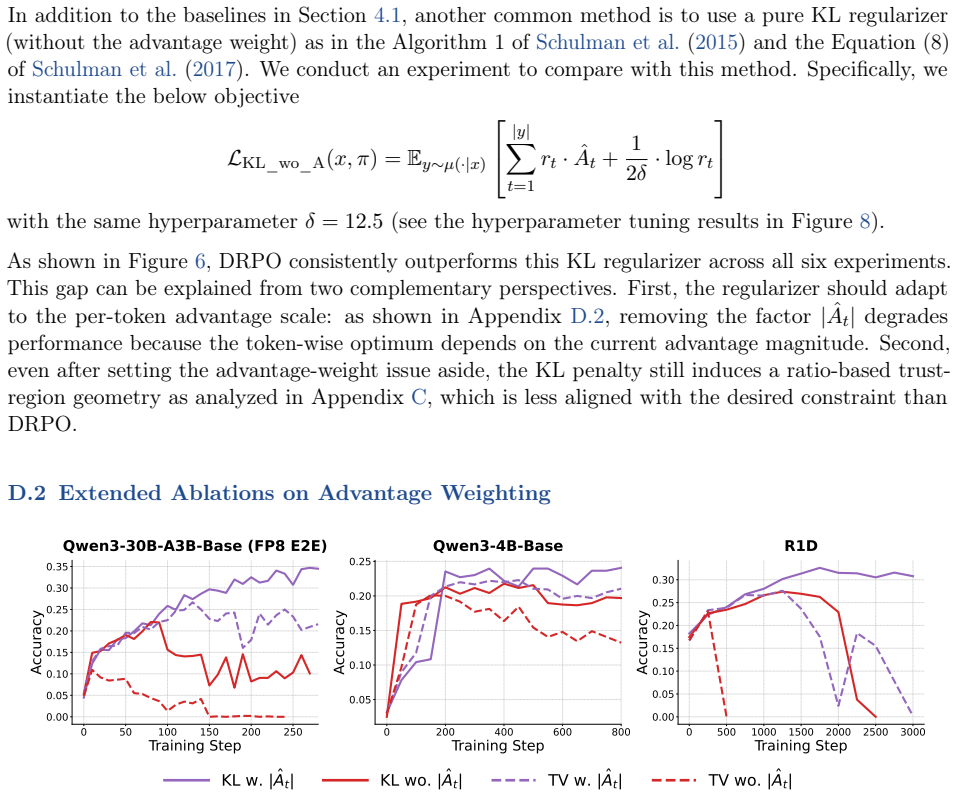

Figure 7
Figure 7. Figure 7: Comparison among experiments applying a KL penalty term or a TV penalty term, with [PITH_FULL_IMAGE:figures/full_fig_p022_7.png] view at source ↗
Figure 8

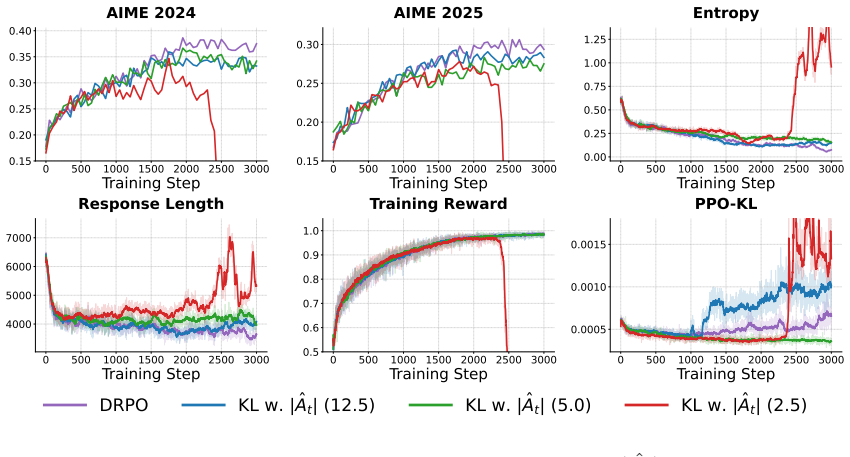

Figure 8. Figure 8: The hyperparameter tuning for KL with advantage weight [PITH_FULL_IMAGE:figures/full_fig_p023_8.png] view at source ↗

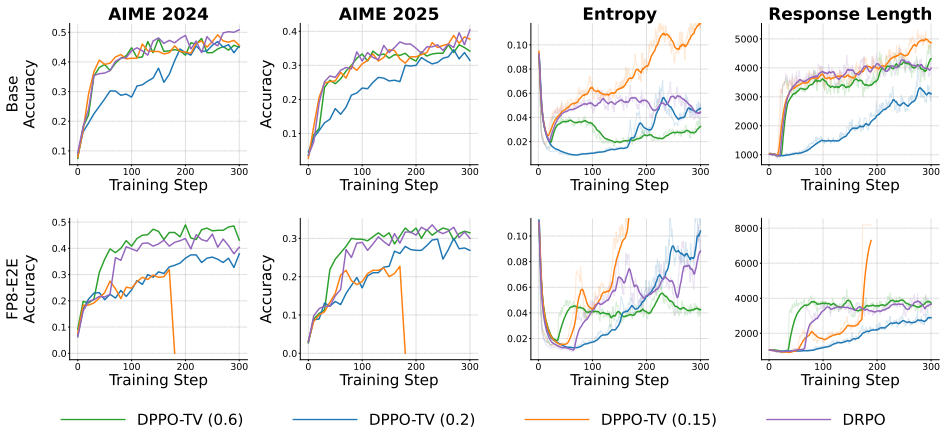

Figure 9
Figure 9. Figure 9: Training dynamics for different parameters under DPPO, compared to DRPO. [PITH_FULL_IMAGE:figures/full_fig_p024_9.png] view at source ↗

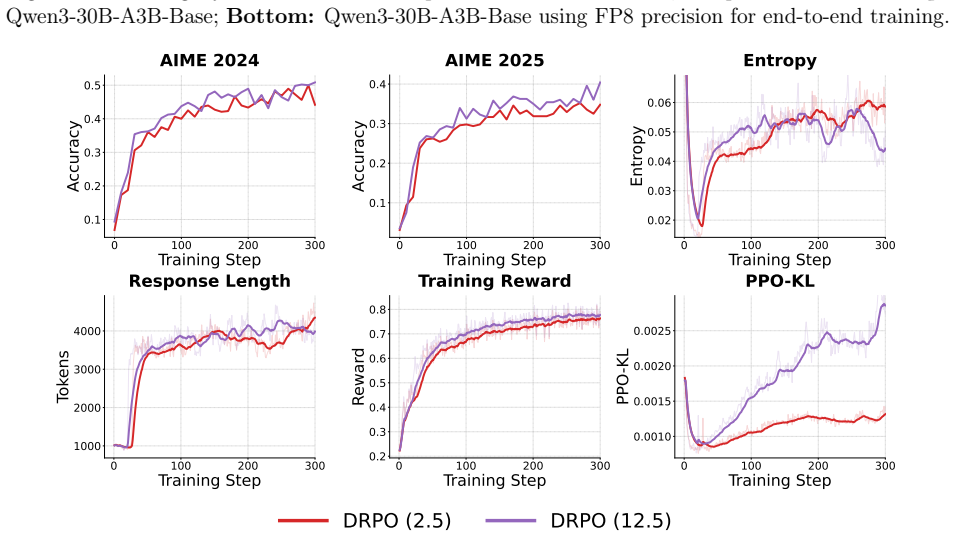

Figure 10
Figure 10. Figure 10: Hyperparameter tuning of the coefficient on DRPO. [PITH_FULL_IMAGE:figures/full_fig_p024_10.png] view at source ↗

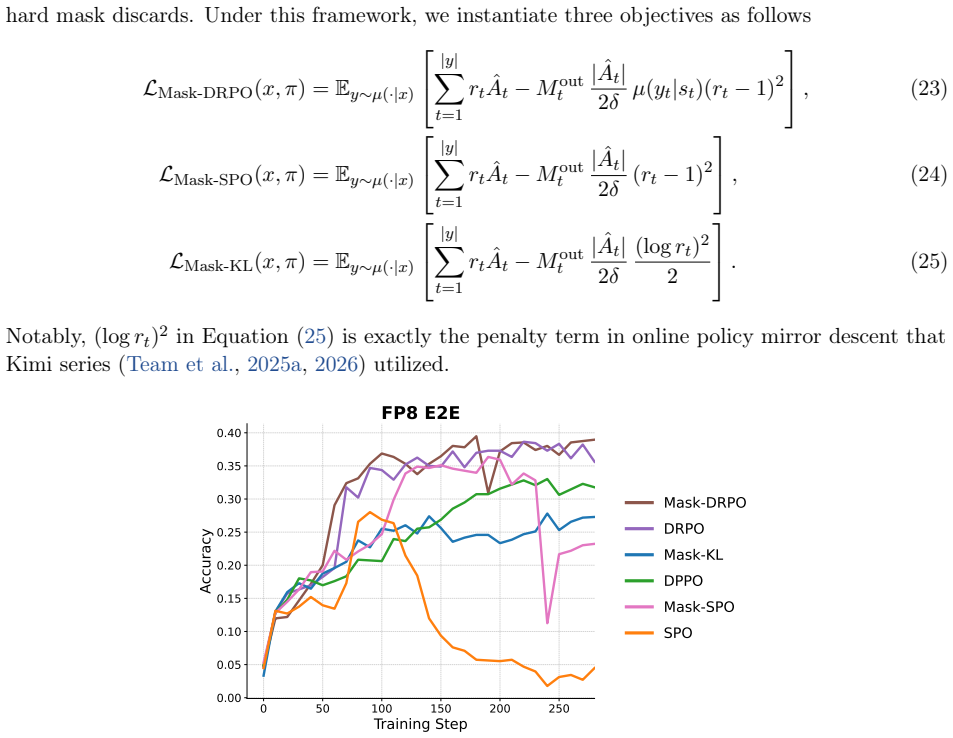

Figure 11
Figure 11. Figure 11: Ablation on applying the DRPO regularizer only outside DPPO’s trust region. [PITH_FULL_IMAGE:figures/full_fig_p025_11.png] view at source ↗
read the original abstract

Reinforcement learning (RL) has become a key component of post-training large language models (LLMs). In practice, LLM RL is often off-policy because of training-inference mismatch and policy staleness, making trust-region control essential for stable optimization. Mainstream methods such as PPO and GRPO approximate this control with a ratio-clipping mechanism, but the importance ratio can be a poor proxy for distributional shift in long-tailed vocabularies. Recent work such as DPPO addresses this mismatch by replacing ratio-based clipping with a divergence-based mask, yielding a trust region defined by the sampled token's absolute probability shift. However, DPPO still relies on a hard mask: once a token crosses the trust-region boundary in a harmful direction, its gradient is discarded rather than corrected. To address this, we propose Divergence Regularized Policy Optimization (DRPO), which replaces the hard mask with a smooth advantage-weighted quadratic regularizer on policy shift. DRPO preserves the same trust-region geometry as DPPO while inducing bounded, continuous gradient weights that attenuate diverging updates and provide corrective signals beyond the boundary. Experiments across model scales, architectures, and precision settings show that DRPO improves the stability and efficiency of LLM RL training.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper proposes Divergence Regularized Policy Optimization (DRPO) to improve upon DPPO for off-policy LLM RL. It replaces DPPO's hard divergence-based mask (on absolute probability shift) with an advantage-weighted quadratic regularizer on policy shift. The central claim is that DRPO preserves exactly the same trust-region geometry as DPPO while inducing bounded continuous gradient weights that attenuate diverging updates and supply corrective signals beyond the boundary, yielding improved stability and efficiency; this is asserted to hold across model scales, architectures, and precision settings based on experiments.

Significance. If the geometry-preservation claim and the absence of new instabilities can be rigorously established, DRPO would offer a principled softening of hard trust-region constraints that retains the distributional-shift focus of DPPO while avoiding abrupt gradient discarding. This could meaningfully advance stable off-policy optimization for long-tailed LLM vocabularies beyond ratio-clipping methods. The manuscript's current presentation, however, provides no quantitative results, ablations, or derivations, leaving the practical impact and correctness of the central claim difficult to evaluate.

major comments (2)
  1. [Abstract] Abstract: the claim that DRPO 'preserves the same trust-region geometry as DPPO' while simultaneously 'provide corrective signals beyond the boundary' is load-bearing for the contribution yet appears inconsistent on the given description. DPPO's hard mask sets the gradient contribution to zero once the absolute probability shift crosses the boundary in a harmful direction; an advantage-weighted quadratic regularizer is a soft penalty whose gradient remains non-zero (and can be positive in the diverging direction when the advantage term favors it). No limiting argument, equivalent constrained formulation, or explicit proof that the effective feasible set remains identical is supplied, so the geometry-preservation assertion rests on an unshown equivalence.
  2. [Abstract] Abstract: the soundness of the empirical claim ('experiments across model scales... show that DRPO improves the stability and efficiency') cannot be assessed because the abstract supplies neither quantitative metrics, baseline comparisons, ablation results on the quadratic coefficient, nor details on how the trust-region boundary is enforced or measured. Without these, the central claim that the new regularizer improves upon DPPO without introducing instabilities cannot be verified.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive feedback. We address each major comment below and will revise the manuscript to strengthen the presentation of the geometry claim and to include quantitative support in the abstract.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that DRPO 'preserves the same trust-region geometry as DPPO' while simultaneously 'provide corrective signals beyond the boundary' is load-bearing for the contribution yet appears inconsistent on the given description. DPPO's hard mask sets the gradient contribution to zero once the absolute probability shift crosses the boundary in a harmful direction; an advantage-weighted quadratic regularizer is a soft penalty whose gradient remains non-zero (and can be positive in the diverging direction when the advantage term favors it). No limiting argument, equivalent constrained formulation, or explicit proof that the effective feasible set remains identical is supplied, so the geometry-preservation assertion rests on an unshown equivalence.

    Authors: We thank the referee for this observation. The DRPO formulation uses an advantage-weighted quadratic penalty that is identically zero inside the DPPO boundary (defined by absolute probability shift) and grows outside it, with the weighting ensuring that corrective gradients oppose harmful divergence. While the manuscript states the geometry is preserved, it does not supply the requested limiting argument or constrained equivalence. We will add a short derivation in the revised version (new subsection in Section 3) showing that, in the limit of increasing regularization strength, the soft penalty recovers the hard-mask behavior and identical feasible set. revision: yes

  2. Referee: [Abstract] Abstract: the soundness of the empirical claim ('experiments across model scales... show that DRPO improves the stability and efficiency') cannot be assessed because the abstract supplies neither quantitative metrics, baseline comparisons, ablation results on the quadratic coefficient, nor details on how the trust-region boundary is enforced or measured. Without these, the central claim that the new regularizer improves upon DPPO without introducing instabilities cannot be verified.

    Authors: We agree that the abstract would be more informative with supporting numbers. The full manuscript reports experiments across scales with stability and efficiency metrics versus DPPO, plus ablations on the quadratic coefficient, and defines the boundary via absolute probability shift in Section 3. We will revise the abstract to include concise quantitative results (e.g., stability gains and convergence speedups) and a brief reference to the boundary definition and ablations. revision: yes

Circularity Check

0 steps flagged

No circularity: DRPO is a novel regularizer proposal whose geometry claim is a design assertion, not a reduction by construction.

full rationale

The paper defines DRPO by substituting DPPO's hard mask with an advantage-weighted quadratic penalty on the same absolute probability shift divergence. This substitution is presented as an explicit design choice that yields bounded continuous weights and corrective signals. No equation reduces the new objective to a prior fitted quantity or renames an input as output. The trust-region preservation statement is a claim about the regularizer's effect rather than an algebraic identity forced by self-definition or self-citation. The derivation therefore stands as an independent proposal whose validity rests on the stated equations and experiments, not on circular reuse of its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The proposal rests on the assumption that the quadratic regularizer induces the same trust region as the hard mask without new side effects; no free parameters are explicitly named in the abstract, but the regularization strength is implicitly required. No new entities are postulated.

axioms (1)
  • domain assumption The divergence measure used in DPPO correctly captures distributional shift for long-tailed vocabularies.
    Abstract states that importance ratio is a poor proxy and DPPO addresses this; DRPO inherits the same divergence definition.
