arxiv: 2606.31818 · v1 · pith:YLRIMX2Znew · submitted 2026-06-30 · ⚛️ nucl-th

Nuclear excitation via inelastic scattering of low-energy vortex electrons

Jia-Lin Zhang , Zhi-Wei Lu , Mamutjan Ababekri , Yuanbin Wu , Jian-Xing Li This is my paper

Pith reviewed 2026-07-01 02:44 UTC · model grok-4.3

classification ⚛️ nucl-th
keywords vortex electronsnuclear excitationinelastic scatteringorbital angular momentumangular distributionsCoulomb fieldtopological protectionDirac distorted-wave Born approximation
0
0 comments X

The pith

Vortex electrons produce angular distributions opposite to ordinary electrons when exciting nuclei.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a method to detect orbital angular momentum transfer from electrons to nuclei by using low-energy vortex electrons in inelastic scattering. The authors develop a theoretical framework based on the Dirac equation with distorted waves to handle the electron's orbital angular momentum and the strong Coulomb field from the nucleus without approximations. When applied to the nucleus of thorium-229, the calculations reveal that vortex electrons and regular electrons lead to opposite patterns in the angular distribution of the scattered particles. This difference arises from how the orbital angular momentum alters the allowed transitions and how the Coulomb force redistributes the contributing waves. The work also indicates that vortex electrons enjoy some form of protection against losing their topological character in the nuclear field.

Core claim

The central discovery is that inelastic scattering of low-energy vortex electrons off nuclei like 229Th produces angular distributions opposite to those from non-vortex electrons. This opposition stems from an orbital-angular-momentum-modified selection rule together with the Coulomb field's effect on partial-wave strengths. The framework also shows that vortex electrons maintain topological protection while traversing the nuclear Coulomb field.

What carries the argument

A Dirac distorted-wave Born approximation framework incorporating the incident electron's orbital angular momentum with nonperturbative Coulomb treatment.

If this is right

  • An angle-resolved measurement can serve as a signature for nuclear OAM transfer.
  • Vortex electrons offer a new probe for OAM effects at the nuclear scale.
  • The topological protection implies vortex states persist through strong fields.
  • This approach deepens understanding of vortex particle properties in nuclear interactions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar calculations could be performed for other nuclei to test whether the opposite distribution effect holds generally.
  • The method might be adapted to probe OAM transfer in scattering processes involving other charged particles.
  • Direct experiments with electron beams carrying controlled orbital angular momentum could verify the predicted angular patterns.

Load-bearing premise

The Dirac distorted-wave Born approximation accurately captures the effects of the electron's orbital angular momentum and the nonperturbative Coulomb interaction to predict the angular distributions.

What would settle it

Observation of identical angular distributions for vortex and non-vortex electrons in the excitation of 229Th would contradict the predicted opposition.

Figures

Figures reproduced from arXiv: 2606.31818 by Jia-Lin Zhang, Jian-Xing Li, Mamutjan Ababekri, Yuanbin Wu, Zhi-Wei Lu.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) A low-energy vortex electron, incident on the [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

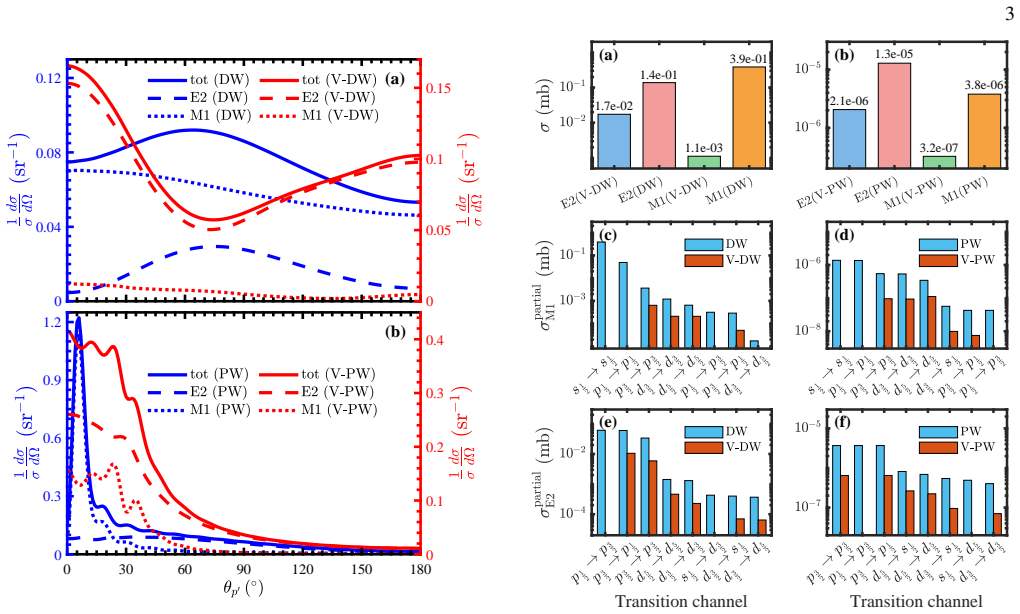

Figure 2. Figure 2: FIG. 2. The normalized di [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4

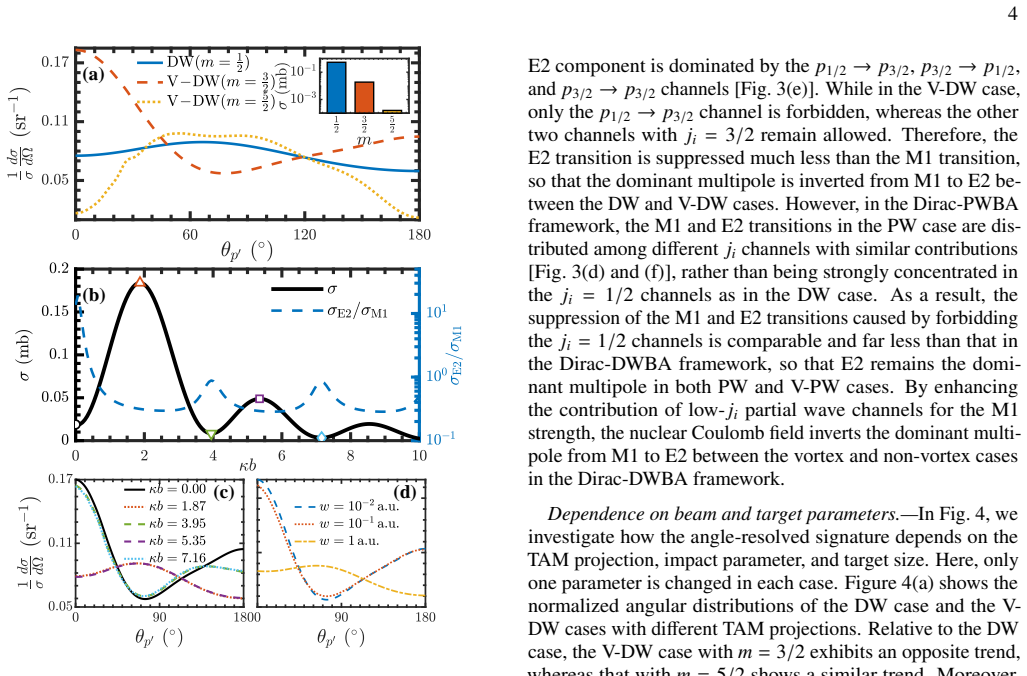

Figure 4. Figure 4: FIG. 4. Dependence of the angle-resolved signature on the beam and [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 1
Figure 1. Figure 1: σ(E2)/σ(M1) increasing from 0.36 to 15.6. By contrast, the M1 and E2 transitions are suppressed by comparable factors of ≃ 12 and ≃ 6.2 from the PW to the V-PW case so that E2 remains dominant and σ(E2)/σ(M1) merely grows from 3.40 to 6.36. In addition, the cross sections within the Dirac-DWBA framework are about four orders of magnitude larger than those within the Dirac-PWBA framework. The multipole inve… view at source ↗
read the original abstract

Vortex particles carrying orbital angular momenta (OAMs) have found important applications in broad fields. However, the experimental verification of OAM transfer at the nuclear scale remains a great challenge. Here, we put forward a novel method to probe such OAM transfer through nuclear excitation via inelastic scattering of low-energy vortex electrons. We develop a Dirac distorted-wave Born approximation framework that incorporates the incident-electron OAM and a nonperturbative treatment of the Coulomb field, and apply it to $^{229}\mathrm{Th}$. We find that the vortex and non-vortex electrons yield opposite angular distributions, attributed to the OAM-modified selection rule and the Coulomb-induced redistribution of partial-wave strengths, providing an angle-resolved signature. Moreover, the vortex electron exhibits topological protection in the nuclear Coulomb field. Our method offers a route to probing nuclear-scale OAM transfer and deepens our understanding of the topological properties of vortex particles.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a Dirac distorted-wave Born approximation (DWBA) framework for inelastic scattering of low-energy vortex electrons that incorporates incident orbital angular momentum (OAM) and treats the nuclear Coulomb field nonperturbatively. Applied to 229Th, it predicts that vortex electrons produce angular distributions opposite to those from plane-wave electrons, attributed to an OAM-modified selection rule combined with Coulomb-induced redistribution of partial-wave strengths; it further claims topological protection of the vortex electron in the nuclear Coulomb field, offering an angle-resolved signature for nuclear-scale OAM transfer.

Significance. If the DWBA implementation of OAM and the resulting angular distributions hold, the work supplies a concrete, falsifiable route to experimental verification of OAM transfer at nuclear scales—an area where direct probes remain scarce. The nonperturbative Coulomb treatment and the reported sign reversal constitute potentially useful predictions, provided the framework is shown to be robust against higher-order corrections.

major comments (2)
  1. [framework description] The central claim of opposite angular distributions rests on the assertion that the Dirac DWBA accurately embeds the incident OAM into the distorted waves and that first-order matrix elements suffice. The manuscript provides no explicit derivation or validation (e.g., reduction to the plane-wave limit or comparison with known OAM-free cases) demonstrating that the OAM-modified selection rule is implemented without approximation in the partial-wave content.
  2. [results and discussion] At the low energies considered, Coulomb distortion is strong; the paper does not quantify the size of second-order Born or multiple-scattering contributions that could alter the reported redistribution of partial-wave strengths and thereby change the sign of the angular distribution difference.
minor comments (2)
  1. [methods] Notation for the vortex-electron wave function and the precise definition of the OAM quantum number should be stated explicitly in the methods section to allow independent reproduction.
  2. [introduction] The abstract and introduction would benefit from a brief statement of the nuclear transition considered (e.g., the specific multipolarity in 229Th) to contextualize the selection-rule modification.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. We address each major comment below and will revise the manuscript accordingly to improve clarity and address concerns about validation and approximations.

read point-by-point responses

  1. Referee: [framework description] The central claim of opposite angular distributions rests on the assertion that the Dirac DWBA accurately embeds the incident OAM into the distorted waves and that first-order matrix elements suffice. The manuscript provides no explicit derivation or validation (e.g., reduction to the plane-wave limit or comparison with known OAM-free cases) demonstrating that the OAM-modified selection rule is implemented without approximation in the partial-wave content.

    Authors: We agree that an explicit derivation and validation of the OAM embedding would strengthen the manuscript. In the revised version, we will add a dedicated subsection deriving the partial-wave expansion of the vortex electron wave function in the Dirac DWBA, explicitly showing how the incident OAM is incorporated into the distorted waves and demonstrating the reduction to the standard plane-wave DWBA when the OAM quantum number vanishes. This will confirm that the OAM-modified selection rules are implemented without additional approximations. revision: yes

  2. Referee: [results and discussion] At the low energies considered, Coulomb distortion is strong; the paper does not quantify the size of second-order Born or multiple-scattering contributions that could alter the reported redistribution of partial-wave strengths and thereby change the sign of the angular distribution difference.

    Authors: We acknowledge the importance of assessing higher-order contributions at low energies where Coulomb distortion is significant. A complete numerical quantification of second-order Born terms lies beyond the scope of the present work. However, the partial-wave series in our calculations exhibits rapid convergence, and we will add a discussion in the revised manuscript comparing the magnitude of higher-order effects to literature results for similar low-energy electron scattering processes. We argue that the reported sign reversal originates primarily from the OAM selection rules and is unlikely to be overturned by higher-order corrections, but we will note the first-order DWBA as an approximation. revision: partial

Circularity Check

0 steps flagged

No circularity: framework developed and applied independently

full rationale

The paper develops a Dirac DWBA framework incorporating OAM and applies it to compute angular distributions for 229Th, yielding opposite patterns for vortex vs. plane-wave cases via OAM-modified selection rules and partial-wave redistribution. No equations or claims reduce by construction to fitted parameters, self-citations, or prior ansatze; the central results follow from the new framework's numerical implementation rather than tautological redefinition or load-bearing self-reference. This matches the default expectation of non-circularity for a computational application paper.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review prevents detailed extraction; the framework relies on standard Dirac equation and DWBA assumptions not enumerated here.

pith-pipeline@v0.9.1-grok · 5695 in / 1032 out tokens · 33234 ms · 2026-07-01T02:44:53.287419+00:00 · methodology
