Position identification method and system
Pith reviewed 2026-05-06 04:00 UTC · model claude-opus-4-7
The pith
An electronic shelf label can read its own position on a powered rail by sensing a printed binary black-and-white code with onboard phototransistor pairs.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The claim is that absolute self-positioning of a shelf label on a powered display rail can be done with nothing more than a binary mark pattern printed on the rail and a small array of paired phototransistors on the label. Bit count equals sensor-pair count; one read gives an absolute slot address. A neighbour-comparison step uses the codes of adjacent labels on the same rail as a parity check against bad reads. The system-level point is that self-positioning becomes a property of clipping the label onto the rail, with no separate registration step, no RF triangulation, and no per-label provisioning.
What carries the argument
A binary absolute position code printed as black/white marks along the rail, read in parallel by paired phototransistors on the label; the pair count fixes the code width and therefore the addressable slot count. Cross-validation against adjacent labels' decoded codes serves as the error-recovery mechanism.
If this is right
- Labels can be added, removed, or swapped on a powered rail without software re-pairing; each label announces its slot on power-up.
- Hardware cost stays low: a sticker-style mark strip on the rail plus a small bank of phototransistor pairs on the label.
- Single-bit read errors are recoverable using the codes reported by adjacent labels, without operator intervention.
- Position resolution scales directly with phototransistor-pair count — more pairs, more bits, finer slot granularity on the same rail length.
- Planogram updates can be verified automatically by reading back each label's reported slot against the intended layout.
Where Pith is reading between the lines
- The technique is a retail-context reapplication of standard absolute-encoder ideas long used in linear and rotary position sensing; the contribution is the integration into the shelf-label form factor, not the encoding principle.
- Reliability in practice will hinge on optical-window contamination tolerance; a Gray code rather than plain binary would reduce the cost of partial misreads at bit boundaries.
- The neighbour cross-check implicitly assumes a communication path between adjacent labels on the rail — likely the same powered bus — which couples positioning to the rail's data layer.
- Manufacturing variance in mark placement effectively sets the minimum slot pitch; tighter slot density would push the system toward printed or etched codes rather than applied stickers.
Load-bearing premise
The method depends on the printed marks staying clean, aligned, and readable through the optical window of the label in a real retail environment of dust, spills, and handling.
What would settle it
Mount a row of these labels on a rail with the described mark pattern, deliberately soil or partially occlude the marks at known positions, and check whether each label still reports its correct slot — directly, or via the neighbour cross-check — at the error rate the system promises. Persistent misreads that the neighbour comparison cannot repair would settle the operational claim.
Figures
read the original abstract

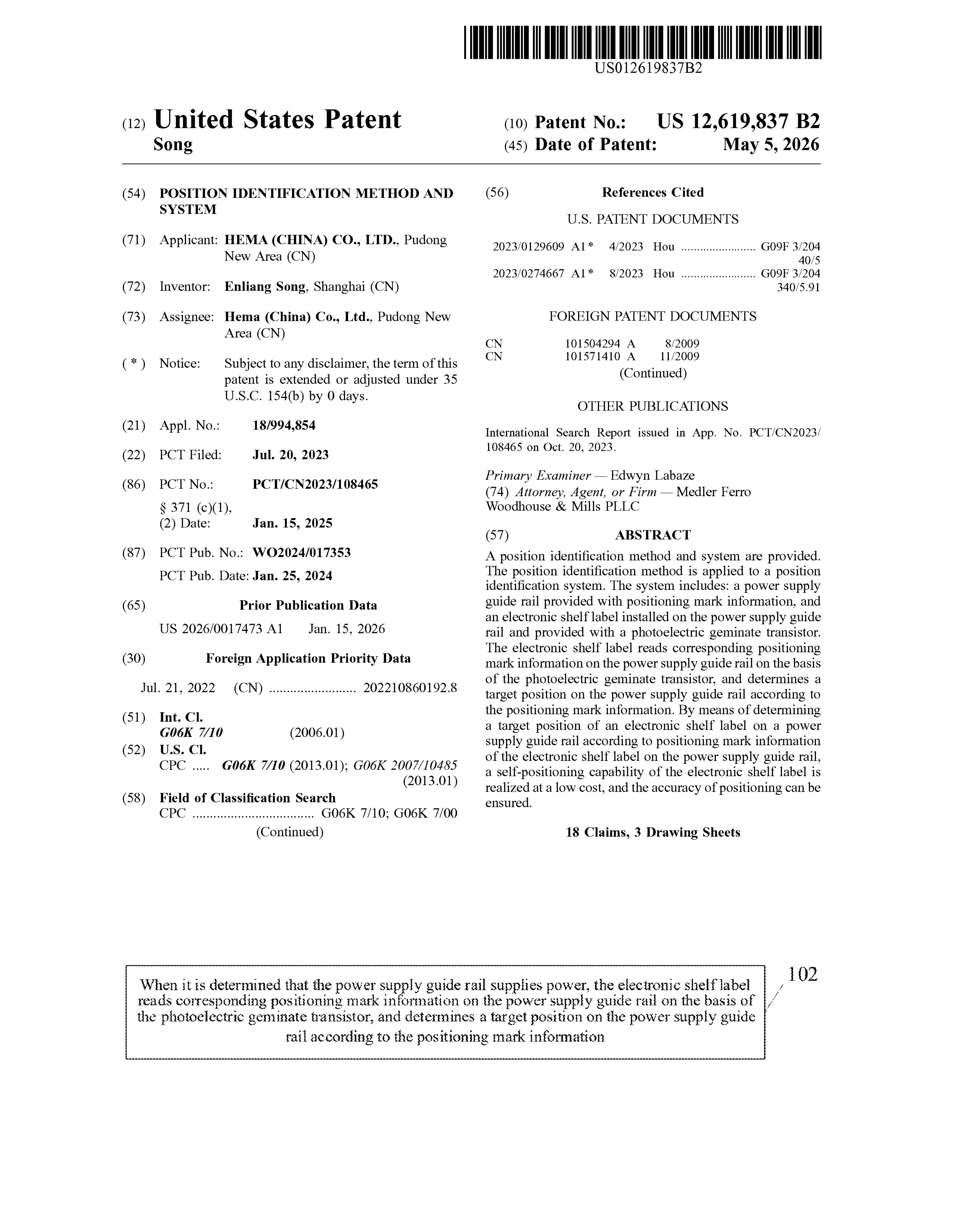

A position identification method and system are provided. The position identification method is applied to a position identification system. The system includes: a power supply guide rail provided with positioning mark information, and an electronic shelf label installed on the power supply guide rail and provided with a photoelectric geminate transistor. The electronic shelf label reads corresponding positioning mark information on the power supply guide rail on the basis of the photoelectric geminate transistor, and determines a target position on the power supply guide rail according to the positioning mark information. By means of determining a target position of an electronic shelf label on a power supply guide rail according to positioning mark information of the electronic shelf label on the power supply guide rail, a self-positioning capability of the electronic shelf label is realized at a low cost, and the accuracy of positioning can be ensured.
Editorial analysis
A structured set of objections, weighed in public.
Axiom & Free-Parameter Ledger
axioms (3)
- domain assumption Printed black/white markings on the power rail remain optically readable in the deployment environment over the ESL service life.
- domain assumption Mechanical alignment between an ESL's phototransistor array and the rail's code stripe is maintained within tolerance when the ESL is clipped on.
- domain assumption Adjacent ESLs can communicate their own position codes to a queriying ESL.
