Stacked semiconductor package
Pith reviewed 2026-05-06 21:24 UTC · model grok-4.3
The pith
A stacked semiconductor package offsets two opposing stepped chip stacks by a larger interval only at their junction to enable wire bonding.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
A stacked semiconductor package comprises a package base substrate, a first stepped chip stack in which each chip is shifted by a first interval in a first horizontal direction, and a second stepped chip stack in which each chip is shifted by the same first interval in the opposite direction, with the added condition that the lowermost chip of the second stack is shifted from the uppermost chip of the first stack by a second, larger interval in the second horizontal direction.
What carries the argument
The differential shift at the support-chip interface, where the upper support semiconductor chip is offset from the lower support semiconductor chip by a second interval strictly greater than the uniform first interval used inside each stack.
If this is right
- All chips in both opposing stacks remain electrically accessible to the base substrate via bonding wires.
- The upper stack rests on a supported ledge created by the enlarged offset rather than on a flush edge.
- Package height and footprint can accommodate more chips than a single-direction stepped stack of the same footprint.
- The same first interval can be retained inside each stack, preserving uniform wire lengths within each group.
Where Pith is reading between the lines
- The same junction-offset principle could be applied to three or more opposing stack segments if each transition uses its own enlarged interval.
- Chip-size or thickness variations between the two stacks would require recalculating the minimum second interval needed for wire clearance.
- Thermal-expansion mismatch between the two stacks may concentrate stress at the single enlarged-offset interface.
Load-bearing premise
The larger shift at the junction between the two stacks supplies enough clearance for bonding wires and enough overlap for mechanical stability without creating new failure modes such as cracking or shorting.
What would settle it
Build and wire-bond a physical prototype using the described opposing stacks with the enlarged junction offset, then subject it to thermal cycling and electrical testing to check whether wire-bond yield or package integrity falls below that of uniform-interval stepped stacks.
Figures
read the original abstract

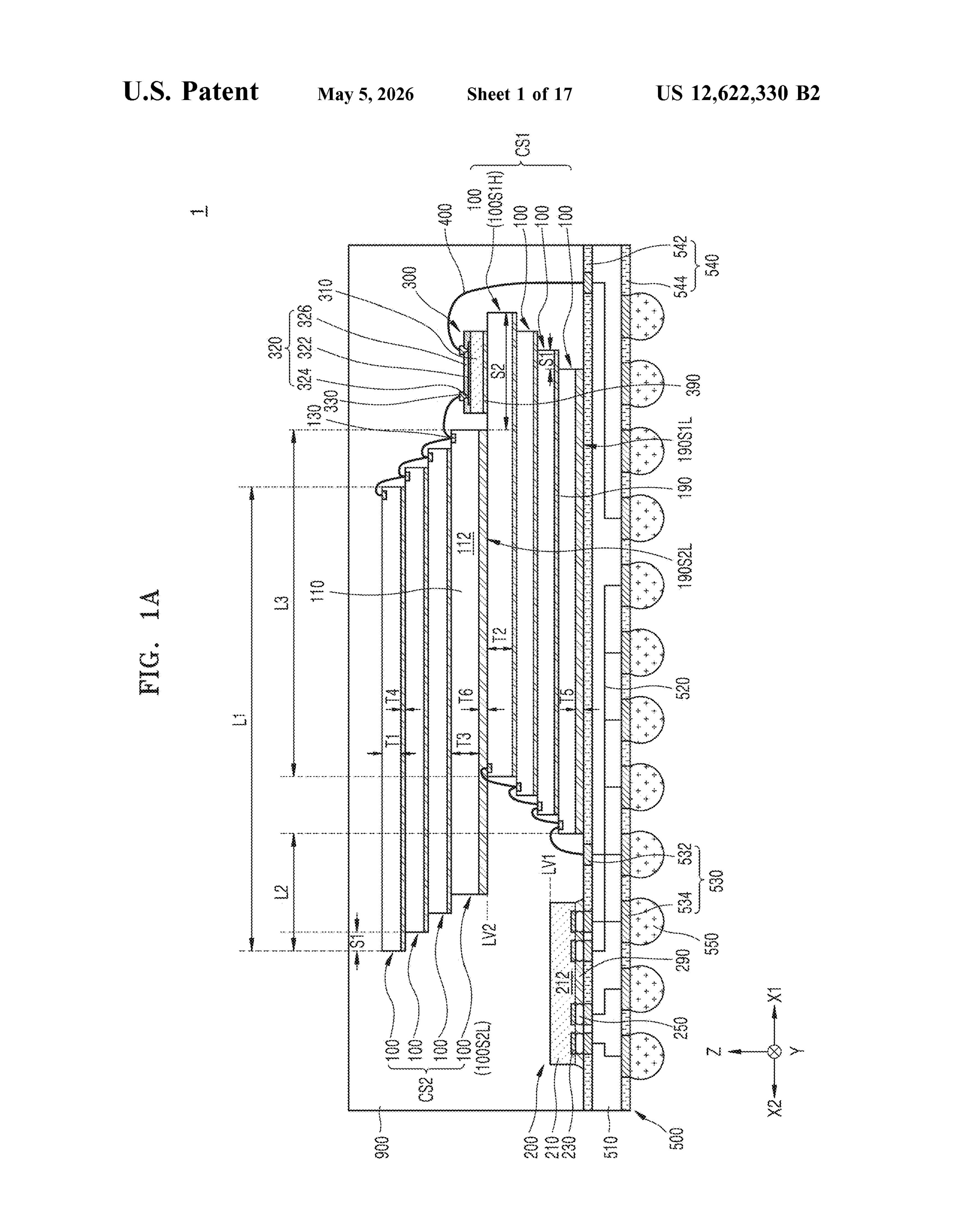

1 . A stacked semiconductor package comprising: a package base substrate; a first chip stack shaped as a series of steps, the first chip stack including a plurality of first semiconductor chips stacked sequentially on the package base substrate, each of the plurality of first semiconductor chips being shifted by a first interval in a first horizontal direction; a second chip stack shaped as a series of steps, the second chip stack including a plurality of second semiconductor chips stacked sequentially on the first chip stack, each of the plurality of second semiconductor chips being shifted by the first interval in a second horizontal direction, the second horizontal direction being opposite the first horizontal direction; and a plurality of bonding wires electrically connecting the plurality of first semiconductor chips and the plurality of second semiconductor chips to the package base substrate, wherein an upper support semiconductor chip is a lowermost second semiconductor chip among the plurality of second semiconductor chips, a lower support semiconductor chip is an uppermost first semiconductor chip among the plurality of first semiconductor chips, the upper support semiconductor chip is shifted from the lower support semiconductor chip by a second interval in the second horizontal direction, the second interval is greater than the first interval.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript is a patent claim describing a stacked semiconductor package on a base substrate. It consists of a lower chip stack formed as ascending steps, each chip offset by a fixed first interval in one horizontal direction, topped by an upper chip stack formed as descending steps with the same interval in the opposite direction. Bonding wires connect all chips to the substrate. The sole distinguishing feature is that the lowermost chip of the upper stack (upper support chip) is offset from the uppermost chip of the lower stack (lower support chip) by a second interval strictly larger than the intra-stack step interval.
Significance. If the enlarged interface offset reliably improves wire-bond access and die support without introducing new mechanical or electrical failures, the geometry could be of incremental interest to 3D packaging engineers seeking higher stack heights. The manuscript, however, supplies neither analysis nor data, so any significance is hypothetical.
major comments (2)
- [Abstract] Abstract (the sole claim language): the assertion that a second interval greater than the first interval supplies sufficient bonding clearance and mechanical stability is unsupported. No quantitative relations, finite-element results, or clearance calculations are given for overhang length, die thickness, adhesive fillet, or wire-loop height that would confirm the upper die remains supported over a majority of its area or that wire-bond pads remain accessible.
- [Abstract] Abstract: the configuration is under-constrained. The only numerical relation supplied is 'second interval > first interval'; no bounds, tolerances, or material properties are stated that would allow a reader to determine whether the cantilever moment stays below the fracture strength of a thinned die or whether wire shorting is avoided.
minor comments (2)
- The manuscript consists only of the abstract; a complete specification, drawings, and embodiments would be required for technical review.
- Standard packaging terminology (e.g., 'staircase' or 'shingle' stacking) is not used, making the geometric description harder to compare with existing literature.
Simulated Author's Rebuttal
Thank you for the opportunity to respond to the referee's comments on our patent claim describing a stacked semiconductor package. We note at the outset that the document is a structural claim rather than an analytical research article; the claim defines a novel geometric relationship without making performance assertions. We address each major comment below.
read point-by-point responses
-
Referee: [Abstract] Abstract (the sole claim language): the assertion that a second interval greater than the first interval supplies sufficient bonding clearance and mechanical stability is unsupported. No quantitative relations, finite-element results, or clearance calculations are given for overhang length, die thickness, adhesive fillet, or wire-loop height that would confirm the upper die remains supported over a majority of its area or that wire-bond pads remain accessible.
Authors: The claim language contains no assertion that the second interval supplies sufficient bonding clearance or mechanical stability. It is strictly a structural definition: the upper support chip is offset from the lower support chip by a second interval strictly larger than the first intra-stack interval. Any engineering motivation for the enlarged offset (facilitating wire-bond access) is implicit in the field of the invention but is not recited as a limitation or guarantee within the claim itself. Detailed embodiments, dimensions, and process considerations appear in the full patent specification and drawings, which are not reproduced in the abstract. revision: no
-
Referee: [Abstract] Abstract: the configuration is under-constrained. The only numerical relation supplied is 'second interval > first interval'; no bounds, tolerances, or material properties are stated that would allow a reader to determine whether the cantilever moment stays below the fracture strength of a thinned die or whether wire shorting is avoided.
Authors: Patent claims routinely protect the novel aspect of an invention (here, the differential offset at the interface between the two oppositely stepped stacks) while relying on the knowledge of one of ordinary skill in the art, together with the full specification, to select workable bounds, die thicknesses, adhesive properties, and wire-loop parameters. The claim is not presented as a complete design recipe or set of engineering constraints; it is a legal instrument defining the inventive geometry. Specific numerical examples and tolerance ranges are supplied in the detailed description of the patent, consistent with standard claiming practice. revision: no
Circularity Check
Patent abstract contains no derivation, prediction, or first-principles claim; purely structural description.
full rationale
The document is a U.S. patent abstract that recites a geometric configuration of two opposing stepped chip stacks with an enlarged offset (second interval > first interval) at the interface between the uppermost first chip and lowermost second chip. No equations, models, fitted parameters, predictions, or first-principles derivations appear anywhere in the text. The claim language simply defines the desired structure and its bonding-wire connections; it does not derive any quantity from any other quantity, invoke uniqueness theorems, smuggle ansatzes via citation, or rename empirical patterns. Consequently, none of the six enumerated circularity patterns can be instantiated, and the derivation-chain analysis is vacuously empty.
