arxiv: 2405.08840 · v2 · submitted 2024-05-14 · ⚛️ physics.optics · quant-ph

Femtosecond laser written waveguides in sapphire for visible light delivery

Sarah Winkler , Joachim R. Krenn , Jakob Wahl , Alexander Zesar , Yves Colombe , Klemens Sch\"uppert , Clemens R\"ossler , Christian Sommer
show 3 more authors
Philipp Hurdax Philip Lichtenegger Bernhard Lamprecht
This is my paper

Pith reviewed 2026-05-24 01:32 UTC · model grok-4.3

classification ⚛️ physics.optics quant-ph
keywords femtosecond laser writingsapphire waveguidesdepressed claddingvisible light guidingintegrated opticstrapped-ion quantum processorspropagation loss
0
0 comments X

The pith

Femtosecond laser writing produces single-mode waveguides inside sapphire that guide 728 nm light at 1.9 dB/cm loss and support curves to 15 mm radius.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The work establishes that femtosecond laser pulses can inscribe depressed-cladding structures directly in undoped planar sapphire to form waveguides for visible light. Optimized laser parameters and geometry yield single-mode guiding at 728 nm with measured propagation loss of 1.9(3) dB/cm. Curved sections remain usable down to a 15 mm radius before total loss rises sharply. The results position these embedded guides as a route to integrated optics inside sapphire substrates for trapped-ion quantum processors.

Core claim

Femtosecond laser writing of depressed cladding waveguides in undoped sapphire enables single-mode propagation of 728 nm light with 1.9(3) dB/cm loss; curved waveguides exhibit a sharp increase in total loss for radii below 15 mm, demonstrating the technique's viability for volume-integrated visible-light delivery without post-processing.

What carries the argument

Depressed cladding waveguides formed by femtosecond laser-induced refractive-index modification that confines light within an unmodified core region.

If this is right

  • Sapphire substrates can host integrated optical circuits for visible light without surface etching or doping.
  • Curvature limits of 15 mm set practical bounds for compact waveguide layouts in ion-trap systems.
  • Parameter optimization for pulse energy, duration, and repetition rate directly controls loss at a target wavelength.
  • The method supplies a building block for scalable optics inside the bulk material of quantum processors.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same inscription approach may transfer to other transparent hard crystals used in quantum photonics.
  • Embedding waveguides directly in the substrate could simplify alignment between light paths and trapped ions.
  • Extending the technique to additional visible or near-infrared wavelengths would test its generality for different ion species.

Load-bearing premise

The laser writing process creates consistent, stable refractive-index reductions in sapphire that produce low-loss single-mode guiding at visible wavelengths without material-specific anomalies or extra steps.

What would settle it

Fabricating identical waveguides and measuring propagation loss well above 2 dB/cm or clear multimode output at 728 nm would falsify the reported performance.

Figures

Figures reproduced from arXiv: 2405.08840 by Alexander Zesar, Bernhard Lamprecht, Christian Sommer, Clemens R\"ossler, Jakob Wahl, Joachim R. Krenn, Klemens Sch\"uppert, Philip Lichtenegger, Philipp Hurdax, Sarah Winkler, Yves Colombe.

Figure 1
Figure 1. Figure 1: Types of fs-laser-written waveguide geometries. Type I is made of a [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

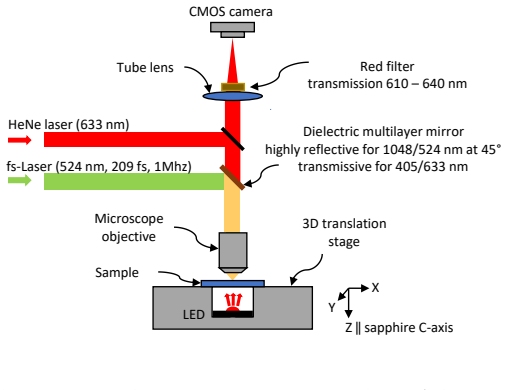

Figure 2. Figure 2: Optical setup of the laser lithography platform. A fs-laser is widened [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Schematic representation of 3D laser-writing of depressed cladding [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Schematic representation of the waveguide characterization setup. [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Total loss as a function of the number of lines written forming the [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Total loss of waveguides depending on their radius of curvature. Inset: [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Measured total loss in dependence of the waveguide length. The error [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
read the original abstract

A promising solution for scalable integrated optics of trapped-ion quantum processors are curved waveguides guiding visible light within sapphire bulk material. To the best of our knowledge, no curved waveguides were investigated in sapphire so far, and no measurements of waveguides with visible light in undoped planar sapphire substrates were reported. Here, we demonstrate femtosecond laser writing of depressed cladding waveguides in sapphire. Laser parameters, such as pulse energy, pulse duration, and repetition rate, as well as waveguide geometry parameters, were optimized to guide 728 nm light. This resulted in single-mode waveguides with a propagation loss of 1.9(3) dB/cm. The investigation of curved waveguides showed a sharp increase in total loss for curvature radii below 15 mm. Our results demonstrate the potential of femtosecond laser writing as a powerful technique for creating integrated optical waveguides in the volume of sapphire substrates. Such waveguides could be a building block for integrated optics in trapped-ion quantum processors.
