Spectral Riemann Sheet Topology of Gapped Non-Hermitian Systems

Anton Montag , Alexander Felski , Flore K. Kunst This is my paper

Pith reviewed 2026-05-23 18:30 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.mes-hallphysics.optics
keywords non-Hermitian systemsexceptional pointsRiemann sheetsbranch cutstopological configurationsBrillouin zonegapped spectra
0
0 comments X

The pith

Threading exceptional points across the Brillouin zone boundary in gapped non-Hermitian systems creates a protected closed branch cut that defines topologically distinct spectral configurations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that gapped non-Hermitian systems support topological configurations in their complex energy spectra. These arise when exceptional points on the Riemann sheets are moved across the Brillouin zone edge and annihilated, which leaves behind a non-trivially closed branch cut. The gap in the spectrum protects this feature. For systems that remain fully non-degenerate, the presence or absence of the closed branch cut marks distinct topological classes. Any change from one class to the other requires the gap to close and exceptional points to appear.

Core claim

In gapped non-Hermitian systems the distinctive exceptional points on the energy Riemann sheets can be threaded across the Brillouin zone boundary and annihilated while the protecting energy gap stays open. The result is a non-trivially closed branch cut whose presence or absence distinguishes topologically different configurations even when the spectrum has no degeneracies at all. Transitions between these configurations are possible only when the gap closes and exceptional points form.

What carries the argument

The energy Riemann sheet topology carried by closed branch cuts that survive the annihilation of exceptional points after they cross the Brillouin zone boundary.

If this is right

  • Fully non-degenerate gapped spectra fall into at least two topologically distinct classes distinguished only by the Riemann sheet connection.
  • Any adiabatic tuning that switches between these classes must pass through a gap-closing point where exceptional points appear.
  • The closed branch cut remains stable as long as the energy gap stays open.
  • Realizations are possible in metasurfaces and single-photon interferometry setups.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same mechanism may classify steady states of open quantum systems whose effective non-Hermitian Hamiltonians exhibit gaps.
  • It could link spectral topology to the robustness of observables measured in interferometric experiments.
  • Numerical checks on finite-size lattices with periodic boundaries could confirm whether the closed branch cut persists when the Brillouin zone is discretized.

Load-bearing premise

Exceptional points on the Riemann sheets can be moved across the Brillouin zone boundary and annihilated without forcing the energy gap to close.

What would settle it

A concrete lattice model in which two configurations with and without the closed branch cut can be connected by a continuous parameter change that never produces exceptional points or closes the gap.

Figures

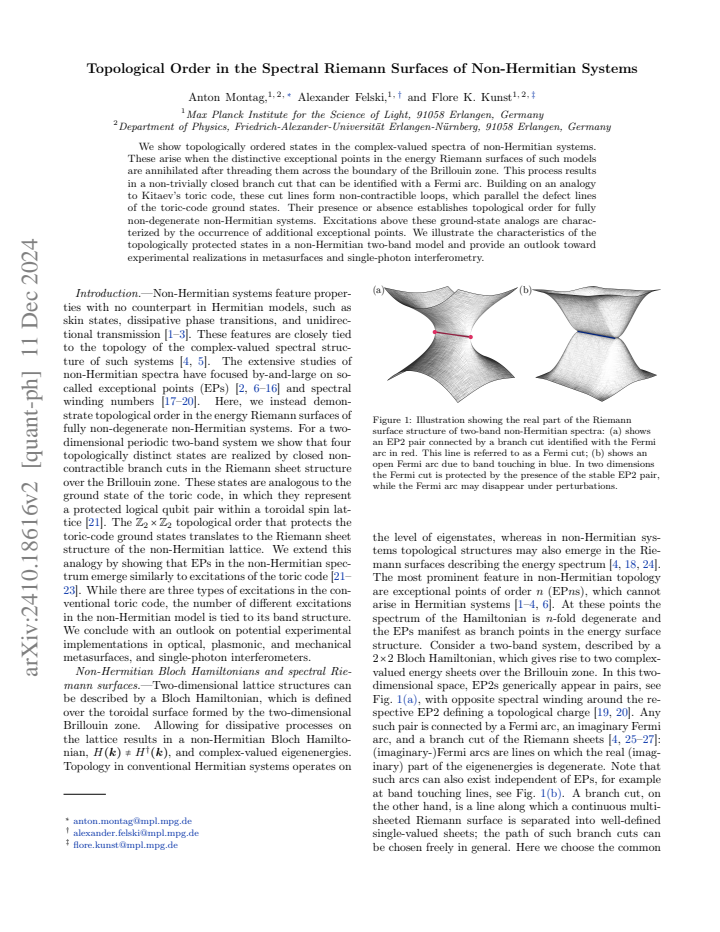

Figures reproduced from arXiv: 2410.18616 by Alexander Felski, Anton Montag, Flore K. Kunst.

Figure 1
Figure 1. Figure 1: Illustration showing the real part of the Riemann [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a): Illustration of the toric code on a square lattice given periodic boundary conditions. Physical qubit degrees of freedom are [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The real part of the spectral Riemann surface structures [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
read the original abstract

We show topological configurations of the complex-valued spectra in gapped non-Hermitian systems. These arise when the distinctive EPs in the energy Riemann sheets of such models are annihilated after threading them across the boundary of the Brillouin zone. This results in a non-trivially closed branch cut that is protected by an energy gap in the spectrum. Their presence or absence establishes topologically distinct configurations for fully non-degenerate systems and tuning between them requires a closing of the gap, forming exceptional point degeneracies. We provide an outlook toward experimental realizations in metasurfaces and single-photon interferometry.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that topological configurations of complex-valued spectra arise in gapped non-Hermitian systems when exceptional points (EPs) on the energy Riemann sheets are annihilated after being threaded across the Brillouin zone boundary. This produces a non-trivially closed branch cut protected by an energy gap. Presence or absence of this feature distinguishes topologically inequivalent fully non-degenerate gapped spectra, with transitions between them necessarily requiring gap closure at EPs. An outlook toward experimental realizations in metasurfaces and single-photon interferometry is included.

Significance. If the central construction holds, the work would introduce a Riemann-sheet-based topological classification for gapped non-Hermitian spectra that is distinct from conventional point-gap or line-gap invariants. The experimental outlook indicates possible relevance to photonic platforms. No machine-checked proofs, reproducible code, or parameter-free derivations are described.

major comments (2)
  1. [Abstract] Abstract (and throughout): the load-bearing claim that EPs can be threaded across the BZ boundary and annihilated while a protecting energy gap remains open is asserted without an explicit model Hamiltonian, Riemann-surface construction, or derivation showing that the process is forced by periodicity and cannot be continuously undone inside the gapped regime. This leaves the topological distinction between configurations unestablished.
  2. [Abstract] Abstract: the 'energy gap' that protects the closed branch cut is never defined (real-part gap, imaginary-part gap, or distance in the complex plane), so it is impossible to verify whether the gap remains open during threading or whether the resulting configuration is invariant under gapped deformations that avoid EPs.
minor comments (2)
  1. [Abstract] The abstract states that the configurations apply to 'fully non-degenerate systems,' yet EPs are degeneracies; the relation between these statements requires clarification.
  2. The manuscript provides no concrete example or figure illustrating the threading process, the resulting branch-cut topology, or the distinction between the claimed configurations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their detailed reading and for identifying points where the presentation of our central claims can be strengthened. We respond to each major comment below and will incorporate the suggested clarifications in a revised manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract (and throughout): the load-bearing claim that EPs can be threaded across the BZ boundary and annihilated while a protecting energy gap remains open is asserted without an explicit model Hamiltonian, Riemann-surface construction, or derivation showing that the process is forced by periodicity and cannot be continuously undone inside the gapped regime. This leaves the topological distinction between configurations unestablished.

    Authors: The referee correctly notes that the abstract summarizes the result at a high level. The full manuscript contains a concrete non-Hermitian lattice Hamiltonian together with explicit Riemann-surface plots that illustrate the threading and pairwise annihilation of exceptional points when they cross the Brillouin-zone boundary. Nevertheless, we agree that a compact, self-contained derivation of why periodicity forces the annihilation (and why the process cannot be continuously reversed while the gap stays open) is not sufficiently highlighted. We will add a dedicated paragraph and accompanying figure in the revised introduction that derives this topological obstruction directly from the periodic identification of the Brillouin zone, thereby establishing the inequivalence of the resulting spectral configurations. revision: yes

  2. Referee: [Abstract] Abstract: the 'energy gap' that protects the closed branch cut is never defined (real-part gap, imaginary-part gap, or distance in the complex plane), so it is impossible to verify whether the gap remains open during threading or whether the resulting configuration is invariant under gapped deformations that avoid EPs.

    Authors: We accept that an explicit definition is required. In the revised manuscript we will define the protecting gap as the minimum Euclidean distance in the complex plane between any pair of distinct eigenvalues. We will then demonstrate, both analytically for the model Hamiltonian and numerically across the deformation path, that this distance remains strictly positive while the exceptional points are threaded and annihilated, and that any continuous deformation preserving the gap cannot undo the closed branch cut without forcing an exceptional-point degeneracy. revision: yes

Circularity Check

0 steps flagged

No circularity detected; derivation self-contained

full rationale

The abstract presents a conceptual construction: EPs in Riemann sheets are threaded across the BZ boundary and annihilated while preserving a protecting energy gap, yielding a closed branch cut whose presence/absence distinguishes topologically distinct gapped spectra. No equations, parameter fits, self-citations, or ansatzes are supplied in the given text that reduce this distinction to a tautology or input by construction. The load-bearing step (threading/annihilation without gap closure) is asserted as a physical possibility rather than derived from a fitted quantity or prior self-referential result. This is the normal case of a non-circular topological claim.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated. Standard domain assumptions of non-Hermitian band theory are implicit but not detailed.

axioms (1)
  • domain assumption Non-Hermitian Hamiltonians possess complex spectra organized on Riemann sheets with exceptional points.
    This is the standard starting point for the described spectral topology.

pith-pipeline@v0.9.0 · 5628 in / 1198 out tokens · 32799 ms · 2026-05-23T18:30:09.061362+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

40 extracted references · 40 canonical work pages · 1 internal anchor

  1. [1]

    Kato, Perturbation theory of linear operators , edited by A

    T. Kato, Perturbation theory of linear operators , edited by A. Cappelli and G. Mussardo (Springer, Berlin, 1966)

    work page 1966

  2. [2]

    W. D. Heiss, The physics of exceptional points, Journal of Physics A: Mathematical and Theoretical45, 444016 (2012)

    work page 2012

  3. [3]

    Ashida, Z

    Y. Ashida, Z. Gong, and M. Ueda, Non-hermitian physics, Advances in Physics69, 249 (2020)

    work page 2020

  4. [4]

    E. J. Bergholtz, J. C. Budich, and F. K. Kunst, Ex- ceptional topology of non-hermitian systems, Rev. Mod. Phys. 93, 015005 (2021)

    work page 2021

  5. [5]

    J. C. Budich, J. Carlström, F. K. Kunst, and E. J. Bergholtz, Symmetry-protected nodal phases in non- hermitian systems, Phys. Rev. B99, 041406(R) (2019)

    work page 2019

  6. [6]

    Miri and A

    M.-A. Miri and A. Alù, Exceptional points in optics and photonics, Science 363, eaar7709 (2019)

    work page 2019

  7. [7]

    Sayyad and F

    S. Sayyad and F. K. Kunst, Realizing exceptional points of any order in the presence of symmetry, Phys. Rev. Res. 4, 023130 (2022)

    work page 2022

  8. [8]

    B. Zhen, C. W. Hsu, Y. Igarashi, L. Lu, I. Kaminer, A. Pick, S.-L. Chua, J. D. Joannopoulos, and M. Soljačić, Spawning rings of exceptional points out of dirac cones, Nature 525, 354 (2015)

    work page 2015

  9. [9]

    Zhang and J

    G.-Q. Zhang and J. Q. You, Higher-order exceptional point in a cavity magnonics system, Phys. Rev. B99, 054404 (2019)

    work page 2019

  10. [10]

    S.M.Zhang, X.Z.Zhang, L.Jin,andZ.Song,High-order exceptional points in supersymmetric arrays, Phys. Rev. A 101, 033820 (2020)

    work page 2020

  11. [11]

    Crippa, J

    L. Crippa, J. C. Budich, and G. Sangiovanni, Fourth- order exceptional points in correlated quantum many- body systems, Phys. Rev. B104, L121109 (2021)

    work page 2021

  12. [12]

    Hodaei, A

    H. Hodaei, A. U. Hassan, S. Wittek, H. Garcia-Gracia, R. El-Ganainy, D. N. Christodoulides, and M. Kha- javikhan, Enhanced sensitivity at higher-order excep- tional points, Nature548, 187 (2017)

    work page 2017

  13. [13]

    H. Jing, Ş. K. Özdemir, H. Lü, and F. Nori, High-order exceptional points in optomechanics, Scientific Reports 7, 3386 (2017)

    work page 2017

  14. [14]

    K. Ding, G. Ma, M. Xiao, Z. Q. Zhang, and C. T. Chan, Emergence, coalescence, and topological properties of multiple exceptional points and their experimental re- alization, Phys. Rev. X6, 021007 (2016)

    work page 2016

  15. [15]

    Montag and F

    A. Montag and F. K. Kunst, Symmetry-induced higher- order exceptional points in two dimensions, Phys. Rev. Res. 6, 023205 (2024)

    work page 2024

  16. [16]

    Montag and F

    A. Montag and F. K. Kunst, Essential implica- 6 tions of similarities in non-hermitian systems (2024), arXiv:2402.18249 [quant-ph]

    work page arXiv 2024

  17. [17]

    Z. Gong, Y. Ashida, K. Kawabata, K. Takasan, S. Hi- gashikawa, and M. Ueda, Topological phases of non- hermitian systems, Phys. Rev. X8, 031079 (2018)

    work page 2018

  18. [18]

    Delplace, T

    P. Delplace, T. Yoshida, and Y. Hatsugai, Symmetry- protected multifold exceptional points and their topologi- calcharacterization,Phys.Rev.Lett. 127,186602(2021)

    work page 2021

  19. [19]

    Leykam, K

    D. Leykam, K. Y. Bliokh, C. Huang, Y. D. Chong, and F. Nori, Edge modes, degeneracies, and topological num- bers in non-hermitian systems, Phys. Rev. Lett. 118, 040401 (2017)

    work page 2017

  20. [20]

    H. Shen, B. Zhen, and L. Fu, Topological band theory for non-hermitian hamiltonians, Phys. Rev. Lett. 120, 146402 (2018)

    work page 2018

  21. [21]

    Kitaev, Fault-tolerant quantum computation by anyons, Annals of Physics303, 2 (2003)

    A. Kitaev, Fault-tolerant quantum computation by anyons, Annals of Physics303, 2 (2003)

    work page 2003

  22. [22]

    Kitaev, Anyons in an exactly solved model and be- yond, Annals of Physics321, 2 (2006), january Special Issue

    A. Kitaev, Anyons in an exactly solved model and be- yond, Annals of Physics321, 2 (2006), january Special Issue

    work page 2006

  23. [23]

    Y.-J. Han, R. Raussendorf, and L.-M. Duan, Scheme for demonstration of fractional statistics of anyons in an ex- actly solvable model, Phys. Rev. Lett.98, 150404 (2007)

    work page 2007

  24. [24]

    Kawabata, K

    K. Kawabata, K. Shiozaki, M. Ueda, and M. Sato, Sym- metry and topology in non-hermitian physics, Phys. Rev. X 9, 041015 (2019)

    work page 2019

  25. [25]

    M. V. Berry, Physics of nonhermitian degeneracies, Czechoslovak journal of physics54, 1039 (2004)

    work page 2004

  26. [26]

    Non-Hermitian Topological Theory of Finite-Lifetime Quasiparticles: Prediction of Bulk Fermi Arc Due to Exceptional Point

    V. Kozii and L. Fu, Non-hermitian topological the- ory of finite-lifetime quasiparticles: prediction of bulk fermi arc due to exceptional point, arXiv preprint arXiv:1708.05841 (2017)

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  27. [27]

    H. Zhou, C. Peng, Y. Yoon, C. W. Hsu, K. A. Nelson, L. Fu, J. D. Joannopoulos, M. Soljačić, and B. Zhen, Observationofbulkfermiarcandpolarizationhalfcharge from paired exceptional points, Science359, 1009 (2018)

    work page 2018

  28. [28]

    P. W. Shor, Scheme for reducing decoherence in quantum computer memory, Phys. Rev. A52, R2493 (1995)

    work page 1995

  29. [29]

    C. C. Wojcik, K. Wang, A. Dutt, J. Zhong, and S. Fan, Eigenvalue topology of non-hermitian band structures in two and three dimensions, Phys. Rev. B106, L161401 (2022)

    work page 2022

  30. [30]

    J. L. K. König, K. Yang, J. C. Budich, and E. J. Bergholtz, Braid-protected topological band structures with unpaired exceptional points, Phys. Rev. Res. 5, L042010 (2023)

    work page 2023

  31. [31]

    Zhong, J

    Q. Zhong, J. Kou, Ş. K. Özdemir, and R. El-Ganainy, Hierarchical construction of higher-order exceptional points, Phys. Rev. Lett.125, 203602 (2020)

    work page 2020

  32. [32]

    Wiersig, Revisiting the hierarchical construction of higher-order exceptional points, Phys

    J. Wiersig, Revisiting the hierarchical construction of higher-order exceptional points, Phys. Rev. A 106, 063526 (2022)

    work page 2022

  33. [33]

    C. C. Wojcik, X.-Q. Sun, T. Bzdušek, and S. Fan, Ho- motopy characterization of non-hermitian hamiltonians, Phys. Rev. B101, 205417 (2020)

    work page 2020

  34. [34]

    Li and R

    Z. Li and R. S. K. Mong, Homotopical characterization of non-hermitian band structures, Phys. Rev. B 103, 155129 (2021)

    work page 2021

  35. [35]

    Nenciu and G

    G. Nenciu and G. Rasche, On the adiabatic theorem for nonself-adjoint hamiltonians, Journal of Physics A: Mathematical and General25, 5741 (1992)

    work page 1992

  36. [36]

    R.Uzdin, A.Mailybaev,andN.Moiseyev,Ontheobserv- ability and asymmetry of adiabatic state flips generated by exceptional points, Journal of Physics A: Mathemat- ical and Theoretical44, 435302 (2011)

    work page 2011

  37. [37]

    T. J. Milburn, J. Doppler, C. A. Holmes, S. Portolan, S. Rotter, and P. Rabl, General description of quasia- diabatic dynamical phenomena near exceptional points, Phys. Rev. A92, 052124 (2015)

    work page 2015

  38. [38]

    Ş. K. Özdemir, S. Rotter, F. Nori, and L. Yang, Parity– time symmetry and exceptional points in photonics, Na- ture materials 18, 783 (2019)

    work page 2019

  39. [39]

    Opala, M

    A. Opala, M. Furman, M. Król, R. Mirek, K. Tyszka, B. Seredyński, W. Pacuski, J. Szczytko, M. Matuszewski, and B. Piętka, Natural exceptional points in the excita- tion spectrum of a light–matter system, Optica10, 1111 (2023)

    work page 2023

  40. [40]

    K. Wang, J. L. K. König, K. Yang, L. Xiao, W. Yi, E. J. Bergholtz, and P. Xue, Photonic non-abelian braid monopole (2024), arXiv:2410.08191 [cond-mat.mes-hall]

    work page arXiv 2024
