arxiv: 2411.14434 · v2 · submitted 2024-11-02 · 🪐 quant-ph · cs.CR

Quantum CORDIC -- Arcsine on a Budget

Iain Burge , Michel Barbeau , Joaquin Garcia-Alfaro This is my paper

Pith reviewed 2026-05-23 17:57 UTC · model grok-4.3

classification 🪐 quant-ph cs.CR
keywords quantum CORDICarcsinereversible quantum algorithmsquantum trigonometric functionsHHL algorithmquantum Monte Carlo
0
0 comments X

The pith

A reversible quantum CORDIC algorithm computes the arcsine function using O(n) qubits for n-bit precision.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a quantum version of the CORDIC algorithm to compute arcsine with arbitrary accuracy. It replaces non-reversible operations with fully reversible quantum equivalents. This achieves space complexity of O(n) qubits, depth O(n log n), and O(n squared) CNOT gates. Such a primitive supports algorithms like HHL and quantum Monte Carlo methods.

Core claim

The authors detail multiple approaches to calculate the arcsine function reversibly with CORDIC, establishing that for n bits of precision the method requires order n qubits, order n log n layers, and order n squared CNOTs while avoiding non-reversible operations.

What carries the argument

The reversible CORDIC iteration adapted for quantum circuits, which uses bit shifts and additions implemented reversibly to approximate trigonometric functions.

If this is right

  • Provides a required step for the Harrow-Hassidim-Lloyd algorithm.
  • Supports quantum digital-to-analog conversion.
  • Simplifies quantum speed-ups for Monte-Carlo methods.
  • Enables direct applications in quantum estimation of Shapley values.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar reversible adaptations could apply to other elementary functions computable by CORDIC such as arctangent or square root.
  • The stated bounds allow direct substitution into larger quantum circuits without changing their leading asymptotic costs.
  • Hardware implementations could test the layer and CNOT counts on small-scale quantum processors for moderate n.

Load-bearing premise

Non-reversible operations in classical CORDIC can be replaced by fully reversible quantum equivalents without increasing the asymptotic resource counts.

What would settle it

An explicit circuit construction or simulation for small n that requires more than O(n squared) CNOTs or fails to achieve the claimed precision would falsify the resource claims.

Figures

Figures reproduced from arXiv: 2411.14434 by Iain Burge, Joaquin Garcia-Alfaro, Michel Barbeau.

Figure 1
Figure 1. Figure 1: This would give us state, R |ψ1⟩ = |ψ2⟩ = L X−1 k=0 αk |hk⟩in |arcsin p hk⟩aux ·  cos  arcsin p hk  |0⟩ + sin  arcsin p hk  |1⟩  out . Using trigonometry identities, we have that, |ψ2⟩ = LX−1 k=0 αk |hk⟩in |arcsin p hk⟩aux · p 1 − hk |0⟩ + p hk |1⟩  out . . . . . . . · · · |arcsin √ hk⟩aux |0⟩out Ry π 4  Ry π 8  Ry π 2n+1  [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Unitary transformation R′ which transfers the binary encoding of CORDIC rotation direction stored d register into the amplitude of the out register. Define Ry(ω) = (cos ω, − sin ω; sin ω, cos ω), and µi = tan−1 2 −i . VII. COMPLEXITY AND SIMULATIONS In this section, we detail the complexity to construct |κ2⟩, Equation (2). The quantum implementation of Algorithm 1, skipping Line 10, applies Mult three time… view at source ↗
Figure 3

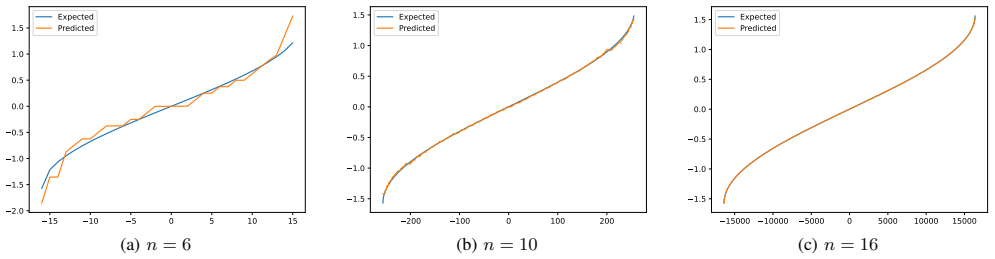

Figure 3. Figure 3: Results of Classical simulations of Quantum compatible Algorithm for CORDIC Arcsine (see our GitHub repository at [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
read the original abstract

This work introduces a quantum algorithm for computing the function arcsine, with arbitrary accuracy. We leverage a technique from embedded computing and Field-Programmable Gate Arrays, called COordinate Rotation DIgital Computer (CORDIC). CORDIC is a family of iterative algorithms that, in a classical context, can approximate various trigonometric, hyperbolic, and elementary functions using only bit shifts and additions. Adapting CORDIC to the quantum context is non-trivial, as the algorithm traditionally uses several non-reversible operations. We detail a method for CORDIC that avoids such non-reversible operations. We propose multiple approaches to calculate the arcsine function reversibly with CORDIC. For n bits of precision, our method has space complexity of order n qubits, a layer count in the order of n times log n, and a CNOT count in the order of n squared. This primitive function is a required step for the Harrow-Hassidim-Lloyd (HHL) algorithm, is necessary for quantum digital-to-analog conversion, can simplify a quantum speed-up for Monte-Carlo methods, and has direct applications in the quantum estimation of Shapley values.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript introduces a reversible quantum adaptation of the classical CORDIC algorithm to compute the arcsine function to arbitrary precision. It asserts that multiple reversible approaches exist and claims that, for n bits of precision, the construction uses O(n) qubits, O(n log n) layers, and O(n²) CNOT gates. The work positions this primitive as relevant to HHL, quantum digital-to-analog conversion, Monte-Carlo speed-ups, and Shapley-value estimation.

Significance. If the stated resource bounds can be rigorously established, the result would supply a useful, asymptotically efficient quantum primitive for arcsine that avoids the overhead of general function-approximation techniques. The applications listed are standard motivations for such a primitive.

major comments (2)
  1. [Abstract] Abstract: the central complexity claim (O(n) qubits, O(n log n) layers, O(n²) CNOTs) is asserted without any explicit reversible circuit construction, gate-sequence accounting, or analysis of ancilla overhead and uncomputation costs required to replace the classical non-reversible conditional rotations and sign decisions.
  2. [Abstract] Abstract: the statement that 'multiple approaches' exist to make CORDIC fully reversible is not accompanied by even a high-level description of how the iterative shifts, adds, and decision logic are realized reversibly while preserving the claimed asymptotics; without this, the load-bearing step from classical CORDIC to the quoted quantum costs cannot be verified.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed review and for highlighting opportunities to improve clarity in the abstract. The full manuscript contains explicit reversible circuit constructions, gate accounting, and ancilla analysis in Sections 3–5; the abstract was intentionally kept concise. We will revise the abstract to incorporate high-level descriptions and section references while preserving the stated asymptotics, which follow directly from the constructions provided.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central complexity claim (O(n) qubits, O(n log n) layers, O(n²) CNOTs) is asserted without any explicit reversible circuit construction, gate-sequence accounting, or analysis of ancilla overhead and uncomputation costs required to replace the classical non-reversible conditional rotations and sign decisions.

    Authors: The body of the manuscript (Sections 3 and 4) supplies the explicit reversible constructions, including the handling of conditional rotations via reversible sign decisions, the uncomputation of ancillae after each iteration, and the precise CNOT and layer counts that establish the O(n), O(n log n), and O(n²) bounds. To make these claims verifiable from the abstract alone, we will add a single sentence summarizing the reversible adaptations and directing readers to the relevant sections. revision: yes

  2. Referee: [Abstract] Abstract: the statement that 'multiple approaches' exist to make CORDIC fully reversible is not accompanied by even a high-level description of how the iterative shifts, adds, and decision logic are realized reversibly while preserving the claimed asymptotics; without this, the load-bearing step from classical CORDIC to the quoted quantum costs cannot be verified.

    Authors: We agree that the abstract would benefit from a brief high-level outline of the reversible realizations. The manuscript already details two distinct approaches (one based on reversible comparison and one using controlled phase rotations) in Section 3, with the asymptotic analysis in Section 5 showing that both preserve the claimed resource bounds. In revision we will insert a short clause in the abstract describing the core reversible primitives (reversible shifts via bit-permutation networks, additions via ripple-carry or carry-lookahead, and decisions via reversible comparators) and reference the sections containing the full accounting. revision: yes

Circularity Check

0 steps flagged

No circularity; resource claims are constructive estimates from proposed reversible circuits

full rationale

The paper presents an algorithmic construction for a reversible quantum CORDIC implementation to compute arcsine. The stated asymptotic resource counts (O(n) qubits, O(n log n) layers, O(n²) CNOTs) are forward-looking estimates derived from the described circuit primitives and reversibility adaptations, not from any fitted parameters, self-definitional equations, or load-bearing self-citations. No equations or derivations in the provided text reduce the output claims to the inputs by construction. The work is self-contained as a proposal for circuit design, with the central premise being the existence of reversible equivalents rather than a tautological renaming or fit.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the work relies on standard assumptions of quantum circuit reversibility and CORDIC iteration correctness from classical literature.
