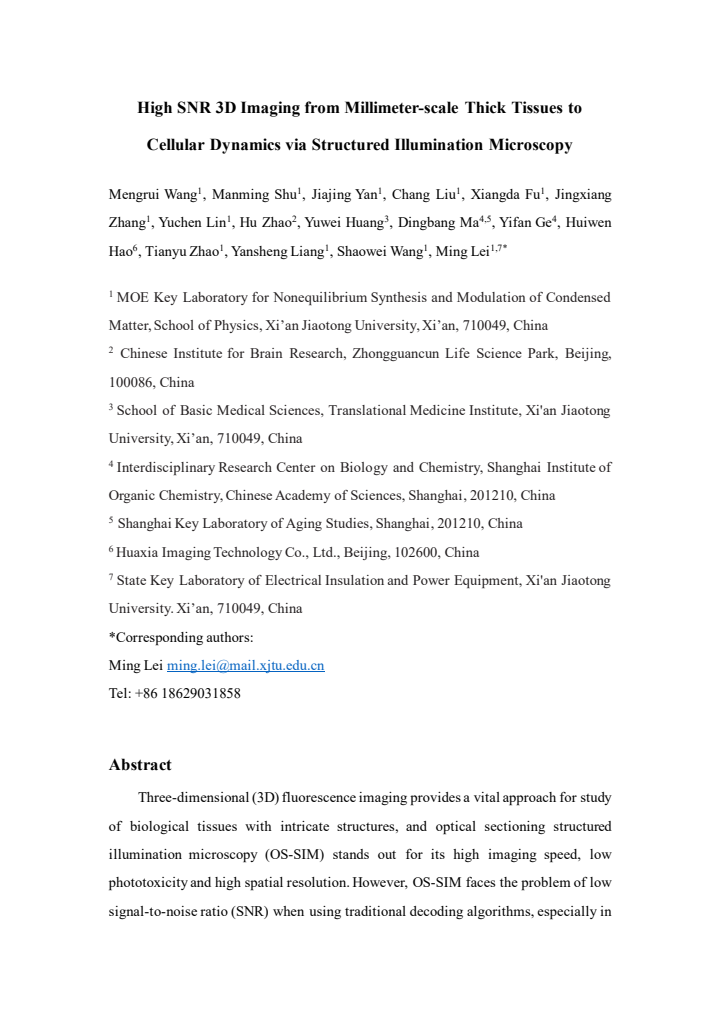

High SNR 3D Imaging from Millimeter-scale Thick Tissues to Cellular Dynamics via Structured Illumination Microscopy

Mengrui Wang , Manming Shu , Jiajing Yan , Chang Liu , Xiangda Fu , Jingxiang Zhang , Yuchen Lin , Hu Zhao
show 8 more authors
Yuwei Huang Dingbang Ma Yifan Ge Huiwen Hao Tianyu Zhao Yansheng Liang Shaowei Wang Ming Lei
This is my paper

Pith reviewed 2026-05-23 08:00 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords structured illumination microscopyoptical sectioningHilbert transformsignal-to-noise ratio3D fluorescence imagingthick tissuesnoise suppressionbiological imaging
0
0 comments X

The pith

The HT-SHiLo algorithm raises SNR in optical sectioning structured illumination microscopy and doubles usable imaging depth in thick tissues.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Structured illumination microscopy produces fast, low-toxicity 3D fluorescence images, yet traditional decoding yields low signal-to-noise ratios once tissues become thick. The paper introduces the HT-SHiLo decoder, which applies Hilbert-transform decoding followed by space-domain high-low filtering to suppress noise. Demonstrations on mouse brains, Drosophila clock neurons, organoids, and live cells show clearer optical sections and usable images at twice the previous depth. The result keeps the speed and resolution advantages of OS-SIM while making millimeter-scale samples practical targets.

Core claim

The HT-SHiLo algorithm combines Hilbert-transform decoding with space-domain high-low processing to suppress noise in OS-SIM. This produces significantly higher SNR at rapid processing speeds and extends imaging depth by a factor of two in thick tissues. The method yields high-quality 3D images of mouse brains, Drosophila clock neurons, organoids, and live cells, rendering OS-SIM suitable for 3D morphology studies of cellular organelles or thick tissues.

What carries the argument

The HT-SHiLo algorithm, a decoder for OS-SIM that uses Hilbert-transform decoding followed by space-domain high-low filtering to suppress noise.

If this is right

  • Optical sectioning images acquire substantially higher signal-to-noise ratio without loss of speed.
  • Usable imaging depth in thick tissues increases by a factor of two.
  • High-quality 3D reconstructions become feasible for millimeter-scale samples including mouse brains and organoids.
  • Cellular dynamics can be tracked in live cells with maintained low phototoxicity.
  • OS-SIM extends to broader studies of cellular organelles inside intact thick tissues.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may reduce reliance on physical sectioning for volumetric tissue studies.
  • Rapid processing could support extended time-lapse recordings of thicker specimens.
  • Performance on illumination patterns or tissue types outside the tested set would require separate verification.
  • Combination with complementary contrast mechanisms might push depth limits further in scattering media.

Load-bearing premise

The noise statistics measured in the tested biological samples are representative of the general case and the Hilbert-transform step introduces no systematic artifacts that would appear under different sample conditions or illumination patterns.

What would settle it

Repeating the depth and SNR measurements on a fresh set of tissues whose scattering or noise properties differ markedly from the reported samples and finding either no depth gain or visible artifacts would falsify the claimed generality.

read the original abstract

Three-dimensional (3D) fluorescence imaging provides a vital approach for study of biological tissues with intricate structures, and optical sectioning structured illumination microscopy (OS-SIM) stands out for its high imaging speed, low phototoxicity and high spatial resolution. However, OS-SIM faces the problem of low signal-to-noise ratio (SNR) when using traditional decoding algorithms, especially in thick tissues. Here we propose a Hilbert-transform decoding and space domain based high-low (HT-SHiLo) algorithm for noise suppression in OS-SIM. We demonstrate HT-SHiLo algorithm can significantly improve the SNR of optical sectioning images at rapid processing speed, and double the imaging depth in thick tissues. With our OS-SIM system, we achieve high quality 3D images of various biological samples including mouse brains, Drosophila clock neurons, organoids, and live cells. We anticipate that this approach will render OS-SIM a powerful technique for research of cellular organelles or thick tissues in 3D morphology.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes the HT-SHiLo algorithm, which applies a Hilbert transform to modulated images before high-low separation in optical sectioning structured illumination microscopy (OS-SIM). It claims this yields significantly higher SNR at rapid processing speed and doubles imaging depth in thick tissues, with demonstrations on mouse brains, Drosophila clock neurons, organoids, and live cells.

Significance. If the SNR and depth claims are substantiated by quantitative metrics and the Hilbert-transform step is shown not to introduce systematic artifacts, the method would offer a practical advance for high-speed, low-phototoxicity 3D fluorescence imaging of thick biological samples, extending OS-SIM utility to deeper tissues and cellular dynamics studies.

major comments (2)
  1. [Abstract] Abstract: the central claims that HT-SHiLo 'significantly improve[s] the SNR' and 'double[s] the imaging depth' are unsupported by any quantitative metrics, error bars, sample sizes, or direct comparisons to traditional decoding algorithms, so the strength of the result cannot be evaluated.
  2. [Algorithm description (Hilbert-transform step)] Hilbert-transform decoding step: the algorithm applies the Hilbert transform before high-low separation under the assumption that the signal remains analytic without distortion; no validation (e.g., ablation on synthetic phantoms with known ground-truth depth profiles or tests across non-Gaussian/non-stationary noise regimes and varied pattern frequencies) is reported to bound possible ringing or low-frequency leakage artifacts in thick-tissue scattering conditions.
minor comments (1)
  1. [Abstract] The abstract would be strengthened by reporting concrete processing speeds (e.g., frames per second or wall-clock time per volume) to support the 'rapid processing speed' claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive comments, which highlight important areas for strengthening the manuscript. We address each major comment below and will revise the paper accordingly to improve clarity and rigor.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claims that HT-SHiLo 'significantly improve[s] the SNR' and 'double[s] the imaging depth' are unsupported by any quantitative metrics, error bars, sample sizes, or direct comparisons to traditional decoding algorithms, so the strength of the result cannot be evaluated.

    Authors: We agree that the abstract would benefit from quantitative support. The full manuscript contains direct comparisons (e.g., SNR values and depth measurements across samples) with error bars and sample sizes, but these were not summarized in the abstract. In the revised version we will update the abstract to include specific quantitative metrics, such as average SNR improvement in dB, the factor of depth increase with standard deviation, sample sizes (N), and explicit comparisons to conventional high-low decoding. revision: yes

  2. Referee: [Algorithm description (Hilbert-transform step)] Hilbert-transform decoding step: the algorithm applies the Hilbert transform before high-low separation under the assumption that the signal remains analytic without distortion; no validation (e.g., ablation on synthetic phantoms with known ground-truth depth profiles or tests across non-Gaussian/non-stationary noise regimes and varied pattern frequencies) is reported to bound possible ringing or low-frequency leakage artifacts in thick-tissue scattering conditions.

    Authors: The empirical results on scattering samples (mouse brain, Drosophila neurons, organoids) provide real-world validation under thick-tissue conditions, but we acknowledge the value of controlled synthetic tests to bound potential artifacts. We will add an ablation study using synthetic phantoms with known ground-truth depth profiles, including tests under varied noise regimes and pattern frequencies, to explicitly quantify any ringing or leakage effects in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical algorithm demonstration with no self-referential derivations

full rationale

The paper proposes the HT-SHiLo algorithm (Hilbert-transform decoding combined with space-domain high-low separation) and reports empirical SNR improvements and doubled imaging depth on biological samples (mouse brains, Drosophila neurons, organoids, live cells). No equations, parameter fits, or predictions are described that reduce by construction to the inputs; the central claims rest on experimental demonstrations rather than closed mathematical loops or self-citation chains. The reader's assessment of score 2.0 is consistent with absence of detectable circularity at the level of the provided text.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no information on free parameters, axioms, or invented entities.
