arxiv: 2501.07354 · v2 · submitted 2025-01-13 · 🪐 quant-ph

Enhancing the sensitivity of single microwave photon detection with bandwidth tunability

Louis Pallegoix , Jaime Travesedo , Alexandre S. May , L\'eo Balembois , Denis Vion , Patrice Bertet , Emmanuel Flurin This is my paper

Pith reviewed 2026-05-23 05:49 UTC · model grok-4.3

classification 🪐 quant-ph
keywords microwave photon detectiontransmon qubitbandwidth tuningsingle photon counterquantum sensingsuperconducting devicesspin fluorescence
0
0 comments X

The pith

A bandwidth tunable transmon qubit device reaches 3 × 10^{-23} W/√Hz microwave photon sensitivity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports a microwave photon counter based on a superconducting transmon qubit that includes a bandwidth tuning circuit. This circuit allows optimization of efficiency and noise performance. With this feature and better device fabrication, the power sensitivity improves to 3 · 10^{-23} W/√Hz. The result is validated by detecting microwave fluorescence from single spins.

Core claim

Incorporating a bandwidth tuning circuit into the transmon qubit photon counter, along with fabrication improvements, yields a power sensitivity of 3 · 10^{-23} W/√Hz. This performance is confirmed by measuring single spin microwave fluorescence.

What carries the argument

The bandwidth tuning circuit which optimizes the device efficiency and noise.

If this is right

  • The enhanced sensitivity supports more precise measurements of weak microwave signals in quantum systems.
  • Single spin fluorescence detection demonstrates the device's utility for quantum sensing applications.
  • The tunable bandwidth enables adaptation to various signal frequencies without hardware changes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The tuning circuit could be applied to other types of superconducting detectors to boost their sensitivity.
  • Such high sensitivity might open paths to detecting even fainter signals in quantum optics or particle physics experiments.

Load-bearing premise

The bandwidth tuning circuit optimizes efficiency and noise without introducing unaccounted systematic effects or additional noise sources.

What would settle it

Direct measurement of the device's noise spectrum with the tuning circuit active showing excess noise that prevents reaching the claimed sensitivity, or inability to detect the single spin fluorescence at the expected rate.

Figures

Figures reproduced from arXiv: 2501.07354 by Alexandre S. May, Denis Vion, Emmanuel Flurin, Jaime Travesedo, L\'eo Balembois, Louis Pallegoix, Patrice Bertet.

Figure 1
Figure 1. Figure 1: Overview of the device. a) Global layout of the [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

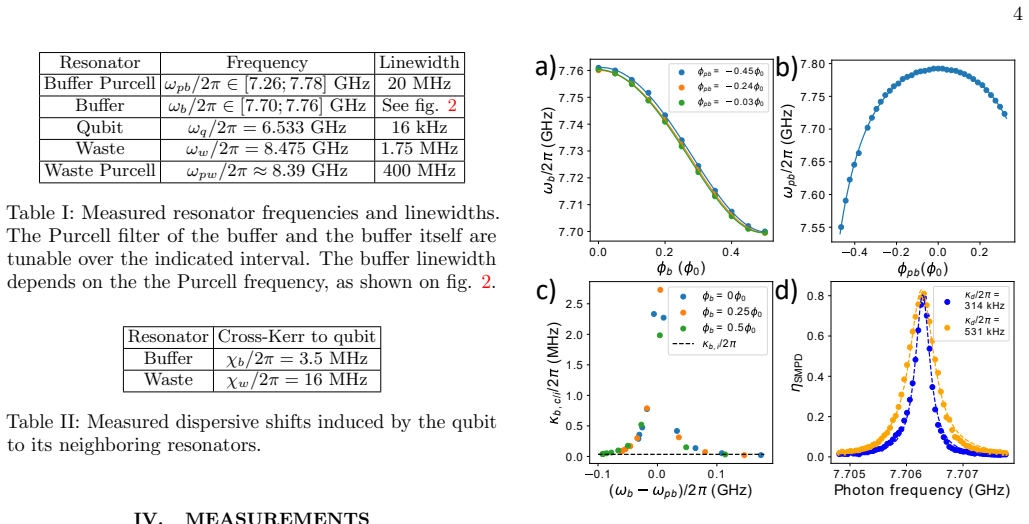

Figure 2. Figure 2: Tunability curves. a) Full blue circules are [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: a) Qubit readout histograms after 95650 se [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

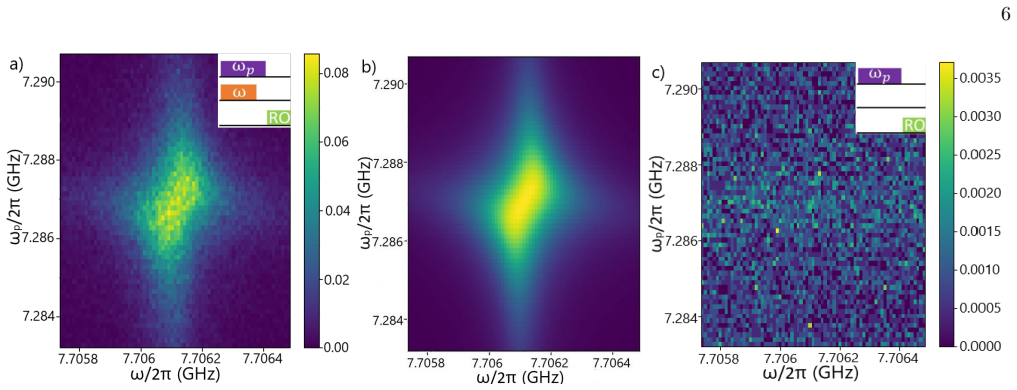

Figure 4. Figure 4: a) Four-wave mixing pattern : this color plot shows the measured qubit excited state as a function of [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Measured αth (blue full circles) and αq (orange full circles) as a function of the cryostat’s temperature T, for a detection bandwidth κd/2π = 170 kHz. The solid green line is a fit of αth to αth,0 + Kthn¯th,b(T), yielding αth,0 = 31s−1 and Kth = 2 · 105 s −1 . The solid brown line is a fit of αq to αq,0 + Kqpth,q(T), yielding αq,0 = 7s−1 and Kq = 2.2 · 104 s −1 . The dashed lines are the separated Bose-Ei… view at source ↗
Figure 6
Figure 6. Figure 6: Blue full circles are the measured total dark [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: It is well fitted by an exponential decay with time constant Γ−1 R = 1.24 ms on top of a constant background, due to the SMPD dark counts. From the integral below the fluorescence curve, we obtain η = 0.4. This implies that the microwave power absorption in-between the spin device and the SMPD is ηloss = 0.85, a very plausible value given that the line includes a superconducting cable, a circulator, and an… view at source ↗
read the original abstract

We report on the characteristics of a microwave photon counter device based on a superconducting transmon qubit. Its design is similar to [arXiv:2307.03614], with an additional bandwidth tuning circuit that allows optimizing the device efficiency and noise. Owing to this new feature and to improvements in device fabrication, a power sensitivity of $3 \cdot 10^{-23} \mathrm{W}/\sqrt{\mathrm{Hz}}$ is reached. We confirm the high performance of the device by measuring single spin microwave fluorescence.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes a microwave photon counter based on a superconducting transmon qubit, similar to prior work but with an added bandwidth tuning circuit to optimize efficiency and noise. Owing to this circuit and fabrication improvements, it reports a power sensitivity of 3 · 10^{-23} W/√Hz and confirms device performance via measurement of single spin microwave fluorescence.

Significance. If the sensitivity figure is supported by rigorous calibration and the fluorescence measurement serves as independent validation without unaccounted systematics, the result would represent a meaningful advance in single-microwave-photon detection, enabling improved quantum sensing and spin-fluorescence applications. The tunable-bandwidth feature is a constructive design element that addresses a practical limitation in prior devices.

major comments (2)
  1. [Results / Experimental Methods] The central sensitivity claim of 3 · 10^{-23} W/√Hz requires explicit documentation of the calibration procedure, noise-floor determination, integration time, and error bars (including any data-exclusion criteria), as these directly support the reported value and are load-bearing for the abstract's primary result.
  2. [Confirmation Experiment] The confirmation experiment measuring single-spin microwave fluorescence must include quantitative details on how the observed signal-to-noise ratio maps back to the claimed power sensitivity, including any modeling of collection efficiency or background subtraction, to establish that the fluorescence measurement independently validates the sensitivity figure.
minor comments (2)
  1. [Figures] Figure captions and axis labels should explicitly state units, integration bandwidth, and any averaging applied to the sensitivity data for clarity.
  2. [Introduction] A brief comparison table or paragraph quantifying the improvement over the referenced prior device (arXiv:2307.03614) would help contextualize the contribution of the bandwidth-tuning circuit.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful review and constructive suggestions. We address each major comment below and will revise the manuscript to incorporate the requested details, thereby strengthening the documentation of our sensitivity claim and validation experiment.

read point-by-point responses

  1. Referee: [Results / Experimental Methods] The central sensitivity claim of 3 · 10^{-23} W/√Hz requires explicit documentation of the calibration procedure, noise-floor determination, integration time, and error bars (including any data-exclusion criteria), as these directly support the reported value and are load-bearing for the abstract's primary result.

    Authors: We agree that the calibration details should be presented more explicitly. In the revised manuscript we will add a new subsection (likely in Methods or Results) that documents the full calibration chain: the procedure used to convert raw counts to incident power, the method for determining the noise floor (including integration time and bandwidth), the calculation of error bars, and any data-exclusion criteria applied. These additions will be supported by references to the relevant figures and, if needed, expanded supplementary material. revision: yes

  2. Referee: [Confirmation Experiment] The confirmation experiment measuring single-spin microwave fluorescence must include quantitative details on how the observed signal-to-noise ratio maps back to the claimed power sensitivity, including any modeling of collection efficiency or background subtraction, to establish that the fluorescence measurement independently validates the sensitivity figure.

    Authors: We will expand the description of the single-spin fluorescence measurement to provide the requested quantitative mapping. The revised text will include: (i) the observed SNR and how it is converted to an equivalent incident power using the calibrated device responsivity, (ii) the model and measured values for collection efficiency, and (iii) the background-subtraction procedure together with its uncertainty. This will make explicit the independent validation of the 3 × 10^{-23} W/√Hz figure. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental measurement report with direct sensitivity figure

full rationale

The paper is an experimental device characterization report. It states a measured power sensitivity of 3·10^{-23} W/√Hz reached via fabrication improvements and a bandwidth-tuning circuit, then confirms performance by direct measurement of single-spin microwave fluorescence. No derivation chain, fitted parameters renamed as predictions, self-citation load-bearing premises, or ansatz smuggling is present in the provided abstract or description. The central claim is a measured quantity validated against an independent experimental benchmark (spin fluorescence), making the result self-contained against external data rather than reducing to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an experimental device characterization paper; the central claim rests on measured performance rather than theoretical derivations, free parameters, or invented entities.
