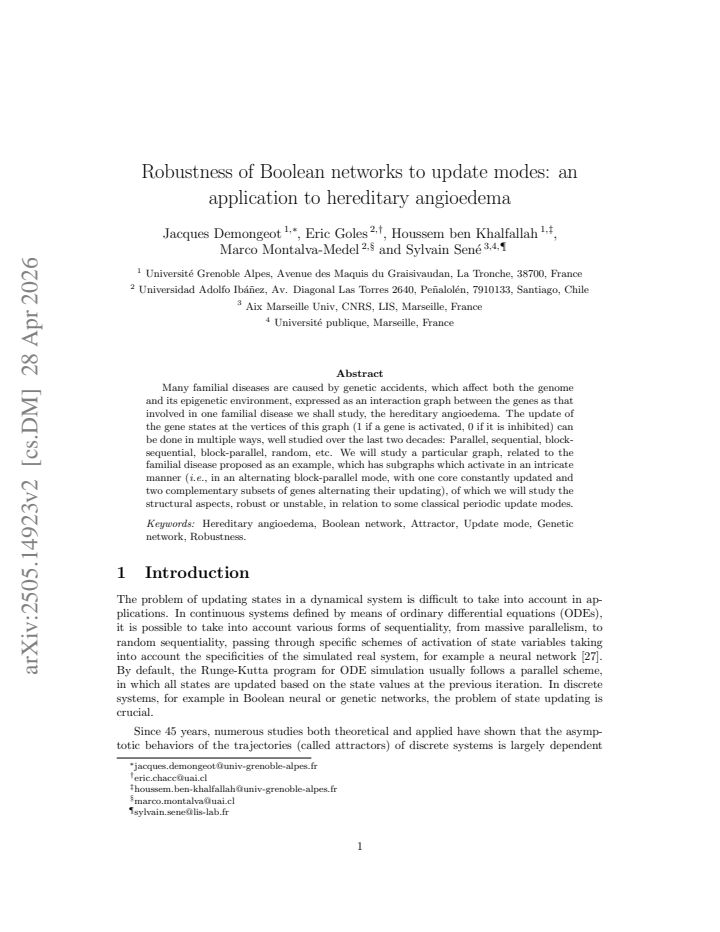

Robustness of Boolean networks to update modes: an application to hereditary angioedema

Jacques Demongeot , Eric Goles , Houssem ben Khalfallah , Marco Montalva-Medel , Sylvain Sen\'e This is my paper

Pith reviewed 2026-05-22 13:26 UTC · model grok-4.3

classification 💻 cs.DM
keywords Boolean networksupdate modeshereditary angioedemagene regulatory networksblock-parallel updatesrobustnessinteraction graphs
0
0 comments X

The pith

The hereditary angioedema interaction graph contains subgraphs that activate in an alternating block-parallel mode with a constantly updated core and two alternating subsets, exhibiting robustness or instability relative to classical update

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how different update schedules for gene states affect behavior in a Boolean network model tied to hereditary angioedema. It isolates subgraphs that follow an alternating block-parallel pattern, with one core set updated at every step and two complementary groups taking turns. A sympathetic reader would care because these patterns may clarify how regulatory networks sustain or lose coordinated activity in a disease setting when the timing of gene updates changes. The analysis compares the structural properties of these subgraphs against standard periodic modes such as fully parallel or sequential updates.

Core claim

Subgraphs within the hereditary angioedema gene interaction graph activate through an alternating block-parallel mode featuring one core that is constantly updated and two complementary subsets that alternate their updating, and these subgraphs display structural robustness or instability when compared to classical periodic update modes.

What carries the argument

The alternating block-parallel update mode with one core constantly updated and two complementary subsets alternating, applied to subgraphs of the hereditary angioedema interaction graph.

If this is right

  • The identified subgraphs maintain consistent activation under the alternating block-parallel schedule.
  • Robust subgraphs indicate network features that remain stable across changes in update timing.
  • Unstable subgraphs mark locations where small shifts in update order can disrupt coordinated gene activity.
  • Direct comparison with classical periodic modes isolates which structural traits are independent of the update schedule.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar alternating-update subgraphs may exist in other familial-disease networks and could be searched for by the same structural criteria.
  • Varying the assignment of genes to core versus alternating groups in simulation would test how sensitive the robustness result is to the initial partitioning.
  • If the pattern generalizes, it supplies a concrete way to rank candidate intervention points by their update-mode stability.

Load-bearing premise

The particular interaction graph chosen and the division of genes into the constantly updated core and the two alternating subsets correctly reflect the actual regulatory logic in hereditary angioedema.

What would settle it

A simulation of the described subgraphs under the alternating block-parallel mode that produces activation patterns inconsistent with observed disease biology or that loses its reported robustness after modest rewiring of the graph edges would falsify the central claim.

Figures

Figures reproduced from arXiv: 2505.14923 by Eric Goles, Houssem ben Khalfallah, Jacques Demongeot, Marco Montalva-Medel, Sylvain Sen\'e.

Figure 1
Figure 1. Figure 1: Boolean automata network f of Example 1 on page 7; (a) its definition by means of functions; (b) its associated interaction graph. modes of a network of size n is denoted by BSn. The update of f under µ ∈ BSn is given by fµ : B n → B n as follows: fµ(x) = fWm ◦ · · · ◦ fW2 ◦ fW1 (x), where for all i ∈ M, for all k ∈ N, fWi (x)k = fk(x), if k ∈ Wi , and fWi (x)k = xk otherwise. 2.1.4 Block-parallel update m… view at source ↗
Figure 2
Figure 2. Figure 2: Different periodic dynamics of the Boolean automata network of Example 1 on [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

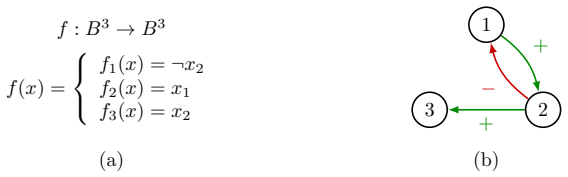

Figure 3. Figure 3: (a) Boolean automata network f of Example 2; (b) its associated interaction graph G = (V, E), where the set of vertices is V = {1, 2, 3} and the set of edges is E = {(1, 2),(2, 1),(2, 3)}. Theorem 1. A labeled digraph is an update digraph if and only if changing the direction of only its arcs with <-labels results in a new digraph (possibly a multidigraph) that does not contain any cycle with a <-edge. Add… view at source ↗
Figure 4

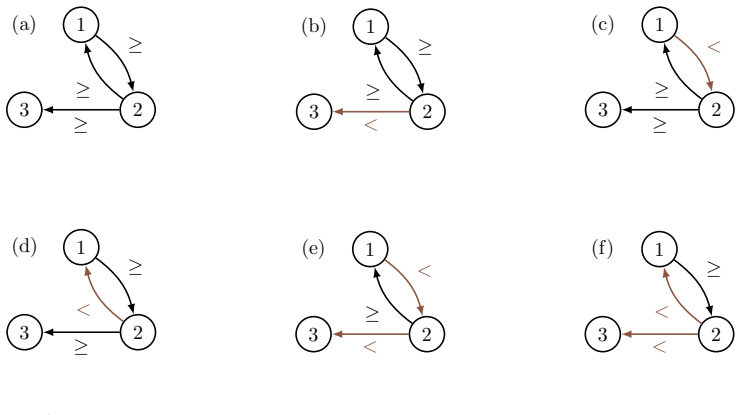

Figure 4. Figure 4: All the update digraphs associated to the digraph [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
