Error analysis of quantization combined with Hadamard transforms

Lorenzo Ciccarelli; Matvei Kotov

arxiv: 2604.08289 · v1 · submitted 2026-04-09 · 🧮 math.CO

Error analysis of quantization combined with Hadamard transforms

Matvei Kotov , Lorenzo Ciccarelli This is my paper

Pith reviewed 2026-05-10 17:01 UTC · model grok-4.3

classification 🧮 math.CO

keywords Hadamard transformdead-zone quantizationerror boundsimage codingmatrix normsmaximal excesslinear algebra

0 comments

The pith

Error bounds and peak-value bounds are derived for the combination of Hadamard transforms and dead-zone quantization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines a four-step image coding pipeline consisting of a direct Hadamard transform, dead-zone quantization, inverse quantization, and inverse Hadamard transform. It supplies explicit upper bounds on the reconstruction error and on the largest absolute values that appear after the cycle, expressed in terms of matrix order, quantizer dead-zone width and step size, and a known upper limit on the source values. These bounds are obtained by applying linear-algebra estimates to the ±1 entries of Hadamard matrices and to the piecewise-linear behavior of the quantizer. The resulting formulae let a designer predict how much quality is lost for a chosen compression ratio and how many bits are needed to store the intermediate coefficients without overflow.

Core claim

The paper establishes explicit formulae for the maximum possible reconstruction error and the largest absolute component value after the full cycle of Hadamard transform, dead-zone quantization, inverse quantization, and inverse transform. These formulae are expressed in terms of the Hadamard matrix order, the quantizer dead-zone and step parameters, and an a priori bound on the source pixel values. The derivation relies on the fact that Hadamard matrices have entries ±1 and on bounding the operator norms induced by the quantization error. In addition, the work shows that the infinity-one norm of a Hadamard matrix equals the maximal excess of the equivalence class containing that matrix.

What carries the argument

The infinity-one operator norm of a Hadamard matrix together with the piecewise-linear error map of the dead-zone quantizer, used to propagate the source bound through the four-step pipeline.

If this is right

The error bound directly supplies a guaranteed minimum output quality once the quantizer parameters and matrix size are chosen.
The peak-value bound determines the minimum number of bits required to represent the transformed coefficients without clipping.
Different equivalence classes of Hadamard matrices produce different error bounds; the class with smallest infinity-one norm yields the tightest guarantee.
The same formulae apply to any sequence of linear transforms and dead-zone quantizers whose combined operator can be bounded by the same norm argument.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same bounding technique could be applied to other orthogonal matrices whose entries have bounded magnitude, such as discrete cosine or wavelet bases, provided their infinity-one norms are computed.
In hardware implementations the peak-value formula offers an a priori way to size registers without exhaustive simulation of every possible input block.
The explicit link between the infinity-one norm and maximal excess supplies a new numerical invariant that could be used to compare or enumerate Hadamard matrices beyond combinatorial equivalence.

Load-bearing premise

The source values remain inside a known, fixed bound that is provided as an input to every formula.

What would settle it

Take any concrete Hadamard matrix of order 8, a dead-zone quantizer with known dead-zone width and step size, and a vector whose entries equal the assumed source bound; if the measured reconstruction error or peak intermediate value exceeds the formula's prediction, the bound is false.

Figures

Figures reproduced from arXiv: 2604.08289 by Lorenzo Ciccarelli, Matvei Kotov.

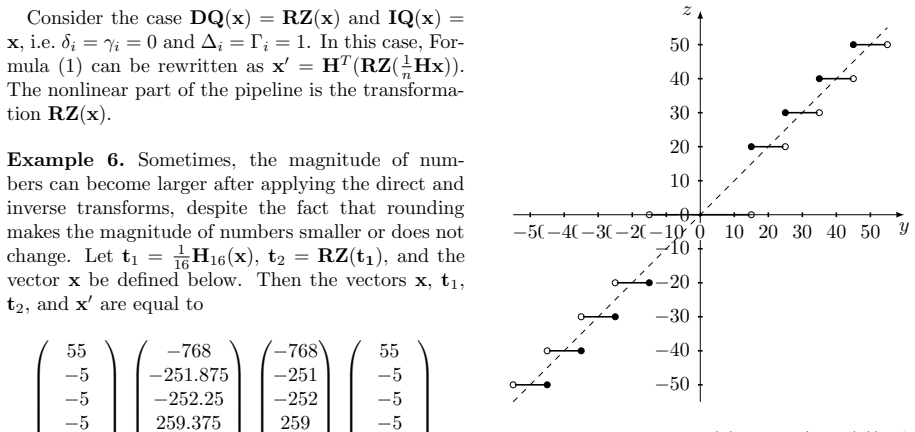

**Figure 1.** Figure 1: The graph of z(y) = IQi(DQi(y)), ∆i = 10, δi = −5, Γi = 10, γi = 10 E(y)) = x + IT(E(y)). Therefore, we have ∥x ′ − x∥∞ ≤ ∥HT (E(y))∥∞ ≤ ∥HT ∥∞∥E(y)∥∞ = n∥E(y)∥∞. (19) Let us find a bound on ∥E(y)∥∞. The graph of z(y) = IQi(DQi(y)) looks like a staircase; see Figure 3. Note that IQi(DQi(y)) can be rewritten in the following way: IQi(DQi(y)) =    − j δi−y ∆i k Γi − γi if y ≤ δi − ∆i , j y+δi ∆i k Γi… view at source ↗

read the original abstract

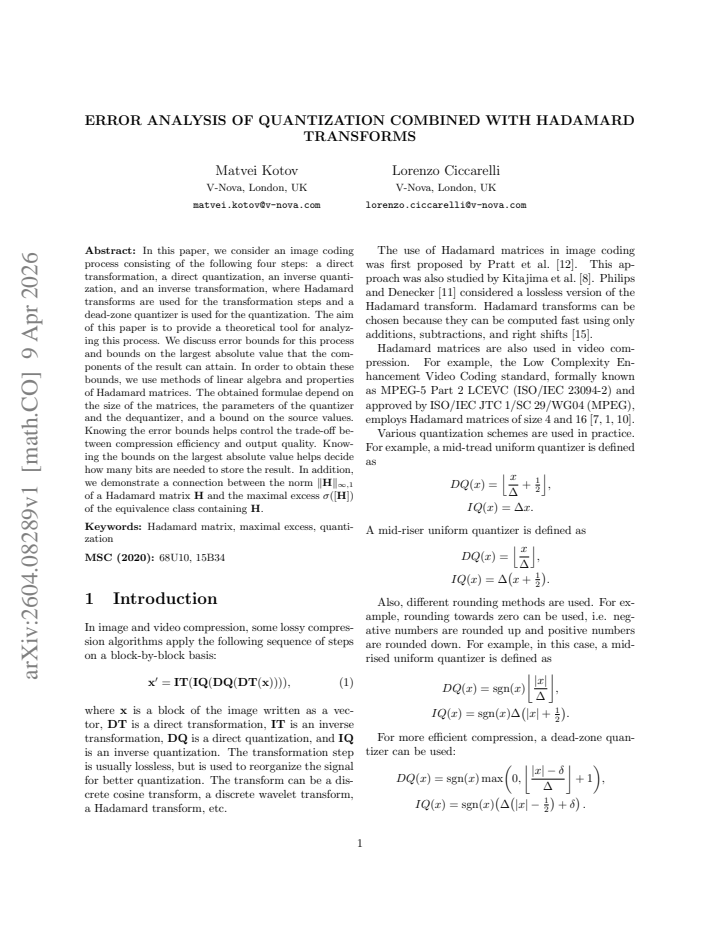

In this paper, we consider an image coding process consisting of the following four steps: a direct transformation, a direct quantization, an inverse quantization, and an inverse transformation, where Hadamard transforms are used for the transformation steps and a dead-zone quantizer is used for the quantization. The aim of this paper is to provide a theoretical tool for analyzing this process. We discuss error bounds for this process and bounds on the largest absolute value that the components of the result can attain. In order to obtain these bounds, we use methods of linear algebra and properties of Hadamard matrices. The obtained formulae depend on the size of the matrices, the parameters of the quantizer and the dequantizer, and a bound on the source values. Knowing the error bounds helps control the trade-off between compression efficiency and output quality. Knowing the bounds on the largest absolute value helps decide how many bits are needed to store the result. In addition, we demonstrate a connection between the norm $\|\mathbf{H}\|_{\infty, 1}$ of a Hadamard matrix $\mathbf{H}$ and the maximal excess $\sigma([\mathbf{H}])$ of the equivalence class containing $\mathbf{H}$.
