arxiv: 2604.13343 · v1 · submitted 2026-04-14 · 📡 eess.SY · cs.SY

Digital Twin for Real-Time Security Assessment and Flexibility Activation in the Bornholm Distribution System

Anosh Arshad Sundhu , Ayseg\"ul Kahraman , Spyros Chatzivasileiadis This is my paper

Pith reviewed 2026-05-10 14:17 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords digital twindistribution networksecurity assessmentflexibility activationBornholmvoltage controlN-1 contingencyoptimization
0
0 comments X

The pith

A digital twin for the Bornholm distribution network assesses security in real time and activates flexibility to correct voltage violations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds and runs a digital twin that merges the network topology with live smart-meter readings to check whether the grid stays within limits during normal conditions and single-line outages. When violations appear, an optimization routine picks coordinated changes in active and reactive power from flexible resources to restore security. This matters because growing distributed energy resources create voltage and loading problems that static planning cannot handle fast enough, and the Bornholm demonstration shows the twin can detect and fix those problems on the fly.

Core claim

The digital twin integrates network topology and smart meter measurements to perform security assessment under normal operation and N-1 contingencies, and determines corrective and preventive flexibility actions using an optimization-based approach; the resulting coordinated active and reactive power control removes the voltage-magnitude violations that load variation and contingencies otherwise produce.

What carries the argument

The real-time Digital Twin that fuses topology data with smart-meter measurements and solves an optimization problem to select and dispatch flexibility actions.

Load-bearing premise

The digital twin model matches the actual behavior of the Bornholm network and the optimization finishes fast enough to issue corrective actions before violations become critical.

What would settle it

A period of live operation in which the twin reports no violation or successful mitigation yet voltage or thermal limits are actually breached in the Bornholm system.

Figures

Figures reproduced from arXiv: 2604.13343 by Anosh Arshad Sundhu, Ayseg\"ul Kahraman, Spyros Chatzivasileiadis.

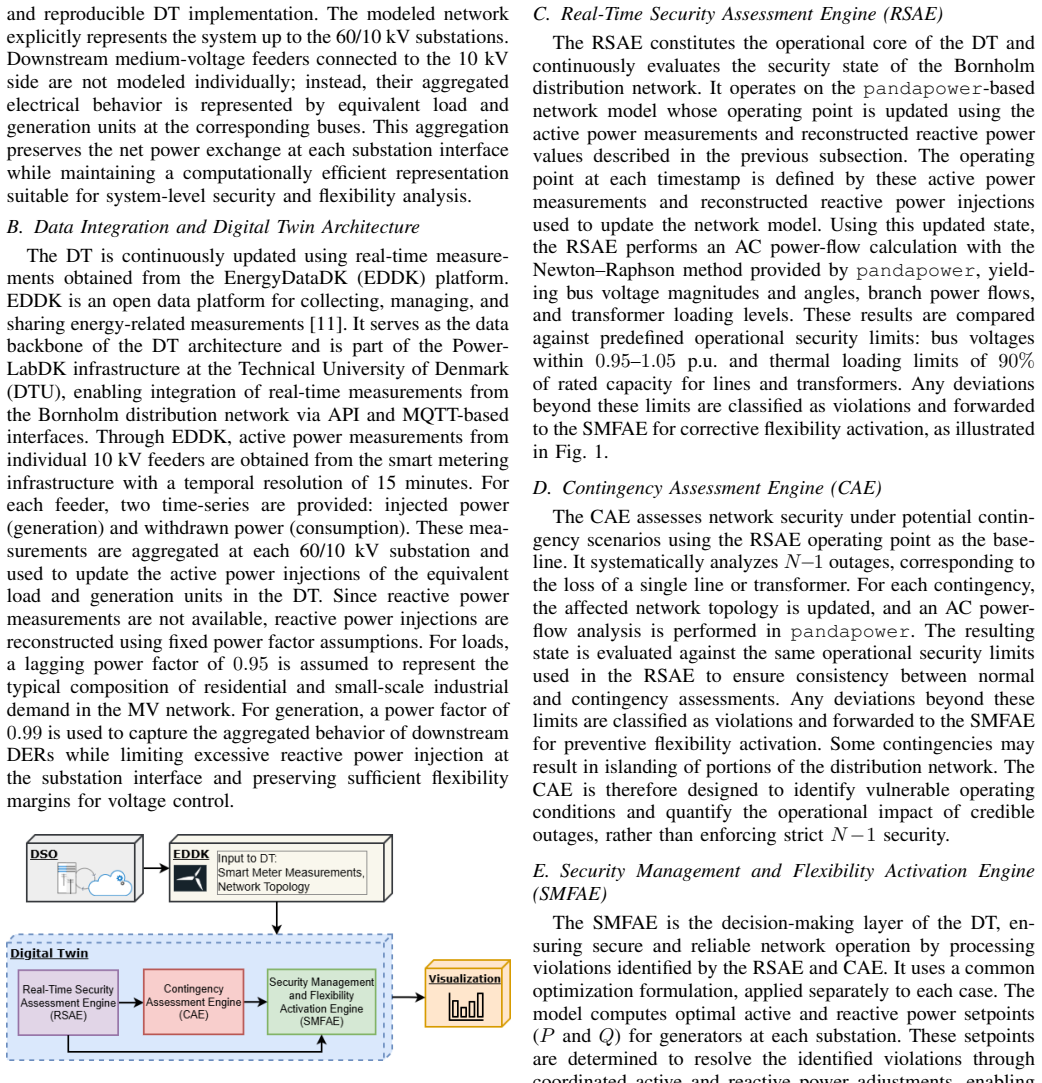

Figure 1
Figure 1. Figure 1: Integration of the developed digital twin with the EnergyDataDK [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

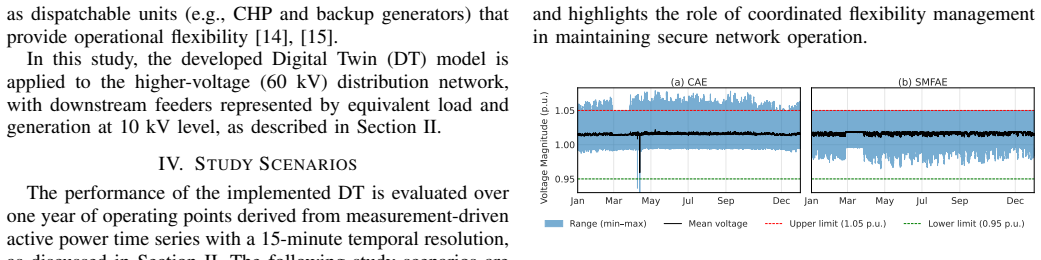

Figure 3
Figure 3. Figure 3: Voltage magnitude envelope at network busbars under [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

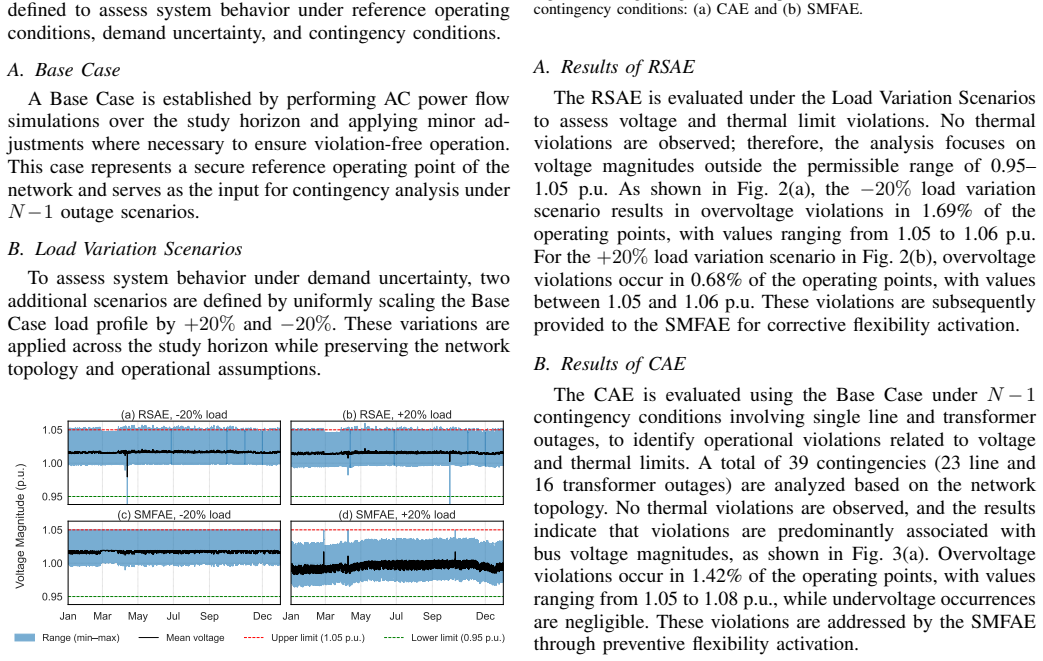

Figure 2
Figure 2. Figure 2: Voltage magnitude envelope at network busbars under the ±20% load [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

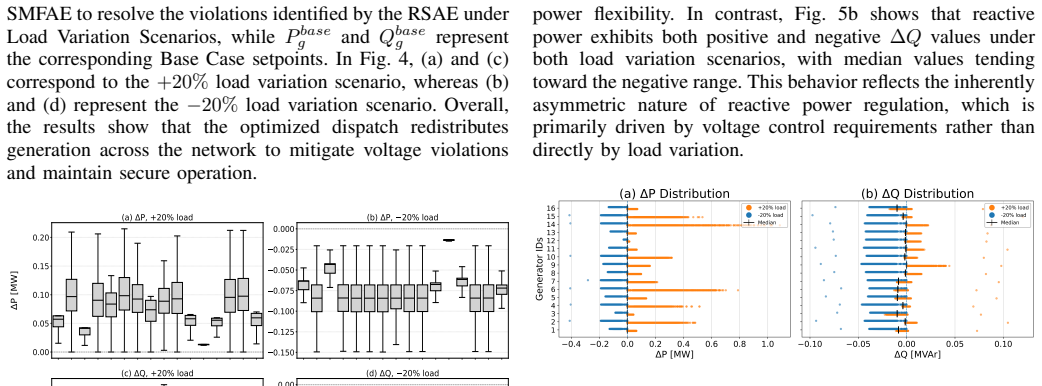

Figure 5
Figure 5. Figure 5: Frequency and direction of active and reactive power distribution [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

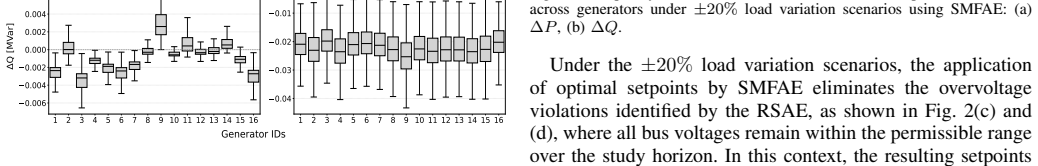

Figure 4
Figure 4. Figure 4: Distribution of active and reactive power adjustments across generators [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

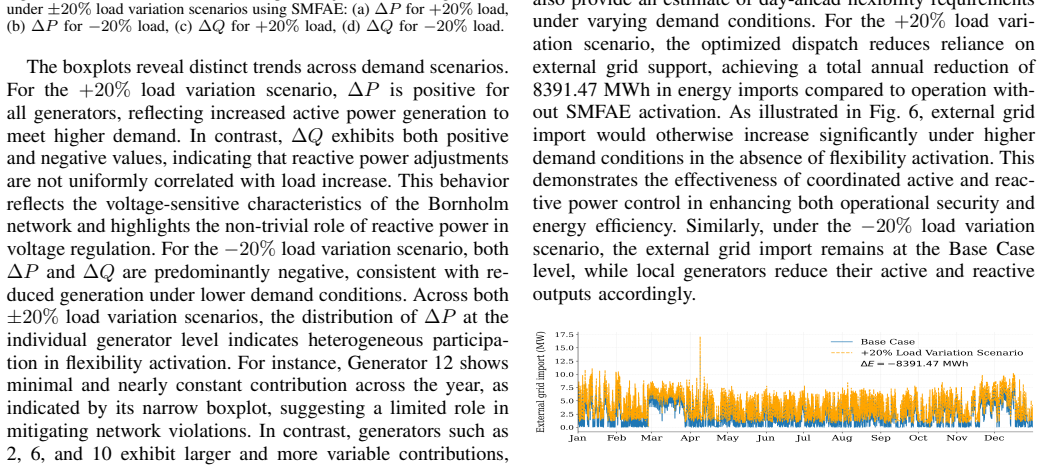

Figure 6
Figure 6. Figure 6: Comparison of external grid import between the Base Case and [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗

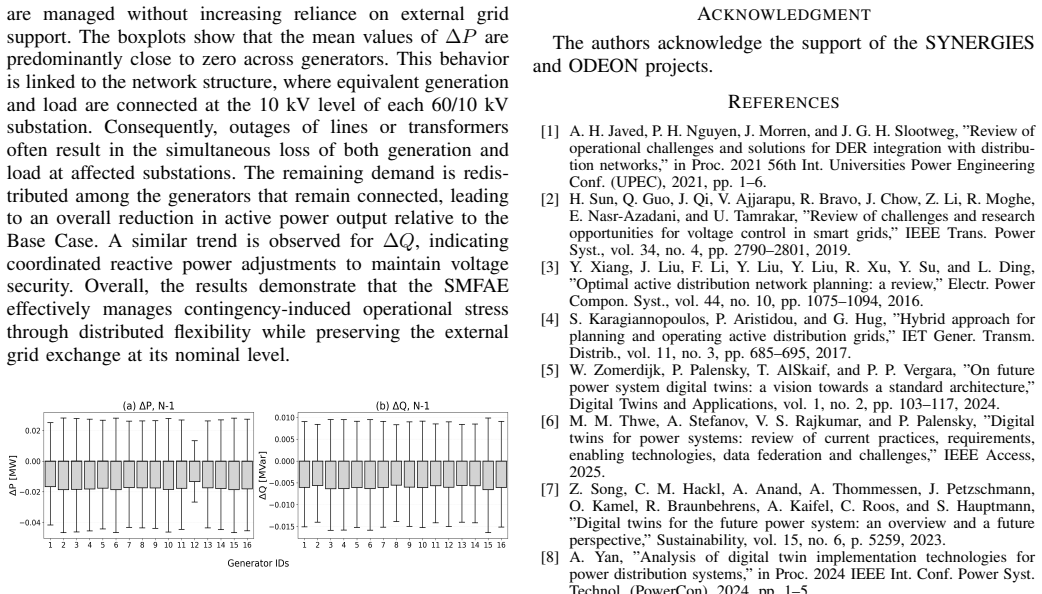

Figure 7
Figure 7. Figure 7: Distribution of active and reactive power adjustments across generators [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
read the original abstract

The increasing penetration of distributed energy resources (DERs) is transforming distribution networks into actively managed systems, introducing challenges related to voltage regulation, thermal loading limits, and operational security. This paper presents the development and implementation of a real-time Digital Twin (DT) for security assessment and coordinated flexibility activation in active distribution networks, demonstrated on the Bornholm Island system using real measurement data. The implemented DT integrates network topology and smart meter measurements to perform security assessment under normal operation and N-1 contingencies, and to determine corrective and preventive flexibility actions using an optimization-based approach. Results show that load variation and contingency scenarios introduce operational limit violations, primarily driven by voltage magnitude constraints. The implemented flexibility strategy effectively mitigates these violations through coordinated active and reactive power control, enhancing system security and operational efficiency. The findings highlight the potential of DT-based approaches for reliable and flexible operation of future distribution networks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper presents the development and implementation of a real-time Digital Twin (DT) for the Bornholm Island distribution system. It integrates network topology and smart meter measurements to perform security assessment under normal operation and N-1 contingencies, and determines corrective and preventive flexibility actions via an optimization-based approach using coordinated active and reactive power control. Results indicate that load variation and contingency scenarios cause operational limit violations (primarily voltage magnitude constraints), which are effectively mitigated by the flexibility strategy to enhance system security.

Significance. If the implementation and validation details hold, this provides a practical real-world demonstration of DT technology for active distribution networks with high DER penetration. The use of actual smart meter data from Bornholm and the focus on both security assessment and flexibility activation represent a concrete step toward operational tools for future grids, with potential to improve reliability and efficiency under variable conditions.

major comments (1)
  1. [Results] Results section: the claim that the flexibility strategy 'effectively mitigates' violations is central to the paper but is supported only by qualitative statements in the abstract and summary; no quantitative metrics (e.g., pre/post violation counts, voltage deviation reductions, computation times for the optimization, or sensitivity to model mismatch) are provided, undermining assessment of practical effectiveness and real-time feasibility.
minor comments (2)
  1. [Abstract] Abstract: lacks any numerical outcomes or error measures, which would better convey the strength of the reported mitigation.
  2. [Methods] Methods: the optimization formulation (objective, constraints, and handling of N-1 cases) should be stated explicitly with equations to allow reproducibility; current description is high-level.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of our work and the recommendation for minor revision. We address the single major comment point by point below.

read point-by-point responses

  1. Referee: [Results] Results section: the claim that the flexibility strategy 'effectively mitigates' violations is central to the paper but is supported only by qualitative statements in the abstract and summary; no quantitative metrics (e.g., pre/post violation counts, voltage deviation reductions, computation times for the optimization, or sensitivity to model mismatch) are provided, undermining assessment of practical effectiveness and real-time feasibility.

    Authors: We agree that the Results section currently relies primarily on visual evidence from voltage profile figures to demonstrate mitigation, accompanied by qualitative statements. While these figures show clear before-and-after improvements under the tested load variation and N-1 scenarios, the absence of explicit numerical metrics limits a precise evaluation of effectiveness and computational feasibility. In the revised manuscript we will add quantitative metrics, including pre- and post-activation counts of voltage magnitude violations, reductions in maximum and average voltage deviations, and measured computation times for the optimization solver across scenarios. We will also include a short discussion of robustness to model mismatch, drawing on the calibration process with real smart-meter data from Bornholm. These additions will be placed in the Results section and supported by a new table for clarity. revision: yes

Circularity Check

0 steps flagged

No significant circularity: implementation results, not derivations

full rationale

The paper presents an implementation of a digital twin that integrates network topology with smart-meter data to run security assessment (normal and N-1) and an optimization-based flexibility scheme on the Bornholm network. All central claims rest on reported outcomes from this implementation rather than any mathematical derivation, fitted parameters renamed as predictions, or self-referential equations. No load-bearing steps reduce by construction to the paper's own inputs; the work is self-contained as an applied demonstration whose validity is externally falsifiable via the real measurements and system behavior described.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no explicit free parameters, axioms, or invented entities. Standard power-flow equations and optimization constraints are implicitly used but not stated or justified here.
