DTCO of NOR-Type IGZO FeFETs for 3D Heterogeneous AI Memories: A Read-Centric Perspective
Pith reviewed 2026-05-10 12:13 UTC · model grok-4.3
The pith
NOR-type IGZO FeFETs achieve 0.016 square micrometer SRAM-equivalent bitcells and sub-5 nanosecond random access for read-centric AI memories.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Back-end-of-line IGZO FeFETs in NOR configuration deliver a bitcell footprint of 0.016 um2 that equals ten-transistor SRAM area under 7-nm ground rules and support sub-5 ns random access latency despite writability limits. Sensing margins in the array are reduced by sneak currents tied to the negative program-state threshold voltage, which can be eliminated by shifting to positive threshold voltages through ferroelectric-layer thinning. In three-dimensional FeNOR stacks intended for storage-class memory the achievable density is further restricted by additional sneak paths formed by neighbor-channel shunting.
What carries the argument
Design-technology co-optimization of NOR-type IGZO FeFET bitcells that quantifies footprint scaling, access latency, and the sensing-margin degradation produced by sneak currents from negative-Vt states.
Where Pith is reading between the lines
- Placing such BEOL memory directly above logic could cut the energy spent moving data in AI accelerators by shortening interconnect distances.
- Additional isolation structures or material changes beyond layer thinning may be needed to control sneak currents in dense 3D stacks.
- Success in read-heavy workloads could make this memory type competitive with other embedded options for edge inference or database acceleration.
- The reported cross-node area scaling suggests the technology might continue to shrink in future process generations if the sneak-current issue is solved.
Load-bearing premise
The DTCO models and array simulations correctly predict physical sneak currents, sensing margins, and ferroelectric switching behavior without needing unstated material assumptions or post-simulation tuning.
What would settle it
Measurement of sneak current, read sensing margins, and random-access latency on a fabricated NOR IGZO FeFET array built at 7-nm ground rules, to determine whether sub-5 ns operation and adequate margins are obtained or whether negative-Vt penalties remain.

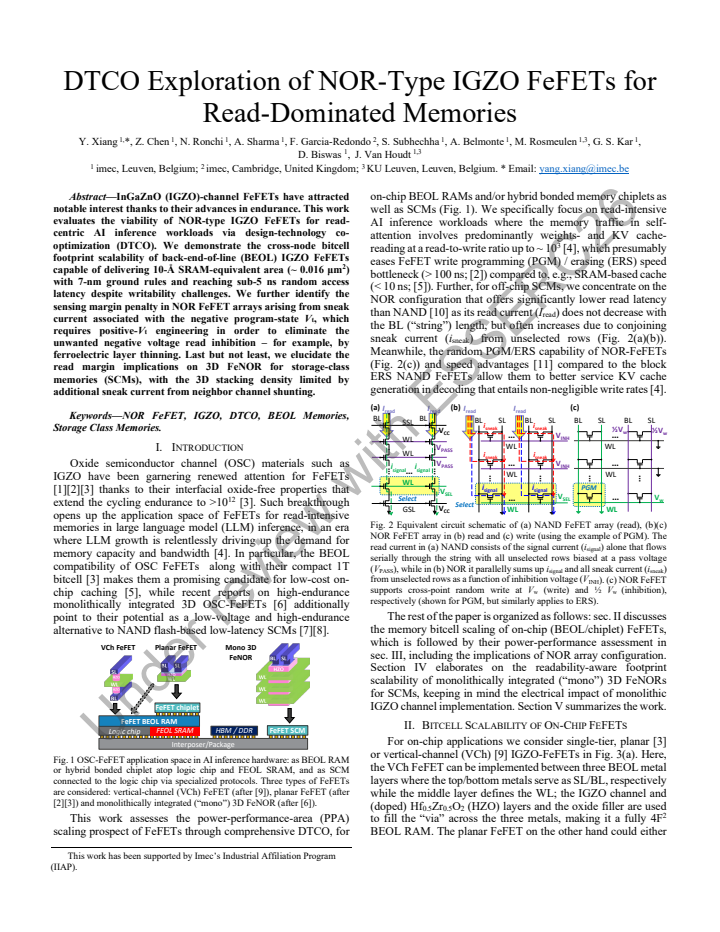

read the original abstract
InGaZnO (IGZO)-channel FeFETs have attracted notable interest thanks to recent advances in endurance, opening up their application space for read-dominated AI memory tiers. This work evaluates the viability of NOR-type IGZO FeFETs for 3D heterogeneous AI memories from a read-centric design-technology co-optimization (DTCO) perspective, spanning on-chip back-end-of-line (BEOL) RAMs and hybrid-bonded memory chiplets, and off-chip, monolithically integrated 3D FeNOR storage-class memories (SCMs). For on-chip BEOL RAMs and memory chiplets, we demonstrate the cross-node bitcell footprint scalability of IGZO FeFETs capable of delivering down to 10-A SRAM-equivalent bitcell area ($\sim$0.016 $\mu$m$^2$) with 7-nm ground rules while maintaining a sub-5 ns random access latency -- despite their writability challenges. We further identify the sensing margin penalty in NOR FeFET arrays arising from sneak current associated with the negative program-state $V_t$, which requires positive-$V_t$ engineering in order to eliminate the unwanted negative voltage read inhibition -- for example, by ferroelectric layer thinning. Last but not least, we elucidate the read margin implications on 3D FeNOR for SCMs, with the 3D stacking density limited by additional sneak current from neighbor channel shunting.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper conducts a design-technology co-optimization (DTCO) analysis of NOR-type IGZO FeFETs for read-dominated AI inference memories. It demonstrates that these BEOL devices can scale to a bitcell footprint of 0.016 μm² (10x SRAM equivalent) with 7-nm ground rules and achieve sub-5 ns random access latency. The study highlights the sensing margin degradation due to sneak currents from negative program-state threshold voltages in NOR configurations, suggests ferroelectric layer thinning for positive-Vt engineering to mitigate read inhibition, and examines the additional sneak current from neighbor channel shunting that limits 3D stacking density for storage-class memory applications.
Significance. If the DTCO simulation results are accurate, this work is significant as it addresses key integration challenges for ferroelectric memories in high-density, read-intensive applications like AI inference. It offers concrete projections on area, latency, and array-level penalties, which can guide future device and circuit design. The identification of specific engineering solutions like layer thinning and the analysis of 3D implications provide actionable insights. The use of DTCO to explore cross-node scalability is a strength.
major comments (3)
- [§3 (Device Modeling and DTCO Framework)] §3 (Device Modeling and DTCO Framework): The compact models for IGZO FeFETs, including ferroelectric polarization switching and trap distributions, are not calibrated against experimental I-V, endurance, or retention data for the specific BEOL stack. This is load-bearing for the central claims on sneak current penalties and sensing margins, as unanchored parameters could lead to optimistic projections of sub-5 ns latency and 3D density limits.
- [§5.1 (Positive-Vt Engineering via Ferroelectric Thinning)] §5.1 (Positive-Vt Engineering via Ferroelectric Thinning): The analysis claims that thinning the ferroelectric layer enforces positive Vt without significant degradation, but no quantitative trade-off curves or endurance/retention simulations are provided to support this; the section only qualitatively discusses the approach, undermining the viability claim for eliminating negative voltage read inhibition.
- [§6 (3D FeNOR Array Simulations)] §6 (3D FeNOR Array Simulations): The neighbor-channel shunting current in stacked 3D cells is modeled, but the paper does not specify the assumptions on inter-layer dielectric thickness or parasitic capacitances; this affects the read margin limits reported and requires clarification to assess the 3D stacking density projections.
minor comments (2)
- [Figure 4] Figure 4 caption does not specify the read voltage or bias conditions used in the simulations.
- [References] References section is missing citations to recent experimental work on IGZO FeFET endurance and BEOL integration.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed feedback on our DTCO exploration of NOR-type IGZO FeFETs. We address each major comment point by point below. Revisions have been made to improve the manuscript's clarity, support for claims, and transparency of modeling assumptions.
read point-by-point responses
-
Referee: [§3 (Device Modeling and DTCO Framework)] §3 (Device Modeling and DTCO Framework): The compact models for IGZO FeFETs, including ferroelectric polarization switching and trap distributions, are not calibrated against experimental I-V, endurance, or retention data for the specific BEOL stack. This is load-bearing for the central claims on sneak current penalties and sensing margins, as unanchored parameters could lead to optimistic projections of sub-5 ns latency and 3D density limits.
Authors: We acknowledge that the compact models are not directly calibrated to experimental data from a fabricated specific BEOL IGZO FeFET stack, as this work is a forward-looking DTCO study rather than a device fabrication report. The models incorporate ferroelectric polarization switching and trap distributions drawn from established literature on IGZO FeFETs. In the revised manuscript, we will expand §3 with explicit citations to the source experimental datasets, a table of key model parameters, and a sensitivity analysis on parameters most relevant to sneak current and sensing margin to better substantiate the latency and density projections. revision: partial
-
Referee: [§5.1 (Positive-Vt Engineering via Ferroelectric Thinning)] §5.1 (Positive-Vt Engineering via Ferroelectric Thinning): The analysis claims that thinning the ferroelectric layer enforces positive Vt without significant degradation, but no quantitative trade-off curves or endurance/retention simulations are provided to support this; the section only qualitatively discusses the approach, undermining the viability claim for eliminating negative voltage read inhibition.
Authors: The referee is correct that §5.1 currently offers only a qualitative description of positive-Vt engineering through ferroelectric layer thinning. We will revise this section to include quantitative trade-off curves from our simulation framework, plotting ferroelectric thickness against Vt shift, read current, endurance, and retention characteristics. This addition will provide concrete data supporting the approach for mitigating read inhibition due to sneak currents. revision: yes
-
Referee: [§6 (3D FeNOR Array Simulations)] §6 (3D FeNOR Array Simulations): The neighbor-channel shunting current in stacked 3D cells is modeled, but the paper does not specify the assumptions on inter-layer dielectric thickness or parasitic capacitances; this affects the read margin limits reported and requires clarification to assess the 3D stacking density projections.
Authors: We agree that the assumptions for inter-layer dielectric thickness and parasitic capacitances in the 3D simulations should be explicitly documented. In the revised manuscript, we will add these details to §6, including the specific values employed (drawn from standard BEOL process assumptions), their sources, and a sensitivity analysis demonstrating their effect on the reported read margins and 3D stacking density limits. revision: yes
Circularity Check
No significant circularity detected in DTCO simulation claims
full rationale
The paper presents DTCO-based projections for IGZO FeFET bitcell scalability, latency, and read margins in NOR and 3D configurations. No load-bearing derivation steps, equations, or self-citations are identifiable in the abstract or described content that reduce predictions to fitted inputs by construction, self-definitional loops, or unverified author-unique theorems. The results are framed as outcomes of array simulations capturing sneak currents and ferroelectric behavior, which remain independent if the underlying compact models are anchored externally. This is the expected non-finding for a simulation-driven exploration paper whose central claims do not collapse into their own inputs.
