arxiv: 2604.16199 · v1 · submitted 2026-04-17 · 📡 eess.SY · cs.SY

Optimization of Phase Change Material Integration for Active Cooling Control

Asmaou S. Ouedraogo , Donald J. Docimo This is my paper

Pith reviewed 2026-05-10 07:56 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords phase change materialoptimization frameworkthermal managementactive coolingpassive coolingenergy-based designcooling system controlunified design method
0
0 comments X

The pith

A unified optimization framework formulates PCM cooling design and control using critical energy-based terms.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to unify the design of phase change material cooling systems into one optimization method that addresses both how the material is physically built and how it is actively controlled during use. In applications like solar panels, batteries, and electronics, excess heat shortens life and hurts output, yet existing work has treated physical layout, energy storage, heat removal, and operating constraints as separate problems. The approach centers on a few key energy quantities to set static goals for the hardware itself and dynamic goals for its operation over time. Validation comes from two examples, one passive and one with active control, that show better results when both aspects are handled together. A sympathetic reader would care because this could simplify creating cooling solutions that meet multiple real-world limits at once.

Core claim

This paper develops a framework that formulates the PCM design problem using critical energy-based terms, with static and dynamic objectives capturing the PCM physical design and control aspects. Two case studies are used to validate the approach: the first explores passive cooling, and the second implements an active cooling configuration. The results compare the design and control of these systems, showing improvement in individual performance metrics between the two options.

What carries the argument

The unified optimization framework that defines static objectives for physical PCM design and dynamic objectives for control, both expressed through critical energy-based terms.

If this is right

  • Passive and active PCM cooling configurations can be optimized inside a single framework rather than through separate methods.
  • Performance metrics for thermal management improve when static design choices and dynamic control are considered together.
  • Energy dynamics, capacity, heat rejection, and structural constraints are all addressed by the same set of energy terms.
  • Diverse objectives that prior studies handled in isolation become comparable under one formulation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same energy-term approach might apply to other thermal devices such as heat sinks in data centers or electric-vehicle packs.
  • Early-stage design could rely less on full computational fluid dynamics if the energy terms prove accurate enough.
  • Integration with existing model-predictive controllers for active cooling could be tested by feeding the framework outputs directly into the controller.
  • Extending the framework to include cost or weight as additional energy-linked terms would address practical manufacturing trade-offs.

Load-bearing premise

Critical energy-based terms alone suffice to represent energy dynamics, storage capacity, heat rejection, and structural limits without needing extra detailed physics or calibration.

What would settle it

Compare the framework's predicted optimal PCM sizes, phase-change temperatures, and control actions against measured temperature histories and power use from a physical prototype or high-fidelity simulation of the same system.

Figures

Figures reproduced from arXiv: 2604.16199 by Asmaou S. Ouedraogo, Donald J. Docimo.

Figure 1
Figure 1. Figure 1: PCM-based active cooling loop configuration, with red for higher [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

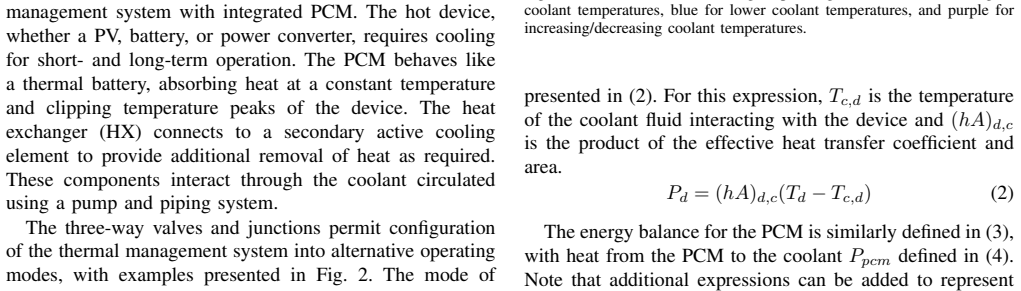

Figure 2
Figure 2. Figure 2: a circulates the coolant only between the PCM and [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 2

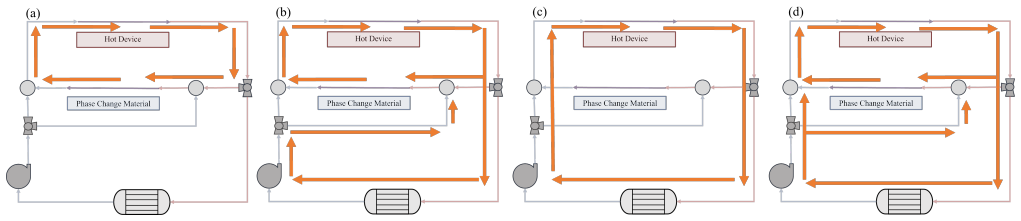

Figure 2. Figure 2: Potential modes for the cooling system. energy balances for the coolant in the following locations: at junction 1 (J1), near the hot device, near the heat exchanger, at junction 2 (J2), and near the PCM. These algebraic equations can be used to solve for coolant temperatures Tc,j1, Tc,d, Tc,hx, Tc,j2, and Tc,pcm as outlined in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

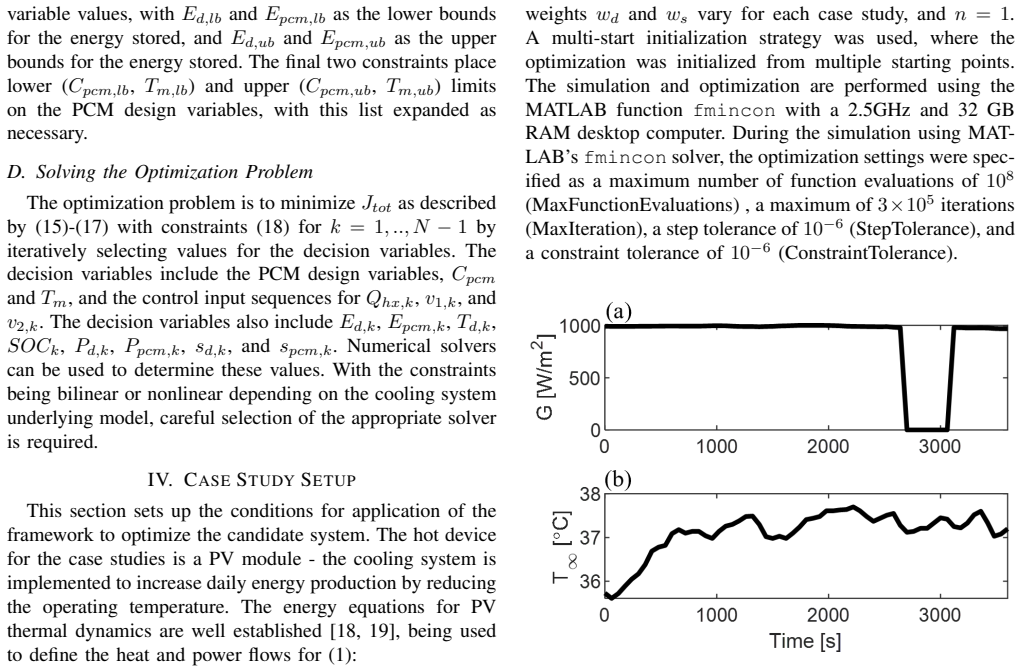

Figure 3. Figure 3: (a) Irradiance and (b) ambient temperature profiles. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

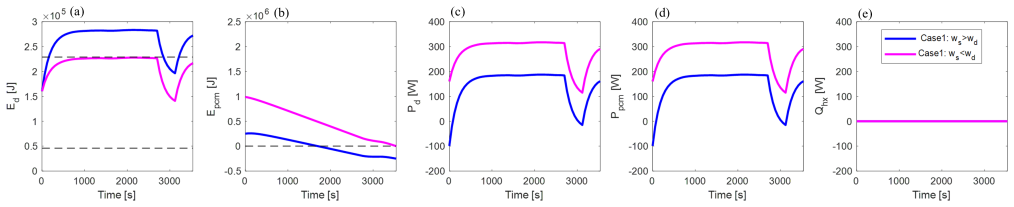

Figure 4. Figure 4: (a) Device energy, (b) PCM energy, (c) heat rejected by the device, (d) heat absorbed by the PCM, and (e) heat rejected to the environment for [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 2
Figure 2. Figure 2: b. All coolant passes through the PCM to the PV, with [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 5

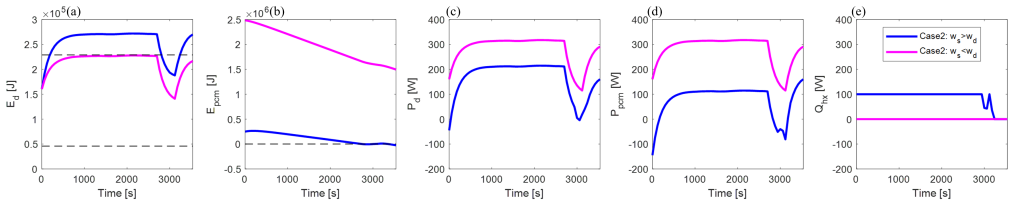

Figure 5. Figure 5: (a) Device energy, (b) PCM energy, (c) heat rejected by the device, (d) heat absorbed by the PCM, and (e) heat rejected to the environment for [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

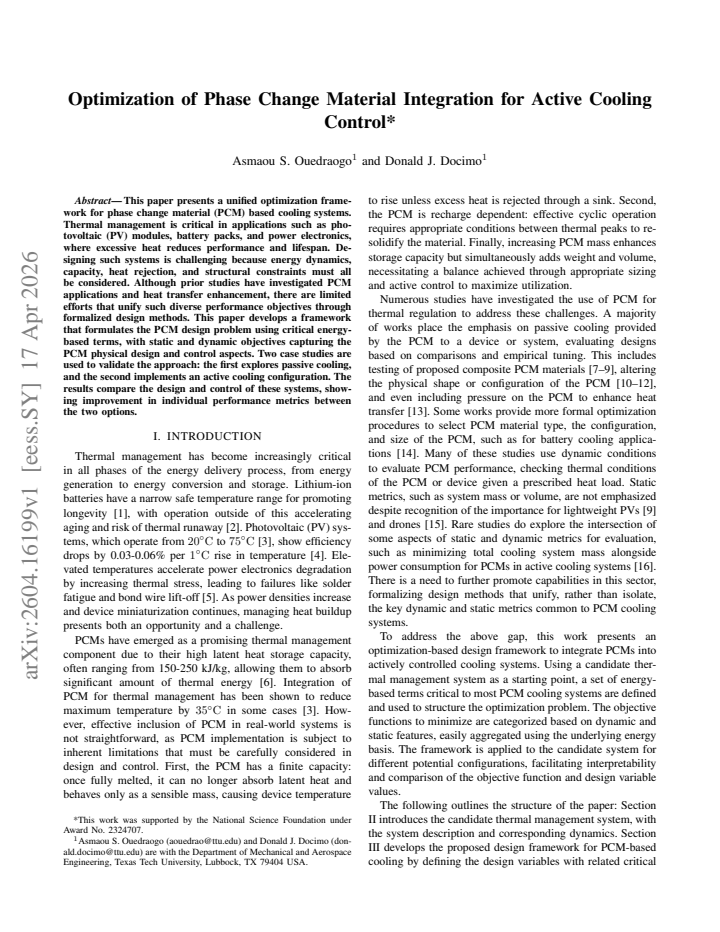

This paper presents a unified optimization framework for phase change material (PCM) based cooling systems. Thermal management is critical in applications such as photovoltaic (PV) modules, battery packs, and power electronics, where excessive heat reduces performance and lifespan. Designing such systems is challenging because energy dynamics, capacity, heat rejection, and structural constraints must all be considered. Although prior studies have investigated PCM applications and heat transfer enhancement, there are limited efforts that unify such diverse performance objectives through formalized design methods. This paper develops a framework that formulates the PCM design problem using critical energy-based terms, with static and dynamic objectives capturing the PCM physical design and control aspects. Two case studies are used to validate the approach: the first explores passive cooling, and the second implements an active cooling configuration. The results compare the design and control of these systems, showing improvement in individual performance metrics between the two options.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a unified optimization framework for phase change material (PCM) integration in cooling systems for applications such as PV modules, batteries, and power electronics. It formulates the PCM design problem using critical energy-based terms, incorporating static objectives for physical design and dynamic objectives for control. Two case studies are described: one for passive cooling and one for active cooling, with results indicating improvements in performance metrics when moving from passive to active configurations.

Significance. If the critical energy-based terms can be shown to fully encode energy dynamics, capacity, heat rejection, and structural constraints without requiring supplementary physics or empirical tuning, the framework would offer a practical tool for unifying previously disparate PCM design objectives. The explicit comparison of passive versus active cooling provides a concrete basis for evaluating trade-offs in thermal management systems.

major comments (2)
  1. [Framework formulation (inferred from abstract description)] The abstract states that the framework uses 'critical energy-based terms' to capture energy dynamics, capacity, heat rejection, and structural constraints, yet no explicit definitions, equations, or derivations are supplied to demonstrate how these aggregate terms account for spatial temperature gradients or phase-change kinetics. This is load-bearing for the central claim that the approach unifies objectives without additional detailed physics.
  2. [Case studies section] The case-study results claim improvement in individual performance metrics between passive and active cooling, but the abstract provides no quantitative values, baselines, error metrics, or validation against experimental data or high-fidelity simulations to support that the optima reflect real-system behavior.
minor comments (1)
  1. The abstract references prior studies on PCM applications and heat transfer enhancement but does not cite specific works, making it difficult to assess novelty relative to existing optimization approaches.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive review and valuable feedback on our manuscript. We address each major comment below with clarifications from the full text and indicate where revisions will be made to improve clarity and completeness.

read point-by-point responses

  1. Referee: The abstract states that the framework uses 'critical energy-based terms' to capture energy dynamics, capacity, heat rejection, and structural constraints, yet no explicit definitions, equations, or derivations are supplied to demonstrate how these aggregate terms account for spatial temperature gradients or phase-change kinetics. This is load-bearing for the central claim that the approach unifies objectives without additional detailed physics.

    Authors: The full manuscript (Section 3) supplies the explicit definitions, equations, and derivations for the critical energy-based terms. These terms are formulated as lumped aggregates that encode the required energy dynamics, capacity, heat rejection, and structural constraints while intentionally abstracting spatial temperature gradients and detailed phase-change kinetics into effective parameters. This lumped representation is the core of the unification between static design and dynamic control objectives, enabling optimization without supplementary physics models. We acknowledge that the abstract is too concise on this point and will revise it to briefly reference the formulation and its modeling assumptions. We have also added a clarifying paragraph in the introduction discussing the scope and limitations of the aggregate terms. revision: yes

  2. Referee: The case-study results claim improvement in individual performance metrics between passive and active cooling, but the abstract provides no quantitative values, baselines, error metrics, or validation against experimental data or high-fidelity simulations to support that the optima reflect real-system behavior.

    Authors: The results section (Section 4) contains the quantitative values, baselines (standard non-optimized PCM designs), error metrics from the optimization runs, and validation via high-fidelity numerical simulations for both the passive and active cooling case studies. The abstract was intentionally kept brief and omitted these details. We will revise the abstract to include key quantitative improvements and simulation validation metrics. The case studies rely on numerical simulation rather than physical experiments; we have added a limitations paragraph in the conclusions noting this and identifying experimental validation as future work. revision: yes

Circularity Check

0 steps flagged

No circularity in framework formulation or objectives

full rationale

The abstract and description present a unified optimization framework that formulates PCM design using critical energy-based terms with static and dynamic objectives. No equations, self-citations, fitted parameters, or derivations are provided that reduce any prediction or result to its own inputs by construction. The approach is described as capturing physical design and control aspects from energy terms without evidence of self-definitional loops, ansatz smuggling, or renaming known results. The derivation chain appears self-contained against the stated requirements for energy dynamics and constraints.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no identifiable free parameters, axioms, or invented entities; full manuscript required for ledger construction.

pith-pipeline@v0.9.0 · 5451 in / 1032 out tokens · 51643 ms · 2026-05-10T07:56:17.102799+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

21 extracted references · 21 canonical work pages

  1. [1]

    All-temperature area battery applica- tion mechanism, performance, and strategies

    Siqi Chen et al. “All-temperature area battery applica- tion mechanism, performance, and strategies”. In:The Innovation4.4 (2023)

    work page 2023

  2. [2]

    A review of the combined effects of environmental and operational factors on lithium- ion battery performance: temperature, vibration, and charging/discharging cycles

    Dong Shi et al. “A review of the combined effects of environmental and operational factors on lithium- ion battery performance: temperature, vibration, and charging/discharging cycles”. In:RSC advances15.17 (2025), pp. 13272–13283

    work page 2025

  3. [3]

    Increasing the efficiency of PV panel with the use of PCM

    Uroš Stritih et al. “Increasing the efficiency of PV panel with the use of PCM”. In:Renewable Energy 97 (2016), pp. 671–679

    work page 2016

  4. [4]

    Effects of various parameters on PV-module power and efficiency

    MM Rahman, Md Hasanuzzaman, and Nasrudin Abd Rahim. “Effects of various parameters on PV-module power and efficiency”. In:Energy Conversion and Management103 (2015), pp. 348–358

    work page 2015

  5. [5]

    Study on the lifetime characteristics of power modules under power cycling conditions

    Wei Lai et al. “Study on the lifetime characteristics of power modules under power cycling conditions”. In: IET Power Electronics9.5 (2016), pp. 1045–1052

    work page 2016

  6. [6]

    Advances and applications of phase change materials (PCMs) and PCMs-based tech- nologies

    Jintao Huang et al. “Advances and applications of phase change materials (PCMs) and PCMs-based tech- nologies”. In:ES Materials & Manufacturing13.25 (2021), pp. 23–39

    work page 2021

  7. [7]

    Ther- mal Characteristics of Organic and Inorganic Eutectic Phase Change Materials Using T-History and DSC Method During Solidification Phase

    Utkarsh Srivastava and Rashmi Rekha Sahoo. “Ther- mal Characteristics of Organic and Inorganic Eutectic Phase Change Materials Using T-History and DSC Method During Solidification Phase”. In:Heat Trans- fer54.4 (2025), pp. 2543–2558

    work page 2025

  8. [8]

    Temperature control of battery modules through composite phase change materials with dual operating temperature regions

    Guohua Ye et al. “Temperature control of battery modules through composite phase change materials with dual operating temperature regions”. In:Chemi- cal Engineering Journal449 (2022), p. 137733

    work page 2022

  9. [9]

    Solar photovoltaic cooling using Paraffin phase change material: Comprehensive as- sessment

    B Prabhu et al. “Solar photovoltaic cooling using Paraffin phase change material: Comprehensive as- sessment”. In:Renewable and Sustainable Energy Reviews197 (2024), p. 114372

    work page 2024

  10. [10]

    A novel and effective passive cooling strategy for photovoltaic panel

    Sandro Nižeti ´c et al. “A novel and effective passive cooling strategy for photovoltaic panel”. In:Renew- able and Sustainable Energy Reviews145 (2021), p. 111164

    work page 2021

  11. [11]

    Analytical modeling of PCM solid- ification in a shell and tube finned thermal storage for air conditioning systems

    AH Mosaffa et al. “Analytical modeling of PCM solid- ification in a shell and tube finned thermal storage for air conditioning systems”. In:Energy and buildings 49 (2012), pp. 356–361

    work page 2012

  12. [12]

    An explicit finite element method for thermal simu- lations of buildings with phase change materials

    Hongxia Zhou, Åke Fransson, and Thomas Olofsson. “An explicit finite element method for thermal simu- lations of buildings with phase change materials”. In: energies14.19 (2021), p. 6194

    work page 2021

  13. [13]

    Cooling high power electronics using dynamic phase change material

    Soonwook Kim et al. “Cooling high power electronics using dynamic phase change material”. In:Interna- tional Journal of Heat and Mass Transfer237 (2025), p. 126433

    work page 2025

  14. [14]

    Optimisation of PCM passive cooling efficiency on lithium-ion batteries based on coupled CFD and ANN techniques

    Weiheng Li et al. “Optimisation of PCM passive cooling efficiency on lithium-ion batteries based on coupled CFD and ANN techniques”. In:Applied Ther- mal Engineering259 (2025), p. 124874

    work page 2025

  15. [15]

    Ther- mal Management for Unmanned Aerial Vehicle Pay- loads: Mechanisms, Systems, and Applications

    Ganapathi Pamula and Ashwin Ramachandran. “Ther- mal Management for Unmanned Aerial Vehicle Pay- loads: Mechanisms, Systems, and Applications”. In: Drones9.5 (2025), p. 350

    work page 2025

  16. [16]

    Set-Based Robust Control Co-Design: Application to a Hybrid Thermal Manage- ment System

    Demetrius Gulewicz et al. “Set-Based Robust Control Co-Design: Application to a Hybrid Thermal Manage- ment System”. In:ASME Letters in Dynamic Systems and Control5.3 (2025), p. 030904

    work page 2025

  17. [17]

    Cambridge University Press, 2015

    Achille Messac.Optimization in practice with MAT- LAB®: for engineering students and professionals. Cambridge University Press, 2015

    work page 2015

  18. [18]

    A thermal model for photovoltaic systems

    AD Jones and CP Underwood. “A thermal model for photovoltaic systems”. In:Solar energy70.4 (2001), pp. 349–359

    work page 2001

  19. [19]

    Model Predictive Control for Active Cooling of Photo- voltaic Panels

    Asmaou S Ouedraogo and Donald J Docimo. “Model Predictive Control for Active Cooling of Photo- voltaic Panels”. In:IF AC-PapersOnLine58.28 (2024), pp. 833–838

    work page 2024

  20. [20]

    Thermal man- agement of lithium-ion batteries for electric vehicles

    Gholamreza Karimi and Xianguo Li. “Thermal man- agement of lithium-ion batteries for electric vehicles”. In:International Journal of Energy Research37.1 (2013), pp. 13–24

    work page 2013

  21. [21]

    Observed Atmospheric and Solar Information System (OASIS); Tucson, Arizona (Data)

    A Andreas and S Wilcox. “Observed Atmospheric and Solar Information System (OASIS); Tucson, Arizona (Data)”. In:NREL Report No. DA-5500-56494(2010)

    work page 2010
