Tailoring Mechanical Properties of Germanium Anodes via Metal Incorporation for Improved Cycle Stability
Pith reviewed 2026-05-09 19:48 UTC · model grok-4.3
The pith
Doping germanium with large-atom metals like ytterbium softens the anode material and triples its cycle life in lithium-ion batteries.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Trace incorporation of large-atomic-size metals, especially Yb, into Ge films softens the anode mechanically, as confirmed by nanoindentation hardness measurements that correlate inversely with dopant size, thereby suppressing lithiation-induced cracking and delamination to raise cycling stability by roughly a factor of three while leaving initial capacity unchanged.
What carries the argument
Metal doping with large atomic size (Yb) to lower film hardness and increase mechanical compliance, shifting the anode from rigid to damage-tolerant behavior.
If this is right

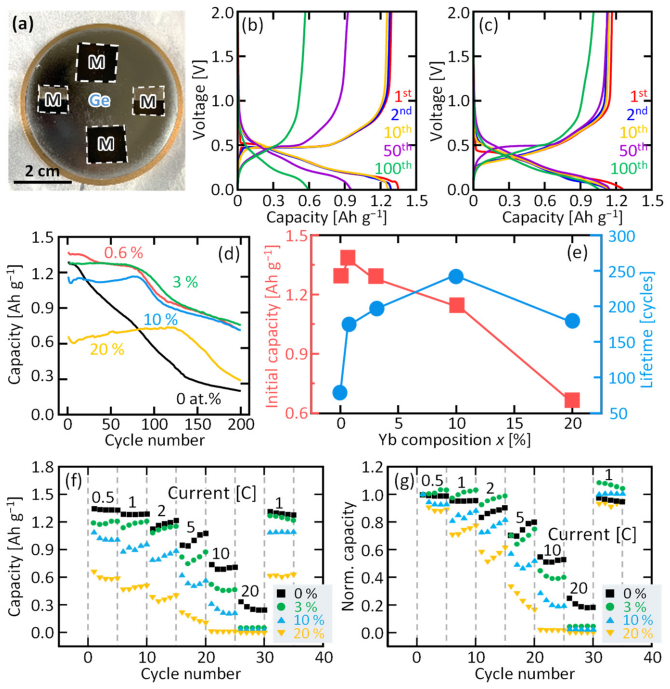

- Appropriate Yb doping raises anode lifetime by approximately a factor of three.
- The approach moves battery anode design from volume-change suppression toward deliberate mechanical compliance.

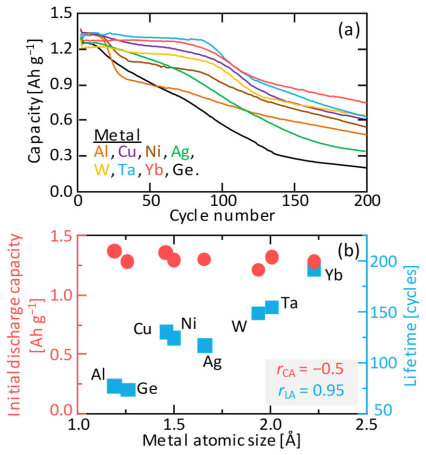

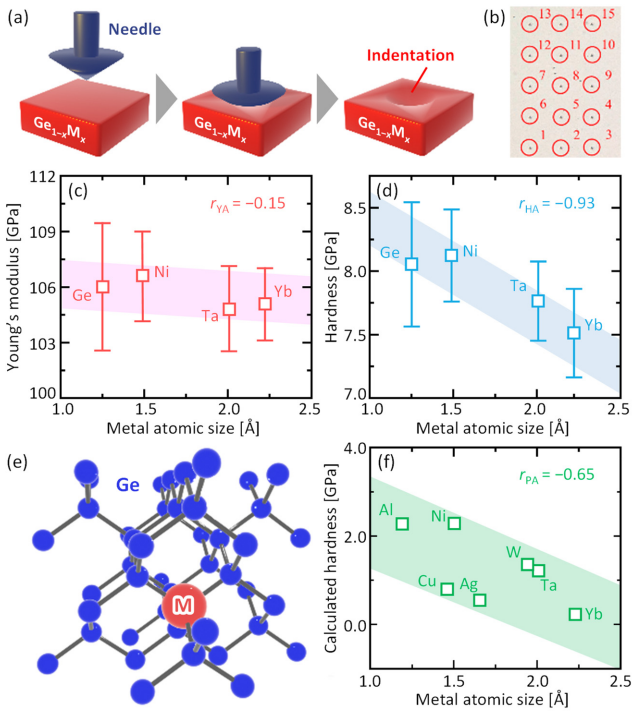

- A negative correlation between dopant atomic size and hardness supplies a general rule for choosing stabilizers.
- Initial capacity remains intact even as cycle life improves.
- High-C-rate performance declines, indicating a trade-off that must be managed separately.
Where Pith is reading between the lines
- The same size-based softening rule could be tested on silicon or other alloy anodes that also suffer cracking.
- Pairing this doping with thin coatings might offset the observed rate-capability penalty.
- Measuring hardness after many cycles would test whether the softening benefit persists or erodes over time.
- Full-cell data at moderate rates would clarify whether the three-fold gain survives realistic voltage windows and electrolyte interactions.
Load-bearing premise
The observed link between larger dopant atoms, lower hardness, and longer cycle life is causal, and softening will outweigh any side effects on conductivity or surface films under real battery operation.
What would settle it
A full-cell test of Yb-doped Ge anodes at high C-rates that shows no lifetime gain or faster fade would falsify the claim that mechanical softening is the dominant stabilizer.
Figures

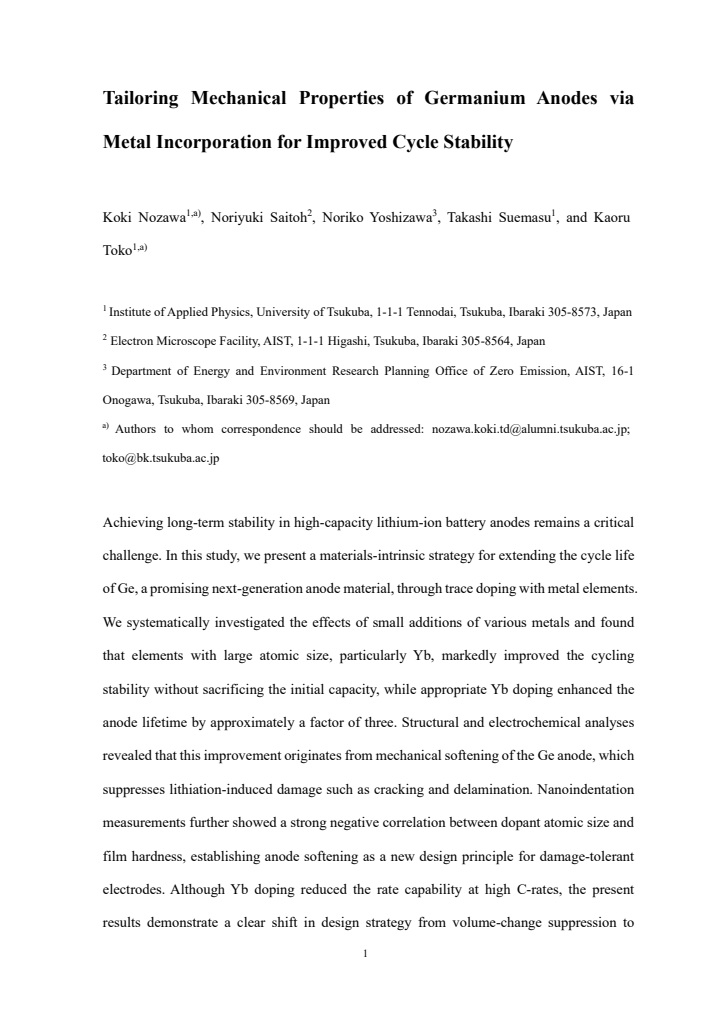

read the original abstract
Achieving long-term stability in high-capacity lithium-ion battery anodes remains a critical challenge. In this study, we present a materials-intrinsic strategy for extending the cycle life of Ge, a promising next-generation anode material, through trace doping with metal elements. We systematically investigated the effects of small additions of various metals and found that elements with large atomic size, particularly Yb, markedly improved the cycling stability without sacrificing the initial capacity, while appropriate Yb doping enhanced the anode lifetime by approximately a factor of three. Structural and electrochemical analyses revealed that this improvement originates from mechanical softening of the Ge anode, which suppresses lithiation-induced damage such as cracking and delamination. Nanoindentation measurements further showed a strong negative correlation between dopant atomic size and film hardness, establishing anode softening as a new design principle for damage-tolerant electrodes. Although Yb doping reduced the rate capability at high C-rates, the present results demonstrate a clear shift in design strategy from volume-change suppression to mechanical compliance. These findings provide a useful framework for stabilizing high-capacity alloy anodes through atomic-scale mechanical control.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports an experimental study on thin-film Ge anodes doped with trace metals. It finds that dopants with larger atomic radii (especially Yb) reduce film hardness as measured by nanoindentation, correlate with a roughly threefold extension in cycle life at comparable initial capacity, and suppress cracking/delamination during lithiation. The authors attribute the gain to mechanical softening that increases compliance, propose this as a new design principle for alloy anodes, and note a trade-off in high-rate capability.
Significance. If the causal mechanism is confirmed, the work supplies a concrete, atomically tunable route to damage-tolerant high-capacity anodes that complements existing volume-change-suppression strategies. The observed negative correlation between dopant size, hardness, and cycle life is a useful empirical observation that could guide screening of other alloy systems.
major comments (1)
- [Results and Discussion (mechanism section)] The central claim that mechanical softening is the operative mechanism (suppressing cracking/delamination and thereby extending cycle life) rests on the observed correlation between dopant atomic size, nanoindentation hardness, and cycling data. However, the manuscript does not isolate this effect from confounding changes in Li diffusivity, electronic percolation, or SEI chemistry that could independently improve cycling; the acknowledged reduction in high-C-rate performance is consistent with such alternative contributions. An orthogonal control (e.g., porosity-induced softening or defect engineering without metal doping) would be required to establish specificity.
minor comments (3)
- [Experimental Results] Quantitative hardness values, error bars, number of indents per sample, and film-thickness statistics are not reported for the nanoindentation data; likewise, cycle-life plots lack explicit sample sizes and capacity-retention error bars, making it difficult to assess the statistical robustness of the factor-of-three lifetime claim.
- [Abstract and Results] The abstract and main text state that Yb doping “enhanced the anode lifetime by approximately a factor of three” without specifying the exact cycling protocol (C-rate, voltage window, or number of cycles at which the comparison is made); this should be stated explicitly.
- [Figures] Figure captions and axis labels for the nanoindentation hardness vs. atomic-radius plot and the cycling curves should include the number of replicates and any fitting details.
Simulated Author's Rebuttal
We thank the referee for the positive evaluation of our work's significance and for the detailed major comment. We agree that our mechanistic interpretation relies on correlations and that potential confounding factors have not been fully isolated. We address this point below and will revise the manuscript to strengthen the discussion of limitations.
read point-by-point responses
-
Referee: [Results and Discussion (mechanism section)] The central claim that mechanical softening is the operative mechanism (suppressing cracking/delamination and thereby extending cycle life) rests on the observed correlation between dopant atomic size, nanoindentation hardness, and cycling data. However, the manuscript does not isolate this effect from confounding changes in Li diffusivity, electronic percolation, or SEI chemistry that could independently improve cycling; the acknowledged reduction in high-C-rate performance is consistent with such alternative contributions. An orthogonal control (e.g., porosity-induced softening or defect engineering without metal doping) would be required to establish specificity.
Authors: We agree that the evidence for mechanical softening as the operative mechanism is correlative and that alternative contributions from Li diffusivity, electronic percolation, or SEI chemistry cannot be ruled out with the present data set. Our study used multiple dopants spanning a range of atomic sizes and observed that cycle-life gains and hardness reductions scale consistently with dopant radius rather than with other dopant properties, which would be unexpected if SEI or diffusivity changes were dominant. The high-rate performance trade-off is already noted in the manuscript and could arise from several factors, including those suggested. However, we did not include orthogonal controls such as porosity-induced softening or non-metallic defect engineering. In the revised manuscript we will expand the Results and Discussion section to explicitly acknowledge these potential confounders, clarify that the proposed mechanism is supported by the size-dependent trend but remains correlative, and recommend future orthogonal experiments to establish specificity. revision: partial
Circularity Check
No circularity: purely experimental study with direct measurements
full rationale
The paper reports experimental doping of Ge thin-film anodes with various metals, followed by direct measurements of cycling stability, initial capacity, nanoindentation hardness, and structural properties. No equations, fitted parameters, predictive models, or derivations are present. The observed negative correlation between dopant atomic size and hardness, and the factor-of-three lifetime improvement for Yb, are presented as empirical results rather than outputs of any self-referential chain. No self-citations are invoked as load-bearing uniqueness theorems or ansatzes. The central claim rests on experimental correlations and is not reduced to its inputs by construction.
Axiom & Free-Parameter Ledger
