InSituNet: Deep Image Synthesis for Parameter Space Exploration of Ensemble Simulations

T0 review · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read InSituNet learns to map simulation, visualization, and viewpoint parameters to images, allowing users to explore new parameter settings of ensemble simulations without rerunning the simulations.

arxiv 1908.00407 v3 pith:CVXGRMGM submitted 2019-08-01 eess.IV cs.CVcs.GR

Wenbin He , Junpeng Wang , Hanqi Guo , Ko-Chih Wang , Han-Wei Shen , Mukund Raj , Youssef S. G. Nashed , Tom Peterka This is my paper · ORCID
classification eess.IVcs.CVcs.GR
keywords simulationssimulationvisualizationensembleexplorationinsitunetapproachesdeep
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Ensemble simulations, such as climate or cosmology runs, are expensive, and storing their raw output is often impossible. In situ visualization instead saves a few pictures while the simulation runs. InSituNet is a machine-learning model trained on those pictures and the parameter values that produced them. After training, it can synthesize a new picture for a parameter combination that was never simulated, such as a different Hubble constant or wind stress value, without running the simulation again.

The model is a convolutional network that takes simulation, color-mapping, and viewpoint parameters as input and outputs a 256 by 256 image. During training it compares its output with ground-truth images in three ways: pixel differences in a feature space from a pretrained VGG network, and an adversarial discriminator that tries to tell synthetic images from real ones. The paper tests the model on a combustion simulation, a cosmology simulation, and an ocean simulation, reporting pixel and structural similarity scores on held-out parameter settings. It also uses the network's derivatives to show which parameters change the image the most.

Extended reading notes

Core claim

The load-bearing assertion is that a trained InSituNet maps (Psim, Pvis, Pview) to a visualization image I so well that users can explore unseen parameter settings: 'With the trained model, users can generate new images for different simulation parameters under various visualization settings' (Section 1, Equation 1). On the Nyx comparison, InSituNet beats both interpolation and GAN-VR on all four metrics (PSNR 28.47 vs 23.93 and 20.67; SSIM 0.803 vs 0.699 and 0.627; Table 6). If correct, this means a surrogate trained only on in situ images can answer what the visualization would look like across the sampled parameter ranges.

Load-bearing premise

The paper assumes the finite set of in situ images spans a parameter-to-image mapping smooth enough for a convolutional regressor to interpolate unseen combinations, and that 100 sampled viewpoints per ensemble member are sufficient (Section 4: 'taking 100 viewpoints for each ensemble member is sufficient to train InSituNet'). This assumption is load-bearing because arbitrary exploration is only tested on held-out points drawn from the same sampling distribution; the paper never tests extrapolation outside the parameter ranges or with visual mappings not enumerated in training. If the true mapping is not smooth in the chosen parameterization, the predicted images and the sensitivity curves in Section 7.5 could diverge from actual simulations.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Assumptions & free parameters 6 free parameters · 4 assumptions · 0 invented entities

The central claim depends on standard network training hyperparameters chosen by the authors, plus domain assumptions about smoothness of the parameter-to-image mapping and transferability of VGG features. No new physical entities or equations are introduced.

free parameters (6)
  • lambda (adversarial loss weight) = 0.01
    Selected in Table 3 to balance PSNR, SSIM, EMD, and FID on the Nyx evaluation set; final results use this value.
  • network width k = 32 for SmallPoolFire, 48 for Nyx, 48 for MPAS-Ocean
    Chosen per dataset in Section 7.3.2 to balance accuracy, network size, and training time.
  • training iterations = 125000
    Section 5.4: exit criterion set because the loss converged after this many iterations.
  • viewpoint sample count = 100 per ensemble member
    Section 4: 100 viewpoints sampled as sufficient to train InSituNet.
  • learning rates alpha_R and alpha_D, beta1 = 5e-5, 2e-4, 0
    Section 5.3.2: chosen empirically to stabilize adversarial training, following prior work.
  • training ensemble runs = 3900, 400, 270 per dataset
    Section 7.3.3: selected because the evaluation metrics stabilize at these numbers.
assumptions (4)
  • domain assumption The visualization images of an ensemble simulation vary smoothly enough with simulation, visual mapping, and view parameters for a convolutional regressor to interpolate unseen parameter combinations.
    This is the load-bearing premise behind training on a finite set of parameter-image pairs and then predicting arbitrary parameters (Sections 1, 4, and 5).
  • ad hoc to paper Pretrained VGG-19 features, developed on natural images, are informative for comparing scientific visualization images.
    The feature reconstruction loss uses VGG-19 relu1_2 (Sections 5.1.3 and 5.2.1); transferability to scalar-field renderings is assumed, with the layer choice justified empirically to avoid pooling artifacts.
  • domain assumption Adversarial training with spectral normalization and TTUR converges to a useful regressor rather than mode collapse or instability.
    Section 5.3 relies on these existing GAN stabilization techniques; convergence is asserted from observed loss behavior, not proven.
  • domain assumption The L1 norm of the generated image and its derivatives reflect scientifically meaningful parameter sensitivity.
    Sections 6.2 and 7.5 use backward propagation through the surrogate to rank parameter sensitivity; the paper only validates against the surrogate's own central differences, not against the simulation.

how reviews work

0 comments
Cite this review

Pith. "Pith review of InSituNet: Deep Image Synthesis for Parameter Space Exploration of Ensemble Simulations." pith.science (2026). https://pith.science/paper/CVXGRMGM

@misc{pith2026190800407,
  author       = {Pith},
  title        = {Pith review of: InSituNet: Deep Image Synthesis for Parameter Space Exploration of Ensemble Simulations},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CVXGRMGM}},
  note         = {Machine review of arXiv:1908.00407}
}
read the original abstract

We propose InSituNet, a deep learning based surrogate model to support parameter space exploration for ensemble simulations that are visualized in situ. In situ visualization, generating visualizations at simulation time, is becoming prevalent in handling large-scale simulations because of the I/O and storage constraints. However, in situ visualization approaches limit the flexibility of post-hoc exploration because the raw simulation data are no longer available. Although multiple image-based approaches have been proposed to mitigate this limitation, those approaches lack the ability to explore the simulation parameters. Our approach allows flexible exploration of parameter space for large-scale ensemble simulations by taking advantage of the recent advances in deep learning. Specifically, we design InSituNet as a convolutional regression model to learn the mapping from the simulation and visualization parameters to the visualization results. With the trained model, users can generate new images for different simulation parameters under various visualization settings, which enables in-depth analysis of the underlying ensemble simulations. We demonstrate the effectiveness of InSituNet in combustion, cosmology, and ocean simulations through quantitative and qualitative evaluations.

Figures

Figures reproduced from arXiv: 1908.00407 by the authors.

Figure 1
Figure 1. Workflow of our approach. Ensemble simulations are conducted [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

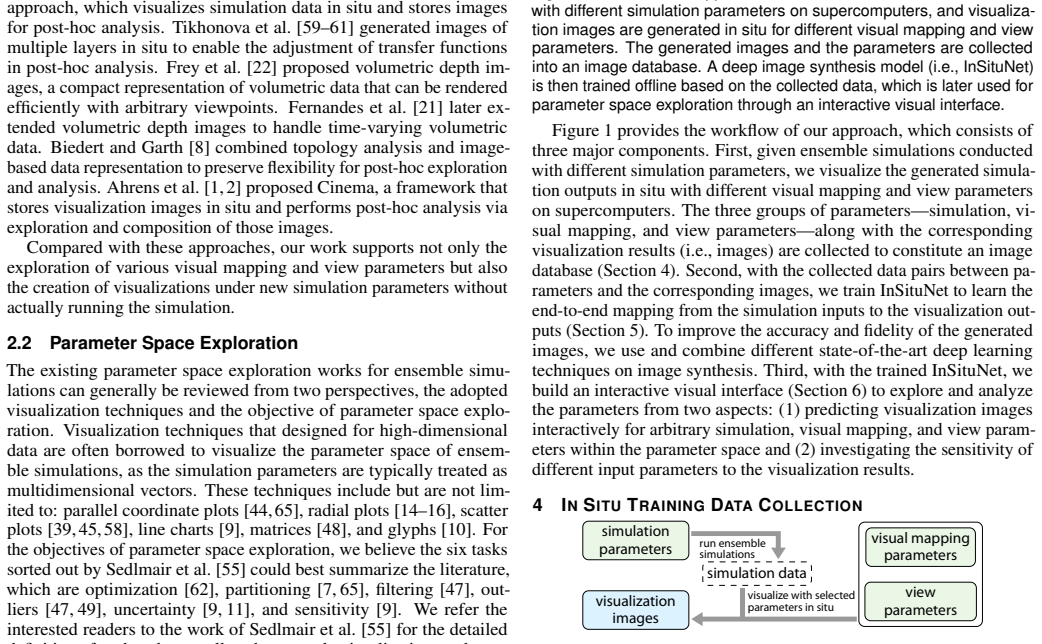

Figure 2
Figure 2. Our in situ training data collection pipeline. Simulation data, [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

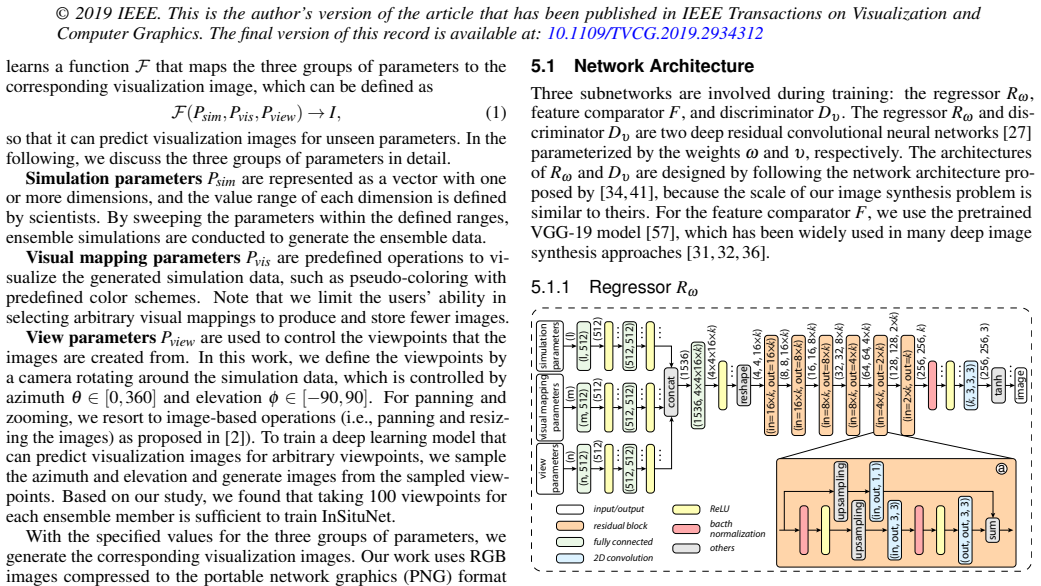

Figure 4
Figure 4. Architecture of Rω, which encodes input parameters into a latent vector with fully connected layers and maps the latent vector into an output image with residual blocks. The size of Rω is defined by k, which controls the number of convolutional kernels in the intermediate layers. The architecture of Rω is shown in [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figures from the paper (11 more)

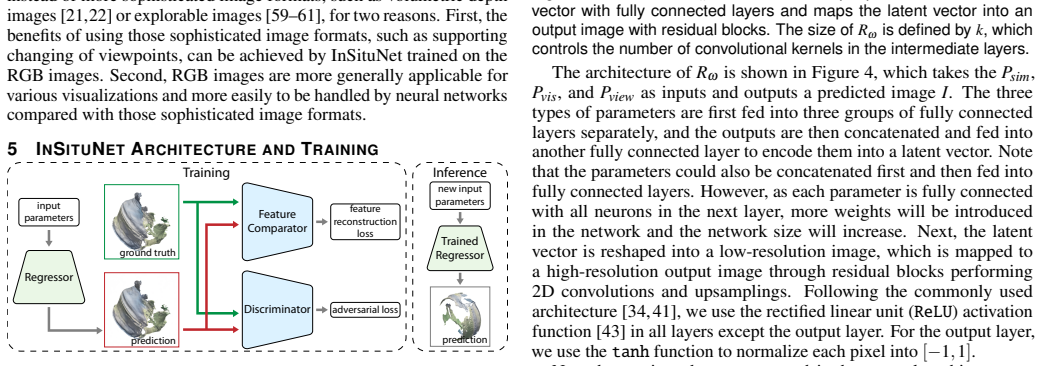

Figure 3
Figure 3. Figure 3: Overview of InSituNet, which is a convolutional regression model [PITH_FULL_IMAGE:figures/full_fig_p003_3.png]
Figure 5
Figure 5. Figure 5: Architecture of Dυ . Input parameters and the predicted/ground truth image are transformed into latent vectors with fully connected layers and residual blocks, respectively. The latent vectors are then incorpo￾rated by using the projection-based method [42] to predict …

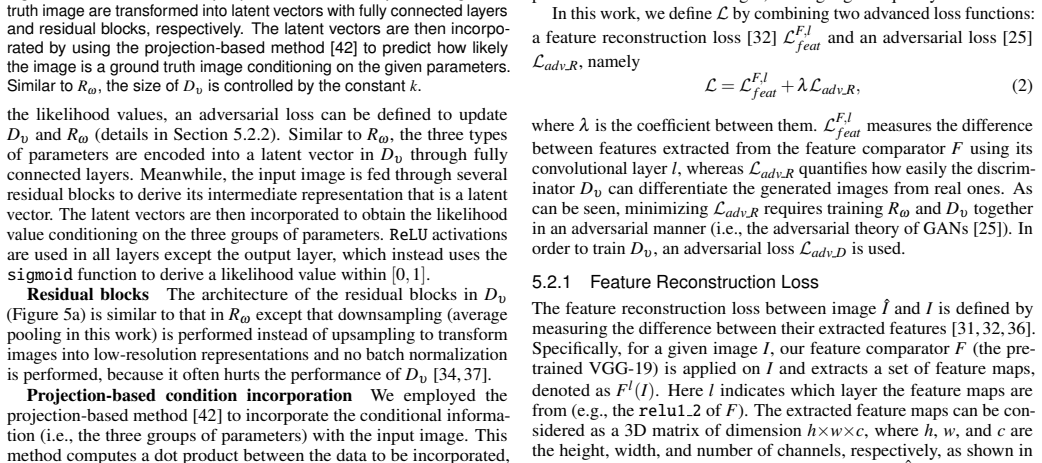

Figure 6
Figure 6. Figure 6: Architecture of F (i.e., VGG-19 network), where each layer is labeled with its name. Feature maps are extracted through convolutional layers (e.g., relu1 2) for feature-level comparisons. To produce high quality image synthesis results, we also strive to minimize the f…

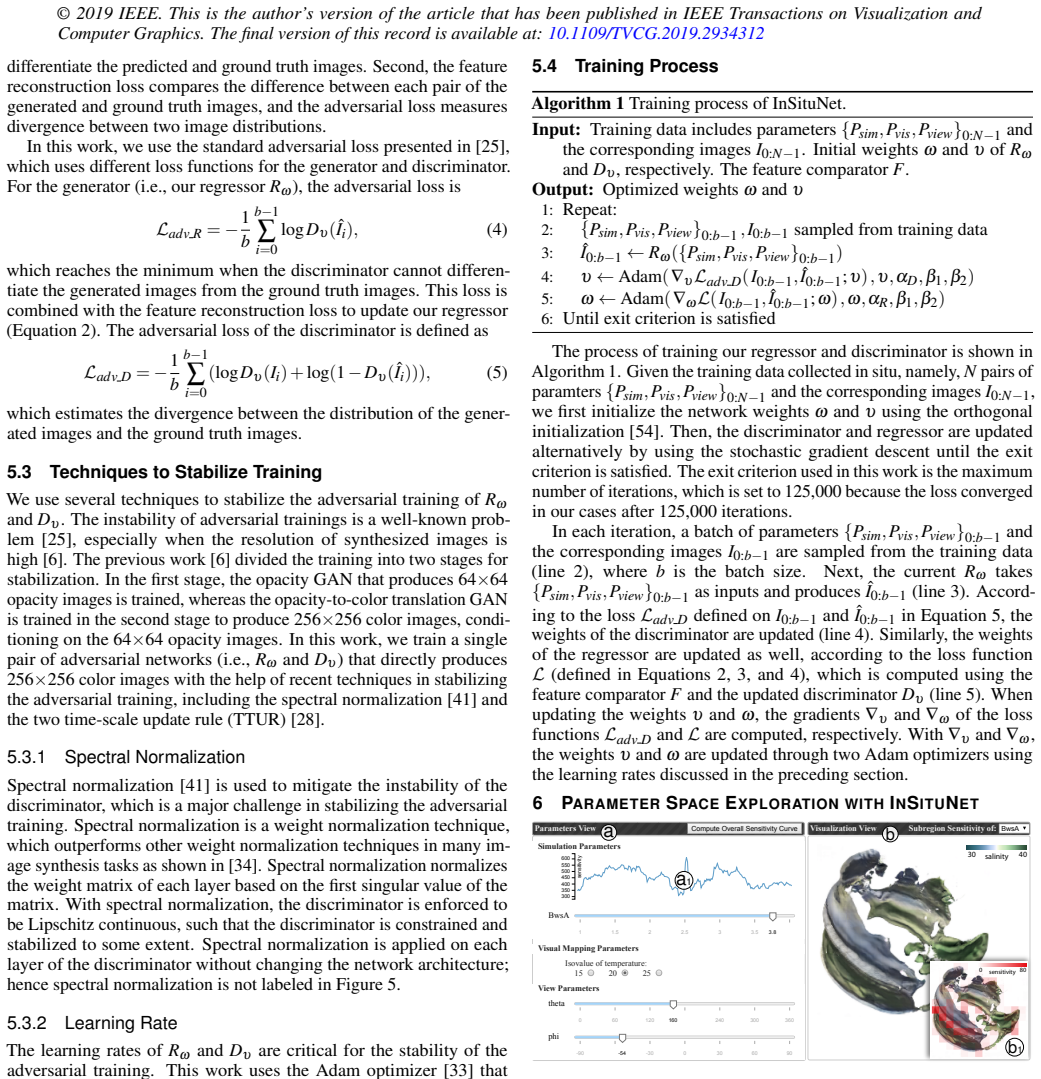

Figure 7
Figure 7. Figure 7: Visual interface for parameter space exploration. (a) The three [PITH_FULL_IMAGE:figures/full_fig_p005_7.png]
Figure 8
Figure 8. Figure 8: Qualitative comparison of InSituNet trained with different loss [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 9
Figure 9. Figure 9: Images generated by InSituNet trained with [PITH_FULL_IMAGE:figures/full_fig_p007_9.png]
Figure 10
Figure 10. Figure 10: Quantitative evaluation of different network architectures con [PITH_FULL_IMAGE:figures/full_fig_p008_10.png]
Figure 12
Figure 12. Figure 12: From the scale of the three charts (i.e., the values along the [PITH_FULL_IMAGE:figures/full_fig_p008_12.png]

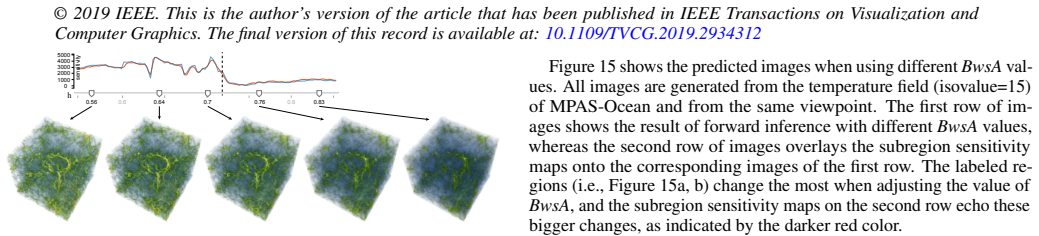

Figure 13
Figure 13. Figure 13: Comparison of the visual appearance of the predicted images [PITH_FULL_IMAGE:figures/full_fig_p009_13.png]
Figure 14
Figure 14. Figure 14: Predicted images of the MPAS-Ocean dataset for different [PITH_FULL_IMAGE:figures/full_fig_p009_14.png]

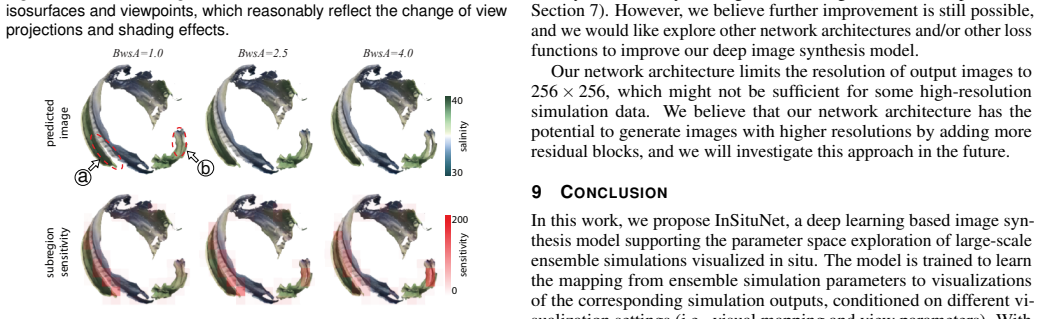

Figure 15
Figure 15. Figure 15: Forward prediction (top row) and backward subregion sensitivity [PITH_FULL_IMAGE:figures/full_fig_p009_15.png]

Discussion (0). Continue with ORCID to comment.
