Deep Optics for Single-shot High-dynamic-range Imaging

Christopher A. Metzler; Gordon Wetzstein; Hayato Ikoma; Yifan Peng

REVIEW 3 major objections 4 minor 72 references

Deep Optics for Single-shot High-dynamic-range Imaging

T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper claims that a fabricated diffractive optical element, jointly optimized with a neural decoder, lets an ordinary camera recover high-dynamic-range detail from a single saturated exposure.

desk verdict First end-to-end deep optics for single-shot HDR, with a clever learned grating PSF and a real prototype; simulation support is strong, hardware support is qualitative but sufficient to justify peer review. read the letter →

arxiv 1908.00620 v1 pith:6FDVQHES submitted 2019-08-01 eess.IV cs.CV

Christopher A. Metzler , Hayato Ikoma , Yifan Peng , Gordon Wetzstein This is my paper · ORCID

classification eess.IVcs.CV

keywords high-dynamic-rangeimagingsingle-shotHDRdiffractiveopticalelementpointspreadfunctionend-to-endoptimizationcomputationalphotographydeepopticssensorsaturation

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that a camera can capture high-dynamic-range scenes in a single shot if a small diffractive optical element is placed in front of the lens and a neural network is trained jointly with the element's surface profile. The optical element turns the sensor's point spread function into a grating-like pattern that superimposes several shifted, scaled copies of the image, so details from saturated bright regions fall into unsaturated neighboring pixels instead of being lost. A convolutional decoder then unwraps these copies while filling in the saturated areas. In simulations and with a fabricated prototype, the paper reports that this end-to-end design recovers bright-scene detail with higher perceptual and peak signal-to-noise quality than a CNN that hallucinates missing HDR content or a hand-designed star-shaped PSF. If the result holds, a passive add-on optic and a trained decoder could extend the dynamic range of an ordinary camera without multiple exposures.

What carries the argument

Central machinery is the optimized point spread function, defined through a differentiable wave-optics model: $t_\varphi(u,v,\lambda)=A_\varphi(u,v)\exp(ik(n(\lambda)-1)\varphi(u,v))$ encodes the DOE surface height $\varphi$ as a phase delay, and the full PSF is $h_\varphi=\left|P_{d_s}\{t_l P_{d_\varphi}\{t_\varphi e^{ikz}\}\}\right|^2$, the squared modulus of the propagated field. The height map $\varphi$ is a trainable parameter, so backpropagation can adjust the PSF jointly with the decoder weights. The discovered PSF contains a central peak plus lower-amplitude satellite peaks at wavelength-dependent positions, which is exactly what creates the shifted, scaled image copies; a smoothness penalty on the second spatial derivative of $\varphi$ and clipping of its height range keep the surface manufacturable.

What would settle it

Capture with the fabricated DOE a scene containing a bright patch large enough that the shifted, scaled copies of the patch also saturate; if the decoder then returns smooth hallucinated content instead of recovering the patch's structure, the claim that the PSF preserves saturated detail in single-shot capture fails in exactly the regime the method is designed for.

Watch

Extended reading notes

Core claim

The central discovery is that single-shot HDR recovery need not be an ill-posed inpainting problem. By treating the camera's point spread function as a trainable optical encoder and a convolutional network as the decoder, the optimization discovers a grating-like surface profile whose PSF superimposes several shifted and scaled copies of the scene on the sensor. Bright details that would otherwise saturate are thus carried into unsaturated neighboring pixels as faint copies; the decoder then removes the copies and reconstructs the saturated regions. In the paper's simulations and prototype experiments, this joint design recovers filament and light-source structures that a CNN operating on a conventional LDR frame cannot, because the network is forced to hallucinate rather than decode. The authors report quantitative gains over both the CNN-only baseline and the hand-designed star PSF, under physically realizable height and smoothness constraints on the fabricated element.

Load-bearing premise

The load-bearing premise is that the simulated optics model predicts the real camera's light-spread pattern closely enough that a network trained on simulated images, even after recalibration with a measured pattern, can decode real photographs.

Editorial extensions

If this is right

A camera fitted with the learned DOE captures information about scene radiance above the sensor's saturation level, so saturated regions can be reconstructed from the encoded copies rather than guessed by the network.
The optimized PSF acts as a hardware multiplexer: the single sensor frame contains the scene at several effective exposure levels, defined by the positions and relative strengths of the PSF's satellite peaks.
Because the reconstruction network is matched to a specific PSF, the same fabricated element can be used with an ordinary camera after a comparatively fast recalibration that refines the network using the measured PSF.
The method's working range is tied to the training data; the authors note that extremely large saturated regions, where even the shifted copies saturate, remain a failure mode.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

One implication the authors leave implicit is that the learned grating PSF is a form of exposure bracketing: the positions and relative intensities of the satellite peaks set the effective exposure ratio, so future designs could tune those parameters directly instead of relying on the optimizer.
The same autoencoder formulation transfers to any sensor bottleneck that destroys information in a known way; a natural next step is to train the optic for saturated spectral channels or for clipping in time-of-flight sensors, replacing the HDR loss with the target task's loss.
A testable extension suggested by the paper's calibration step is to train the decoder under simulated PSF perturbations such as lens-to-DOE distance errors, focus drift, or temperature-induced surface changes; if the decoder tolerates these, per-camera recalibration could be skipped.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Quick take: this paper is the first end-to-end deep optics system for single-shot HDR, and the learned grating-like PSF is a genuinely new mechanism. The simulation results are convincing, and the physical prototype is real even if the hardware validation is only qualitative.

The real novelty is that previous deep optics work covered color, depth, and classification, but not HDR. The optimization naturally discovers a PSF with several shifted, scaled copies of the image in different color channels. That is an elegant way to multiplex bright details into nearby pixels, and it is clearly distinct from Rouf et al.'s hand-designed star PSF. The evaluation is also solid: a 223-image held-out test set, three metrics, and fair baselines including HDR-CNN, a plain U-Net, and star-PSF plus U-Net, all trained for their respective PSFs. The fabrication and prototype are real evidence too.

The paper is honest about its model limitations in Section 5: the DOE-to-lens distance is unknown, the compound lens is modeled as a thin lens, and the captured PSF has blur and glare that make it slightly shift-variant. That is the biggest risk. The CNN is trained largely on simulated PSFs, so if the physical PSF drifts beyond what was seen, the decoder will fail. The authors partially mitigate this by fine-tuning on the measured PSF, but they do not quantify robustness to calibration error.

Where the paper is weaker: Table 1 reports only means, no variances, so some of the metric gaps may not be significant. More importantly, the physical validation in Section 6 is four hand-picked scenes with side-by-side images and no quantitative comparison against the baselines on real captures. The stress-test note gets this right: the abstract's claim that the approach outperforms baselines is established in simulation, not on the hardware. The prototype demonstrates feasibility, which is still valuable, but not hardware superiority.

I would send this to peer review. The core idea is sound, the simulations are convincing, and the limitations are acknowledged. The main requests would be: report error bars, release code/data, and add at least a small quantitative hardware evaluation if possible. This is a solid paper for the computational photography community.

Referee Report

3 major / 4 minor

Summary. This paper proposes an end-to-end deep optics pipeline for single-shot high-dynamic-range (HDR) imaging. A diffractive optical element (DOE) with an optimized surface profile is placed in front of a conventional camera, and the resulting point spread function (PSF) is jointly optimized with a U-Net decoder using a differentiable Fourier optics model. The optimized PSF creates several shifted and scaled copies of the scene, encoding information from saturated bright regions into nearby unsaturated pixels. The authors report simulation experiments on a 223-image held-out test set, comparing against LDR images, HDR-CNN, a U-Net baseline, and a star-shaped PSF from Rouf et al., and report improvements in HDR-VDP-2 and PSNR. They also fabricate the DOE from PDMS, attach it to an SLR, calibrate with a measured PSF, and show indoor and outdoor example reconstructions. The paper acknowledges limitations including unknown DOE-lens distance, shift-variant glare, and sensitivity to training-set distribution.

Significance. Assuming the quantitative claims hold after revision, this is a valuable contribution to computational photography. It is, to my knowledge, the first demonstration of end-to-end optimized optics for single-shot HDR imaging, and the learned multiplexing PSF is an elegant solution that turns saturation recovery into a better-conditioned deconvolution problem rather than pure hallucination. The simulation study is well designed: a held-out test set of 223 images, three metrics, and comparisons to a CNN-only method and a prior PSF-engineering baseline, with the U-Net retrained for each PSF for fairness. The physical prototype, including profilometer measurements and measured-PSF refinement, is a significant engineering step. The main gap is that the real-capture evaluation is only qualitative, which currently limits the strength of the paper's central claim.

major comments (3)

[Section 6] The physical prototype results in Section 6 and Figures 1 and 7 are presented only as side-by-side images for four scenes. No quantitative metrics are reported for the real captures, and neither HDR-CNN nor the star-PSF baseline is applied to the same real measurements. Since the abstract states that the approach 'outperforms both purely CNN-based approaches and other PSF engineering approaches' and that this is demonstrated 'with a physical prototype,' the real-capture evidence is load-bearing but currently missing a quantitative comparison. Please add a real-capture evaluation using the same metrics as Table 1 (HDR-VDP-2, PSNR in linear and gamma-corrected domains) or a clearly justified alternative, with scene-by-scene results and baselines run on identical captures.
[Sections 3.1 and 5] The paper acknowledges in Section 5 that the exact DOE-to-lens distance is unknown, that the captured PSF is slightly blurrier and shift-variant because of fabrication errors and glare, and that a more detailed lens model would require proprietary information. This model mismatch is exactly where the physical claim must be stress-tested, yet no experiment quantifies its effect on reconstruction quality. I request an explicit robustness analysis, for example comparing reconstructions obtained with the simulated-PSF-trained network against those obtained with the measured-PSF-refined network on the same test scenes, or measuring reconstruction error as a function of controlled PSF perturbation. This would establish how far the method can be pushed beyond the demonstrated calibration regime.
[Table 1] Table 1 reports only mean scores over the 223-image test set, with no standard deviations, standard errors, or per-image distributions. For the HDR-VDP-2 and PSNR-gamma comparisons, the differences between methods are smaller than the PSNR-linear gap, and without variance information the reader cannot assess whether the reported ordering is statistically reliable. Please report error bars or a significance test, and consider showing per-image scatter plots or box plots for the main comparisons.

minor comments (4)

[Section 3.1] Eq. (1) uses h for the PSF while Eq. (6) defines h_phi(x,y); please clarify the relationship between these two quantities and state the PSF normalization convention (e.g., energy conservation or sum-to-one for each color channel).
[Section 3.3] The explanation that the per-batch sum of l2 norms encourages group-sparse solutions and makes the training robust to outliers is plausible but terse; a sentence connecting Eq. (7) to the cited sparse-group lasso framework, or an ablation of the loss exponent, would help the reader understand the design choice.
[Section 6] In Figure 7, the exposure values are labeled inconsistently across rows (e.g., -2.3 EV, -3.3 EV, -1.3 EV, -4.3 EV). Please define the EV offsets relative to the LDR exposure and apply the same convention to all panels.
[Section 2] The related work on single-shot HDR discusses reverse tone mapping and CNN hallucination methods, but the quantitative comparison is limited to Eilertsen et al.; if other learning-based single-shot methods are not compared, please state explicitly whether their pre-trained models or training pipelines are unavailable.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central comparison is a held-out simulation benchmark plus an external physical prototype, and no load-bearing step reduces to its own inputs.

full rationale

The paper's main quantitative claim (Table 1) is an evaluation on a 223-image held-out test set that was not used for training, comparing HDR-CNN, U-Net, star-PSF plus U-Net, and the E2E PSF plus U-Net. All reconstruction networks are trained for their respective PSFs, including the star-PSF baseline, so the comparison is not skewed by construction. The E2E PSF is optimized on a training set and then evaluated on separate test images generated through the same forward model; this is a standard empirical evaluation protocol, not a case where a fitted parameter is renamed as a prediction. The physical prototype, despite its qualitative-only experimental reporting, is an external benchmark that is independent of the differentiable simulation used in training, and the paper explicitly acknowledges calibration mismatches, blur, glare, and shift variance rather than suppressing them. Self-citations to prior deep-optics work provide a well-established differentiable-propagation framework and are not used to forbid alternatives or to import an unverified uniqueness theorem. The weakness that real-prototype results lack quantitative metrics is an evidence-strength concern, not a circularity concern. Therefore no circular step is present and the score is 0.

Assumptions & free parameters 7 free parameters · 8 assumptions · 0 invented entities

The central result is an engineered system whose behavior is almost entirely determined by fitted parameters: the DOE profile and CNN weights are optimized against the training set, and the loss, regularization weight, and data-generation saturation level are chosen by hand. The paper contributes a new application and an empirical demonstration rather than a parameter-free derivation.

free parameters (7)

DOE surface profile φ(u,v) = Optimized height map; max height about 6.47 μm (Fig. 6).
Optimized through the differentiable optical model to minimize the reconstruction loss on the HDR training set.
CNN weights θ = Trained U-Net parameters.
Fitted jointly with the DOE on the simulated LDR/HDR pairs.
Smoothness weight ν = 1e9.
Hand-picked weight of the Laplacian penalty on the DOE height profile (Eq. 8).
Loss exponent γ = 0.5.
Chosen to make the loss outlier-robust; the paper reports that plain MSE led to a trivial Dirac-delta PSF.
Training saturation level = 1-2% of pixels saturated.
Hand-set when generating training data; the method's success depends on this regime, as acknowledged in Sec. 7.
DOE-to-lens and lens-to-sensor distances (dφ, ds) = Not given; physical DOE-to-lens distance unknown.
Parameters of the Fourier optics model; the exact physical distance between the DOE and the compound lens is stated as unknown in Sec. 5.
U-Net hyperparameters = 5 scales, 64 feature maps per layer, Adam, lr=1e-4, 100 epochs.
Network capacity and training schedule are hand-selected, inspired by Eilertsen et al.

assumptions (8)

domain assumption Scalar Fourier optics propagation model (Eqs. 3-6).
Assumes coherent paraxial propagation and a thin phase-delay element; standard in computational optics but approximate for a real compound lens.
domain assumption Thin-lens model for the SLR lens (Eq. 5).
The physical compound lens is modeled as a single refractive surface; the authors note a more detailed model would require proprietary data.
domain assumption Shift-invariant PSF (Eq. 1).
The paper assumes the PSF is the same across the field; Sec. 7 notes glare makes the captured PSF somewhat shift-variant.
domain assumption Linear camera response after radiometric calibration, ignoring quantization (Eq. 2).
Assumes raw sensor data and that nonlinear response can be calibrated out; quantization is neglected.
domain assumption Signal-independent read noise only.
The forward model adds read noise but no shot noise, dark current, or other sensor noise sources.
domain assumption Scene at optical infinity with plane-wave input to the DOE.
Limits the model to distant scenes; depth-dependent PSF is out of scope.
domain assumption Training data distribution is representative of inference.
Both training and test sets are generated with 1-2% saturated pixels; the authors state in Sec. 7 that the network may fail for conditions it has not been trained for.
domain assumption The U-Net can learn to invert the optical encoding.
The approach relies on the network capacity and on the joint optimization converging to a useful PSF; the paper's choice of a group-sparse loss was needed to achieve this.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Deep Optics for Single-shot High-dynamic-range Imaging." pith.science (2026). https://pith.science/paper/6FDVQHES

@misc{pith2026190800620,
  author       = {Pith},
  title        = {Pith review of: Deep Optics for Single-shot High-dynamic-range Imaging},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/6FDVQHES}},
  note         = {Machine review of arXiv:1908.00620}
}

read the original abstract

High-dynamic-range (HDR) imaging is crucial for many computer graphics and vision applications. Yet, acquiring HDR images with a single shot remains a challenging problem. Whereas modern deep learning approaches are successful at hallucinating plausible HDR content from a single low-dynamic-range (LDR) image, saturated scene details often cannot be faithfully recovered. Inspired by recent deep optical imaging approaches, we interpret this problem as jointly training an optical encoder and electronic decoder where the encoder is parameterized by the point spread function (PSF) of the lens, the bottleneck is the sensor with a limited dynamic range, and the decoder is a convolutional neural network (CNN). The lens surface is then jointly optimized with the CNN in a training phase; we fabricate this optimized optical element and attach it as a hardware add-on to a conventional camera during inference. In extensive simulations and with a physical prototype, we demonstrate that this end-to-end deep optical imaging approach to single-shot HDR imaging outperforms both purely CNN-based approaches and other PSF engineering approaches.

Figures

Figures reproduced from arXiv: 1908.00620 by the authors.

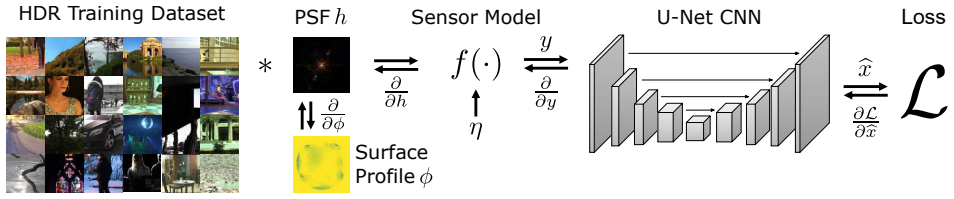

**Figure 2.** Illustration of the proposed end-to-end optimization framework. HDR images of a training set are [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** Our training dataset consisted of HDR im [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

Figures from the paper (5 more)

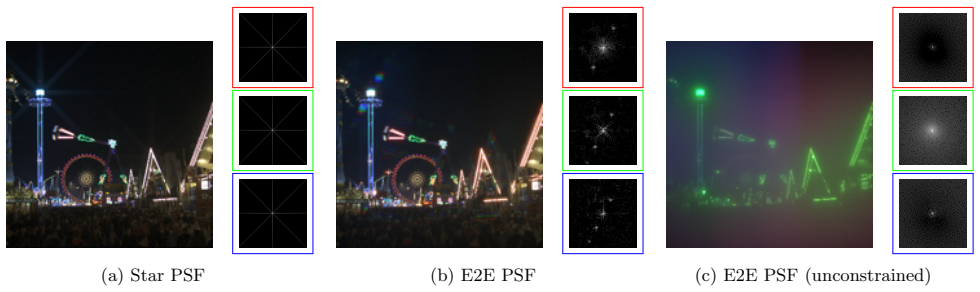

**Figure 4.** Figure 4: Simulated sensor images for an example scene from our evaluation set and point spread functions (PSFs) [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]

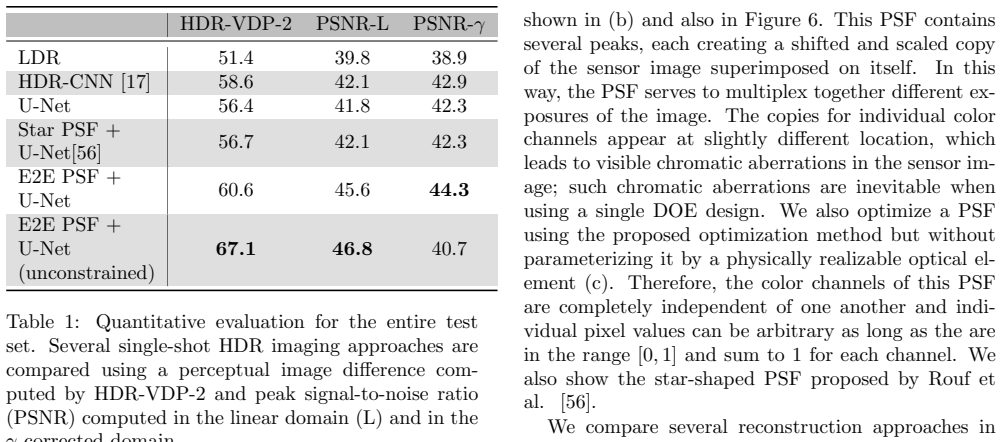

**Figure 5.** Figure 5: These include the conventional LDR image, Eilertsen et al.’s CNN applied to this LDR image (HDR-CNN), the proposed smaller U-Net applied to this LDR image, the U-Net applied to an image captured with the star PSF, and our end-to-end deep optics approach with physical…

**Figure 5.** Figure 5: Comparison of various single-shot HDR imaging approaches. In all examples, the whole images are [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]

**Figure 6.** Figure 6: Optimized height profile of the diffractive op [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]

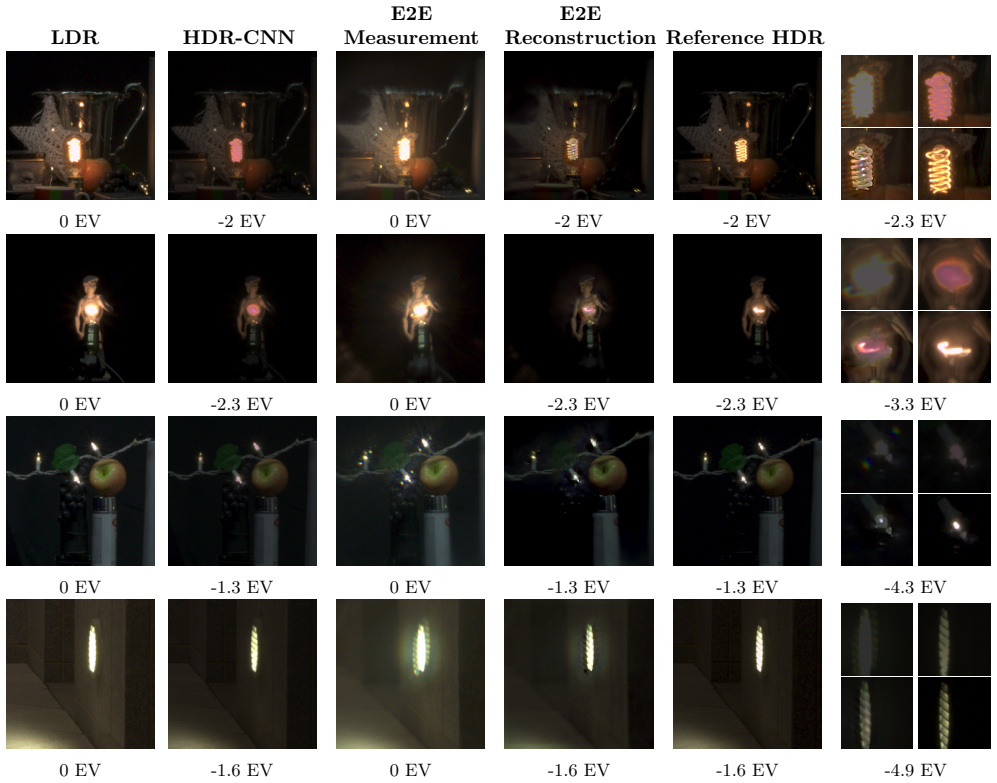

**Figure 7.** Figure 7: Experimental results of three indoor scenes (top three rows) and one outdoor scene at night (bottom [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]
