Sparse Generative Adversarial Network

T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper argues that constraining a GAN's generator to sparse patch coefficients plus an encoder-based reconstructor yields more realistic and diverse images and higher Inception scores than WGAN and Improved WGAN.

desk verdict A plausible new GAN architecture whose guaranteed mode-collapse avoidance is unsupported, but the core idea is worth a serious look. read the letter →

arxiv 1908.08930 v1 pith:BP4QX5W7 submitted 2019-08-20 cs.CV cs.LGeess.IV

Shahin Mahdizadehaghdam , Ashkan Panahi , Hamid Krim This is my paper · ORCID
classification cs.CVcs.LGeess.IV
keywords sparsegenerativeadversarialnetworkmodecollapsedictionarylearningrepresentationunionofsubspacesreconstructorinceptionscoreimagegeneration
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that a GAN generates more realistic and more varied images when its generator is constrained to emit sparse coefficient vectors for small image patches instead of whole images, with full images assembled by multiplying those coefficients against a pretrained dictionary and tiling the resulting patches. It further argues that adding a third player, a reconstructor that learns to encode generated images back into the latent space, makes the generator injective and keeps real images inside its range, thereby preventing mode collapse. The empirical claim is that this design raises Inception scores above WGAN and Improved WGAN on CIFAR-10 and CelebA, with the largest gains coming from the reconstructor. A sympathetic reader would care because the paper offers a structural, not merely loss-based, way to regularize GANs: the output space is restricted to a union of subspaces learned from real image patches, and the reconstruction loop ties every real image to a latent code.

What carries the argument

The load-bearing mechanism is a three-way split of the GAN objective: a discriminator with Wasserstein gradient penalty, a sparse patch generator, and a reconstructor. The sparse patch generator produces a tensor $A(z)$ of patch coefficients, applies soft thresholding $S_\lambda$, multiplies by a pretrained dictionary $\Omega^*$, and tiles overlapping patches into a full image; the dictionary was learned by minimizing a sparse-coding reconstruction loss over patches. The reconstructor is an encoder $E$ trained on generator outputs by $\min_\phi \mathbb{E}_{z\sim p_z}\|E_\phi(G(z)) - z\|^2$, and the resulting $E^*$ feeds $L_R = \mathbb{E}_{x\sim p_x}\|x - G(E^*(x))\|^2$. The dictionary restricts all generated patches to a union of subspaces, while the reconstruction term is the mechanism through which the paper claims injectivity and coverage of real images.

What would settle it

Train the full pipeline, then encode a held-out batch of real images with $E^*$ and compare their average reconstruction loss $\|x - G(E^*(x))\|^2$ to the same loss on generated images. If real images reconstruct far worse than generated ones, the encoder is not a left inverse on the data distribution and the paper's coverage guarantee fails.

Watch

Extended reading notes

Core claim

At the center of the paper is a generator that no longer draws a full image directly. Instead, a deep network maps a noise vector to a tensor of patch coefficients, applies the soft-thresholding operator $S_\lambda$ to enforce sparsity, multiplies each sparse vector by a dictionary $\Omega^*$ learned in advance by sparse coding, and assembles the resulting patches into an image. The paper claims that this union-of-subspaces constraint makes generated images more realistic while preserving diversity. The second pillar is the reconstructor: an encoder network $E$ is trained on generated samples to invert the generator, $E(G(z)) \approx z$, and the real-image reconstruction loss $L_R = \mathbb{E}_{x\sim p_x}\|x - G(E^*(x))\|^2$ is then minimized. The paper asserts that this auto-encoding scheme guarantees the generator is injective and that every real image is reachable from some noise vector, so mode collapse is avoided. Empirically, the paper reports higher Inception scores than WGAN and Improved WGAN on CIFAR-10 and CelebA.

Load-bearing premise

The method assumes that an encoder trained only on generator outputs still acts as a correct left inverse when applied to real images; if it does not, the reconstruction loss measures nothing meaningful and the mode-collapse and coverage claims collapse.

Editorial extensions

If this is right

  • The generated-image manifold is narrowed to sparse combinations of a fixed dictionary, so the adversarial search space is smaller and outputs are less likely to drift far from natural-image structure.
  • Distinct latent codes must map to distinct images under the reconstructor, making mode collapse harder than in a GAN without the encoder.
  • The requirement that every real image be reproducible from some latent code pushes the generator's range toward covering the full training distribution.
  • The reconstructor loss can be added on top of existing stabilized GAN objectives such as the Wasserstein gradient penalty, which is how the experiments are run.
  • Reported Inception scores on CIFAR-10 and CelebA improve over WGAN and Improved WGAN, especially when the reconstructor is included.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The coverage claim rests on the encoder generalizing from generated samples to real images; a natural extension would be reporting real-image reconstruction error separately from generated-image error, which the paper does not do.
  • Because the dictionary is fixed before training, the approach is most promising for datasets with strong local structure; on datasets dominated by global layout, the fixed patch dictionary could become the limiting factor for diversity.
  • The injectivity claim could be tested directly by counting near-duplicate generated images across many latent codes or by checking the rank of the generator's Jacobian, which would make the guarantee quantitative rather than architectural.
  • A natural follow-up is to update the dictionary during GAN training or learn one dictionary per class, which would let the union-of-subspaces model adapt to the data rather than being frozen.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes a GAN architecture in which the generator outputs sparse coefficient vectors for image patches, which are then multiplied by a pre-trained dictionary and assembled into full images. A third network, the reconstructor, is introduced: an encoder trained to invert the generator on latent samples, with the resulting encoder used to reconstruct real images through the generator. The authors claim this scheme guarantees injectivity of the generator and prevents mode collapse, and they report improved Inception scores over WGAN and Improved WGAN on CIFAR-10 and CelebA.

Significance. If the claims hold, the sparse patch-based generator and the reconstructor regularizer would be a useful architectural contribution to GAN stabilization. The paper ships a concrete algorithm and compares against standard baselines, which is a strength. However, the central theoretical claim—that the reconstructor guarantees injectivity and mode-collapse avoidance—is not supported by the presented mathematics, and the empirical evidence consists of small tables without error bars or significance tests, with gains as small as 0.09 Inception points in the residual-block setting. The architecture may still be a valid empirical regularizer, but the paper as written overstates what is proven.

major comments (3)
  1. [Section 4.2 and Algorithm 1, lines 14-19] The encoder E is trained only on generated samples by minimizing Eqn. (6) over z ~ pz, yet at line 17 it is applied to real images x ~ px to compute the reconstructor loss LR = E_x[||x - G(E*(x))||^2]. No argument or experiment is provided showing that E, a 50-layer ResNet trained only on the generator output distribution, generalizes to the real-image manifold. Without such generalization, LR does not measure whether real modes are representable by the generator; minimizing it could simply pull G toward whatever images E happens to encode. This is load-bearing for the paper's claim that the reconstructor 'guarantees that the range space of the generator includes the entire set of real images.'
  2. [Section 4.2, Eqn. (6)] Even if Eqn. (6) were minimized exactly on generated samples, squared-error training of E cannot enforce E(G(z)) = z for all z, and no proof is given that approximate inversion implies injectivity of G. The statement in Section 4.2 that the auto-encoding scheme 'guarantees that the generator network is injective and model collapse is avoided' is therefore unsupported. At most, the loss encourages local invertibility on the training distribution of z, which is a much weaker property.
  3. [Section 5, Tables 1-2] The empirical evaluation reports single Inception scores without error bars, multiple seeds, or significance tests. In Table 2 (residual blocks), the gains of the full SPGAN-with-reconstructor over Improved WGAN are 0.09 points (7.86 to 7.95), and the gain of SPGAN-recon over SPGAN without the reconstructor is only 0.02-0.03 points. These differences are within typical run-to-run variance of Inception scores and do not support the abstract's claim of a 'remarkably higher' inception score. The paper should report standard deviations over multiple runs and ideally a mode-coverage metric to directly test the claimed mode-collapse reduction.
minor comments (5)
  1. [Algorithm 1] Line 15 says only 'Train the encoder network Eqn. (6)' and the text adds 'We skip some details due to lack of space.' This is insufficient for reproducibility; the optimization details (number of inner iterations, learning rate, batch size for the encoder) should be stated.
  2. [Section 5.2] The text contains a typo: 'celebraty face dataset' should be 'celebrity face dataset.'
  3. [Figures 3-5] The generated image figures are qualitative and not accompanied by any quantitative diversity measure; a caption noting the exact training epoch or iteration at which the images were sampled would help.
  4. [Section 4.1] The relationship between the dictionary size (e.g., 27 x 100 for both CIFAR-10 and CelebA) and the patch size and latent dimension is not discussed; the authors should specify the patch size, overlap, and how patches are assembled to form 32x32 and 64x64 images.
  5. [References] Reference [23] has an unusual author format ('L. Na, G. Yang, A. Dongsheng, ...') that appears garbled; it should be corrected.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the empirical comparisons are external, and the reconstructor is an auxiliary training objective rather than a fitted prediction.

full rationale

The paper's derivation chain is not circular. The central empirical claim, higher Inception scores than WGAN and Improved WGAN on CIFAR-10 and CelebA (Tables 1 and 2), is evaluated against external baselines using an independent metric; it is not computed from the dictionary or from the reconstructor loss, so it cannot reduce to an input by construction. The pretrained dictionary (Eqn. 5) is a fixed representation step that constrains the generator's output to a union of subspaces, but the quality claim is measured externally. The reconstructor (Eqn. 6 and Algorithm 1, lines 14-19) is an auxiliary regularizer: the encoder E* is fitted on generated samples, and the loss L_R then updates the generator to reconstruct real images at codes E*(x). This is direct training, not a fitted parameter being relabeled as a prediction. Section 4.2's language that the auto-encoder 'guarantees' injectivity and avoids mode collapse is logically conditional on E* being an exact left inverse and on convergence; because the paper gives no proof of exact inversion, this is an unsupported correctness or convergence claim, not a circular one. The one author self-citation ([26]) is not load-bearing: it appears in the reference list and is not the basis for the generator or reconstructor derivation. No uniqueness theorem, ansatz-loading citation, or renaming of a known result is used to make the central claim.

Assumptions & free parameters 6 free parameters · 4 assumptions · 0 invented entities

No new physical entities are introduced. The 'reconstructor' is a network architecture, not a postulated object; it has no independent falsifiable handle beyond the experiments reported.

free parameters (6)
  • Dictionary atoms Omega = 27x100, learned from training patches
    Learned via Eqn. 5 on the same datasets; all generated patches are restricted to linear combinations of these fitted atoms.
  • Soft-threshold hyperparameter lambda in S_lambda = not reported
    Controls sparsity of generated coefficients (Section 4.1); no value is given in experiments.
  • Gradient penalty coefficient lambda = not reported
    Weight of the Lipschitz penalty in discriminator loss (Algorithm 1, line 8); standard WGAN-GP hyperparameter not stated.
  • Dictionary atom count k and patch size = k=100, 3x3 patches (27-dim)
    Chosen by hand; determines shape of sparse coefficient tensor and patch assembly.
  • Latent dimension = 128 (CIFAR-10), 256 (CelebA)
    Fixed input noise dimension; no ablation is provided.
  • Reconstructor loss weight = 1 (implicit)
    LR is added with no explicit coefficient in Eqn. 4; no ablation.
assumptions (4)
  • standard math WGAN-GP gradient penalty enforces a 1-Lipschitz discriminator and stabilizes training.
    Used in Eqn. 4 and Algorithm 1, line 8, following Gulrajani et al. [11]; accepted from prior literature.
  • domain assumption Natural image patches are well represented by a learned overcomplete dictionary under a Union of Subspaces model, and overlapping assembled patches yield plausible full images.
    Central to Section 4.1; if patch tiling with averaging produces artifacts, the approach fails. Not proven in the paper.
  • ad hoc to paper An encoder network trained to invert the generator on generated samples also inverts it on real images.
    Algorithm 1 lines 14-19; the encoder is trained on z ~ pz only (Eqn. 6) but used on real x. This is the paper's weakest unproven premise.
  • domain assumption Inception score is a valid proxy for image quality and diversity.
    All quantitative comparisons use Inception score; the paper does not measure mode collapse directly.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Sparse Generative Adversarial Network." pith.science (2026). https://pith.science/paper/BP4QX5W7

@misc{pith2026190808930,
  author       = {Pith},
  title        = {Pith review of: Sparse Generative Adversarial Network},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/BP4QX5W7}},
  note         = {Machine review of arXiv:1908.08930}
}
read the original abstract

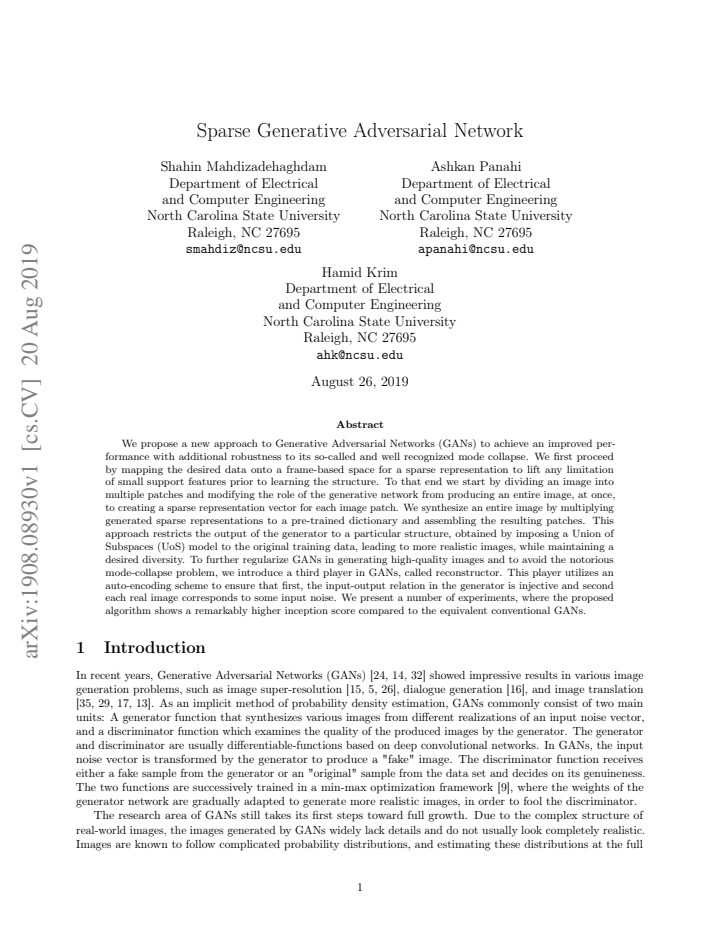

We propose a new approach to Generative Adversarial Networks (GANs) to achieve an improved performance with additional robustness to its so-called and well recognized mode collapse. We first proceed by mapping the desired data onto a frame-based space for a sparse representation to lift any limitation of small support features prior to learning the structure. To that end we start by dividing an image into multiple patches and modifying the role of the generative network from producing an entire image, at once, to creating a sparse representation vector for each image patch. We synthesize an entire image by multiplying generated sparse representations to a pre-trained dictionary and assembling the resulting patches. This approach restricts the output of the generator to a particular structure, obtained by imposing a Union of Subspaces (UoS) model to the original training data, leading to more realistic images, while maintaining a desired diversity. To further regularize GANs in generating high-quality images and to avoid the notorious mode-collapse problem, we introduce a third player in GANs, called reconstructor. This player utilizes an auto-encoding scheme to ensure that first, the input-output relation in the generator is injective and second each real image corresponds to some input noise. We present a number of experiments, where the proposed algorithm shows a remarkably higher inception score compared to the equivalent conventional GANs.

Figures

Figures reproduced from arXiv: 1908.08930 by the authors.

Figure 1
Figure 1. Sequential steps of a sparse generator net [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 3

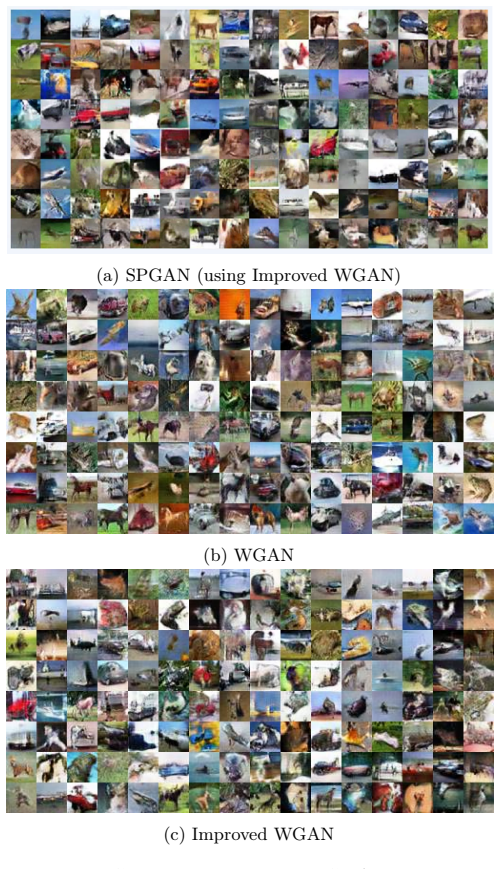

Figure 3. Generated images using CIFAR10 dataset dimension in each layer). The number of channels has changed from 2048, to1024 at the third layer, 512 at the fourth layer and to 100 at the fifth layer. The size of the pre-trained dictionary Ω in this experiment is 27 × 100 [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

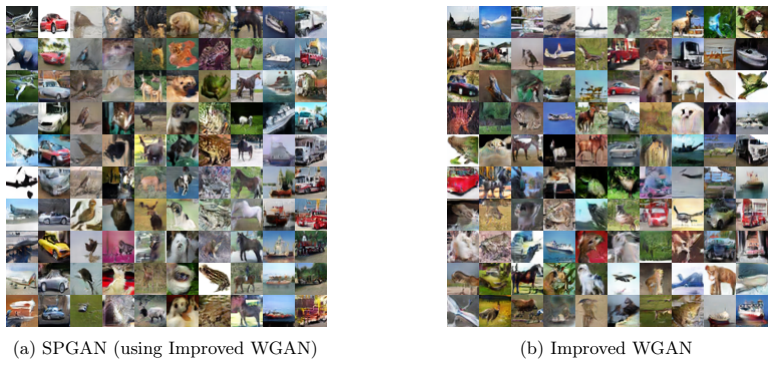

Figure 4. Generated images using CIFAR10 dataset using Resnet blocks [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figures from the paper (1 more)
Figure 5

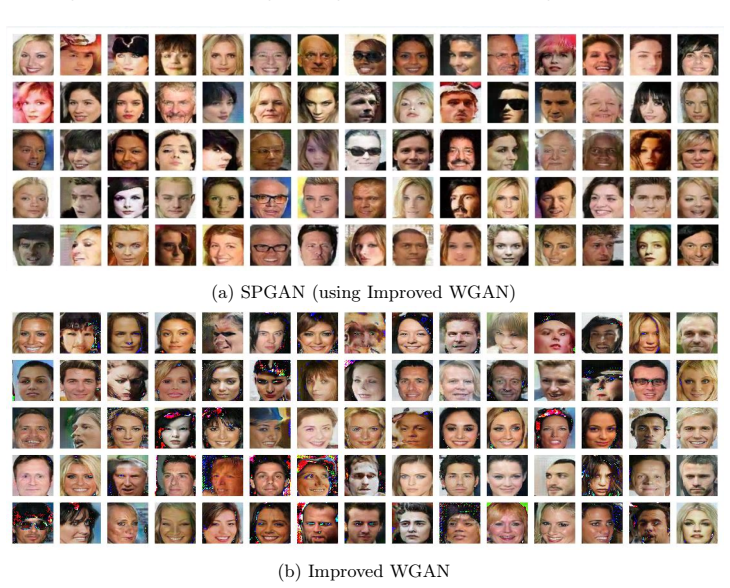

Figure 5. Figure 5: Generated images using celebraty face dataset [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
