Symmetry group factorization reveals the structure-function relation in the neural connectome of Caenorhabditis elegans
T0 review · 4 major / 6 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read The paper claims that the locomotion circuits of the C. elegans connectome have symmetry groups built from near-symmetries, that these groups factorize into normal subgroups whose neuron sectors match known functional classes, and that…
desk verdict Real empirical sector-function match, but the group-theoretic machinery needs formal clarification before the central claim holds. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is the pseudosymmetry group of a locomotion circuit: the set of permutations $P_\varepsilon$ that preserve all but a fraction $\varepsilon$ of the weighted links, with $\varepsilon$ below the 25% animal-to-animal variability reported for the connectome. The identity carrying the argument is the direct-product factorization $G = H_1\times H_2\times\cdots\times H_n$ into normal subgroups that each act only on its own disjoint set of neurons, yielding a partition of the neurons into sectors. The finer mechanism is the system of imprimitivity of each subgroup, a partition of a sector into blocks that the subgroup either fixes as a whole or moves to a disjoint block; in these circuits the blocks turn out to be circulant matrices. Because circulant matrices are diagonalized by the discrete Fourier transform in $O(N\log N)$ operations, the paper identifies the blocks with fast linear filters and embeds them in the recurrent dynamics $\tau\,dv/dt = -v + Mv + Wu$.
What would settle it
Take the permutations listed for any subgroup, form all pairwise products, and measure the fraction of links each product breaks; if any product exceeds the 25% bound, the direct-product factorization of Eq. (4) is not a factorization of the raw pseudosymmetry set, and the sector partition would need to be re-derived for the generated groups.
Extended reading notes
Core claim
The central discovery is a factorization statement for each locomotion circuit. For the forward gap-junction circuit, the pseudosymmetry group is $F_{\mathrm{gap}} = [C_2\times C_2]\times [S_5\times D_1\times C_2\times C_2]$; the first factor moves only the four command interneurons and the rest moves only motor neurons. The same pattern holds for the backward gap-junction circuit and for the two chemical-synapse circuits, with a touch-neuron factor appearing in the chemical circuits. Each factor is a normal subgroup that moves only its own set of neurons, and these sets partition the neurons into disjoint sectors that match the empirically compiled functional categories. Looking inside a factor, the paper finds systems of imprimitivity: for example, the subgroup $D_1$ in the forward motor sector maps two four-neuron blocks onto each other, and these blocks have adjacency matrices equal to the circulant matrix $F = \mathrm{circ}(0,1,0,1)$, while other blocks are $H=\mathrm{circ}(0,1)$ and $L=\mathrm{circ}(1,1)$, nested into block-circulant matrices. The paper then models the circuit as a feedforward-recurrent linear filter network with equation $\tau\,dv/dt = -v + Mv + Wu$, in which the circulant blocks play the role of high-pass, low-pass, and compression filters; the eigenvalues of $F$, namely $2$, $-2$, $0$, and $0$, determine which modes propagate in forward locomotion.
Load-bearing premise
The argument depends on treating the near-symmetries as a genuine symmetry group that can be split into independent building blocks, even though the paper admits that the raw set of near-symmetries does not close under composition because combining two of them can break more than the allowed fraction of links.
Editorial extensions
If this is right
- Neurons assigned to the same normal-subgroup sector should be co-activated during the corresponding locomotion behavior, since they form a single orbit under the circuit symmetry.
- The circulant motor blocks should behave as linear filters: the forward gap-junction block $F$ should pass the modes with eigenvalues $\pm 2$ and reject the two zero modes, shaping the oscillation pattern of forward undulation.
- The symmetry-factorization machinery gives a functional classification that standard community detection misses: modularity tends to merge hub interneurons with their connected motor neurons, while the symmetry sectors separate them.
- The pseudosymmetry framework converts the observed 25% wiring variability into a tolerance parameter: as long as $\varepsilon$ stays below the experimental bound, the functional sector structure is robust to animal-to-animal differences.
Reading between the lines
- The paper leaves open whether the raw set of pseudosymmetries below the $\varepsilon<25\%$ threshold is itself a closed object; a rigorous reading of Eq. (4) requires replacing that raw set with the group it generates and checking the $\varepsilon$ value of every generated product.
- A natural extension not developed in the paper is to run the same search on the full 302-neuron connectome; if the factorization holds globally, it would yield a complete function-to-sector map rather than one limited to locomotion.
- A direct experimental test suggested by the machinery: calcium or voltage imaging of the four neurons in motor blocks $B_1$ and $B_2$ during forward locomotion should show activity dominated by the eigenvectors of $F$ listed in Eq. (15), namely in-phase and anti-phase modes.
- The theory predicts a forward-backward asymmetry: because the $F$ filter appears only in the forward gap-junction motor blocks, forward locomotion should show a frequency-compression signature that backward locomotion lacks.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript analyzes the gap-junction and chemical-synapse circuits underlying forward and backward locomotion in C. elegans. It introduces pseudosymmetries as permutations whose commutator with the weighted adjacency matrix has norm below a threshold epsilon, with the experimental 25% animal-to-animal variability as the relevant bound. The authors claim that the pseudosymmetry sets of each circuit form symmetry groups that factorize uniquely as direct products of normal subgroups, that the neuron sectors supporting these factors match the WormAtlas functional categories (command interneurons, motor neurons, touch neurons), and that finer structures inside the subgroups form systems of imprimitivity whose adjacency blocks are circulant matrices interpreted as high-pass, low-pass, and sampling filters. The paper also reports p-values against degree-preserving random null models and compares the symmetry sectors with Louvain modularity and eigenvector centrality, arguing that the symmetry-based partition is biologically more faithful.
Significance. If the group-theoretic scaffolding were sound, the paper would offer a genuinely novel structural principle: functional sectors of a connectome emerge from factorization of an approximate symmetry group without fitting any parameter to functional labels. The use of WormAtlas categories as external ground truth, rather than as target variables for parameter fitting, is a methodological strength, and the reported sector-to-function correspondence across four circuits is empirically striking. A systematic appearance of circulant and block-circulant blocks in a biological network would also connect connectomics to a well-developed signal-processing formalism. However, the manuscript does not supply machine-checked proofs or fully reproducible code for the main computation, and the formal basis of the central factorization claim is not currently well defined.
major comments (4)
- [§II.B–II.C, Eq. (4)] The paper explicitly states in §II.B that the set of pseudosymmetries does not form a group because composition can violate the epsilon threshold, yet §II.C and Eq. (4) treat Fgap as a group and factorize it as a direct product of normal subgroups. It must be specified whether the object being factorized is (a) the raw set of permutations with epsilon below 25%, in which case the terms 'normal subgroup,' 'direct product,' and 'block of imprimitivity' are not defined, or (b) the subgroup generated by the listed pseudosymmetries, in which case the authors must prove that every element of the generated subgroup satisfies the same epsilon bound. Table I lists epsilon values only for individual listed permutations, not for their products; without closure, Eqs. (28), (32), (36), and (41) lose their formal foundation.

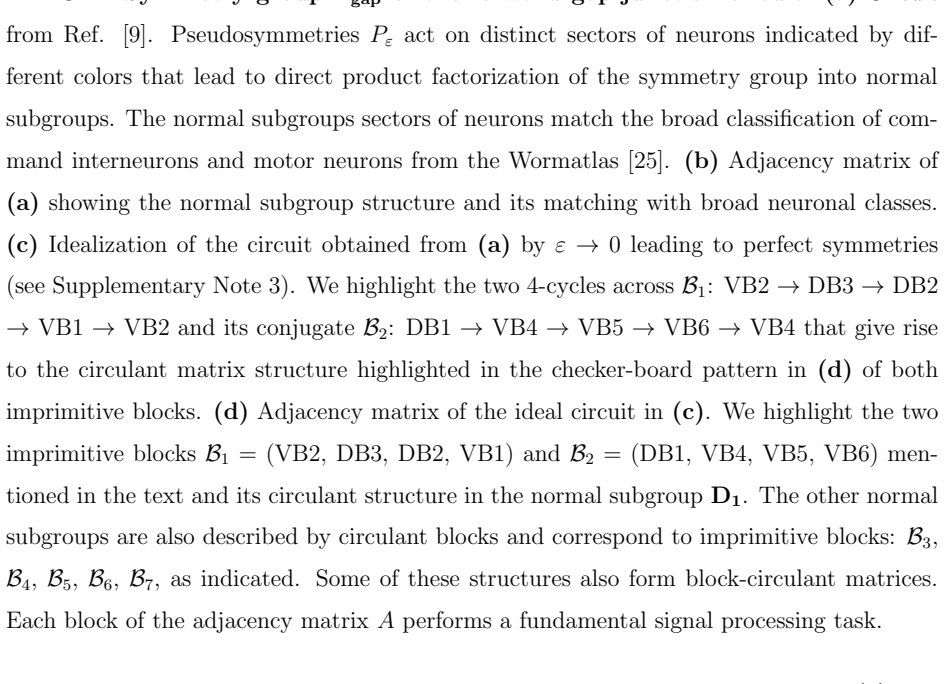

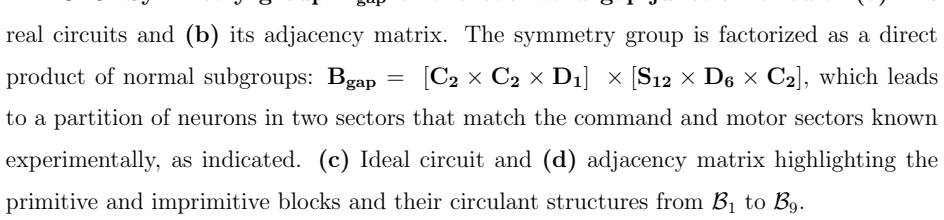

- [Supplementary Note 3; §II.F, Figs. 2c–d, 3c–d, 4b–d] The ideal symmetric circuit used to define bloc imprimitivity and the circulant matrices is obtained by an under-specified 'epsilon to 0' symmetrization of the real circuit. Supplementary Note 3 only states that the ideal circuits are 'examples' of the closest ideal structure respecting the pseudosymmetries; no algorithm, uniqueness guarantee, or error analysis is provided. Because the ideal circuit is constructed from the real circuit, the subsequent identification of circulant blocks in §II.F is not an independent symmetry-based prediction unless it is shown that the circulant structure is forced by the group action alone and is invariant to the choice of symmetrization procedure.
- [Supplementary Note 3; Table I] The circuits studied in the main text, such as the forward gap-junction circuit with 22 neurons and the backward gap-junction circuit with 29 neurons, exceed the size for which the text says an exhaustive search is computationally possible. Supplementary Note 3 instead states that for circuits with more than 20 neurons the pseudosymmetries should be found by solving a constrained quadratic assignment problem 'to be elaborated and described in detail in a follow up paper.' The actual method used to produce the pseudosymmetry groups and Table I is therefore not available to the reader, which prevents reproducibility of the central empirical claim.
- [§II.F, Eqs. (13)–(15)] The functional interpretation of the circulant blocks as 'neural processing filters' is presented as a result, but Eq. (13) is a generic linear rate model with no demonstrated connection to C. elegans neural dynamics, and the eigenvalue analysis of F in Eq. (15) only shows that this particular matrix is singular with two zero modes. No evidence is provided that the connectome actually implements Fourier-domain filtering, edge detection, or signal compression. The filter language should be reframed as an analogy or a hypothesis, not as an established functional mechanism, especially because the abstract and introduction present the filter functionality as part of the central structure-function claim.
minor comments (6)
- [Eq. (3) and Supplementary Eq. (23)] The norm of the commutator is defined in the main text as a sum over all i,j, while Supplementary Note 3 restricts the sum to i >= j for undirected gap-junction circuits; the two definitions differ by a factor of two for symmetric adjacency matrices and should be reconciled.
- [§II.C and Fig. 1e] The paper defines a normal subgroup H by the condition [g,H] = 0, i.e., H commutes with every element of G. This is stronger than the standard definition gHg^{-1} = H. The factors in a direct product with disjoint supports do commute, so the intended examples are consistent, but the terminology should match the standard definition to avoid confusion.
- [Supplementary Note 3, 'Algorithm to find pseudosymmetries'] The statement that an exhaustive search over all permutations is feasible for small networks but impossible for N > 20 is inconsistent with the main text, which presents the N = 22 and N = 29 circuits without explaining how the search was performed; a concrete description of the algorithm used for these circuits is needed.
- [Table I] The p-value column is introduced in §II.D but the procedure for computing p-values from the degree-preserving null model is not described in the main text; a brief description or a pointer to a supplementary method should be added.
- [Caption of Figure 2] The caption refers to 'the ideal circuit obtained from (a) by epsilon to 0' but does not explain how the ideal circuit is constructed; a reference to a specific supplementary note and a warning that the ideal circuit is an auxiliary construct rather than the real biological circuit would help readers avoid overinterpreting the visualized perfect symmetries.
- [Data availability] The data availability statement lists URLs for the connectome and code repositories, but the specific code version and the exact input files used to generate Table I are not identified; providing a versioned archive would improve reproducibility.
Circularity Check
No significant circularity: sector-function match uses external WormAtlas labels, and the finer imprimitivity/circulant claims are read from the group action of an idealized circuit; the admitted non-closure of pseudosymmetries is a formal gap, not a circular reduction.
full rationale
The paper's derivation chain is not circular. Pseudosymmetries are computed from the real adjacency matrices under the explicit tolerance of Eq. (2), with epsilon capped at the experimental 25% variability. The sector partition is then obtained from the supports of the found permutations, and the correspondence to command, motor, and touch categories is checked against WormAtlas labels, which are external ground truth and are not used as fitting targets in the factorization. The imprimitivity blocks are obtained by applying standard permutation-group definitions to the symmetry group of the idealized circuit, and the circulant-matrix structures (Eqs. 5-12) are properties of the resulting block matrices rather than parameters fitted to the functional labels. The only self-citation, Ref. [36], is a forward reference about extensions to other networks and is not load-bearing for the present central claims. There is, however, a genuine formal weakness that should be classified as a correctness risk rather than circularity: the authors explicitly state that 'the set of pseudosymmetries does not form a group by itself' because composition can violate the epsilon bound, yet they subsequently refer to 'the symmetry group Fgap' and factorize it in Eq. (4) without specifying whether Fgap is the raw epsilon-set or the group generated by the listed pseudosymmetries, and without verifying that all generated elements satisfy the epsilon bound. This leaves the group-theoretic foundation of the factorization under-specified, but it does not make the sector-to-function comparison or the finer structural analysis equivalent to its inputs by construction. The empirical comparison against WormAtlas is independent, and the block/circulant observations are not fitted to the biological categories being validated.
Assumptions & free parameters
free parameters (1)
- uncertainty constant threshold ε =
0.25 (25% experimental variability cutoff); per-subgroup ε values in Table I range from 0% to 24.5%
assumptions (4)
- domain assumption The Varshney et al. connectome data for gap junctions and chemical synapses is complete and accurate for the studied locomotion circuits.
- domain assumption WormAtlas functional categories (motor, sensory, interneuron, polymodal) are the ground truth for neuron function.
- domain assumption The selected forward and backward locomotion circuits (specific interneuron and motor neuron sets) are the relevant substrate for locomotion.
- ad hoc to paper The pseudosymmetries form or generate a group that can be factorized into normal subgroups.
invented entities (1)
-
circulant filter blocks (H, L, F) as neural processing units
Cite this review
Pith. "Pith review of Symmetry group factorization reveals the structure-function relation in the neural connectome of Caenorhabditis elegans." pith.science (2026). https://pith.science/paper/7QB2GTS4
@misc{pith2026190810923,
author = {Pith},
title = {Pith review of: Symmetry group factorization reveals the structure-function relation in the neural connectome of Caenorhabditis elegans},
year = {2026},
howpublished = {\url{https://pith.science/paper/7QB2GTS4}},
note = {Machine review of arXiv:1908.10923}
}
read the original abstract
