arxiv: 2405.15491 · v4 · submitted 2024-05-24 · 💻 cs.CV

GSDeformer: Direct, Real-time and Extensible Cage-based Deformation for 3D Gaussian Splatting

Jiajun Huang , Shuolin Xu , Hongchuan Yu , Tong-Yee Lee This is my paper

Pith reviewed 2026-05-24 00:40 UTC · model grok-4.3

classification 💻 cs.CV
keywords cage-based deformation3D Gaussian Splattingproxy point cloudreal-time deformationdeformation without retraining3D scene editingGaussian Splatting variants
0
0 comments X

The pith

Cage-based deformations apply directly to any 3D Gaussian Splatting model in real time via a proxy point cloud without retraining.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

GSDeformer introduces a bridge between cage-based deformation tools and 3D Gaussian Splatting by extracting a proxy point cloud from the Gaussians. Cage edits are performed on this point cloud and then mapped back as transformations on the original Gaussians, with an added splitting step to approximate bending. The method leaves the core 3DGS architecture unchanged, so it works on any pre-trained model or variant and requires no further optimization or retraining after the initial scene is captured. A reader would care because it removes the usual need to retrain expensive representations every time a scene needs geometric editing.

Core claim

The central claim is that cage deformations defined on a 3D Gaussian Splatting scene can be realized by first generating a proxy point cloud from the Gaussians, applying the cage transformation to the points, and transferring the resulting changes back to the Gaussian parameters, with splitting used to handle any bending; cage construction itself is automated by a render-and-reconstruct procedure, and the entire pipeline operates without modifying the underlying 3DGS formulation.

What carries the argument

proxy point-cloud representation generated from the 3D Gaussians that carries the cage deformation and maps it back, together with a splitting process to approximate bending

If this is right

  • Delivers superior deformation results compared to existing methods.
  • Remains robust under extreme deformations.
  • Requires no retraining for editing.
  • Runs in real-time.
  • Can be extended to other 3DGS variants.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The real-time property could support interactive editing sessions in animation or design software.
  • Extensibility to variants suggests the same proxy approach may transfer to other point-based scene representations.
  • Automated cage generation could shorten setup time when applying the method to new captured scenes.
  • No-retraining requirement may reduce total compute cost for repeated edits on the same base model.

Load-bearing premise

The proxy point cloud extracted from the Gaussians is faithful enough that deformations applied to it translate back to the Gaussians without unacceptable quality loss.

What would settle it

Apply an extreme cage deformation to a captured scene and observe whether visible artifacts, blurring, or geometric errors remain after the splitting step, or measure whether frame rates stay above real-time thresholds on standard hardware.

Figures

Figures reproduced from arXiv: 2405.15491 by Hongchuan Yu, Jiajun Huang, Shuolin Xu, Tong-Yee Lee.

Figure 1
Figure 1. Figure 1: Overview of our cage-building algorithm. Given an object, our method renders a depth image from it, performs T-SDF integration, surface extraction, [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: For a detailed algorithmic description, please refer [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overview of our deformation algorithm. The deformation process is shown in 2D for clarity. For deformation, 3DGS Gaussians are converted to [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

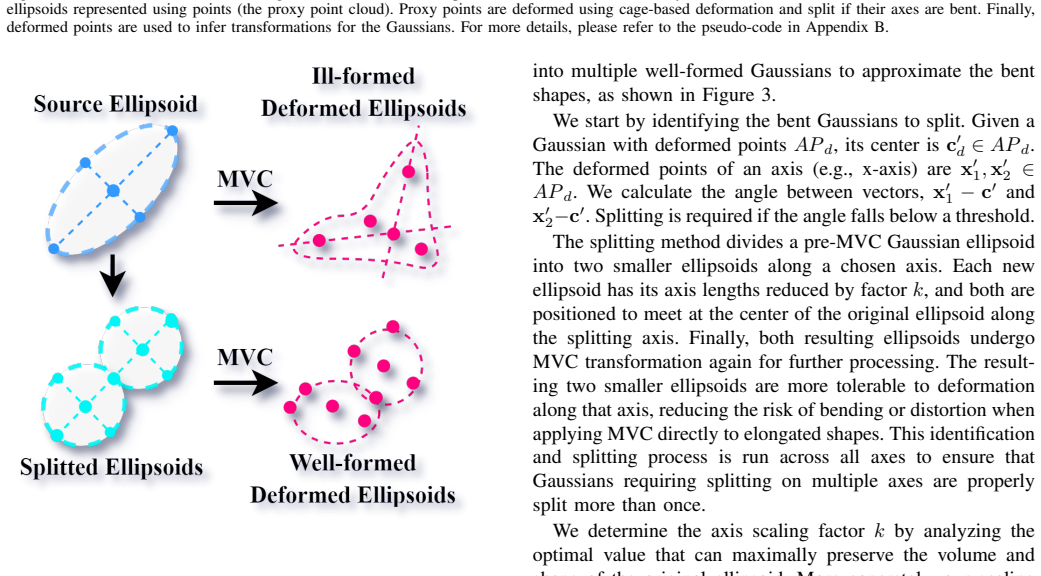

Figure 3. Figure 3: The splitting process. Our method fixes the ill-formed bent Gaussian [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison of cage building algorithm. We present the raw voxel grids and the produced final cages for comparison. [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Comparison of methods on selected objects. All methods shown are driven by the exact same cage for a fair comparison. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

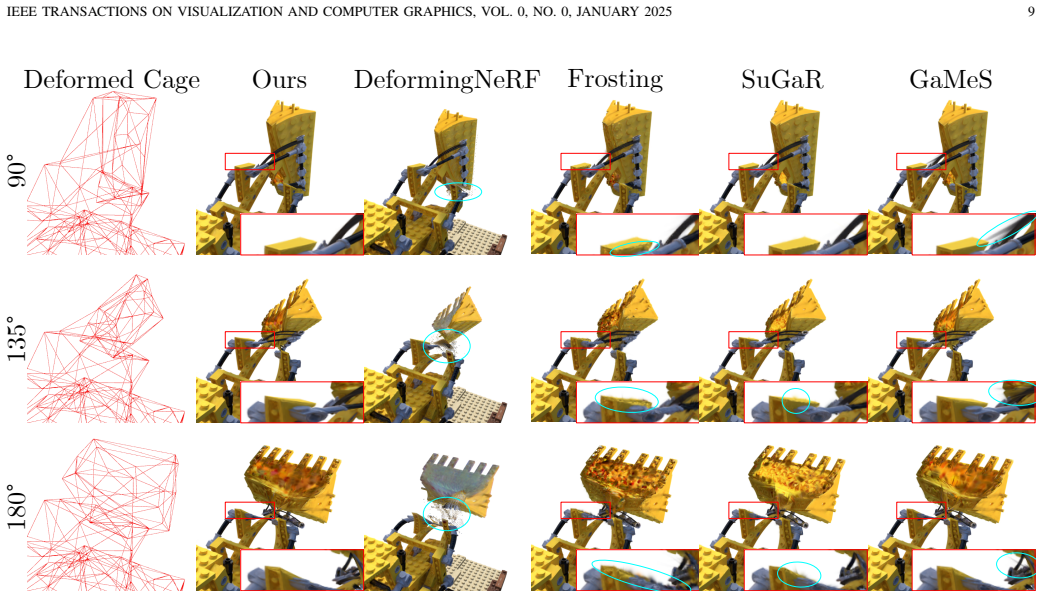

Figure 6. Figure 6: Comparison of methods from normal to extreme deformations. All methods shown are driven by the exact same cage (shown on left) for a fair [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Comparison with methods that can be adapted for deformation. We show the method’s control structures and their output. [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Animating and composing scenes using our method. Note that our cage-based deformation algorithm can be used for animation and composition by [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Integrating our method with GaussianEditor [10]. Note that our [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Integrating our method with GSTex [45]. Note that GSTex enables [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 14
Figure 14. Figure 14: Ablation study results for our two-stage mesh simplification process. [PITH_FULL_IMAGE:figures/full_fig_p013_14.png] view at source ↗
Figure 12
Figure 12. Figure 12: Integrating our method with FLoD [37]. Our method enlarged the [PITH_FULL_IMAGE:figures/full_fig_p013_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Ablation study results for cage building algorithm. The voxel grids [PITH_FULL_IMAGE:figures/full_fig_p013_13.png] view at source ↗
Figure 15
Figure 15. Figure 15: (a) Ablation study results for deformation algorithm. Note the [PITH_FULL_IMAGE:figures/full_fig_p014_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Ablation study results for the split factor [PITH_FULL_IMAGE:figures/full_fig_p015_16.png] view at source ↗
read the original abstract

We present GSDeformer, a method that enables cage-based deformation on 3D Gaussian Splatting (3DGS). Our approach bridges cage-based deformation and 3DGS by using a proxy point-cloud representation. This point cloud is generated from 3D Gaussians, and deformations applied to the point cloud are translated into transformations on the 3D Gaussians. To handle potential bending caused by deformation, we incorporate a splitting process to approximate it. Our method does not modify or extend the core architecture of 3D Gaussian Splatting, making it compatible with any trained vanilla 3DGS or its variants. Additionally, we automate cage construction for 3DGS and its variants using a render-and-reconstruct approach. Experiments demonstrate that GSDeformer delivers superior deformation results compared to existing methods, is robust under extreme deformations, requires no retraining for editing, runs in real-time, and can be extended to other 3DGS variants. Project Page: https://jhuangbu.github.io/gsdeformer/

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper presents GSDeformer, a cage-based deformation technique for 3D Gaussian Splatting that generates a proxy point cloud from the trained Gaussians, applies cage deformations to the proxy, maps the results back to the Gaussians, and uses a splitting heuristic to approximate bending effects. It further automates cage construction via render-and-reconstruct and asserts compatibility with any vanilla 3DGS or variant without modifying the underlying representation. The central claims are that the approach yields superior deformation quality, remains robust under extreme edits, requires no retraining, runs in real time, and extends to other 3DGS methods.

Significance. If the performance and fidelity claims are substantiated, the work would offer a practical, training-free editing pipeline for 3DGS scenes that preserves the original splatting pipeline, which could be useful for interactive graphics applications. The automated cage construction and extensibility are potentially valuable additions, but the absence of supporting quantitative evidence limits the assessed impact.

major comments (2)
  1. [Abstract and experimental claims] The manuscript provides no quantitative tables, error metrics (e.g., PSNR, SSIM, or deformation-specific measures), or implementation details to support the abstract's assertions of superior results, real-time performance, and robustness. This absence prevents verification of the central performance claims.
  2. [Method description (proxy mapping and splitting)] The proxy-point-cloud mapping and splitting heuristic are presented as sufficient to lift cage deformations to the full set of Gaussian attributes (position, covariance, opacity, SH coefficients), yet no analysis or bound is given on the resulting approximation error for anisotropic distributions. The skeptic concern that non-rigid transforms on the proxy may not preserve radiance-field consistency therefore remains unaddressed.
minor comments (1)
  1. [Abstract] The abstract states that experiments demonstrate superiority and real-time behavior, but the provided text contains no corresponding figures, tables, or timing breakdowns.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We agree that quantitative metrics and further analysis of the approximation would strengthen the manuscript and plan to incorporate them. Below we respond point by point.

read point-by-point responses

  1. Referee: [Abstract and experimental claims] The manuscript provides no quantitative tables, error metrics (e.g., PSNR, SSIM, or deformation-specific measures), or implementation details to support the abstract's assertions of superior results, real-time performance, and robustness. This absence prevents verification of the central performance claims.

    Authors: We acknowledge that the current version relies on qualitative visual comparisons and timing statements in the text rather than tabulated metrics. While the visual results and real-time claims are supported by the experiments shown, we agree that explicit quantitative evaluation (PSNR/SSIM on rendered views before/after deformation, timing benchmarks, and implementation details) would allow direct verification. In the revision we will add a quantitative evaluation section with the requested metrics and tables. revision: yes

  2. Referee: [Method description (proxy mapping and splitting)] The proxy-point-cloud mapping and splitting heuristic are presented as sufficient to lift cage deformations to the full set of Gaussian attributes (position, covariance, opacity, SH coefficients), yet no analysis or bound is given on the resulting approximation error for anisotropic distributions. The skeptic concern that non-rigid transforms on the proxy may not preserve radiance-field consistency therefore remains unaddressed.

    Authors: The proxy mapping transfers the cage-induced affine transform from the nearest proxy point to each Gaussian while the splitting heuristic subdivides Gaussians that would otherwise undergo non-rigid bending. We recognize that no explicit error bound or analysis for highly anisotropic Gaussians is provided. In revision we will add a dedicated paragraph discussing the approximation, its empirical behavior on anisotropic cases, and the conditions under which radiance consistency is approximately preserved. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents an explicit algorithmic construction (proxy point-cloud extraction from 3D Gaussians, cage deformation on the proxy, back-mapping with a splitting heuristic for bending, and render-and-reconstruct cage automation) whose steps are defined independently of the evaluation data. No equations or claims reduce a reported performance metric to a quantity fitted from the same scenes used for testing; the method is presented as a self-contained procedure compatible with any pre-trained 3DGS model. No self-citation load-bearing steps, uniqueness theorems, or ansatz smuggling appear in the derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that a point-cloud proxy can faithfully carry cage deformations to the Gaussian representation; no free parameters or new entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Deformations applied to the point cloud generated from 3D Gaussians can be translated into transformations on the 3D Gaussians.
    This premise is required for the proxy mechanism to work and is stated in the abstract description of the translation step.
