Oreo: Protecting ASLR Against Microarchitectural Attacks (Extended Version)

T0 review · 4 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Oreo strips the randomized bits from virtual addresses before caches, TLBs, and branch predictors see them, closing two of the three leakage paths used to defeat ASLR.

desk verdict Masked-address core is a real contribution, but the user-space variant as specified faults on real x86 before conversion; ship it to reviewers with a mandatory fix. read the letter →

arxiv 2412.07135 v1 pith:JGWMBCEM submitted 2024-12-10 cs.CR cs.AR

Shixin Song , Joseph Zhang , Mengjia Yan This is my paper · ORCID
classification cs.CRcs.AR
keywords ASLRmicroarchitecturalsidechannelsKASLRaddresstranslationnon-interferencespeculativeexecutionmaskedspacehardware-softwareco-design
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Oreo claims that the two most direct ways microarchitectural side channels defeat ASLR—probing which virtual addresses are mapped, and observing secret-dependent pointers as they are used by the victim—can be shut off at the source by a new memory interface. The paper introduces a masked address layer between virtual and physical memory: before an address is used to index caches, TLBs, branch predictors, or page tables, the randomized bits that carry the ASLR secret are redacted to form a masked address. Addresses that differ only in those bits therefore produce identical microarchitectural effects, and the mapped/unmapped distinction is deferred to an architectural check at instruction commit time. If correct, this turns the arms race of patching individual side channels into a single structural fix, while leaving user programs unchanged and adding negligible measured overhead. The paper backs the claim with a non-interference proof and with simulator-based security and performance evaluations.

What carries the argument

The load-bearing mechanism is the masked address space, defined by two inverse-looking maps. $Virt2Mask(v) = ((v - start) \bmod len_{subregion}) + start$ removes the microarchitecture oblivious bits, and $Mask2Valid(w) = offset_{oreo} + w$ reconstructs the valid virtual address using the per-region secret offset stored in page-table entries. All address-indexed microarchitecture structures—branch predictor, TLB, cache hierarchy, page-table walk, and LSQ-based optimizations—consume masked addresses, so their update inputs are independent of the secret bits. The mapped/unmapped security check is split in two: an MMU permission check on masked addresses during speculation, and a virtual-address validity check at instruction commit time. The proof in Appendix C shows that these two maps make functionally equivalent executions mask-equivalent and therefore observation-equivalent.

What would settle it

Instrument a simulator-based Oreo core with a paging-structure cache or a store-to-load forwarding predictor, then run functionally equivalent executions under two different ASLR offsets while measuring translation latency or forwarding behavior for mapped versus unmapped addresses; a reproducible difference in either structure would contradict the theorem's assumption that Obs captures every leaking structure.

Watch

Extended reading notes

Core claim

The paper's central discovery is that ASLR's secret offset does not need to be kept secret from the microarchitecture; it needs to be removed from the microarchitecture's address inputs entirely. Oreo's memory interface maps each randomization subregion of virtual memory onto the same subregion of a masked address space via $Virt2Mask(v) = ((v - start) \bmod len_{subregion}) + start$, so any two virtual addresses that differ only in the microarchitecture oblivious bits collapse to one masked address. Page tables, TLBs, caches, branch predictors, and load/store-queue logic are all re-pointed at masked addresses, and the correct ASLR offset is stored in page-table entries and retrieved only at commit time to validate the architectural PC and load/store addresses. The formal result (Theorem 1 in Appendix C) states that for any two Oreo layouts that are functionally equivalent, the adversary's observation trace $Obs_\mu(S,t)$—branch predictor, load/store queue, cache, and TLB states—is identical. This is what it means to block leakage paths 1 and 2: probing mapped versus unmapped addresses is indistinguishable, and a victim's secret-embedded pointers leave no address-indexed footprint.

Load-bearing premise

The proof assumes the adversary's observation captures exactly the branch predictor, load/store queue, cache, and TLB, and that the commit-stage virtual-address check is invisible; if any other microarchitectural structure is updated with secret-dependent address bits, or if power-induced timing is in scope, the claim that Oreo blocks leakage paths 1 and 2 is not established by the theorem.

Editorial extensions

If this is right

  • Attacks in leakage path 1, such as prefetch-based and speculative code-region probing, stop working because valid and invalid addresses differing only in protected bits hit the same masked-address TLB and cache entries.
  • Attacks in leakage path 2, including AnC, Jump Over ASLR, and EntryBleed, lose their address-indexed footprint because branch predictors, TLBs, and page-table walks are keyed by masked addresses instead of secret-bearing virtual addresses.
  • Because the fix is at the memory interface rather than per side channel, any future address-indexed side channel that falls inside the modeled observation set is blocked by the same mechanism without a new mitigation.
  • Oreo is designed to compose with existing Spectre mitigations, which continue to cover leakage path 3; the paper reports that the two classes of defense are complementary.
  • The prototype reports negligible performance cost: an average 0.11% CPI overhead on SPEC2017 IntRate and a −0.28% average latency change on LEBench, with at least 99.46% of SPEC memory accesses passing through the mask.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: a testable next step is to add paging-structure caches, store-to-load forwarding predictors, or memory-dependence predictors to the observation model and re-run the paper's speculative probing experiment; a measurable timing difference in any of those structures would fall outside the proved guarantee.
  • Editorial inference: the commit-time validity check on the architectural PC creates a possible new timing surface if exception priority, replay behavior, or speculative squashing interacts with the check result; a microbenchmark comparing valid and invalid PCs under replay-style attacks would quantify any residual leakage.
  • Editorial inference: Oreo's 'mask now, validate at commit' recipe generalizes beyond ASLR to any secret encoded in an address, such as pointer-authentication tags or capability bounds, suggesting a reusable hardware pattern for keeping address-encoded secrets out of speculative microarchitecture.
  • Editorial inference: with page-granularity ASLR, Oreo's per-page offsets stored in PTEs would give every page an independent protected offset; building the code relocator the paper identifies as the engineering blocker would make it possible to test whether per-page entropy materially raises the bar against code-reuse attacks.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper analyzes microarchitectural ASLR bypasses and classifies them into three leakage paths: virtual-memory-layout probing, use of secret-embedded pointers as branch/load-store addresses, and Spectre-style pointer exfiltration. To block the first two paths, it proposes Oreo, a software/hardware co-design that converts randomized virtual addresses to masked addresses before they reach address-indexed microarchitectural structures and page tables, and moves virtual-address validity checks to instruction commit time. The manuscript describes bit-selection strategies, a Linux 6.6 and gem5 prototype for kernel text, kernel modules, and user-space programs, a performance evaluation reporting 0.11% average CPI overhead on SPEC2017 and -0.28% on LEBench, security experiments against a prefetch attack and a BlindSide-style speculative probing attack, and a formal non-interference proof in Appendix C.

Significance. If the design is sound, Oreo would be an important step toward source-level defense against a broad class of ASLR bypasses: the masked-address-space abstraction is simple and directly addresses both layout probing and pointer-use leakage, and the paper provides a systematic taxonomy of prior attacks. The authors ship an open-source artifact with scripts to reproduce the main experiments, which strengthens confidence. That said, the formal proof is a hand-written operational-semantics argument, not machine-checked, and it is narrower than the implementation; the user-space configuration relies on non-canonical addresses whose behavior is not validated on real hardware. The performance claim is not based on synthesis or detailed timing of the added hardware. These points require revision but do not, in my assessment, invalidate the core idea for kernel-space mappings.

major comments (4)
  1. [V-C and VI-A] The user-space configuration uses bits 48-52 as microarchitecture-oblivious bits. On x86-64 with 4-level paging these bits are in the non-canonical range, and any address with them set raises #GP before address translation or cache access on real processors; Linux's user-address validation (access_ok/TASK_SIZE) would likewise reject such pointers in syscalls. The paper does not explain how the modified pipeline removes or relocates the canonicality check, nor how user-space ABI compatibility is preserved. Since gem5 does not model canonicality checking, the functional/security/performance evaluation does not exercise this behavior. This is load-bearing for the claims of transparency and user-space ASLR support; the user-space design needs to be reworked (e.g., with canonical protected bits and the stated subregion constraint) or those claims need to be scoped to kernel-space regions.
  2. [Appendix C] Appendix C defines LOreo under the explicit assumption that the code length is equal to the subregion size. The implemented configuration for kernel text uses protected bits 31-38, giving lensubregion = 2^31 = 2GB while the kernel text is roughly 32MB; user programs are similarly smaller than their subregions. Thus Theorem 1 is proved only for a special case that does not match the instantiated system. Since the non-interference theorem is a central contribution, please extend Lemmas 1-2 and Theorem 1 to the case lensubregion >= code length, including partially unmapped subregions, or state exactly which evaluated configurations satisfy the proof's assumptions.
  3. [VI-C and VII-B] Section VI-C reaches the conclusion that the Virt2Mask module, offset extraction, and commit-stage checks introduce no extra cycles based on logical complexity alone, and the gem5 experiments do not account for added combinational delay or possible critical-path impact. The paper's headline result of negligible performance overhead therefore is not yet fully substantiated. I ask for at least a post-synthesis timing estimate for the added pipeline logic, or an explicit statement that the zero-cycle cost is an assumption rather than a measured result.
  4. [Appendix C] The abstract machine in Appendix C admits requests fetch, load, store, none, and check, but not prefetch. The first security evaluation is the prefetch attack (Section VII-C), and prefetch is listed in Table I as a relevant attack class. A prefetch instruction is not identical to load because it does not return data and does not commit, so the proof does not literally cover it; please include prefetch semantics (or argue that it is subsumed by the load rule) for Theorem 1 to cover the evaluated path-1 attack.
minor comments (5)
  1. [Abstract and IV] The abstract states that Oreo prevents side channels from leaking ASLR secrets, but Section IV explicitly excludes power-induced timing side channels; please add a qualifier such as within the stated threat model.
  2. [Figure 11] The trace dumps in Figure 11 are extremely dense and the highlighted deviations are hard to identify; please provide enlarged excerpts or a tabular summary of where the traces differ.
  3. [VII-B] The text uses medium latency where median latency is meant; please correct this throughout Section VII-B and the artifact appendix.
  4. [Appendix A] The artifact appendix refers to Figure 7 for the LEBench results while the main text shows them in Figure 9; please synchronize the numbering.
  5. [V-B] Equation (1), the Virt2Mask definition, is only valid for addresses within the randomization region; please state this domain condition explicitly.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: Oreo's central security claim is a design-plus-proof argument with explicit modeling assumptions, not a result that reduces by construction to its inputs.

full rationale

Oreo's derivation chain is self-contained in the relevant sense. The security claim is supported by (1) a hardware/OS design that converts virtual addresses to masked addresses before they reach BP, LSQ, cache, and TLB structures, and (2) a formal non-interference proof (Appendix C) whose key lemmas are proven from the defined Virt2Mask and Mask2Valid functions and the Oreo execution semantics. No fitted parameter is renamed as a prediction: the entropy analysis is normative, and the evaluations compare Oreo against an insecure baseline, with the claimed protection demonstrated by timing measurements and recorded microarchitectural traces. The proof's functional-equivalence premise is an explicit scoping assumption that excludes the third leakage path (secret-dependent values used as data); it is not a restatement of the conclusion, and the proof explicitly shows that functional equivalence would not prevent leakage on the baseline, so the theorem is non-trivial. The observation model Obs = (BP, LSQ, Cache, TLB) and the invisibility of the check(v) request are stated modeling assumptions; if they are too narrow, the guarantee is weakened, but that is a completeness/correctness concern, not circularity. The paper's self-citations, e.g., EntryBleed [53] and MicroScope [71] by Mengjia Yan, are used only as attack examples or defensive design motivation and are not load-bearing justifications of Oreo's core mechanism. The flagged user-space non-canonical-bit concern (Sections V-C and VI-A) is a real-hardware feasibility question rather than a circular-derivation issue: the paper's claim is not obtained by assuming the conclusion. Overall, the derivation does not reduce to its own inputs, so the circularity score is 0.

Assumptions & free parameters 2 free parameters · 4 assumptions · 1 invented entities

The central claim rests on design choices (subregion size, protected bits) and scoping assumptions rather than on fitted parameters; no numerical parameter is tuned to make the security or performance evaluation pass.

free parameters (2)
  • lensubregion (kernel text/modules) = 2^31 bytes (8 protected bits, bits 31-38)
    Chosen so the kernel text (up to about 32 MB) fits in one subregion; this is a design constraint, not fitted to an outcome.
  • User-space protected bits = bits 48-52 (5 bits)
    Chosen to match available leaf PTE bits and non-canonical address bits; not fitted to performance or security data.
assumptions (4)
  • domain assumption Functional equivalence: for two layouts, request traces have the same operation types and addresses that either are equal or map to the same physical address.
    Premise of Theorem 1 in Appendix C; it rules out leakage path 3 (Spectre-like pointer data flow), which Oreo explicitly does not target.
  • ad hoc to paper Code length equals subregion size len in the proof of Lemma 1.
    Stated in Appendix C (Oreo Memory Layouts) to simplify the proof; real kernel text is smaller than the 2 GB subregion, but the conclusion should still hold for layouts differing only in protected bits.
  • domain assumption Obs includes BP, LSQ, cache metadata, and TLB; no power or analog channels.
    Adversary model in Appendix C and Section IV; power side channels are explicitly out of scope.
  • domain assumption Virt2Mask is applied to all addresses used to update the modeled microarchitecture structures.
    This is the core design premise; the proof and the gem5 prototype model it, but unmodified hardware paths (e.g., IOMMU, SMM) are not covered.
invented entities (1)
  • Masked address space independent evidence
    purpose: New intermediate address space that removes microarchitecture-oblivious bits before translation, preventing secret bits from reaching caches, TLBs, and BTBs.
    Implemented in the shipped Linux 6.6 patch and gem5 simulator (Zenodo artifact); the prefetch attack and trace experiments in Section VII-C provide falsifiable checks.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Oreo: Protecting ASLR Against Microarchitectural Attacks (Extended Version)." pith.science (2026). https://pith.science/paper/JGWMBCEM

@misc{pith2026241207135,
  author       = {Pith},
  title        = {Pith review of: Oreo: Protecting ASLR Against Microarchitectural Attacks (Extended Version)},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/JGWMBCEM}},
  note         = {Machine review of arXiv:2412.07135}
}
read the original abstract

Address Space Layout Randomization (ASLR) is one of the most prominently deployed mitigations against memory corruption attacks. ASLR randomly shuffles program virtual addresses to prevent attackers from knowing the location of program contents in memory. Microarchitectural side channels have been shown to defeat ASLR through various hardware mechanisms. We systematically analyze existing microarchitectural attacks and identify multiple leakage paths. Given the vast attack surface exposed by ASLR, it is challenging to effectively prevent leaking the ASLR secret against microarchitectural attacks. Motivated by this, we present Oreo, a software-hardware co-design mitigation that strengthens ASLR against these attacks. Oreo uses a new memory mapping interface to remove secret randomized bits in virtual addresses before translating them to their corresponding physical addresses. This extra step hides randomized virtual addresses from microarchitecture structures, preventing side channels from leaking ASLR secrets. Oreo is transparent to user programs and incurs low overhead. We prototyped and evaluated our design on Linux using the hardware simulator gem5.

Figures

Figures reproduced from arXiv: 2412.07135 by the authors.

Figure 1

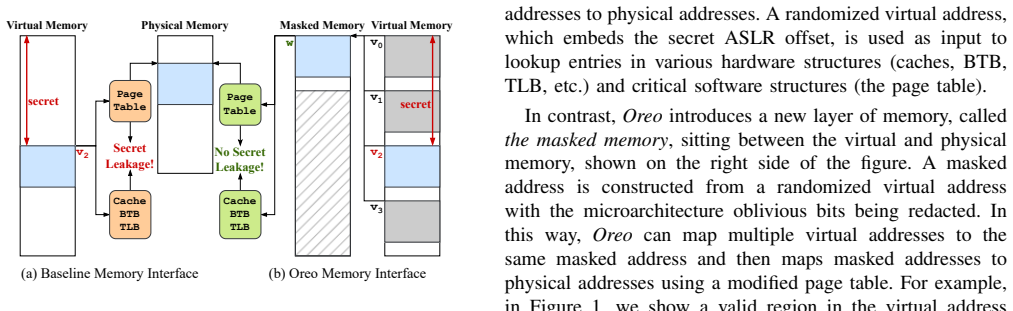

Figure 1. Overview of Oreo’s new memory interface probing a mapped address versus an unmapped address re￾solves different microarchitectural side effects and thus distinct latency [12], [13], [27], [34], [38], [50], [67], [76], [78]. Additionally, these probe operations can be stealthy and do not cause system crashes, because they are either conducted under speculation or assisted with cache manipulation instructions such as … view at source ↗
Figure 2
Figure 2. Coarse-grained ASLR. (a) shows the whole virtual [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Three leakage paths that leak ASLR secret offset [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (10 more)
Figure 4
Figure 4. Figure 4: Mapping between a virtual address v and a masked address w using Oreo’s memory interface. perform speculative execution attacks can execute a Spectre￾like gadget under speculation without knowing the secret offsetoreo. This is because accessing addresses only differing…
Figure 5
Figure 5. Figure 5: Protected bits selection strategies and their corresponding entropy. “Remaining entropy*” refers to “remaining entropy [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Compare Oreo’s randomized memory layout for coarse-grained ASLR (left) and page-granularity ASLR (right) We now analyze the Virt2Mask and Mask2Valid functions to highlight that minimal changes are needed to make Oreo support page-granularity ASLR. First, the coarse-gra…
Figure 7
Figure 7. Figure 7: Microarchitecture changes required by Oreo. on memory accesses are performed during the address trans￾lation within the MMU. When an instruction enters the com￾mit stage, the hardware checks whether it should trigger an exception (e.g., failing to pass a security check…
Figure 8
Figure 8. Figure 8: Performance evaluation results on SPEC2017 [PITH_FULL_IMAGE:figures/full_fig_p012_8.png]
Figure 10
Figure 10. Figure 10: Evaluating the prefetch attack on the insecure [PITH_FULL_IMAGE:figures/full_fig_p013_10.png]
Figure 9
Figure 9. Figure 9: Performance evaluation results on LEBench [PITH_FULL_IMAGE:figures/full_fig_p013_9.png]
Figure 11
Figure 11. Figure 11: Evaluating the speculative code gadget probing attack on the insecure baseline and [PITH_FULL_IMAGE:figures/full_fig_p014_11.png]
Figure 12
Figure 12. Figure 12: Artifact file structure 2) Build: In folder artifact, set up and enter the docker by running: $ cd linux $ docker-compose up -d $ docker-compose exec x86_fs /bin/bash In the docker’s shell, build Linux and gem5 by running: $ cd /root/linux $ python3 compile_scripts/co…
Figure 8
Figure 8. Figure 8: However, these benchmarks behave differently in [PITH_FULL_IMAGE:figures/full_fig_p018_8.png]

Discussion (0). Continue with ORCID to comment.
