Leaf diseases detection using deep learning methods

T0 review · 3 major / 4 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The thesis claims that its deep multi-scale convolutional neural network outperforms pre-trained models on ten-class tomato leaf disease classification across accuracy, F1, precision, and recall.

desk verdict A broad, hard-working PhD thesis with a real dataset contribution, but the headline DMCNN result is unverifiable without code/data and a clear statement that test data never informed model selection. read the letter →

arxiv 2501.00669 v1 pith:NDYNPZMB submitted 2024-12-31 cs.LG cs.AIcs.CV

El Houcine El Fatimi This is my paper · ORCID
classification cs.LGcs.AIcs.CV MSC 68T07
keywords deeplearningCNNtomatoleafdiseasemulti-scaleconvolutionalneuralnetworkplantdetectiontransferMobileNetimageclassification
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This thesis tries to establish that a purpose-built deep multi-scale convolutional neural network (DMCNN) can classify tomato leaf diseases more accurately than transferred pre-trained models. The central claim is empirical: on a ten-class tomato leaf image dataset, DMCNN is reported to outperform the state-of-the-art architectures it was compared against on accuracy, F1 score, precision, and recall. The argument is carried by a multi-branch design that reads the same leaf image at several scales and merges the branches into one classifier. If true, the result would give farmers an efficient, custom CNN option for early disease detection and would suggest that multi-scale feature fusion is a better fit for leaf-disease images than single-scale transfer learning.

What carries the argument

The central object is the deep multi-scale CNN (DMCNN): a set of parallel convolutional streams, each operating at a different scale, merged into a single classifier. The multi-branch structure lets the network capture both fine-grained lesion texture and broader leaf context simultaneously, and the fusion layer combines these representations before the final classification. The thesis's claim is that this multi-scale fusion is the mechanism behind the accuracy gain over the pre-trained baselines.

What would settle it

Retrain the DMCNN and the pre-trained baselines on the same ten-class tomato dataset with the test split sealed until the final evaluation, using identical folds; if the accuracy gap shrinks, reverses, or falls within run-to-run variance, the claim that DMCNN outperforms the baselines is not supported.

Watch

Extended reading notes

Core claim

The paper's proposed DMCNN is a multi-branch convolutional architecture in which parallel streams process the leaf image at different scales and are fused at the end into a single output. On a tomato dataset with ten disease classes, the model is reported to achieve higher accuracy, F1, precision, and recall than several pre-trained state-of-the-art architectures, and the thesis presents this as evidence that multi-scale feature fusion captures the lesion-level and leaf-level cues needed for disease classification better than single-scale pre-trained networks.

Load-bearing premise

The accuracy comparisons assume the test images were never used, directly or indirectly, to choose the model or tune its hyperparameters, so the reported margins are unbiased estimates of generalization.

Editorial extensions

If this is right

  • DMCNN classifies ten tomato leaf disease classes with accuracy, F1 score, precision, and recall above the pre-trained models compared in the thesis.
  • Multi-scale feature fusion is a more effective design choice for leaf-disease classification than single-scale transfer learning.
  • A custom CNN trained from scratch can compete with, and in this study beat, large pre-trained networks on a ten-class plant disease dataset.
  • The same architecture and hyperparameter-tuning procedure can be applied to other crops and to real-time disease detection in the field.
  • Dataset composition affects model effectiveness, as demonstrated by the MobileNet experiments on public, collected, and merged bean leaf datasets, so reported gains should be read relative to the dataset used.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the multi-scale design is the cause of the gain, combining it with transfer learning rather than training from scratch could push accuracy further on smaller datasets.
  • The thesis's MobileNet experiments suggest dataset composition can shift accuracy as much as architecture choice; testing DMCNN on the same public/collected/merged splits would separate architecture effects from data effects.
  • A sealed test set and repeated cross-validation would show whether the reported margin over pre-trained models survives without any tuning on the test data.
  • The seed-image classification work indicates the tuning methodology and possibly the multi-scale architecture could transfer to seed quality sorting and other agricultural image tasks.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. This manuscript, based on a 2023 PhD thesis, applies deep learning to plant leaf disease detection. It contains a broad literature review, experiments with MobileNet on bean leaf datasets, a study of dataset impact, a CNN model for Brassica seeds, and a proposed Deep Multi-Scale CNN (DMCNN) for tomato leaf disease classification. The central empirical claim is that DMCNN outperforms several pre-trained models in accuracy, F1 score, precision, and recall. Evaluation uses public datasets plus a newly collected dataset, and the thesis concludes that the proposed approach yields very satisfactory performance.

Significance. If the evaluation protocol is sound, the claimed DMCNN architecture and its systematic comparison against pre-trained models would be a useful empirical contribution to agricultural computer vision. The paper's strengths include a wide literature review, a detailed account of hyperparameter tuning, the use of GradCAM for qualitative analysis, and the curation of a new leaf disease dataset. However, the significance is currently limited by the absence of statistical uncertainty quantification, the lack of explicit test-set hygiene documentation, and the unavailability of code and data for external verification. The central performance claim is only as strong as the evaluation protocol, and that protocol is not fully described.

major comments (3)
  1. [Abstract; §8.1.2; §8.4.5.2; Table 8.15] The central claim that DMCNN outperforms other models depends on the test set never being used for model or hyperparameter selection. The abstract states that a parameter-tuning algorithm was developed, and Sections 8.1.2.2 and 8.4.5.2 describe tuning learning rate, batch size, and epochs; Table 8.15 documents tuning details for each pre-trained model on the Tomato Leaf dataset. The manuscript never states whether the test split was fixed before tuning or whether model selection used only a validation fold. If the test split informed the final configuration, the reported accuracy advantage is optimistically biased. Please provide the exact split-generation procedure and explicitly confirm that the test set was not used for selection; if nested cross-validation or a validation holdout was used, describe it precisely.
  2. [§8.4.5.3; Tables 8.18–8.20] The comparative tables report single point estimates of accuracy, F1 score, precision, and recall for each architecture. No error bars, confidence intervals, or significance tests are provided, and no repeated runs with different random seeds are reported. Because the reported differences between DMCNN and the baselines could lie within run-to-run variation, the claim of consistent superiority is not statistically supported. Please report means and standard deviations over multiple runs and apply a paired statistical test, such as McNemar's test on the test predictions, to justify the superiority claim.
  3. [§8.4.1.1; §8.4.1.2; §8.4.2] The manuscript does not include a data-availability statement, code, or the exact per-class partition sizes used for the tomato dataset. It also does not report the random seed or the order of augmentation operations. Consequently, the empirical results cannot be reproduced or independently checked, which is especially important for a paper whose contribution is an empirical comparison. Please provide split metadata and per-class counts, and release code or pre-trained weights, or explain clearly why this is not possible.
minor comments (4)
  1. [Throughout] The manuscript contains numerous typographical errors and inconsistent capitalization, such as 'devlop', 'approachs', 'Accuaracy', 'thsis', and 'Mobilenet'. A careful copyedit is needed.
  2. [List of Figures; Figure 8.26] The caption for Figure 8.26 appears duplicated ('Accuracy of loss, validation, and training of the suggested model' is repeated). Please correct the duplicate caption.
  3. [Table 5.1; §5.2.5] The Softmax formula in Table 5.1 is garbled and should be typeset correctly. Reference names are also inconsistent, for example 'Lacun et al., 1998' in Section 5.2.5 versus 'LeCun et al., 1998' elsewhere, and 'Mukti et al., 2013' in the text.
  4. [§8.3; §8.4] The Brassica seeds experiment in Section 8.3 is presented as part of the thesis but is never explicitly connected to the tomato-leaf DMCNN claim in Section 8.4. The relationship between these studies should be clarified, or the seed classification study should be framed as a separate contribution.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity found: the thesis reports empirical comparisons of deep learning models, and the claimed superiority of the proposed DMCNN is not shown to reduce by construction to its inputs.

full rationale

This thesis is primarily an empirical deep-learning study: it collects or reuses leaf-image datasets, trains several CNN-based models, tunes hyperparameters, and reports accuracy, precision, recall, and F1. There is no derivation chain in which a predicted quantity is defined in terms of the very quantity it claims to predict. The proposed DMCNN is described as a multi-branch convolutional architecture and is compared with pre-trained models on a tomato-leaf dataset; this is an external benchmark comparison rather than a self-referential construction. The abstract mentions that a 'parameter-tuning algorithm was developed to identify the optimal performance of each model,' and Section 1 states that the model was fine-tuned by adjusting parameters such as learning rate. This is standard hyperparameter optimization, and the text does not exhibit a specific reduction where the reported test metric is, by construction, the value used to fit the model. A possible risk is that the test split may have informed model selection, but the paper does not state this explicitly, and absence of explicit split metadata is a reproducibility or evaluation-validity concern, not a circularity demonstration under the criteria requiring a quoted equation or fitted parameter renamed as a prediction. The literature review and background chapters are expository and do not smuggle in the thesis's central claim through self-citation. No load-bearing self-citations, no uniqueness theorem imported from the authors' prior work, and no ansatz concealed by citation were found. Therefore the paper's central performance claim has independent empirical content, and no circular step can be exhibited from the provided text.

Assumptions & free parameters 5 free parameters · 3 assumptions · 0 invented entities

The paper uses standard hyperparameters and a hand-designed architecture. It introduces no new theoretical entities, but the multi-scale design assumption is an ad hoc hypothesis not derived from first principles.

free parameters (5)
  • learning_rate = 0.001, 0.0001, 0.00001
    Learning rate values were compared in Section 8.1.2.2 and the best was chosen based on training/validation accuracy.
  • batch_size = 128, 64, 32
    Batch sizes were compared in Sections 8.1.2.3 and 8.4.5.1 to optimize accuracy and training time.
  • optimizer = Adam, SGD, and others
    Optimizer choice was selected by comparing training accuracy and loss in Section 8.1.2.1.
  • number_of_epochs = not explicitly final, varied
    Epoch count was chosen based on validation accuracy, as shown in Figures 8.25 and 8.37.
  • DMCNN architecture hyperparameters = not fully specified here
    The number of parallel streams, filters, and fusion method in the DMCNN are hand-designed (Section 8.4.3).
assumptions (3)
  • standard math Convolution, pooling, backpropagation, and softmax operate as standard.
    Used throughout Section 5, which is a tutorial on CNNs.
  • domain assumption Leaf images, together with expert labels, are sufficient and accurate for disease classification.
    The evaluation depends on the correctness of public and newly collected datasets (Section 8.1.1.1).
  • ad hoc to paper Merging parallel CNN streams at multiple scales improves leaf disease classification.
    This is the premise of the DMCNN architecture, introduced in Sections 8.4.3 without independent justification.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Leaf diseases detection using deep learning methods." pith.science (2026). https://pith.science/paper/NDYNPZMB

@misc{pith2026250100669,
  author       = {Pith},
  title        = {Pith review of: Leaf diseases detection using deep learning methods},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/NDYNPZMB}},
  note         = {Machine review of arXiv:2501.00669}
}
read the original abstract

This study, our main topic is to devlop a new deep-learning approachs for plant leaf disease identification and detection using leaf image datasets. We also discussed the challenges facing current methods of leaf disease detection and how deep learning may be used to overcome these challenges and enhance the accuracy of disease detection. Therefore, we have proposed a novel method for the detection of various leaf diseases in crops, along with the identification and description of an efficient network architecture that encompasses hyperparameters and optimization methods. The effectiveness of different architectures was compared and evaluated to see the best architecture configuration and to create an effective model that can quickly detect leaf disease. In addition to the work done on pre-trained models, we proposed a new model based on CNN, which provides an efficient method for identifying and detecting plant leaf disease. Furthermore, we evaluated the efficacy of our model and compared the results to those of some pre-trained state-of-the-art architectures.

Figures

Figures reproduced from arXiv: 2501.00669 by the authors.

Figure 4
Figure 4. Relationship between crop types and pathoge [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 6
Figure 6. [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
Figure 8
Figure 8. [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figures from the paper (28 more)
Figure 8
Figure 8. Figure 8: Performance evaluation of different learning rates: (a) 0.001, [PITH_FULL_IMAGE:figures/full_fig_p014_8.png]
Figure 8
Figure 8. Figure 8: Exploring batch sizes impact on system [PITH_FULL_IMAGE:figures/full_fig_p015_8.png]

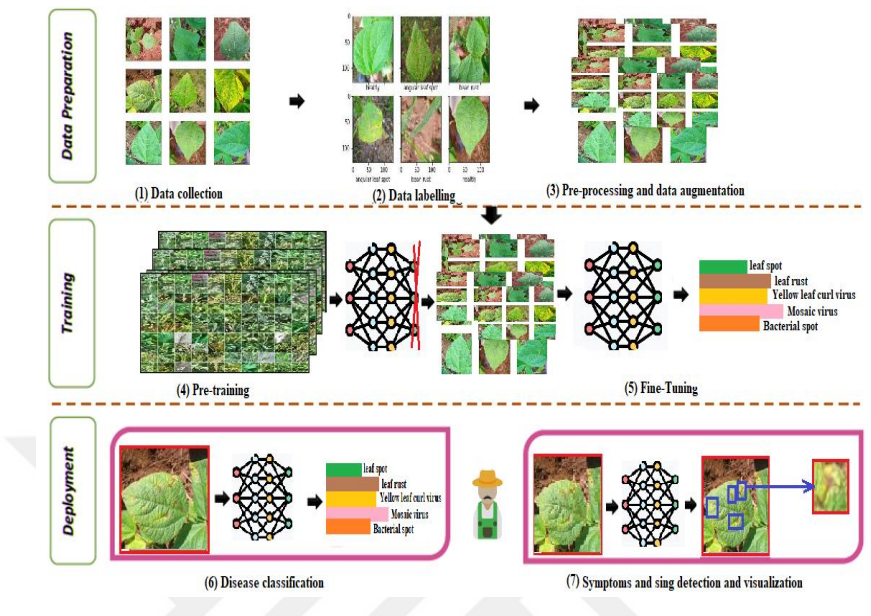

Figure 7
Figure 7. Figure 7 [PITH_FULL_IMAGE:figures/full_fig_p110_7.png]
Figure 7
Figure 7. Figure 7: an overview of [PITH_FULL_IMAGE:figures/full_fig_p122_7.png]
Figure 8
Figure 8. Figure 8: illustrates the system components used for [PITH_FULL_IMAGE:figures/full_fig_p144_8.png]
Figure 8.4
Figure 8.4. Figure 8.4: The SGD optimizer achieved the second [PITH_FULL_IMAGE:figures/full_fig_p147_8_4.png]
Figure 8
Figure 8. Figure 8: presents a unique visualization of the training progress, showcasing the [PITH_FULL_IMAGE:figures/full_fig_p156_8.png]
Figure 8
Figure 8. Figure 8 [PITH_FULL_IMAGE:figures/full_fig_p169_8.png]
Figure 8
Figure 8. Figure 8 [PITH_FULL_IMAGE:figures/full_fig_p171_8.png]
Figure 8
Figure 8. Figure 8: M [PITH_FULL_IMAGE:figures/full_fig_p175_8.png]

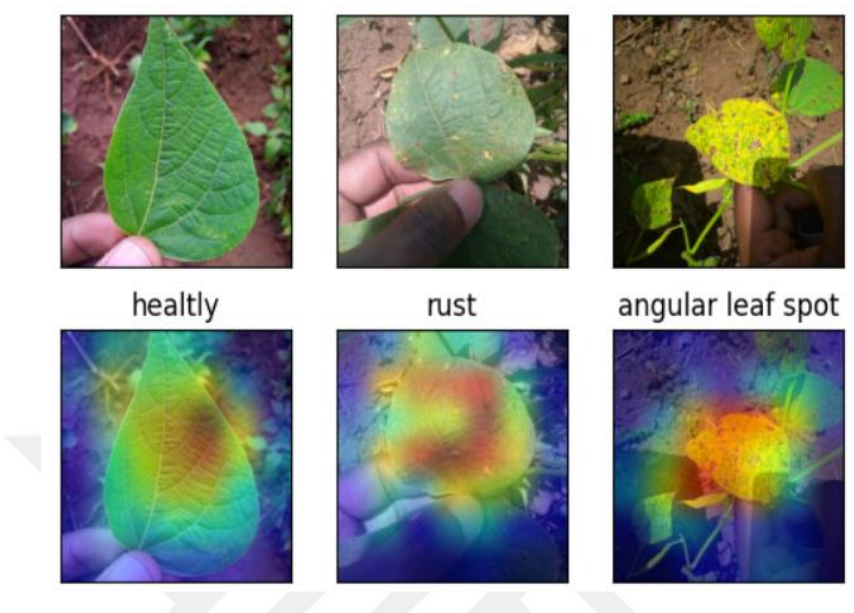

Figure 8
