Efficient Video-Based ALPR System Using YOLO and Visual Rhythm

T0 review · 4 major / 5 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A video-based license plate recognition system can extract exactly one frame per vehicle and read the plate from that single frame, with about 15.76% character error in early tests.

desk verdict A plausible but thinly evaluated single-frame video ALPR pipeline; the 15.76% CER is one favorable clip, not a demonstrated system. read the letter →

arxiv 2501.02270 v2 pith:VMYW3Q5V submitted 2025-01-04 cs.CV cs.LGeess.IV

Victor Nascimento Ribeiro , Nina S. T. Hirata This is my paper · ORCID
classification cs.CVcs.LGeess.IV
keywords automaticlicenseplaterecognitionvisualrhythmYOLOsingle-framevideoprocessingopticalcharactervehicledetectionerrorratesurveillance
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that a video-based automatic license plate recognition (ALPR) system can read a plate from exactly one frame per vehicle instead of processing multiple frames. The system builds a Visual Rhythm image from a segment of video, in which each vehicle crossing a line leaves a single mark whose position identifies the frame to extract. YOLO detects the mark, the vehicle, and the plate, and EasyOCR reads the characters from the cropped plate. In early experiments on one camera segment, the pipeline achieved about 15.76% character error rate (CER), with any failed extraction counted as misreading every character, and the authors take this as evidence that the methodology is viable.

What carries the argument

The central mechanism is the Visual Rhythm (VR) image: for $T$ consecutive frames, the pixels along a fixed line are stacked over time to form a $T \times N$ image in which each vehicle crossing the line produces one mark. The system assumes the y-coordinate of the bottom of a detected mark equals the temporal index of the frame where the vehicle fully crosses the line, so the mark selects exactly one frame per vehicle. YOLO then detects the vehicle and the license plate in that frame, and EasyOCR, built on CRAFT text detection and a CRNN recognizer with CTC decoding, reads the plate characters.

What would settle it

Record a vehicle of known length crossing the detection line at several speeds, ground-truth the frame in which its rear plate first becomes fully visible, and check whether the frame selected from the mark's bottom coordinate matches that ground truth; systematic mismatches at different speeds would falsify the central mapping.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central discovery is that a single-frame-per-vehicle pipeline built from YOLO and Visual Rhythm is enough to perform license plate recognition in video. A Visual Rhythm image condenses spatial and temporal information into one time-spatial image; each vehicle that crosses a predefined line appears as a mark, and the mark's vertical position gives the temporal index of the crossing frame. That frame alone is then used to detect the vehicle, crop its license plate, and apply OCR. The reported 15.76% CER is a conservative system-level figure because upstream failures that prevent plate extraction are counted as complete misreads, which the authors interpret as leaving ample room for improvement rather than as a ceiling.

Load-bearing premise

The load-bearing premise is that the y-coordinate of the bottom of a mark in the Visual Rhythm image equals the temporal index of the frame in which the vehicle fully crosses the line, so vehicle length, speed changes, and detection-box noise could shift the chosen frame away from a clear plate view.

Editorial extensions

If this is right

  • A video ALPR system can stop analyzing every frame: each 600-frame segment collapses into one Visual Rhythm image, and each vehicle is processed from a single extracted frame.
  • Because an upstream failure is counted as misreading every plate character, the reported 15.76% CER overstates the OCR's own error; most of the error budget sits in mark, vehicle, and plate detection.
  • Improvements made elsewhere, such as better detectors, a plate-specific OCR, or training on the target dataset, can be dropped into this pipeline without changing its single-frame design.
  • The memory-bounded segment processing means the approach can run on hardware that cannot hold long video sequences at once.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The mapping from a mark's bottom row to the crossing frame could be calibrated per camera using vehicle speed or a homography, which would make the method robust to vehicles of different lengths and to speed changes.
  • A separate evaluation that isolates OCR errors from detection and frame-selection errors would give a cleaner picture of the method's ceiling, since the published CER counts every failed extraction as a complete misread.
  • The same Visual Rhythm trigger should work for any line-crossing object with a readable label, such as container codes, railcar numbers, or toll tags, under the same camera geometry.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper proposes a video-based ALPR pipeline that constructs a Visual Rhythm image from segments of T consecutive frames, uses YOLO to detect vehicle marks in the VR image, selects one frame per vehicle from the mark's vertical position, and then applies YOLO for vehicle and license-plate detection and EasyOCR for character recognition. Early experiments on a single video (Video 5 from Camera 2), restricted to segments with vertical vehicle motion and a line at y = 800, report a Character Error Rate of approximately 15.76%. The authors conclude that the approach is viable but has room for improvement.

Significance. If the result held generally, a single-frame-per-vehicle ALPR pipeline would be a useful efficiency-oriented alternative to multi-frame video ALPR. The paper's main positive contribution is a concrete, end-to-end pipeline that demonstrably runs on an external dataset (Vehicle-Rear) rather than on a self-constructed test set, and the reported CER is a genuine external measurement not forced by fitted parameters. The paper also honestly states its own limitations, including the penalty of counting complete misreads when any upstream step fails. However, the evidence is preliminary: the evaluation covers one favorable video subset, reports no per-vehicle counts or confidence intervals, and provides no runtime or efficiency measurements despite the word 'Efficient' in the title. The viability claim is therefore plausible but not yet established beyond a single point estimate.

major comments (4)
  1. [Section 4.2] The paper reports 'around 15.76% Character Error Rate' but gives no number of vehicles or plates evaluated, no per-clip or per-vehicle breakdown, and no error bars or confidence intervals. The evaluation is explicitly restricted to 'Video 5 from Camera 2' and 'solely on segments where vehicles move vertically, with the line at y = 800.' This is a favorable subset, so the single point estimate does not support the general claim that the methodology is viable across the dataset or across typical surveillance conditions. At minimum, the authors should report the number of vehicles, the number of fully correct plate reads, a per-vehicle error distribution, and ideally results on additional videos and line positions.
  2. [Section 4.2, CER definition] Because the paper states that 'if one of the early steps fails and becomes impossible to extract the license plate, we consider the approach to have misread every character in the license plate,' the reported CER is an end-to-end system error, not an OCR error. As reported, the number conflates failures in mark detection, frame extraction, vehicle detection, plate detection, and OCR into a single aggregate. The authors should provide an error decomposition (e.g., how many vehicles were lost at each stage) so the reader can see whether the residual error is dominated by upstream detection/selection failures or by OCR mistakes. Without this breakdown, the claim that the outcome is 'relatively good' for a base EasyOCR model is not supportable.
  3. [Section 3, step (c)] The frame-extraction step assumes that the y-coordinate of the bottom of a detected mark equals the temporal index of the frame in which the vehicle entirely crosses the VR line. This geometric mapping is untested and is load-bearing: if the mark's bottom is noisy, or if vehicle length or speed changes shift the mapped frame, the extracted frame may not show a clear plate view, and all downstream steps fail. The authors should validate this mapping against ground-truth frame correspondences or at least provide an ablation showing how sensitive the CER is to offsets around the assumed crossing frame.
  4. [Title and Section 1] The title and introduction describe the approach as 'efficient' and 'more efficient' than multi-frame ALPR, but the evaluation reports only accuracy (CER) and contains no runtime, memory, or computational-cost measurements. The authors should provide at least a basic efficiency comparison (e.g., frames processed per vehicle, processing time per vehicle, or FLOPs) to substantiate the efficiency claim, or temper the title and wording to focus on the single-frame-per-vehicle contribution.
minor comments (5)
  1. [Abstract] The phrase 'from image or a video capture' should be 'from an image or a video capture'.
  2. [Section 1] The phrase 'a established object detection model' should be 'an established object detection model'.
  3. [Section 2.2] The sentence 'Consider a video denoted asf with T frames' has a missing space before 'with' and should read 'denoted as f'.
  4. [Section 4.1] The description of the fine-tuned YOLO models would be clearer if the authors specified the dataset sizes, the number of training epochs, and the hyperparameters used for the mark/vehicle detector and the license-plate detector.
  5. [Section 4.2] The paper should state how many VR segments of length T=600 were processed in the experiment and how the reported CER was computed (e.g., character-level edit distance divided by total characters, and over which ground-truth labels).

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the CER result is an empirical measurement on an external dataset, and the cited prior components are inputs rather than derived outputs.

full rationale

The paper's central claim is an empirical CER measurement on an external dataset (Vehicle-Rear, specifically Video 5 from Camera 2), not a quantity derived from its own assumptions. The pipeline consists of independent components: YOLO fine-tuned for mark and vehicle detection using a task-specific dataset from the authors' prior work [15], YOLO fine-tuned for license-plate detection on a public dataset [13], and the pre-trained EasyOCR model. Step (c)'s assumption that the bottom y-coordinate of a detected VR mark corresponds to the temporal index of the frame where the vehicle crosses the line is an untested geometric simplification, but it is not definitionally equivalent to the CER result; the CER is computed by comparing OCR output against ground-truth plate characters. The convention that an early-step failure counts as misreading every character is a scoring rule, not a fitted parameter renamed as a prediction. No uniqueness theorem is invoked, no ansatz is smuggled in via self-citation, and no known empirical pattern is merely renamed. The self-citation [15] supplies a detector component, but the load-bearing claim---that the proposed single-frame VR-based pipeline achieves around 15.76% CER---is measured externally and could in principle fail regardless of the component's provenance. Therefore no step reduces by construction to its own inputs; the identified weaknesses are about evaluation scope and robustness, not circularity.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The central viability claim rests on a handful of configuration choices and unvalidated domain assumptions rather than on fitted parameters; the main risk is generalization of the VR-to-frame mapping and the mark detector to unseen videos.

free parameters (2)
  • VR segment length T = 600
    Chosen due to memory limitations (Section 3, step a), not optimized; affects the VR image construction and the number of marks per image.
  • VR line position = y = 800
    Manual experimental choice for Video 5, Camera 2 (Section 4.2); the pipeline requires a hand-defined line and only evaluates vertical vehicle motion crossing it.
assumptions (4)
  • domain assumption The y-coordinate of the bottom of a detected mark in the VR image equals the temporal index of the frame when the vehicle fully crosses the line.
    Stated in Section 3 step (c); this geometric mapping is load-bearing for selecting the single frame used for OCR, but is not validated against ground-truth frame timing.
  • domain assumption Vehicles cross the VR line unidirectionally, in a top-view video, at a velocity within the camera frame rate.
    Inherited from VR literature [11], stated in Section 2.2; restricts the method to a narrow set of camera configurations and motions.
  • domain assumption YOLOv8 fine-tuned for mark detection on the authors' prior task-specific dataset [15] generalizes to Vehicle-Rear videos.
    Used in Section 4.1 without reporting any mark-detection accuracy on Vehicle-Rear; the downstream plate recognition depends on correct mark detection.
  • domain assumption Pre-trained EasyOCR, not fine-tuned for license plates, produces characters that yield a meaningful CER on Brazilian plates.
    Acknowledged in Section 4.2 as not fine-tuned; plate-specific OCR would likely change the CER.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Efficient Video-Based ALPR System Using YOLO and Visual Rhythm." pith.science (2026). https://pith.science/paper/VMYW3Q5V

@misc{pith2026250102270,
  author       = {Pith},
  title        = {Pith review of: Efficient Video-Based ALPR System Using YOLO and Visual Rhythm},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/VMYW3Q5V}},
  note         = {Machine review of arXiv:2501.02270}
}
read the original abstract

Automatic License Plate Recognition (ALPR) involves extracting vehicle license plate information from image or a video capture. These systems have gained popularity due to the wide availability of low-cost surveillance cameras and advances in Deep Learning. Typically, video-based ALPR systems rely on multiple frames to detect the vehicle and recognize the license plates. Therefore, we propose a system capable of extracting exactly one frame per vehicle and recognizing its license plate characters from this singular image using an Optical Character Recognition (OCR) model. Early experiments show that this methodology is viable.

Figures

Figures reproduced from arXiv: 2501.02270 by the authors.

Figure 1

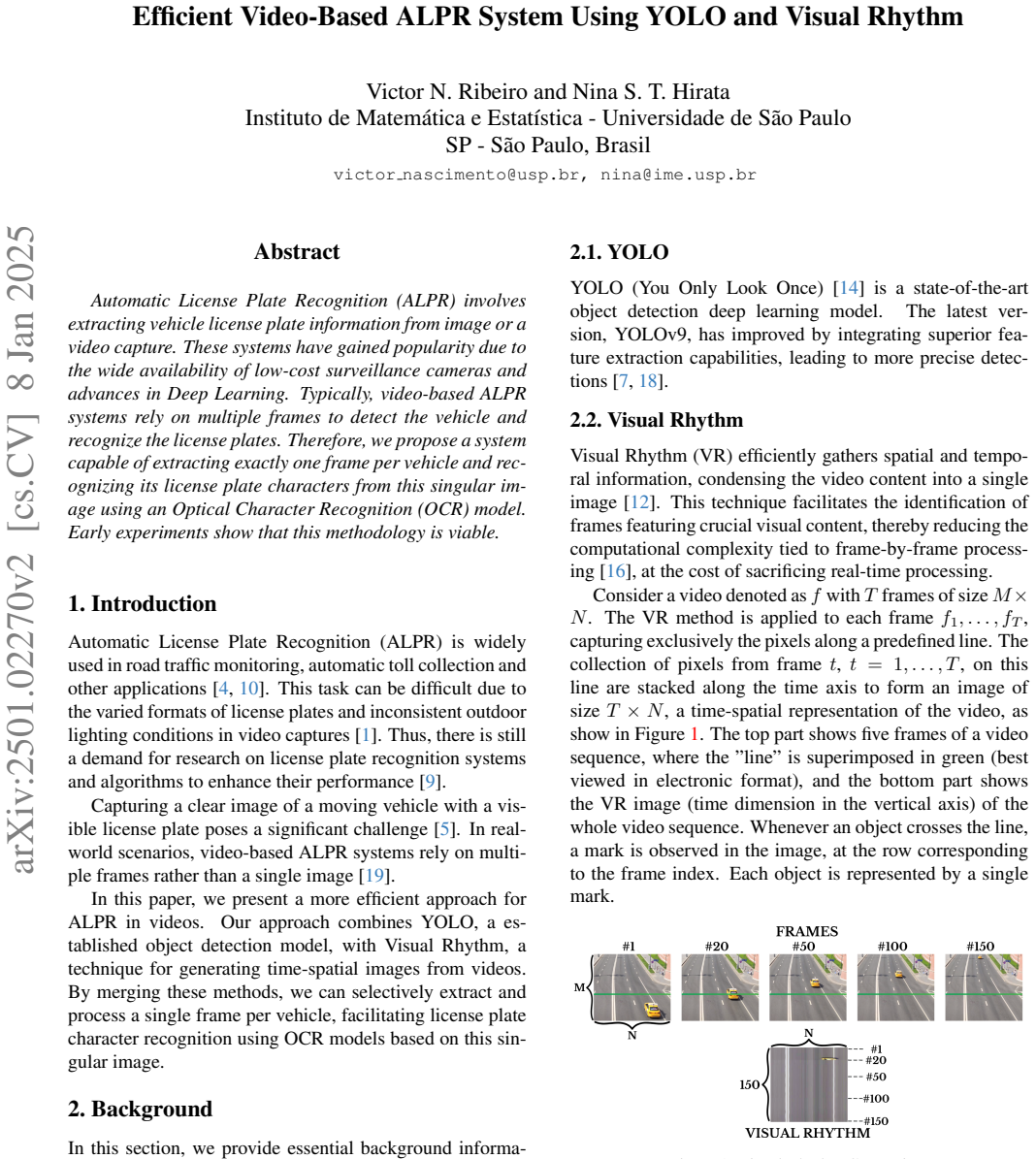

Figure 1. Visual Rhythm Generation. arXiv:2501.02270v2 [cs.CV] 8 Jan 2025 [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Data flow in the VR–based ALPR. First, in step (a), we generate a VR image for segments of T consecutive frames (we will use T = 600 due to mem￾ory limitations). In the next step (b), we employ YOLO to detect each of the marks within the VR image. Next, step (c), for each detected mark, we extract the corresponding frame from the video. To achieve this, con￾sidering each mark as a representation of a vehicle, we can… view at source ↗

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

19 extracted references · 16 canonical work pages

  1. [1]

    License plate recognition from still images and video sequences: A survey

    Christos-Nikolaos Anagnostopoulos, Ioannis Anagnos- topoulos, Ioannis Psoroulas, Vassili Loumos, and Elefthe- rios Kayafas. License plate recognition from still images and video sequences: A survey. Intelligent Transportation Systems, IEEE Transactions on, 9:377 – 391, 2008. 1

    work page 2008

  2. [2]

    Character region awareness for text de- tection

    Youngmin Baek, Bado Lee, Dongyoon Han, Sangdoo Yun, and Hwalsuk Lee. Character region awareness for text de- tection. CoRR, abs/1904.01941, 2019. 2

    arXiv 1904

  3. [3]

    De Oliveira, Rayson Laroca, David Menotti, Keiko Verˆonica Ono Fonseca, and Rodrigo Minetto

    Icaro O. De Oliveira, Rayson Laroca, David Menotti, Keiko Verˆonica Ono Fonseca, and Rodrigo Minetto. Vehicle-rear: A new dataset to explore feature fusion for vehicle identifi- cation using convolutional neural networks. IEEE Access, 9: 101065–101077, 2021. 2

    work page 2021

  4. [4]

    Automatic license plate recognition (alpr): A state- of-the-art review

    Shan Du, Mahmoud Ibrahim, Mohamed Shehata, and Wael Badawy. Automatic license plate recognition (alpr): A state- of-the-art review. IEEE Transactions on Circuits and Sys- tems for Video Technology, 23(2):311–325, 2013. 1

    work page 2013

  5. [5]

    Real time license plate recog- nition from video streams using deep learning

    Saquib Nadeem Hashmi et al. Real time license plate recog- nition from video streams using deep learning. International Journal of Information Retrieval Research (IJIRR) , 9(1):65– 87, 2019. 1

    work page 2019

  6. [6]

    Easyocr: A python library for optical character recognition

    JaidedAI. Easyocr: A python library for optical character recognition. GitHub repository, 2021. 2

    work page 2021

  7. [7]

    A review of yolo algorithm developments

    Peiyuan Jiang, Daji Ergu, Fangyao Liu, Ying Cai, and Bo Ma. A review of yolo algorithm developments. Procedia Computer Science , 199:1066–1073, 2022. The 8th Inter- national Conference on Information Technology and Quan- titative Management (ITQM 2020 and 2021): Developing Global Digital Economy after COVID-19. 1

    work page 2022

  8. [8]

    Ultralytics YOLO, 2023

    Glenn Jocher, Ayush Chaurasia, and Jing Qiu. Ultralytics YOLO, 2023. 2

    work page 2023

Show all 19 references
  1. [9]

    Im- proved automatic license plate recognition (alpr) system based on single pass connected component labeling (ccl) and reign property function

    Rohollah Mazrae Khoshki and Subramaniam Ganesan. Im- proved automatic license plate recognition (alpr) system based on single pass connected component labeling (ccl) and reign property function. In 2015 IEEE International Confer- ence on Electro/Information Technology (EIT) , ...

    2015

  2. [10]

    Zanlorensi, Gabriel Resende Gonc ¸alves, Eduardo Todt, William Robson Schwartz, and David Menotti

    Rayson Laroca, Luiz A. Zanlorensi, Gabriel Resende Gonc ¸alves, Eduardo Todt, William Robson Schwartz, and David Menotti. An efficient and layout-independent auto- matic license plate recognition system based on the YOLO detector. CoRR, abs/1909.01754, 2019. 1

    1909 arXiv

  3. [11]

    D. J. Matuszewski. Computer vision for continuous plank- ton monitoring. Master’s thesis, Instituto de Matem ´atica e Estat´ıstica, University of S ˜ao Paulo, S ˜ao Paulo, 2014. Re- trieved 2023-08-06. 2

    2014

  4. [12]

    Video-based face spoofing detection through visual rhythm analysis

    Allan da Silva Pinto, Helio Pedrini, William Schwartz, and Anderson Rocha. Video-based face spoofing detection through visual rhythm analysis. In 25th SIBGRAPI Con- ference on Graphics, Patterns and Images , pages 221–228,

  5. [13]

    License plate recogni- tion dataset

    Roboflow Universe Projects. License plate recogni- tion dataset. https : / / universe . roboflow . com/roboflow- universe- projects/license- plate-recognition-rxg4e , 2022. visited on 2024- 03-28. 2

    2022

  6. [14]

    You only look once: Unified, real-time object de- tection, 2016

    Joseph Redmon, Santosh Divvala, Ross Girshick, and Ali Farhadi. You only look once: Unified, real-time object de- tection, 2016. 1

    2016

  7. [15]

    Combining yolo and visual rhythm for vehicle counting

    Victor Ribeiro and Nina Hirata. Combining yolo and visual rhythm for vehicle counting. In Anais Estendidos da XXXVI Conference on Graphics, Patterns and Images , pages 164– 167, Porto Alegre, RS, Brasil, 2023. SBC. 2

    2023

  8. [16]

    Wipe scene-change detector based on visual rhythm spec- trum

    Kwang-deok Seo, Seong Jun Park, and Soon-heung Jung. Wipe scene-change detector based on visual rhythm spec- trum. IEEE Transactions on Consumer Electronics , 55(2): 831–838, 2009. 1

    2009

  9. [17]

    An end-to-end trainable neural network for image-based sequence recog- nition and its application to scene text recognition

    Baoguang Shi, Xiang Bai, and Cong Yao. An end-to-end trainable neural network for image-based sequence recog- nition and its application to scene text recognition. CoRR, abs/1507.05717, 2015. 2

    2015 arXiv

  10. [18]

    Yolov9: Learning what you want to learn using pro- grammable gradient information, 2024

    Chien-Yao Wang, I-Hau Yeh, and Hong-Yuan Mark Liao. Yolov9: Learning what you want to learn using pro- grammable gradient information, 2024. 1

    2024

  11. [19]

    Lsv-lp: Large-scale video-based license plate detec- tion and recognition

    Qi Wang, Xiaocheng Lu, Cong Zhang, Yuan Yuan, and Xue- long Li. Lsv-lp: Large-scale video-based license plate detec- tion and recognition. IEEE Transactions on Pattern Analysis and Machine Intelligence, 45(1):752–767, 2023. 1

    2023
