OpenLKA: an open dataset of lane keeping assist from market autonomous vehicles

T0 review · 3 major / 6 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper introduces OpenLKA, an open dataset, and uses it to argue that commercial lane-keeping assist fails predictably on sharp curves, low-contrast markings, and lane transitions.

desk verdict Valuable new LKA dataset, but the headline deviation numbers rest on an unvalidated vision-based measurement that needs independent checking before they're trusted. read the letter →

arxiv 2501.03287 v1 pith:VZM7BT7C submitted 2025-01-06 cs.RO cs.CVcs.LG

Yuhang Wang , Abdulaziz Alhuraish , Shengming Yuan , Shuyi Wang , Hao Zhou This is my paper · ORCID
classification cs.ROcs.CVcs.LG
keywords lanekeepingassistautonomousvehiclesCANbusopendatasetdepartureroadcurvaturevision-languagemodelempiricalevaluation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper introduces OpenLKA, an open multimodal dataset of over 130 hours of real-world driving from 15 vehicle models, collected in Tampa with synchronized CAN bus messages, front-view video, and vision-based lane detection. Using this dataset, the authors try to establish that commercial lane-keeping assist systems have separable and recurring failure modes: perception loses faint or low-contrast markings, planning goes wrong at lane merges and splits, control cannot deliver enough steering torque on sharp curves, and the systems rigidly chase the lane center instead of adapting like human drivers. The paper reports a quantitative relationship between curvature and lane deviation, with a fitted slope of -8.33 and deviations approaching 1.5 meters once curvature exceeds 0.05 per meter. A sympathetic reader would care because the dataset and its findings give road agencies, automakers, and self-driving researchers a concrete, public evidence base for improving markings, curve design, and LKA algorithms.

What carries the argument

The central mechanism is the OpenLKA collection pipeline built around a Comma Three-X device mounted at the windshield center and run in dash-cam mode, so it passively reads CAN messages without touching the vehicle's controls. Openpilot's vision detection supplies the distances to the left and right lane lines, and the paper defines LKA error as $E = (L_{\text{left}} + L_{\text{right}})/2$, a continuous lane-deviation measure. The quantitative argument is carried by the curvature–deviation regression, with fitted slope $-8.33$, and by the lateral-acceleration identity $a_{\text{lateral}} = \kappa v^2 - \text{roll}\cdot g$, which links path curvature $\kappa$, speed $v$, and roll angle to the steering torque the LKA must produce.

What would settle it

Collect independent lane-position ground truth on a subset of the same Tampa routes, for example centimeter-level GNSS/INS with mapped lane centerlines or manually annotated video, and compare it with the OpenPilot-derived LKA error. If the deviations at curvature above 0.05 are much smaller or uncorrelated with the fitted slope of -8.33, the paper's central quantitative claim is refuted.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central discovery is that commercial LKA performance degrades in a predictable, module-by-module way. In perception, low-contrast pavement and marking combinations, heavy rain, glare, and worn markings make lane detection flicker or disappear. In planning, lane transitions such as merges, diverges, and intersections make the system lock onto the wrong line or disengage. In control, torque-limited steering cannot supply the lateral acceleration required on sharp turns, so the vehicle drifts from lane center. The paper quantifies this control failure by regressing lane deviation against curvature, obtaining a slope of -8.33, and states that beyond curvature 0.05 the deviation reaches almost 1.5 meters. It further argues that LKA's rigid lane-centering behavior contrasts with human corner-apexing and obstacle-avoidance strategies, and it demonstrates that a vision-language model fine-tuned on human driving logs produces steering outputs closer to human choices.

Load-bearing premise

The whole measurement depends on the aftermarket vision system's lane detection being an unbiased ruler for lane position; if that detection is biased or fails on these roads, the reported deviations describe the measuring device, not the car's lane-keeping system.

Editorial extensions

If this is right

  • Roadway agencies can use the dataset and fitted models to set marking-maintenance priorities, with model results recommending LKA deviation warnings where curvature exceeds 0.006 and speed guidance near 60.7 mph.
  • LKA developers gain a public, synchronized CAN-plus-video corpus of over 130 hours from 15 models, covering perception, planning, and control failure modes, enabling standardized benchmarking.
  • A fine-tuned vision-language model with chain-of-thought prompting outputs steering decisions closer to human drivers than the base model, suggesting a concrete path to more adaptive lane-keeping.
  • Because deviation grows with curvature and reaches about 1.5 meters above curvature 0.05, vehicles with torque-limited steering may predictably depart the lane on sharp curves unless speed is reduced or torque authority increased.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: because the lane-deviation measurement comes from Openpilot's own vision, the reported errors may combine native LKA control error with measurement-system perception error; an independent ground-truth comparison would be needed to separate the two.
  • Editorial inference: the torque-derivative equations imply a testable road-design rule: transition-curve length, not just final radius, controls LKA failure, so shortening spiral transitions at constant radius should increase deviation even when curvature at the apex is unchanged.
  • Editorial inference: the synchronized CAN-video-human dataset could support a departure early-warning model that predicts the 1.5-meter regime before it occurs, something the paper only gestures at through its disengagement prediction models.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. This paper presents OpenLKA, an open multi-modal dataset of lane keeping assist (LKA) driving collected from rental vehicles in Tampa, Florida, comprising over 130 hours of CAN-bus data, synchronized video, OpenPilot perception outputs, trajectory data, and GPT-4o-based scene annotations. The authors use the dataset to characterize LKA performance under normal and challenging conditions, reporting that LKA is vulnerable to faint markings and low contrast, struggles in lane transitions, deviates on sharp curves due to torque limits, and rigidly centers the lane without the flexibility of human drivers. The paper also proposes infrastructure recommendations (e.g., a curvature warning threshold of 0.006 and a recommended LKA speed limit of 60.7 mph) and demonstrates a VLM-based planner, iLKA, fine-tuned on human driving data.

Significance. If the measurement methodology is sound, OpenLKA would be a valuable community resource: it combines CAN, video, perception, and VLM-annotated metadata across a diverse fleet, which is rare in the LKA/ADAS literature. The qualitative findings about perception, planning, and control limitations are plausible and actionable for infrastructure planning and LKA development. However, the load-bearing quantitative claims—especially the curvature–deviation regression (slope −8.33, deviation approaching 1.5 m at curvature >0.05) and the Section 5.2 thresholds—rest on lane-deviation measurements derived from OpenPilot's vision system without independent validation, and the regression statistics are not reported. The paper's strength is its dataset and annotation pipeline rather than validated safety conclusions; with additional validation and reframing, the contribution could be significant.

major comments (3)
  1. [§4.1.2 and §4.2] The lane-deviation metric is defined as LKA Error = (Lleft_lane + Lright_lane)/2 using OpenPilot's vision-based left_laneline and right_laneline values. This is the same type of perception system whose failures are the subject of the study, and no independent ground truth (differential GPS, surveyed lane geometry, human-annotated boundaries) is provided anywhere in the paper. Since OpenPilot's detection is known to degrade under the same challenging conditions tested (faint markings, glare, rain), the reported deviations and the Section 4.2 regression slope of −8.33 conflate perception errors with native LKA control errors. The authors should validate the deviation metric against an independent reference on a subset of data, report the number of trips/vehicles, R², confidence intervals, and the handling of frames with missing or low-confidence lane detections, and otherwise reframe the quantitative claims as 'OpenPilot-observed deviations' rather than native LKA performance.
  2. [§4.3.1, Fig. 16(d)] The text states that in the worn-marking case 'the left and right edges are not detected due to wear and tear' and simultaneously reports that 'the lane deviation reaches 0.8 at one point.' This is internally inconsistent with the Section 4.1.2 formula, which requires both left_laneline and right_laneline to compute the deviation. If neither line is detected, the LKA Error cannot be computed as specified. The paper must explain how missing or undetected lane lines are handled in the deviation computation and clarify what quantity the 0.8 m value represents.
  3. [§5.2] The recommended thresholds—a curvature warning at 0.006 and a speed limit of 60.7 mph—are derived by fitting Random Forest and XGBoost models to the OpenLKA data and then presented as prescriptive judgments ('we get the judgment that...'). These are descriptive summaries of the dataset, not independent predictions; no cross-validation, uncertainty measures, or external validation are reported. The paper should present these as preliminary data-driven suggestions with appropriate caveats, or provide out-of-sample validation before recommending them to transportation authorities.
minor comments (6)
  1. [§4.2] The regression in Fig. 14 is described by a single slope (−8.33) without the number of observations, number of vehicles/trips, R², or confidence intervals; given the temporal autocorrelation of driving data, the effective sample size should also be discussed.
  2. [§5.1, Eq. (10)] The approximation R'(x) = (Rc − ∞)/L in Eq. (10) is not a valid finite-difference expression; the derivation of the torque-rate design principle should be rewritten using a finite transition length and a concrete radius profile.
  3. [§5.3] The iLKA demonstration fine-tunes GPT-4o on human steering data and then shows that the fine-tuned model's outputs are close to human outputs; this is a fit-to-training-data demonstration and should be explicitly labeled as such, with no claim of generalization to unseen drivers or scenarios.
  4. [§3.4] The VLM annotation validation reports an accuracy rate of over 95% on 2,000+ images, but the sampling procedure and per-category agreement are not given; a category-wise breakdown or Cohen's kappa would make the reliability claim more interpretable.
  5. [Throughout] There are numerous typographical errors and placeholder artifacts, e.g., 'safty problems issues' (§4.2), 'V olkswagen' (§4.3.3), 'sensoring cmera' (§4.3.2), 'disinterment' (§5.2), 'comparision' (start of Section 4), and 'Figure X' references (§3.4 and §4.3.4).
  6. [§2 and §3.3] The dataset size is inconsistently reported: Section 2 states 'over 100 hours', Section 3.3 states 'over 130 hours', and Table 1 states '150+'; the fleet description says 'more than a dozen' while the contribution list says 15 models. These numbers should be reconciled.

Circularity Check

2 steps flagged · score 5.0 of 10

Partial circularity: the iLKA illustration is fine-tuned on human steering and then showcased as human-like by construction, while the lane-deviation metric used for the central LKA-limitation claims is defined through OpenPilot perception that fails in the same scenarios it is used to quantify.

  1. fitted input called prediction [Section 5.3, 'LLM-based Human-like LKA Planner' (Figs. 26-28)]
    "we select an entire segment of driving from the Human dataset in OpenLKA ... use it as a fine-tuning dataset. ... Through fine-tuning of more than 600+ combined picture-control information datasets, the results, shown in Fig 26, training loss and validation loss, indicate that the model's output is very close to what a human driver would test next."

    The claim that fine-tuned GPT-4o 'output[s] steering angles that are very close to those of humans' is supported by fine-tuning on the human driver's CAN steering-angle sequence and then comparing against that same human driver's next steering angle, with only training/validation loss shown. No held-out segment or independent driver is described for the comparison. Because the model is trained to predict exactly this target, matching the human steering output is expected by construction; the 'human-like iLKA' demonstration is therefore a back-fit of the training labels rather than an independent prediction of human driving behavior.

  2. self definitional [Section 4.1.2 (LKA Error formula) and Section 4.3.1 (Fig. 16(d))]
    "The LKA error is calculated using the formula: LKA Error = (Lleft_lane + Lright_lane)/2. ... Figure 16(d) illustrates a case where the edge lines are not detected because the road markings are worn out. In this case, the left and right edges are not detected due to wear and tear, and the lane deviation reaches 0.8 at one point."

    The paper's central outcome variable, 'lane deviation,' is defined as the average of OpenPilot's left_laneline and right_laneline outputs. In the worn-marking case it simultaneously states that the left and right edge lines are not detected and reports a lane deviation of 0.8 m. If the lane lines are not detected, the inputs to the stated formula are unavailable, so the reported deviation cannot be computed as specified. More broadly, every downstream quantitative claim about native LKA error—including the Section 4.2 slope of -8.33 and the 'curvature larger than 0.05 ...

full rationale

Most of the paper is a dataset paper with descriptive statistics: the curvature-deviation regression slope (-8.33), the Random Forest/XGBoost thresholds (curvature warning at 0.006, speed limit at 60.7 mph), and the qualitative failure taxonomy are summaries of the collected data, not independent predictions being tested, so they do not by themselves constitute circularity. The physical torque-rate derivation in Section 5.1 is standard kinematics with stated assumptions and does not smuggle in the conclusions. There is no load-bearing self-citation chain or imported uniqueness theorem. The two genuine circularity concerns are localized but consequential: (1) the iLKA demonstration is fine-tuned on human steering output and then showcased as matching human steering, which reduces by construction; and (2) the lane-deviation metric is defined through OpenPilot's perception, which is the same subsystem that fails in the scenarios used to quantify native-LKA error, creating the internal contradiction where a deviation of 0.8 m is reported even though the lane lines were 'not detected.' Because these issues affect the paper's demonstration and the core measurement behind its central empirical claim, while the released raw CAN/video dataset retains independent value, the appropriate score is 5.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The central claims rest on several domain assumptions: OpenPilot vision as ground truth, correct CAN decoding, fleet representativeness, and VLM annotation reliability. The free parameters are all fitted to the dataset itself, which limits the strength of the paper's prescriptive recommendations.

free parameters (4)
  • Curvature-lane deviation regression slope = -8.33
    Fitted to the scatter plot of curvature versus lane deviation in Section 4.2; reported without confidence intervals or goodness-of-fit statistics.
  • LKA deviation warning threshold = 0.25 m
    The 75th percentile of LKA deviation in the dataset, used in Section 5.2 to label 'serious deviation' for the prediction model.
  • Curvature warning threshold = 0.006 /m
    Derived from the Random Forest/XGBoost feature analysis in Section 5.2; presented as an infrastructure warning threshold without external validation.
  • Recommended LKA speed limit = 60.7 mph
    Derived from the fitted prediction model in Section 5.2 and presented as a recommended speed limit, without external testing or uncertainty estimation.
assumptions (4)
  • domain assumption OpenPilot's lane line detection provides accurate ground truth for lane deviation
    Section 4.1.2 defines LKA Error using OpenPilot's left_laneline and right_laneline; the analysis assumes this aftermarket vision system is unbiased relative to the vehicle's true lane position.
  • domain assumption Reverse-engineered DBC files correctly decode LKA-related CAN messages across vehicle models
    Section 3.3 states CAN variables were reverse engineered and validated, but the correctness of decoding determines whether LKA status and control metrics accurately represent native system behavior.
  • domain assumption The rental fleet sampled at Tampa airport is representative of the U.S. market
    Section 3.2 claims the fleet represents over 80% of the market based on rental availability, but seasonal and geographic bias is not addressed.
  • domain assumption GPT-4o VLM annotations are reliable for downstream analysis
    Section 3.4 reports over 95% agreement with human annotations on 2,000+ images, but the human annotations were produced by the same authors and the sample selection criteria are not fully described.

how reviews work

0 comments
Cite this review

Pith. "Pith review of OpenLKA: an open dataset of lane keeping assist from market autonomous vehicles." pith.science (2026). https://pith.science/paper/VZM7BT7C

@misc{pith2026250103287,
  author       = {Pith},
  title        = {Pith review of: OpenLKA: an open dataset of lane keeping assist from market autonomous vehicles},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/VZM7BT7C}},
  note         = {Machine review of arXiv:2501.03287}
}
read the original abstract

The Lane Keeping Assist (LKA) system has become a standard feature in recent car models. While marketed as providing auto-steering capabilities, the system's operational characteristics and safety performance remain underexplored, primarily due to a lack of real-world testing and comprehensive data. To fill this gap, we extensively tested mainstream LKA systems from leading U.S. automakers in Tampa, Florida. Using an innovative method, we collected a comprehensive dataset that includes full Controller Area Network (CAN) messages with LKA attributes, as well as video, perception, and lateral trajectory data from a high-quality front-facing camera equipped with advanced vision detection and trajectory planning algorithms. Our tests spanned diverse, challenging conditions, including complex road geometry, adverse weather, degraded lane markings, and their combinations. A vision language model (VLM) further annotated the videos to capture weather, lighting, and traffic features. Based on this dataset, we present an empirical overview of LKA's operational features and safety performance. Key findings indicate: (i) LKA is vulnerable to faint markings and low pavement contrast; (ii) it struggles in lane transitions (merges, diverges, intersections), often causing unintended departures or disengagements; (iii) steering torque limitations lead to frequent deviations on sharp turns, posing safety risks; and (iv) LKA systems consistently maintain rigid lane-centering, lacking adaptability on tight curves or near large vehicles such as trucks. We conclude by demonstrating how this dataset can guide both infrastructure planning and self-driving technology. In view of LKA's limitations, we recommend improvements in road geometry and pavement maintenance. Additionally, we illustrate how the dataset supports the development of human-like LKA systems via VLM fine-tuning and Chain of Thought reasoning.

Figures

Figures reproduced from arXiv: 2501.03287 by the authors.

Figure 1
Figure 1. OpenLKA: A comprehensive framework for LKA analysis and enhancement. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. LKA Dataset Overview The OpenLKA dataset is composed of two main components. The first and primary component is the LKA dataset, which comprises vehicle data collected from more than a dozen different models operating under LKA conditions. The brands of these vehicles represent over 80% of the current market share, providing a broad overview of LKA performance in commercially available vehicles. This dataset contain… view at source ↗
Figure 3

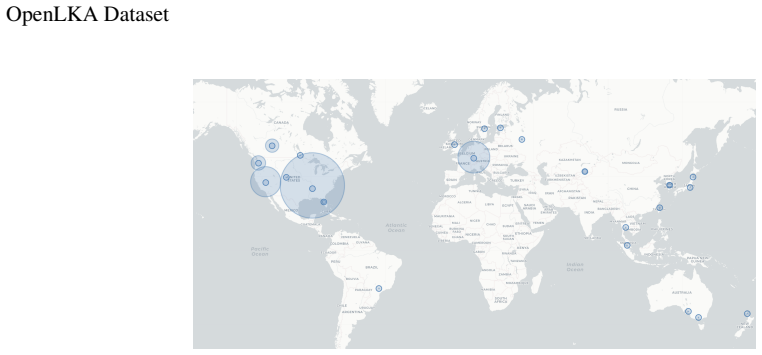

Figure 3. Human Dataset from Drivers Across the World [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (28 more)
Figure 4
Figure 4. Figure 4: Comma 3x, dash cam for LKA data collec￾tion, placed at the front windshield of the vehicle. To empirically evaluate the real-world performance [19] of LKA Systems in commercially available vehicles [20], we em￾ployed advanced data collection equipment designed to captu…
Figure 5
Figure 5. Figure 5: LKA data collection sites 3.2 Testing scenarios [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6
Figure 6. Figure 6: Test Vehicle Fleet Distribution and Market Share Analysis Our experimental design incorporated an extensive array of driving sce￾narios to rigorously assess LKA performance under real-world conditions. We conducted tests using a diverse fleet of rental cars sourced fro…
Figure 7
Figure 7. Figure 7: Variables collected through CAN from various car brands [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 8
Figure 8. Figure 8: VLM data annotation based on video images [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 9
Figure 9. Figure 9: Evaluation result of VLM annotation 4 Overview of LKA Characteristics and Performance Limitations In this section, we first evaluated the lane deviation and control stability of the LKA system under normal driving scenarios. Subsequently, we analyzed challenging scenar…
Figure 10
Figure 10. Figure 10: Steering angle of Different Cars in normal conditions [PITH_FULL_IMAGE:figures/full_fig_p009_10.png]
Figure 11
Figure 11. Figure 11: Lane deviation calculation We present the methodology for calculating the LKA error, also known as the lane centering error or lane deviation, which serves as a metric to evaluate the performance of LKA systems in maintaining the vehicle’s position at the center of th…
Figure 12
Figure 12. Figure 12: LKA error under normal conditions We analyzed the LKA error for each vehicle model under nor￾mal driving conditions with road curvature less than 0.05. The results, illustrated in Fig.12, indicate that all vehicles maintain an LKA error around 0.15 meters, with the ma…
Figure 13
Figure 13. Figure 13: Relationship between Lane deviation and Curvature [PITH_FULL_IMAGE:figures/full_fig_p010_13.png]
Figure 14
Figure 14. Figure 14: Lane deviation in different curvature Although the LKA system performs well on normal road sections, we found that the LKA system often has large lane deviation during our tests. The most intuitive feeling is concentrated on the road sections with large curvature, whe…
Figure 15
Figure 15. Figure 15: LKA Performance in Unusual Pavement Conditions [PITH_FULL_IMAGE:figures/full_fig_p011_15.png]
Figure 16
Figure 16. Figure 16: Analysis of LKA Performance in different perception scenarios [PITH_FULL_IMAGE:figures/full_fig_p012_16.png]
Figure 17
Figure 17. Figure 17: LKA Performance During Lane Line Transitions [PITH_FULL_IMAGE:figures/full_fig_p013_17.png]
Figure 18
Figure 18. Figure 18: Analysis of Steering Torque Variations The performance of LKA systems on high-curvature roads is closely tied to the lateral acceleration required to maintain the desired path. This lateral acceleration is not only influenced by the road geometry but also by the vehic…
Figure 19
Figure 19. Figure 19: Impact of Sharp Curves on LKA Performance [PITH_FULL_IMAGE:figures/full_fig_p014_19.png]
Figure 20
Figure 20. Figure 20: Critical Performance Factors and Their Combinations in LKA Systems [PITH_FULL_IMAGE:figures/full_fig_p015_20.png]
Figure 21
Figure 21. Figure 21: Comparative Analysis of LKA and Human Driving Strategies [PITH_FULL_IMAGE:figures/full_fig_p016_21.png]
Figure 22
Figure 22. Figure 22: Behavioral Differences Between LKA and Human Drivers [PITH_FULL_IMAGE:figures/full_fig_p016_22.png]
Figure 23
Figure 23. Figure 23: Analysis of Road Geometry Impact on LKA Performance [PITH_FULL_IMAGE:figures/full_fig_p017_23.png]
Figure 24
Figure 24. Figure 24: Performance Comparison of Random Forest and XGBoost Models for LKA Prediction [PITH_FULL_IMAGE:figures/full_fig_p018_24.png]
Figure 25
Figure 25. Figure 25: Impact Analysis of Categorical Variables on LKA Performance [PITH_FULL_IMAGE:figures/full_fig_p019_25.png]
Figure 26
Figure 26. Figure 26: Training and Validation Loss Curves for Model Fine-tuning We introduce a novel OpenLKA-based framework, termed “iLKA,” designed to facilitate the generation of rational, safe, and efficient LKA decisions. This framework combines robust control theory with data-driven …
Figure 27
Figure 27. Figure 27: Comparative Analysis of Original and Fine-tuned GPT Models [PITH_FULL_IMAGE:figures/full_fig_p020_27.png]
Figure 28
Figure 28. Figure 28: Performance Comparison between Original and Fine-tuned GPT Models [PITH_FULL_IMAGE:figures/full_fig_p020_28.png]
Figure 29
Figure 29. Figure 29: Advanced Scenario Comparison of Original and Fine-tuned GPT Models [PITH_FULL_IMAGE:figures/full_fig_p021_29.png]
Figure 30
Figure 30. Figure 30: Architecture of Enhanced Cooperative Perception System Utilizing OpenLKA Dataset [PITH_FULL_IMAGE:figures/full_fig_p022_30.png]
Figure 31
Figure 31. Figure 31: Checklist for Road Evaluation References [1] Jaswanth Nidamanuri, Chinmayi Nibhanupudi, Rolf Assfalg, and Hrishikesh Venkataraman. A progressive re￾view: Emerging technologies for adas driven solutions. IEEE Transactions on Intelligent Vehicles, 7(2):326–341, 2021. [2…
