arxiv: 2501.05792 · v1 · submitted 2025-01-10 · 💻 cs.SE

Test Case Generation for Simulink Models: An Experience from the E-Bike Domain

Michael Marzella , Andrea Bombarda , Marcello Minervini , Nunzio Marco Bisceglia , Angelo Gargantini , Claudio Menghi This is my paper

Pith reviewed 2026-05-23 05:31 UTC · model grok-4.3

classification 💻 cs.SE
keywords search-based software testingSimulinktest case generationcyber-physical systemse-Bikemodel-based testingfailure detection
0
0 comments X

The pith

An SBST tool located failure-revealing test cases for 83 percent of experiments on e-Bike Simulink controllers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports an industrial-style assessment of search-based software testing on Simulink models that implement the motor controllers of electric bikes. It applies the HECATE framework to two controllers and measures how often the generated tests expose violations of functional, regulatory, and safety requirements. In 30 of 36 runs the tool produced such tests, the average run took roughly 77 minutes, and the model developer verified that the violations were real defects. The results supply concrete data on effectiveness and runtime that industries need before adopting these techniques more widely.

Core claim

HECATE successfully identified failure-revealing test cases for 83% (30 out of 36) of the experiments. It required, on average, 1 hour 17 minutes 26 seconds to compute the failure-revealing test cases. The developer of the e-Bike model confirmed the failures identified by HECATE.

What carries the argument

HECATE, a search-based software testing framework that searches the input space of a Simulink model to find test inputs that violate given requirements.

If this is right

  • Search-based testing can locate defects in industrial Simulink models drawn from the e-Bike domain.
  • The reported runtimes supply a concrete baseline for the computational cost of applying SBST to controller models of this complexity.
  • Developer confirmation of the detected failures indicates that the generated tests align with real acceptance criteria.
  • The lessons learned can guide adjustments to testing practice when moving SBST from research prototypes to production models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar controller models in other vehicle or robotics domains could be tested with the same framework to check whether the 83 percent success rate holds.
  • The wide spread in computation time (12 minutes to over 8 hours) points to possible gains from adding early termination or model-size heuristics.
  • The approach could be extended to compare HECATE against other Simulink testing tools on the same e-Bike benchmarks to isolate the contribution of its search algorithm.

Load-bearing premise

The functional, regulatory, and safety requirements used in the experiments accurately represent the intended behavior of the e-bike controllers, and the failures detected correspond to genuine defects rather than modeling artifacts or requirement misinterpretations.

What would settle it

An independent re-execution of the same test cases on the original Simulink models that shows they do not actually violate the stated requirements or that the violations are not treated as defects by the model developer.

Figures

Figures reproduced from arXiv: 2501.05792 by Andrea Bombarda, Angelo Gargantini, Claudio Menghi, Marcello Minervini, Michael Marzella, Nunzio Marco Bisceglia.

Figure 1

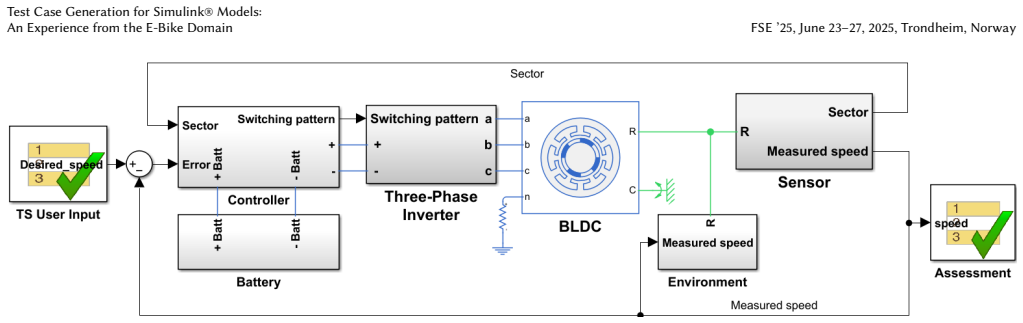

Figure 1. Figure 1: Simulink® model for the e-Bike [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Two software controllers for the e-Bike. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Test Blocks for our e-Bike model. 𝑡𝑖𝑚𝑒 [𝑠] 𝑠𝑝𝑒𝑒𝑑 [𝑟𝑝𝑚] 10 5 10 15 20 25 30 35 (a) Truncated pyramid input with Hecate_sp equal to 10. 𝑡𝑖𝑚𝑒 [𝑠] 𝑠𝑝𝑒𝑒𝑑 [𝑟𝑝𝑚] 10 5 10 15 20 25 30 35 (b) Rectangular pulse input with Hecate_sp equal to 10 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Signal types generated as input by HECATE for our e-Bike models. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Parameterized Test Sequences. 1 Test Sequence Generation 2 System Execution 3 Fitness Assessment 𝑇 TS 𝑆 𝑓 (𝑇𝐴) 𝑆 (TS) TS/NFF 𝑇𝐴 [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Overview of the HECATE framework. HECATE stops the search procedure if a failure-revealing Test Sequence is found or the maximum time 𝑇 allotted for the search is reached. The main advantage of HECATE over the existing framework is that it relies on Test Sequences and Test Assessments, which are part of Simulink®. Therefore, engineers can start from manually defined test cases, parameterize them, and use t… view at source ↗
Figure 7
Figure 7. Figure 7: Desired (orange) and actual (blue) speeds of the e-Bike for the PWM controller and requirement (R1). [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Desired (orange) and actual speeds for the PWM (blue) and Buck (green) controllers and requirement (R2). [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Desired (orange) and actual speeds for the PWM (blue) and Buck (green) controllers and requirement (R3). [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Time required to generate the failure-revealing [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11

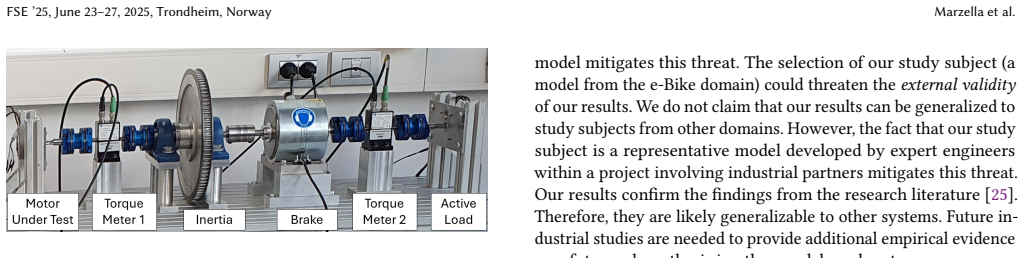

Figure 11. Figure 11: Physical test bench. L3 (Comparison of Solutions). HECATE (and SBST in general) was beneficial for assessing the benefits and limitations of different controller implementations. Specifically, in our case, based on the feedback provided by HECATE, we were able to assess when the PWM and Buck worked properly and select in which scenario using each controller can be beneficial. Considering these lessons, th… view at source ↗
read the original abstract

Cyber-physical systems development often requires engineers to search for defects in their Simulink models. Search-based software testing (SBST) is a standard technology that supports this activity. To increase practical adaption, industries need empirical evidence of the effectiveness and efficiency of (existing) SBST techniques on benchmarks from different domains and of varying complexity. To address this industrial need, this paper presents our experience assessing the effectiveness and efficiency of SBST in generating failure-revealing test cases for cyber-physical systems requirements. Our study subject is within the electric bike (e-Bike) domain and concerns the software controller of an e-Bike motor, particularly its functional, regulatory, and safety requirements. We assessed the effectiveness and efficiency of HECATE, an SBST framework for Simulink models, to analyze two software controllers. HECATE successfully identified failure-revealing test cases for 83% (30 out of 36) of our experiments. It required, on average, 1 h 17 min 26 s (min = 11 min 56 s, max = 8 h 16 min 22 s, std = 1 h 50 min 34 s) to compute the failure-revealing test cases. The developer of the e-Bike model confirmed the failures identified by HECATE. We present the lessons learned and discuss the relevance of our results for industrial applications, the state of practice improvement, and the results' generalizability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript is an experience report assessing the HECATE SBST framework for generating failure-revealing test cases for Simulink models of e-Bike motor controllers. It evaluates two controllers against functional, regulatory, and safety requirements, reporting that HECATE succeeded in 30 out of 36 experiments with an average runtime of 1 hour 17 minutes 26 seconds. Developer confirmation of the failures is provided, along with lessons learned and discussion of industrial relevance.

Significance. This study offers empirical data from a practical industrial domain on the performance of SBST for cyber-physical systems. The success rate and runtime statistics, if verified, contribute to evidence-based adoption of such tools. The inclusion of developer validation strengthens the practical implications for improving state of practice in model-based testing.

major comments (2)
  1. [Abstract] Abstract: The reported 83% success rate (30/36) and runtime statistics (including min/max/std) are presented without reference to the underlying experimental design, including how the 36 experiments were constructed, the distribution of requirements across the two controllers, or measures taken to control for stochasticity in the search algorithm; this information is load-bearing for evaluating the reliability of the effectiveness claim.
  2. [Experiments] Experiments section: Validation of the 30 identified failures relies solely on post-experiment developer confirmation rather than an a priori independent oracle, formal specification of expected behaviors, or cross-check against the original regulatory/safety documents; this directly affects whether the failures represent genuine defects or requirement misinterpretations.
minor comments (2)
  1. [Abstract] The abstract reports aggregate runtime but does not break down success/failure by controller or requirement category, which would aid assessment of generalizability.
  2. Consider including a dedicated threats-to-validity subsection discussing the representativeness of the two e-Bike models and the potential for modeling artifacts.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our experience report. We address each major comment below and indicate planned revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The reported 83% success rate (30/36) and runtime statistics (including min/max/std) are presented without reference to the underlying experimental design, including how the 36 experiments were constructed, the distribution of requirements across the two controllers, or measures taken to control for stochasticity in the search algorithm; this information is load-bearing for evaluating the reliability of the effectiveness claim.

    Authors: The abstract is intentionally concise, with full details on experiment construction, requirement distribution across the two controllers, and the experimental protocol provided in the Experiments section. To mitigate stochasticity, each experiment used a fixed random seed and was executed with a consistent search budget. We agree that a brief reference would aid readers and will revise the abstract to note the experimental setup and that 36 experiments were derived from the requirements of the two controllers. revision: yes

  2. Referee: [Experiments] Experiments section: Validation of the 30 identified failures relies solely on post-experiment developer confirmation rather than an a priori independent oracle, formal specification of expected behaviors, or cross-check against the original regulatory/safety documents; this directly affects whether the failures represent genuine defects or requirement misinterpretations.

    Authors: As an industrial experience report, validation used post-experiment confirmation by the model developer, who possesses detailed knowledge of the controllers and requirements. Failures were discussed against the original regulatory and safety documents during confirmation. We recognize this is not an a priori formal oracle and will add explicit discussion of this validation approach, its alignment with industrial practice, and associated limitations in the Threats to Validity section. revision: partial

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper is a straightforward empirical report of SBST tool performance on two specific e-Bike Simulink controllers. It states measured outcomes (30/36 experiments yielded failure-revealing cases, average runtime 1h17m26s, developer confirmation) without any equations, derivations, fitted parameters, or predictions that reduce to inputs by construction. No self-citation chain, uniqueness theorem, or ansatz is invoked to support a central claim; the requirements are treated as given inputs and results are externally validated by the model developer. The work is self-contained against its stated benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is an empirical evaluation of an existing tool on new subject systems. No mathematical derivations, fitted parameters, or postulated entities are introduced.

pith-pipeline@v0.9.0 · 5816 in / 1227 out tokens · 47944 ms · 2026-05-23T05:31:36.546777+00:00 · methodology
