Boxi: Design Decisions in the Context of Algorithmic Performance for Robotics

T0 review · 4 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper establishes that rotational extrinsic calibration, not time synchronization or translation accuracy, is the limiting factor for tightly coupled LiDAR-inertial odometry, on the basis of controlled ablations on a real 7.1 kg…

desk verdict A useful, openly documented payload paper with real ablation data, held back partly by a partially circular GNSS baseline and some algorithm-tuning confounds, but worth sending to review. read the letter →

arxiv 2504.18500 v1 pith:F3HZ5ROX submitted 2025-04-25 cs.RO cs.SYeess.SY

Jonas Frey , Turcan Tuna , Lanke Frank Tarimo Fu , Cedric Weibel , Katharine Patterson , Benjamin Krummenacher , Matthias Müller , Julian Nubert
show 3 more authors
Maurice Fallon Cesar Cadena Marco Hutter
This is my paper · ORCID
classification cs.ROcs.SYeess.SY
keywords sensorpayloaddesigntimesynchronizationextrinsiccalibrationLiDAR-inertialodometrystateestimationmultimodalsensingleggedrobotsablationstudy
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Boxi is a 7.1 kg, tightly integrated sensor payload for quadruped robots, and this paper uses it to turn payload-design folklore into measured thresholds. Across seven real-world environments, the authors compare LiDAR, camera, inertial, and GNSS state estimation, then deliberately corrupt time synchronization and extrinsic calibration to find when performance breaks. The headline result is that a tightly coupled LiDAR-inertial odometry pipeline tolerates time offsets up to roughly 5 ms and translation offsets below 5 mm, but rotation offsets of about 2 degrees between LiDAR and IMU make it diverge. Sensor choice is also quantified: global-shutter cameras beat rolling-shutter cameras in visual-inertial odometry unless rolling-shutter effects are modeled, a long-range precision LiDAR outperforms a short-range low-cost one in open terrain, and IMU grade barely matters in tightly coupled LiDAR-inertial odometry while mattering during dead-reckoning gaps. The same evidence is distilled into a payload 'cookbook' of design rules for future systems.

What carries the argument

The load-bearing object is Boxi itself: a rigid, machined payload whose sensor mounts are positioned to sub-millimeter mechanical tolerance, whose extrinsics are verified by dedicated calibration procedures, and whose time synchronization is validated by a gyroscope-correlation tool. The argument is carried by controlled perturbation sweeps that inject known time delays, translation offsets, and rotation offsets into an otherwise well-calibrated tightly coupled LiDAR-inertial odometry pipeline, isolating how each design quantity degrades trajectory accuracy.

What would settle it

Mount a tightly coupled LiDAR-inertial odometry system with verified extrinsics on a robot, then apply a controlled 2-degree rotation error between the IMU and LiDAR frames in a feature-rich environment; the paper predicts the trajectory will diverge. If the estimate stays bounded over the run, the claimed criticality of rotational extrinsic calibration at that threshold is not universal.

Watch

Extended reading notes

Core claim

On Boxi's seven test environments, the paper establishes that, for a tightly coupled LiDAR-inertial odometry system, the extrinsic rotation between IMU and LiDAR is the most fragile calibration quantity: errors as small as 2 degrees cause the estimator to diverge, whereas time-delay errors up to approximately 5 ms and translation offsets below 5 mm leave performance nearly unchanged. The paper attributes the time tolerance to the 100 Hz IMU's 10 ms measurement period, and the rotation sensitivity to the long-range LiDAR, where far points amplify angular mismatch. It further reports that swapping a long-range precision LiDAR for a lower-cost short-range model measurably increases error in open spaces, that rolling-shutter cameras without shutter compensation degrade visual-inertial odometry, and that IMU grade makes little difference in tightly coupled LiDAR-inertial odometry but a large difference during dead-reckoning gaps.

Load-bearing premise

The ablation thresholds are measured against a reference trajectory assembled by fusing total-station, IMU, and post-processed GNSS, and the GNSS solution being scored is also an input to that reference, so the comparisons assume the reference is accurate enough to expose differences of a few centimeters.

Editorial extensions

If this is right

  • A payload team should invest in rotation calibration hardware and procedure before pursuing sub-millisecond time synchronization or millimeter-level translation accuracy.
  • For tightly coupled LiDAR-inertial odometry in feature-rich environments, a low-cost consumer IMU can replace a tactical-grade IMU without meaningful trajectory error; the expensive IMU pays off only when other references drop out.
  • Rolling-shutter cameras need per-line exposure modeling or hardware triggering; naively substituting them for global-shutter cameras in visual-inertial odometry degrades accuracy significantly.
  • In open or featureless terrain, a longer-range, higher-accuracy LiDAR is worth its cost; in confined spaces the gap shrinks.
  • These thresholds give concrete design budgets: time synchronization below 5 ms and translation extrinsics below 5 mm are sufficient for the tested LiDAR-inertial pipeline.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Inference: The same sweep, repeated on a pipeline with online extrinsic calibration, would likely shift the rotation threshold upward; the 2-degree figure is a property of a calibration-fixed pipeline.
  • Inference: The time-offset tolerance likely scales with IMU rate; a 500 Hz IMU may demand synchronization below 2 ms, so the paper's 5 ms budget should not be read as universal.
  • Inference: A cost model for payloads can be derived from these thresholds, treating calibration accuracy as a hard constraint and sensor grade as a soft one.
  • Inference: The cookbook's 'keep it simple' advice has a testable consequence: a reduced autonomy version with fewer IMUs and one compute board should achieve similar LiDAR-inertial accuracy, a claim the authors state as future work.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper introduces Boxi, a compact multi-modal sensor payload for legged robots, and uses it to study how payload design decisions affect downstream state estimation. It reports modality-level comparisons (kinematic, LiDAR, camera, GNSS), LiDAR and camera choice ablations, IMU-grade comparisons, and synthetic time-synchronization and extrinsic-calibration perturbations across seven real-world environments. The paper also presents a hardware/software 'cookbook', a custom calibration toolchain, time-synchronization verification tools, and open-source code. The central claim is that time synchronization, calibration, and sensor modality have a crucial impact on state estimation, with specific quantitative findings such as DLIO being robust to small time delays and large translation offsets but sensitive to rotational extrinsic errors.

Significance. If the quantitative claims are supported, this is a valuable systems contribution: the open hardware/software release, the calibration chain with sub-millimeter LiDAR-camera consistency, the time-synchronization verification tool, and the multi-environment dataset are all concrete assets for the community. The paper also makes falsifiable statements about which design factors matter most, such as the priority of rotational calibration over sub-millisecond time synchronization for tightly coupled LiDAR-inertial odometry. However, several methodological gaps in the evaluation limit the strength of the quantitative conclusions, and at least one comparison is partially self-referential.

major comments (4)
  1. [IV-C, Tables IV-V, Appendix B] The GNSS modality comparison is partially self-referential. The HF-Optimized ground truth described in Appendix B fuses TPS measurements, the HG4930 IMU, and the Inertial Explorer IE-TC GNSS poses, and Table IV/V then score the row labeled 'GNSS [2]' (IE-TC) against that ground truth. Because IE-TC is an input to the reference trajectory, the GNSS ATE/RTE values in Tables IV and V are artificially low by construction, particularly during TPS dropouts such as the Excavation Site interval at 84-121 s shown in Figure 18, where HF-Optimized bridges with IE-TC. The validation in Table VIII covers only the Excavation Site, compares against TPS directly, and explicitly excludes dropout periods, so it does not independently establish the accuracy of the GNSS row over the full trajectories. The authors should either remove the GNSS row from the modality comparison, or re-evaluate IE-TC against a TPS-only reference on segments with continuous line-of-sight and clearly state that the reported GNSS numbers exclude dropout periods.
  2. [IV-E, IV-G3, IV-I] The camera comparison confounds shutter type with camera interface, field-of-view overlap, timestamping quality, and sensor characteristics. In Section IV-E, the CoreResearch global-shutter cameras are compared with the HDR and ZED2i rolling-shutter cameras, but the ZED2i is connected via USB without accurate timestamping, the HDR cameras have limited overlapping FoV, and the underlying sensors differ beyond shutter type. Section IV-I itself acknowledges that effects are not measured in isolation. Despite this, Section IV-G3 concludes that 'naively replacing images recorded from a global shutter camera with rolling shutter images results in a significant performance drop.' This conclusion overreaches the evidence; the observed performance gap could be driven by FoV overlap, interface latency, or timestamping rather than shutter type alone. The authors should either add a controlled comparison in which only the shutter mechanism changes, or rephrase the conclusion to state the specific confounded configuration tested.
  3. [IV-C, IV-I] The modality comparison in Tables IV and V is not tuning-fair. Section IV-I states that DLIO parameters were tuned to achieve competitive performance across all datasets, while OKVIS2 was not fine-tuned for each camera setting. The claim in Section IV-C that 'DLIO consistently outperforms OKVIS2' therefore conflates algorithmic modality with tuning effort. The authors should either tune OKVIS2 with comparable effort, report sensitivity to parameter settings for both algorithms, or soften the comparative claim to reflect that DLIO was tuned while OKVIS2 was not.
  4. [IV-D, IV-E, Figure 4] The LiDAR and camera comparisons are based on very limited environment coverage. The LiDAR comparison in Section IV-D uses only the Hike and Warehouse datasets, and the camera comparison in Section IV-E uses only the Mountain Ascent dataset. The text nevertheless makes general claims such as 'the CoreResearch unit, utilizing global shutter cameras, consistently delivers the best accuracy across all environments' and that the Hesai outperforms the Livox. These claims are not supported by the presented data. The authors should either extend the evaluations to more of the seven environments or explicitly restrict the conclusions to the tested conditions.
minor comments (5)
  1. [IV-C vs Appendix B] The text in Section IV-C says the results are 'compared against the total station (TPS) measurements', but Appendix B defines the reference as the Holistic Fusion (HF-Optimized) trajectory that fuses TPS, IMU, and IE-TC. Please align the wording to avoid ambiguity.
  2. [IV-F, IV-G3, Table II] The term 'tactile-grade IMU' should be 'tactical-grade IMU' in Sections IV-F and IV-G3; Table II already uses the correct abbreviation 'Tact.'.
  3. [Figure 4] The label 'Confided' on the LiDAR comparison subplot should be 'Confined'.
  4. [Table VIII] The table caption says 'HS indicates the output of Holistic-Fusion' but the text uses the abbreviation 'HF'; please standardize.
  5. [Appendix I] The sentence 'However, it lacks IEEE 1588v2 support (see Section VII)' appears to reference the wrong section; the discussion of the switch's lack of PTP support is in Section V-D2.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the modality tables are scored against TPS directly, and HF-based comparisons are relative ablations with disclosed reference construction.

full rationale

The most plausible circularity concern is the use of Holistic Fusion (HF) as ground truth, since HF fuses TPS, the HG4930 IMU, and Inertial Explorer IE-TC poses (Appendix B), while Section IV evaluates DLIO, OKVIS2, IE-TC, and TSIF. However, the modality comparison in Section IV-C is explicitly stated to be 'compared against the total station (TPS) measurements', not against the HF ground truth. Thus the GNSS row in Tables IV and V is scored against an independent TPS reference, not against a reference that contains IE-TC. The HF ground truth is introduced only in Section IV-D ('In the following, all APE/RPE error metric computations are done with respect to our 6-DoF ground truth pose estimate'), and it is used for relative ablations (LiDAR choice, camera choice, IMU choice, time-offset and extrinsic perturbations) where the same reference is applied to all conditions being compared. The fact that HF also uses the HG4930 IMU, which appears in some of the tested pipelines, is a shared-input limitation rather than a construction-level circularity: the tested algorithms' outputs are not fed into the reference, and the perturbation experiments measure differential degradation against a fixed reference. The paper also explicitly discloses that HF has 'privileged access' to TPS measurements and that Table VIII results 'do not reflect the accuracy of position during the dropout periods.' No fitted parameter is renamed as a prediction, no self-citation chain is load-bearing, and no ansatz is smuggled in via citation. The derivation chain is therefore self-contained and the empirical claims stand on independent measurement data.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The paper is an empirical hardware study, so the ledger contains no invented entities and no fitted parameters in the derivation sense. The main hidden choices are algorithm tuning, with DLIO tuned and OKVIS2 not, and the ground-truth construction that includes the GNSS solution being evaluated. The listed assumptions are load-bearing for interpreting the ablations.

free parameters (2)
  • DLIO algorithm hyperparameters = not specified
    Section IV-I states DLIO was tuned 'to the best of our knowledge' across all datasets, while OKVIS2 was not tuned per camera setting. This manual tuning to the test data can bias the modality comparison toward LiDAR.
  • IMU datasheet noise parameters = from datasheets, e.g., bias instability values in Table II
    Used in Holistic Fusion and DLIO/OKVIS2 configurations; these are manufacturer-provided inputs rather than fitted values, but their accuracy is assumed.
assumptions (4)
  • domain assumption The Leica MS60 total station tracks the prism with ±1.5 mm static accuracy and ±1 ms time-sync jitter.
    Appendix B; this is the anchor for all ground truth poses.
  • domain assumption Holistic Fusion output is a valid 6DoF ground truth reference even during TPS dropouts.
    Appendix B; during dropouts the GT relies on IE-TC and IMU, whose errors are then baked into the reference.
  • domain assumption The seven GrandTour environments are representative of unstructured real-world robot operation.
    Section IV-A; used to generalize conclusions about modalities, cameras, and IMUs.
  • domain assumption DLIO, OKVIS2, TSIF, and Inertial Explorer fairly represent their sensor modalities.
    Section IV-B; conclusions about LiDAR versus camera are tied to these specific implementations and their tuning.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Boxi: Design Decisions in the Context of Algorithmic Performance for Robotics." pith.science (2026). https://pith.science/paper/F3HZ5ROX

@misc{pith2026250418500,
  author       = {Pith},
  title        = {Pith review of: Boxi: Design Decisions in the Context of Algorithmic Performance for Robotics},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/F3HZ5ROX}},
  note         = {Machine review of arXiv:2504.18500}
}
read the original abstract

Achieving robust autonomy in mobile robots operating in complex and unstructured environments requires a multimodal sensor suite capable of capturing diverse and complementary information. However, designing such a sensor suite involves multiple critical design decisions, such as sensor selection, component placement, thermal and power limitations, compute requirements, networking, synchronization, and calibration. While the importance of these key aspects is widely recognized, they are often overlooked in academia or retained as proprietary knowledge within large corporations. To improve this situation, we present Boxi, a tightly integrated sensor payload that enables robust autonomy of robots in the wild. This paper discusses the impact of payload design decisions made to optimize algorithmic performance for downstream tasks, specifically focusing on state estimation and mapping. Boxi is equipped with a variety of sensors: two LiDARs, 10 RGB cameras including high-dynamic range, global shutter, and rolling shutter models, an RGB-D camera, 7 inertial measurement units (IMUs) of varying precision, and a dual antenna RTK GNSS system. Our analysis shows that time synchronization, calibration, and sensor modality have a crucial impact on the state estimation performance. We frame this analysis in the context of cost considerations and environment-specific challenges. We also present a mobile sensor suite `cookbook` to serve as a comprehensive guideline, highlighting generalizable key design considerations and lessons learned during the development of Boxi. Finally, we demonstrate the versatility of Boxi being used in a variety of applications in real-world scenarios, contributing to robust autonomy. More details and code: https://github.com/leggedrobotics/grand_tour_box

Figures

Figures reproduced from arXiv: 2504.18500 by the authors.

Figure 1
Figure 1. Boxi can be deployed handheld, on a legged robot, or a wheeled robot across a variety of environments. Abstract—Achieving robust autonomy in mobile robots op￾erating in complex and unstructured environments requires a multimodal sensor suite capable of capturing diverse and com￾plementary information. However, designing such a sensor suite involves multiple critical design decisions, such as sensor selection, compon… view at source ↗
Figure 2

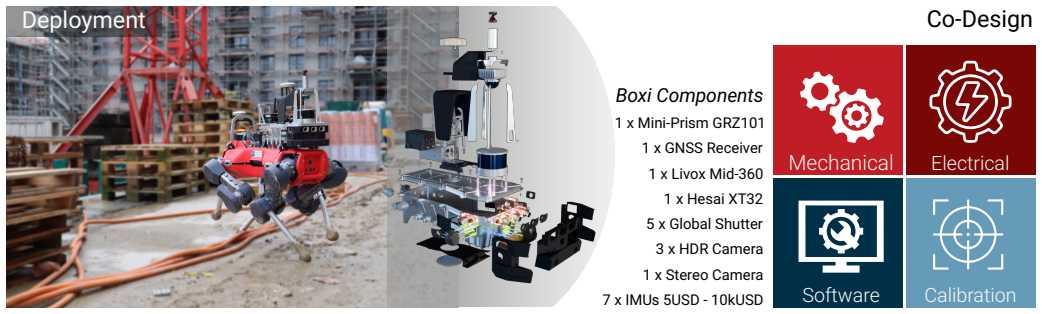

Figure 2. Co-design of hardware, electrical systems, software, and calibration is essential for developing a robust sensor payload. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Subset of the GrandTour Datasets Overview: (top-row) left, front, and right HDR camera images; (bottom-row) satellite image with [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (15 more)
Figure 4
Figure 4. Figure 4: Camera and LiDAR Comparison using OKVIS2 (HG4930) [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: Effect of different IMUs on the performance of DLIO module [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 9
Figure 9. Figure 9: Extrinsic Rotational Offset - Performance DLIO (Hesai + [PITH_FULL_IMAGE:figures/full_fig_p007_9.png]
Figure 8
Figure 8. Figure 8: Extrinsic Translation Offset - Performance DLIO (Hesai + [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 11
Figure 11. Figure 11: Example Deployment of Boxi: (a) TPS setup used for the ground truth pose generation. (b) Accurate intrinsic and extrinsic camera [PITH_FULL_IMAGE:figures/full_fig_p008_11.png]
Figure 12
Figure 12. Figure 12: Communication Overview: The camera sensors are directly connected to the processing compute units to reduce network load. [PITH_FULL_IMAGE:figures/full_fig_p010_12.png]
Figure 13
Figure 13. Figure 13: Visualization of LiDAR and Camera FoV: (Far Left) Top-down view of HDR FoV projected on flat ground plane. The black outline represents the rectified FoV; The distorted FoV overlaps while the undistorted one does not overlap. (Left Center) Top-down view of the CoreRes…
Figure 14
Figure 14. Figure 14: (a) Thermal deformation from heat generated by the compute [PITH_FULL_IMAGE:figures/full_fig_p012_14.png]
Figure 16
Figure 16. Figure 16: LiDAR reconstruction of the calibration target using camera [PITH_FULL_IMAGE:figures/full_fig_p014_16.png]
Figure 15
Figure 15. Figure 15: An overview of the calibrations done. The arrows indicate [PITH_FULL_IMAGE:figures/full_fig_p014_15.png]
Figure 17
Figure 17. Figure 17: Example calibration data samples used for the LiDAR to [PITH_FULL_IMAGE:figures/full_fig_p015_17.png]
Figure 18
Figure 18. Figure 18: Ground truth trajectory generated with Holistic Fusion [PITH_FULL_IMAGE:figures/full_fig_p022_18.png]
Figure 19
Figure 19. Figure 19: PTP synchronization experiment of Jetson and Nuc synchro [PITH_FULL_IMAGE:figures/full_fig_p024_19.png]
Figure 20
Figure 20. Figure 20: Heatmap of reprojection errors across all cameras. The consistent sub-pixel reprojection array throughout the image plane verifies the [PITH_FULL_IMAGE:figures/full_fig_p026_20.png]
Figure 21
Figure 21. Figure 21: Overlay of the LiDAR point cloud while moving forward at [PITH_FULL_IMAGE:figures/full_fig_p027_21.png]
