REVIEW 3 major objections 4 minor 46 references
VISUALCENT: Visual Human Analysis using Dynamic Centroid Representation
T0 review · 3 major / 4 minor · reviewed 2026-08-16 · deepseek-v4-flash
Pith's one-line read VISUALCENT combines keypoint detection and instance segmentation in one bottom-up network using dynamic keypoint centroids as grouping anchors.
desk verdict Reported bottom-up pose and segmentation numbers are strong, but the MaskCentroid grouping rule is never specified, so the central segmentation claim cannot be checked from the paper. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing mechanism is the dynamic centroid, used in two linked operations. KeyCentroid is a two-channel regression within the keypoint disk (radius $R=32$) that points toward the joint's location, refining the coarse heatmap response and providing high-confidence keypoint coordinates. MaskCentroid then selects one of those high-confidence keypoints per person as a learnable center of attraction for pixel clustering, grouping pixels by embedding distance to that center with the exponential affinity in equation (3). The dynamic adjustment of the centroid is what the paper credits for keeping segmentation stable under rapid body motion and severe occlusion, and it is also what keeps the runtime low, since each pixel only compares against a few anchors rather than all other pixels.
What would settle it
Re-run the static-versus-dynamic MaskCentroid comparison on the COCO validation set and on OCHuman with numeric mask AP, replacing the dynamic keypoint anchor with a fixed geometric centroid (the mean of the person's predicted keypoints or the static centroid used in PosePlusSeg). If the static variant matches or exceeds the dynamic variant's AP, then the dynamic anchor is not the source of the reported improvement.
Extended reading notes
Core claim
The core claim is that a single dynamic centroid per person, derived from a confidently detected keypoint, resolves the pixel-to-instance grouping problem in bottom-up segmentation. VISUALCENT first produces keypoint heatmaps with a disk representation (a radius-32 region around each joint) and a KeyCentroid regression that points from any pixel in the disk to the joint's exact location; these two outputs are combined to pick an optimal keypoint. One such keypoint per instance is then treated as a learnable MaskCentroid, and all mask pixels are clustered by embedding proximity using $\phi_j(e_i)=\exp(-\lVert e_i-\mu_j\rVert^2 / 2\sigma_j^2)$, where $\mu_j$ is the mean embedding of the instance. The paper claims this dynamic choice beats a fixed centroid when bodies move or occlude each other, and on COCO test-dev reaches 76.1 keypoint AP with ResNet-152 and 47.6 mask AP on the segmentation test set, along with gains on OCHuman.
Load-bearing premise
The method assumes that at least one keypoint per person is detected with high confidence even when bodies overlap or are occluded, because that single keypoint is the anchor that gathers all of the person's mask pixels; if no keypoint is reliable or the chosen one belongs to a different instance, the segmentation grouping has no correct center to cluster around.
Editorial extensions
If this is right
- A single bottom-up model could replace the detect-then-segment cascade for human analysis, eliminating the extra compute and failure modes of a person detector.
- The per-pixel grouping cost scales with the number of anchors, so crowded frames remain tractable without pairwise pixel comparisons.
- Real-time video applications such as surveillance, human-robot interaction, and live sports analysis could run pose and mask estimation at interactive frame rates.
- The dynamic-centroid mechanism appears to transfer across backbone capacities, since the paper shows gains with both ResNet-101 and ResNet-152.
Reading between the lines
- The MaskCentroid idea is portable to other instance-level dense tasks, such as animal pose and part segmentation, whenever one reliable semantic keypoint per instance exists.
- If the anchor is the single highest-confidence keypoint, segmentation accuracy becomes coupled to keypoint confidence calibration; a separate learned anchor-confidence could decouple them.
- A quantitative ablation that varies the choice of anchor keypoint (e.g., highest confidence vs. a limb-specific joint) would clarify how much of the gain comes from the dynamic selection rule itself.
- The method's limitation is likely a person with no visible keypoint at all; adding a fallback centroid, such as the mean of lower-confidence keypoints or a learned embedding center, would extend it to fully occluded instances.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces VISUALCENT, a bottom-up framework for unified multi-person 2D pose estimation and instance segmentation. The method first detects keypoints using a keypoint heatmap with a disk representation and a 'KeyCentroid' regressed offset field, then groups mask pixels to instances using a 'MaskCentroid' defined as a high-confidence keypoint that serves as a dynamic clustering anchor. Evaluations are reported on COCO keypoint test-dev, COCO segmentation test, and OCHuman, with tables showing improvements over prior bottom-up methods such as PosePlusSeg and PersonLab. The abstract also claims real-time performance. The central technical novelty is the dynamic MaskCentroid, which is claimed to outperform a static centroid under occlusion and rapid motion.
Significance. If the reported results are reproducible and the dynamic-centroid mechanism is fully specified, the paper would make a useful contribution: it is a detector-free unified pose-and-segmentation model that reports competitive mAP on COCO and particularly strong gains on OCHuman, a highly occluded benchmark. The external evaluation on standard benchmarks and the direct comparisons with recent bottom-up methods are strengths. However, the paper's central claim about the dynamic MaskCentroid is currently under-specified, and the key ablation supporting it contains no numbers. The real-time claim is also not quantified. These gaps prevent the reader from verifying or building on the method, so the current version does not meet the evidentiary bar for its headline claims.
major comments (3)
- [Section III-D (Dynamic MaskCentroid)] The inference-time assignment rule for MaskCentroid is never defined. Equations (2) and (3) describe a centroid F' and a similarity phi_j(e_i) using the known set N_j of pixels belonging to an instance, but the paper does not specify how a predicted high-confidence keypoint anchors pixels, how the similarity threshold or assignment procedure works, how overlapping instances are separated, or what happens when the anchoring keypoint is occluded or incorrectly detected. The text 'defining the highly confident keypoint as a learnable parameter' is not an algorithm. The training loss is also not written: the paper only says 'the MaskCentroid offset loss' is minimized (Section III). Without this specification, the segmentation pipeline cannot be reproduced or even falsified from the manuscript, which is a load-bearing gap for the central claim that dynamic MaskCentroids improve mask AP.
- [Section IV-A, Fig. 6] The key ablation comparing Static MaskCentroid (SMc) and Dynamic MaskCentroid (DMc) is presented only as a figure with no numerical values. The text states that 'the exceptional performance of the proposed DMc approach demonstrates its effectiveness' but provides no AP numbers, no standard deviation, and no evaluation protocol details for Fig. 6. Since the dynamic-centroid design is the paper's main novelty, this ablation must be reported with concrete numbers (e.g., a table with AP, AP_50, AP_75) for the claim to be verifiable.
- [Abstract and Section IV (Computational Cost)] The abstract claims 'real time performance advantages' and 'execution frame rate per second' advantages, and Section IV states that Fig. 5 shows 'high FPS' relative to sister models. However, no FPS table or per-model frame-rate numbers are given anywhere in the manuscript. Fig. 5 is a scatter plot without a clear quantitative legend. A real-time claim requires at least a table reporting FPS, hardware, batch size, and input resolution for each compared model; the current evidence is insufficient to assess the central speed claim.
minor comments (4)
- [Section IV (OCHuman results)] The text says VISUALCENT 'improves 10.0% compare to HGG [18]' using the OCHuman test set; since the improvement is from 36.0 to 46.0 AP, this is a 10.0 percentage-point gain, not a 10.0% relative improvement. Please clarify the terminology.
- [Table III] Table III lists PersonLab four times, with two rows per backbone and identical backbone labels but different AP values. Please label which rows are single-scale and which are multi-scale, and reconcile the caption footnote with the table entries.
- [References] In the Segmentation Results paragraph, 'Pose+Seg [9]' appears to be a citation error: reference [9] is Dantone et al., not PosePlusSeg; the PosePlusSeg reference is [1]. Similarly, in Section IV the MIPNet citation appears as [19] while the reference list shows MIPNet as [20].
- [Throughout] The method name is spelled inconsistently: 'VISUALCENT' in the abstract and 'VISUAL CENT' in the body and title. Also, 'MaskCenroid' appears in Section I. Please unify the spelling.
Circularity Check
No significant circularity: the method is evaluated on external public benchmarks and the reported improvements are empirical comparisons, not derivations that fold the target result into the construction.
full rationale
The paper makes empirical claims about mAP and FPS that are supported by evaluations on COCO and OCHuman test sets, with the model trained end-to-end from public supervision. Equation (1) is a standard Gaussian-shaped regression target for keypoint displacements, Eq. (2) defines an instance centroid given its pixels, and Eq. (3) is a similarity kernel in embedding space; none of these equations equates a fitted parameter with a claimed prediction. The only overlapping-author citation, [1] PosePlusSeg, is used transparently as a baseline and as the contrast for the dynamic-centroid idea, but it is not load-bearing for the validity of the reported benchmark numbers, which rest on external test sets. The manuscript does leave the MaskCentroid inference-time assignment rule and the MaskCentroid offset loss unspecified, so the segmentation mechanism cannot be fully checked from the paper; that is a completeness and reproducibility gap, not circularity, because no reported result is forced by construction.
Assumptions & free parameters
free parameters (2)
- Keypoint disk radius R =
32
- sigma_j (embedding bandwidth in Eq. 3) =
not specified
assumptions (4)
- domain assumption Keypoint disks of fixed radius R=32 can represent all keypoint regions across scales and occlusions.
- domain assumption A single high-confidence keypoint per instance is a sufficient cluster anchor for all mask pixels.
- ad hoc to paper The dynamic centroid can be optimized by treating the high-confidence keypoint as a learnable parameter.
- domain assumption Training on COCO transfers to OCHuman without domain adaptation.
invented entities (2)
-
KeyCentroid (Kc)
-
MaskCentroid (Mc)
Cite this review
Pith. "Pith review of VISUALCENT: Visual Human Analysis using Dynamic Centroid Representation." pith.science (2026). https://pith.science/paper/N6ORY7FC
@misc{pith2026250419032,
author = {Pith},
title = {Pith review of: VISUALCENT: Visual Human Analysis using Dynamic Centroid Representation},
year = {2026},
howpublished = {\url{https://pith.science/paper/N6ORY7FC}},
note = {Machine review of arXiv:2504.19032}
}
read the original abstract

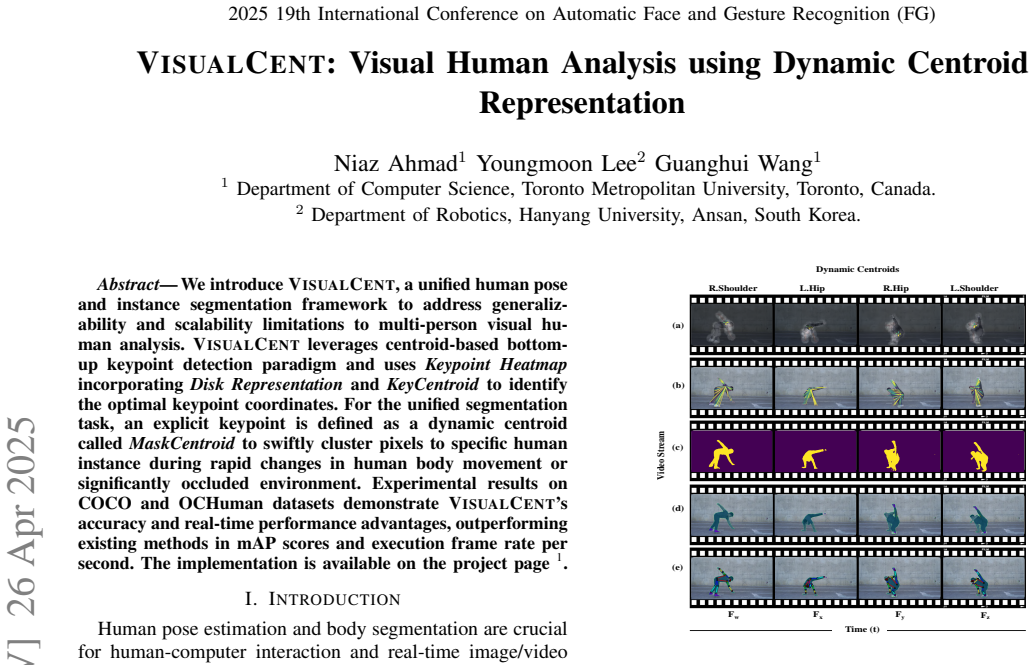

We introduce VISUALCENT, a unified human pose and instance segmentation framework to address generalizability and scalability limitations to multi person visual human analysis. VISUALCENT leverages centroid based bottom up keypoint detection paradigm and uses Keypoint Heatmap incorporating Disk Representation and KeyCentroid to identify the optimal keypoint coordinates. For the unified segmentation task, an explicit keypoint is defined as a dynamic centroid called MaskCentroid to swiftly cluster pixels to specific human instance during rapid changes in human body movement or significantly occluded environment. Experimental results on COCO and OCHuman datasets demonstrate VISUALCENTs accuracy and real time performance advantages, outperforming existing methods in mAP scores and execution frame rate per second. The implementation is available on the project page.
