REVIEW 2 major objections 5 minor 31 references
Aganagic's invariant is Khovanov homology
T0 review · 2 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash
Pith's one-line read This paper proves that Aganagic's symplectic invariant computes Khovanov homology with both gradings and over Z, by showing the geometric braid action matches Webster's combinatorial action.
desk verdict Real proof of Aganagic's conjecture, but the u/ℏ-grading preservation of the embedding from [6] is a load-bearing dependency the authors flag without discharging. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing machinery is the embedding theorem of [6] (restated as Theorem 5.5): the diagrammatic KLRW category, meaning the category of strand diagrams on a circle modulo local relations, embeds into the Fukaya-Seidel category of the multiplicative Coulomb branch while preserving the $u$, $\hbar$, and $J$ gradings. Over this bridge, the main calculational object is the complex $\Lambda_n = (U_+ \times T_+^{n-1})^{\oplus n} \to T_+^n$, which is shown to be isomorphic to $T^n$ as an object and whose image under braiding can be computed directly on both sides. The exact triangle that identifies a cone over a Reeb chord with a Polterovich-style surgery at infinity converts the braiding into explicit disk counts, and Corollary 2.3 uses the auxiliary gradings to force the resulting isomorphisms to be natural.
What would settle it
Compute the geometric Hom space for the 2-strand closed braid giving the Hopf link, using the multicurve and disk-counting rules of Section 5, and compare its $u=\hbar=1$ bigraded Poincaré polynomial with the Khovanov homology of the Hopf link; any mismatch in grading, Euler characteristic, or torsion would disprove the claimed equality.
Extended reading notes
Core claim
The central claim is Theorem 1.1: for the one-node quiver with dimension vector $n$, the embedding of Webster's diagrammatic KLRW category into the Fukaya-Seidel category of the multiplicative Coulomb branch intertwines the braid group representation $\rho_W$ with the monodromy representation $\rho_A$, and sends Webster's cup object $\cup_W^n$ to the geometric cup object $\cup_A^n$. Consequently, for any braid $\beta$, the Khovanov homology of its plat closure is isomorphic, as a bigraded group over $\mathbb{Z}$, to $\mathrm{Hom}_{\mathrm{Fuk}}(\cup_A^n, \rho_A(\beta)\cup_A^n)$. The proof identifies a convenient resolution $\Lambda_n$ of the generating object whose braiding is tractable on both sides: geometric braiding turns it into $\Lambda'_n$, and Webster's braiding does the same, forcing the actions to agree. Auxiliary gradings rule out unwanted automorphisms, and the identification of cones over Reeb chords with Lagrangian surgeries supplies the geometric side.
Load-bearing premise
The load-bearing premise is that the diagrammatic KLRW category embeds into the Fukaya-Seidel category of the multiplicative Coulomb branch while preserving the $u$, $\hbar$, and $J$ gradings; if this embedding or its grading preservation fails, the intertwining has no geometric side.
Editorial extensions
If this is right
- Aganagic's geometric Hom pairing computes Khovanov homology as an abelian group with both gradings, over the integers, not only over the rationals.
- The Jones grading now has a geometric origin: it arises from an ordinary cohomology class in the Coulomb branch, not from symplectic data.
- The identification gives a canonical quasi-isomorphism between the Webster and Aganagic chain complexes up to homotopy; the paper does not prove that the homotopies themselves are canonical, but expects that they are.
- Working with the full annular braid group should yield annular Khovanov homology, as the paper remarks.
Reading between the lines
- The same intertwining strategy may plausibly extend to other ADE-type quivers, giving symplectic constructions of knot homologies associated to other simple Lie algebras; the paper proves only the one-node sl(2) case.
- The equality between the cup and cap objects suggests the geometric invariant could be defined without referring to braid closures, potentially making functoriality under link cobordisms more transparent.
- The explicit disk-counting calculations could be developed into an algorithmic way to compute Khovanov homology, rather than merely identifying the two constructions abstractly.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proves that Aganagic's symplectic construction of Khovanov homology, via the Fukaya-Seidel category of the multiplicative Coulomb branch of a quiver gauge theory, coincides with Webster's combinatorial construction. For Γ=• and a collection of 2n points, it shows that the embedding of Webster's KLRW category into Fuk_|||(M^×(•,n), W_a) established in [6] intertwines Webster's braid group action ρ_W with the monodromy action ρ_A and sends the cup object ∪_W^n to ∪_A^n. Consequently, Khovanov homology is isomorphic to Hom_Fuk(∪_A^n, ρ_A(β)∪_A^n) over Z, with both the homological and Jones gradings. The proof is by explicit diagrammatic and Floer-theoretic calculations, centered on a resolution Λ^n of the n-strand object that behaves simply under both braidings.
Significance. If the result holds, it is a significant advance: it gives a symplectic/Lagrangian construction of Khovanov homology over the integers and with both gradings, going beyond the Seidel-Smith construction which is currently known over Q. The paper is clearly written and the main calculations are explicit and verifiable. The grading-constraint argument (Corollary 2.3) is an elegant way to reduce the naturality check to a small number of diagrams, and the construction of the 'easy to braid' objects Λ^n (Section 4) is the key technical contribution. However, the argument inherits a load-bearing premise from the companion paper [6] concerning grading preservation, which the authors themselves flag as not explicit, and one geometric argument in Section 8 would benefit from fuller justification.
major comments (2)
- [§5.2, Remark 5.6; proof of Theorem 9.1] The proof of Theorem 9.1 and the promotion of the object-wise isomorphisms to a natural transformation via Corollary 2.3 require the embedding A of Theorem 5.5 to be an equivalence onto its image over Z[u,ℏ] and to preserve the u, ℏ, and J gradings. Remark 5.6 concedes that the u and ℏ grading preservation is not explicit in the available version of [6]. This is a load-bearing point: if A preserves only the J grading, then Φ=(B_W)^{-1}∘A^{-1}∘B_A∘A is not known to be graded, Lemma 2.2 and Corollary 2.3 do not apply, and the object-wise isomorphisms cannot be assembled into a natural transformation. The authors should either prove the needed grading statement, supply a precise quotation from [6] with proof, or restructure the argument so that it does not depend on unverified grading properties.
- [§8, proof of Proposition 8.1] The inductive step in the proof of Proposition 8.1 (around equation (45) and Figures 11) asserts that the newly created intersection points form an acyclic complex and that the homology class of (p···) is preserved under the continuation map. The written argument only analyzes the disk from q_2 to q_1 and does not give a full account of the differentials among the new generators or of the claim that intersection points involving p remain closed. This is a key step in identifying Λ^n with θ^n, and it needs a more systematic justification, either a complete disk count or a reference to a general principle.
minor comments (5)
- [Corollary 2.3] The 'particular element' in condition (2) of Corollary 2.3 is not explicitly described in the text; the diagram appears to be missing or unlabeled. Please clarify what element is meant, as the proof of Theorem 9.1 explicitly invokes this condition.
- [Corollary 6.2] The sentence '(If η= ‘ηi, then there are Q_i #π_0(η_i\red lines) such L_μ in the iterated cone.)' contains a typo and is unclear; please rewrite it.
- [§2.3] The definition of the u- and ℏ-gradings is terse; the degrees quoted in Lemma 2.2 (e.g., u-degree 1/2 for a red-black crossing) are not derived in the text. Adding a short derivation from the relations in Figure 1 would make the paper more self-contained.
- [§10, footnote 8] The construction of the cap object I_Π is explicitly labeled as a sketch, and no conic-check is provided. Since the main theorem only needs the cup object E_Π, I suggest moving the I_Π discussion to a clearly-marked remark or supplying the missing analytic detail, so that readers do not mistake it for part of the main proof.
- [§5.5] In equation (37), the counts #Φ_y^{-1}(a), Φ_u^{-1}(0) and Φ_u^{-1}(∞) are used without defining the maps for the specific disk being counted; a sentence explaining the notation would help.
Circularity Check
No circularity: the intertwining is proved by direct calculation, and the self-cited embedding theorem is an independent foundational input whose assumptions do not include the target Khovanov equivalence.
full rationale
The paper's central claim is Theorem 1.1: the embedding of Webster's category into the Fukaya–Seidel category intertwines the Webster and Aganagic braid actions and carries cup_W^n to cup_A^n, so that Kh(beta) is isomorphic to Hom_Fuk(cup_A^n, rho_A(beta) cup_A^n). The derivation does not assume the conclusion. Webster's computation of Khovanov homology from his combinatorial action (Eq. 3) is an external, independent result [28], and the paper's own contribution is a direct calculation showing that the geometric monodromy action and Webster's combinatorial action agree on generators (Prop. 4.1, Prop. 8.1, Thm. 9.1) and that the cup objects match (Lemma 10.2). The main self-citation is Theorem 5.5, the embedding from [6]; although load-bearing, it is not circular. It is a general embedding theorem with stated hypotheses (ADE type, distinct arguments, Z[u,hbar] linear, grading preserving) that do not include the braid intertwining or the Khovanov-homology comparison, and it is not derived from the target result. The paper explicitly flags some rigor caveats: Remark 5.6 concedes that u- and hbar-grading preservation was not explicit in the available version of [6], Remark 9.2 notes that higher coherences of the intertwining were not checked, and the footnote in Section 10.2 calls the caps discussion a sketch. These are correctness and completeness concerns, not circularity: none of them amounts to fitting a parameter to the output or defining a quantity in terms of the claimed conclusion. Since the claimed equivalence with Khovanov homology rests on an external independent theorem and on explicit computations rather than on an assumed version of itself, no circular step is present.
Assumptions & free parameters
assumptions (4)
- domain assumption Existence of the multiplicative Coulomb branch M^times(Gamma,d) and its Fukaya-Seidel category Fuk(M^times(Gamma,d), W_a), with the properties used from [8] and [6].
- domain assumption Embedding theorem [6, Thm. 1.7], restated as Theorem 5.5: for ADE Gamma, the KLRW category C_{Gamma,d,arg(a)} embeds in Fuk_|||(...) over Z[u,hbar], preserving u, hbar, and J gradings.
- domain assumption Webster's theorem [28] that Khovanov homology is recovered as Hom_{A(.,n,2n)-mod}(cup_W^n, rho_W(beta) cup_W^n).
- domain assumption The cone equals surgery and surgery at infinity exact triangle from [13, Prop. 1.12], together with the cylindrical model of holomorphic disks from [6].
Cite this review
Pith. "Pith review of Aganagic's invariant is Khovanov homology." pith.science (2026). https://pith.science/paper/SQD42GNK
@misc{pith2026250500327,
author = {Pith},
title = {Pith review of: Aganagic's invariant is Khovanov homology},
year = {2026},
howpublished = {\url{https://pith.science/paper/SQD42GNK}},
note = {Machine review of arXiv:2505.00327}
}

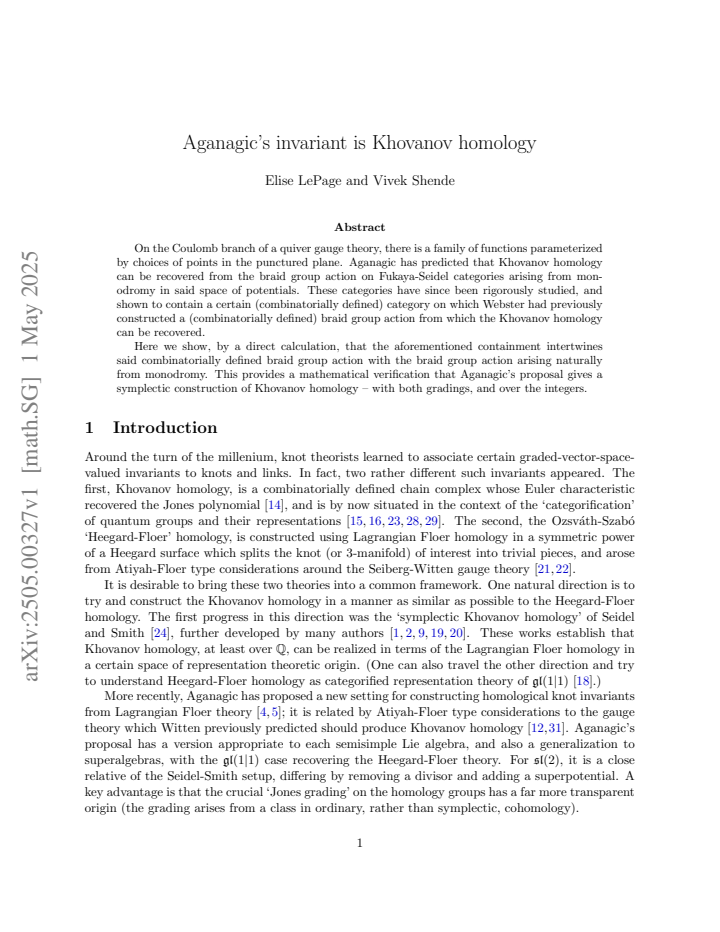

read the original abstract
On the Coulomb branch of a quiver gauge theory, there is a family of functions parameterized by choices of points in the punctured plane. Aganagic has predicted that Khovanov homology can be recovered from the braid group action on Fukaya-Seidel categories arising from monodromy in said space of potentials. These categories have since been rigorously studied, and shown to contain a certain (combinatorially defined) category on which Webster had previously constructed a (combinatorially defined) braid group action from which the Khovanov homology can be recovered. Here we show, by a direct calculation, that the aforementioned containment intertwines said combinatorially defined braid group action with the braid group action arising naturally from monodromy. This provides a mathematical verification that Aganagic's proposal gives a symplectic construction of Khovanov homology -- with both gradings, and over the integers.
Figures
Figures from the paper (16 more)
Reference graph
Works this paper leans on
-
[6]
Quiver Hecke algebras from Floer homology in Coulomb branches.arXiv:2406.04258
Mina Aganagic, Ivan Danilenko, Yixuan Li, Vivek Shende, and Peng Zhou. Quiver Hecke algebras from Floer homology in Coulomb branches.arXiv:2406.04258
-
[1]
The symplectic arc algebra is formal.Duke Mathe- matical Journal, 165(6):985–1060, 2016
Mohammed Abouzaid and Ivan Smith. The symplectic arc algebra is formal.Duke Mathe- matical Journal, 165(6):985–1060, 2016
work page 2016
-
[2]
Mohammed Abouzaid and Ivan Smith. Khovanov homology from Floer cohomology.Journal of the American Mathematical Society, 32(1):1–79, 2019
work page 2019
-
[3]
Knot categorification from mirror symmetry, part I: Coherent sheaves
Mina Aganagic. Knot categorification from mirror symmetry, part I: Coherent sheaves. arXiv:2004.14518
arXiv 2004
-
[4]
Knot categorification from mirror symmetry, part II: Lagrangians
Mina Aganagic. Knot categorification from mirror symmetry, part II: Lagrangians. arXiv:2105.06039
-
[5]
Homological knot invariants from mirror symmetry
Mina Aganagic. Homological knot invariants from mirror symmetry. InProc. Int. Cong. Math. 2022, volume 3, page 2108–2144. EMS Press, 2023
work page 2022
-
[7]
Homological link invariants from Floer theory.arXiv:2305.13480
Mina Aganagic, Elise LePage, and Miroslav Rapcak. Homological link invariants from Floer theory.arXiv:2305.13480
-
[8]
Alexander Braverman, Michael Finkelberg, and Hiraku Nakajima. Towards a mathematical definition of Coulomb branches of 3-dimensional n=4 gauge theories, II.Advances in Theoret- ical and Mathematical Physics, 22(5):1071–1147, 2018
work page 2018
Show all 31 references
-
[9]
Bigrading the symplectic Khovanov cohomology.Algebraic & Geometric Topol- ogy, 23(9):4057–4086, 2023
Zhechi Cheng. Bigrading the symplectic Khovanov cohomology.Algebraic & Geometric Topol- ogy, 23(9):4057–4086, 2023
2023
-
[10]
Perverse equivalences.Available athttps: // www
Joseph Chuang and Rapha¨ el Rouquier. Perverse equivalences.Available athttps: // www. math. ucla. edu/ ~ rouquier/ papers/ perverse. pdf
-
[11]
Chapter 10: La- grangian surgery and holomorphic discs.Unpublished chapter fromLagrangian intersec- tion Floer theory: anomaly and obstruction,https: // www
Kenji Fukaya, Yong-Geun Oh, Hiroshi Ohta, and Kaoru Ono. Chapter 10: La- grangian surgery and holomorphic discs.Unpublished chapter fromLagrangian intersec- tion Floer theory: anomaly and obstruction,https: // www. math. kyoto-u. ac. jp/ fukaya/ Chapter10071117. pdf
-
[12]
Knot Invariants from Four-Dimensional Gauge Theory
Davide Gaiotto and Edward Witten. Knot Invariants from Four-Dimensional Gauge Theory. Adv. Theor. Math. Phys., 16(3):935–1086, 2012
2012
-
[13]
Sectorial descent for wrapped Fukaya cate- gories.Journal of the American Mathematical Society, 37(2):499–635, 2024
Sheel Ganatra, John Pardon, and Vivek Shende. Sectorial descent for wrapped Fukaya cate- gories.Journal of the American Mathematical Society, 37(2):499–635, 2024
2024
-
[14]
A categorification of the Jones polynomial.Duke Mathematical Journal, 101(3):359 – 426, 2000
Mikhail Khovanov. A categorification of the Jones polynomial.Duke Mathematical Journal, 101(3):359 – 426, 2000
2000
-
[15]
A diagrammatic approach to categorification of quantum groups I.Representation Theory, 13(14):309–347, 2009
Mikhail Khovanov and Aaron Lauda. A diagrammatic approach to categorification of quantum groups I.Representation Theory, 13(14):309–347, 2009
2009
-
[16]
A diagrammatic approach to categorification of quantum groups II.Transactions of the American Mathematical Society, 363(5):2685–2700, 2011
Mikhail Khovanov and Aaron Lauda. A diagrammatic approach to categorification of quantum groups II.Transactions of the American Mathematical Society, 363(5):2685–2700, 2011. 31
2011
-
[17]
A cylindrical reformulation of Heegaard Floer homology.Geometry & Topol- ogy, 10(2):955–1096, 2006
Robert Lipshitz. A cylindrical reformulation of Heegaard Floer homology.Geometry & Topol- ogy, 10(2):955–1096, 2006
2006
-
[18]
Higher representations and cornered Heegaard Floer homology.arXiv:2009.09627
Andrew Manion and Raphael Rouquier. Higher representations and cornered Heegaard Floer homology.arXiv:2009.09627
2009
-
[19]
Nilpotent slices, Hilbert schemes, and the Jones polynomial.Duke Math- ematical Journal, 132(2):311 – 369, 2006
Ciprian Manolescu. Nilpotent slices, Hilbert schemes, and the Jones polynomial.Duke Math- ematical Journal, 132(2):311 – 369, 2006
2006
-
[20]
Link homology theories from symplectic geometry.Advances in Mathe- matics, 211(1):363–416, 2007
Ciprian Manolescu. Link homology theories from symplectic geometry.Advances in Mathe- matics, 211(1):363–416, 2007
2007
-
[21]
Holomorphic disks and knot invariants.Advances in Math- ematics, 186(1):58–116, 2004
Peter Ozsv´ ath and Zolt´ an Szab´ o. Holomorphic disks and knot invariants.Advances in Math- ematics, 186(1):58–116, 2004
2004
-
[22]
Holomorphic disks and topological invariants for closed three-manifolds.Annals of Mathematics, pages 1027–1158, 2004
Peter Ozsv´ ath and Zolt´ an Szab´ o. Holomorphic disks and topological invariants for closed three-manifolds.Annals of Mathematics, pages 1027–1158, 2004
2004
- [23]
-
[24]
A link invariant from the symplectic geometry of nilpotent slices
Paul Seidel and Ivan Smith. A link invariant from the symplectic geometry of nilpotent slices. Duke Math. J., 131(1):453–514, 2006
2006
-
[25]
Homological mirror symmetry for Calabi–Yau hypersurfaces in projective space.Inventiones mathematicae, 199(1):1–186, 2015
Nick Sheridan. Homological mirror symmetry for Calabi–Yau hypersurfaces in projective space.Inventiones mathematicae, 199(1):1–186, 2015
2015
-
[26]
Coherent sheaves and quantum Coulomb branches I: tilting bundles from inte- grable systems.arXiv:1905.04623
Ben Webster. Coherent sheaves and quantum Coulomb branches I: tilting bundles from inte- grable systems.arXiv:1905.04623
1905 arXiv
-
[27]
Coherent sheaves and quantum Coulomb branches II: quiver gauge theories and knot homology.arXiv:2211.02099
Ben Webster. Coherent sheaves and quantum Coulomb branches II: quiver gauge theories and knot homology.arXiv:2211.02099
-
[28]
Knot invariants and higher representation theory.arXiv:1309.3796
Ben Webster. Knot invariants and higher representation theory.arXiv:1309.3796
-
[29]
Weighted Khovanov-Lauda-Rouquier algebras.arXiv:1209.2463
Ben Webster. Weighted Khovanov-Lauda-Rouquier algebras.arXiv:1209.2463
-
[30]
Tensor product algebras, Grassmannians and Khovanov homology.Physics and mathematics of link homology, 680:23–58, 2016
Ben Webster. Tensor product algebras, Grassmannians and Khovanov homology.Physics and mathematics of link homology, 680:23–58, 2016
2016
-
[31]
Fivebranes and knots.Quantum Topology, 3(1):1–137, 2011
Edward Witten. Fivebranes and knots.Quantum Topology, 3(1):1–137, 2011. 32
2011
