arxiv: 2509.01728 · v4 · submitted 2025-09-01 · 💻 cs.RO · cs.LG· cs.LO

Constrained Decoding for Safe Robot Navigation Foundation Models

Pith reviewed 2026-05-18 19:03 UTC · model grok-4.3

classification 💻 cs.RO cs.LGcs.LO
keywords constrained decodingrobot foundation modelssignal temporal logicsafe navigationembodied AItransformer policiesSTL specifications
0
0 comments X

The pith

SafeDec uses constrained decoding to make generated actions from robot navigation foundation models provably satisfy STL safety specifications without retraining.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents SafeDec, a framework that adds safety checks to how transformer-based robot models generate action sequences. The models are powerful but can produce unsafe behaviors because they lack explicit correctness guarantees. SafeDec enforces Signal Temporal Logic rules during the decoding process itself, using assumed robot dynamics to verify that actions will meet safety specs. This allows safe operation at runtime while working with any existing policy and without needing to retrain the model. Readers should care as it bridges data-driven AI with formal safety assurances for physical robots in navigation tasks.

Core claim

The central discovery is a constrained decoding approach for autoregressive robot foundation models that enforces STL formulas so that the output action sequences provably satisfy the safety specifications under the assumed dynamics, all at inference time and independent of the specific policy model used.

What carries the argument

SafeDec constrained decoding framework, which integrates STL verification into the autoregressive generation process using assumed system dynamics to prune or guide unsafe action sequences.

If this is right

  • Action sequences generated by the model will satisfy the given STL specifications by design.
  • The method applies to any underlying navigation policy since it is policy-agnostic.
  • Safety is ensured at runtime without any need for model retraining or fine-tuning.
  • Decoding interventions can both filter out unsafe actions and generate conditional safe actions for tasks in the CHORES benchmark.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the assumed dynamics match reality closely, this could allow reliable safe navigation in diverse environments without custom safety training.
  • Extensions might include handling uncertainty in dynamics or applying similar constraints to other robot tasks like manipulation.
  • The approach highlights a way to combine formal methods with large foundation models for embodied systems.

Load-bearing premise

The verification step during decoding depends on having an accurate model of the robot's dynamics to check STL satisfaction.

What would settle it

Executing the generated actions on a physical robot and finding that an STL specification is violated under the dynamics model used during decoding would show the claim does not hold.

Figures

Figures reproduced from arXiv: 2509.01728 by Akila Ganlath, Changliu Liu, Eunsuk Kang, Michael Clifford, Parv Kapoor, Sebastian Scherer.

Figure 1
Figure 1. Figure 1: Overview of our specification aligned decoding framework. Given multimodal inputs [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Qualitative comparison of decoded trajectories for a sample scene. Each plot shows a top [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

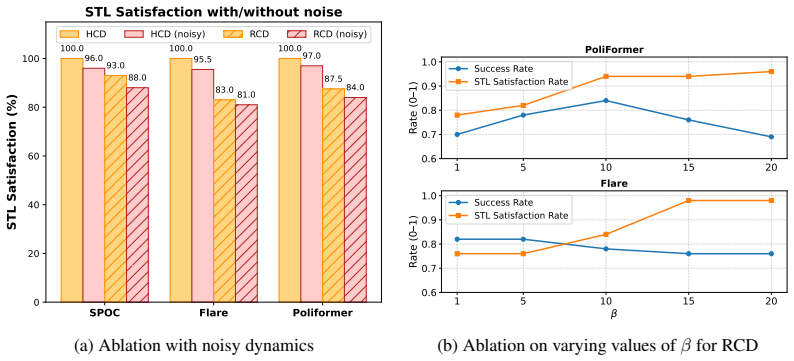

Figure 3
Figure 3. Figure 3: Ablation studies. (a) STL satisfaction (%) for HCD and RCD under baseline vs noisy dynamics across base models. (b) Effect of β on success rate and safety satisfaction. robustness and base logits. To investigate the impact of β on the success rate and STL satisfaction, we performed an ablation with varying values for β for Flare and PoliFormer. We observe that as β increases for PoliFormer, both STL satisf… view at source ↗

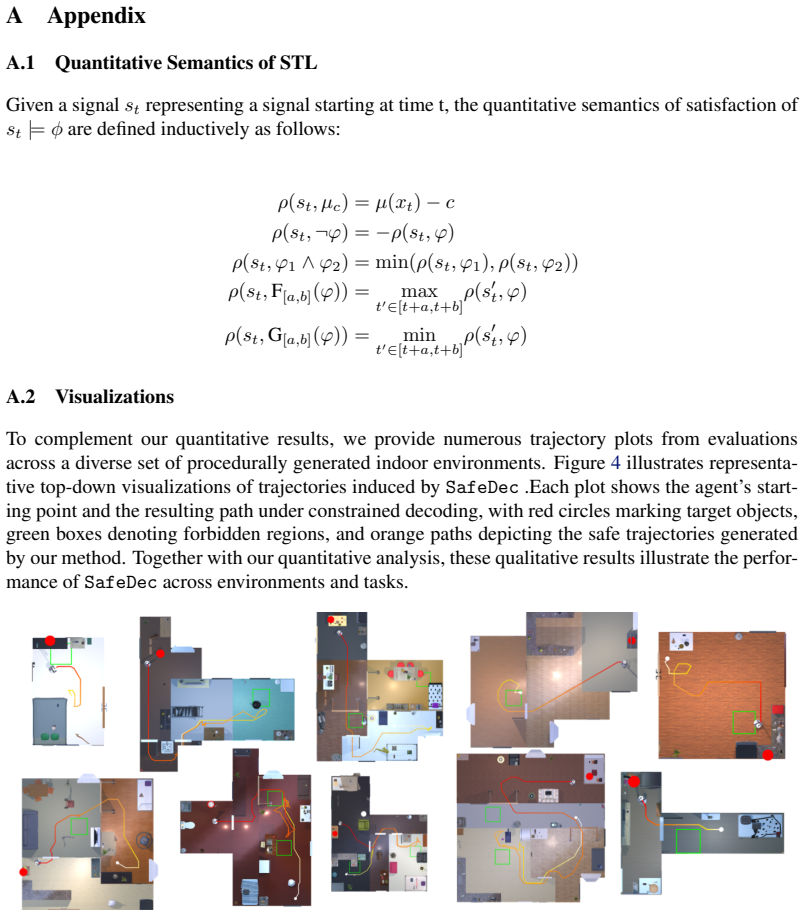

Figure 4
Figure 4. Figure 4: Top-down views across indoor environments with [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
read the original abstract

Recent advances in the development of robotic foundation models have led to promising end-to-end and general-purpose capabilities in robotic systems. Trained on vast datasets of simulated and real-world trajectories, these policies map multimodal observations directly to action sequences for physical execution. Despite promising real-world capabilities, these models are still data-driven and, therefore, lack explicit notions of behavioral correctness. We address this gap by introducing SafeDec, a constrained decoding framework for autoregressive, transformer-based robot navigation foundation models that enforces safety specifications expressed as Signal Temporal Logic (STL) formulas. Our method ensures that generated actions provably satisfy STL specifications under assumed dynamics at runtime without retraining while remaining agnostic of the underlying policy. We evaluate SafeDec on tasks from the CHORES benchmark for state-of-the-art embodied navigation policies across hundreds of procedurally generated environments and show that our decoding-time interventions are useful not only for filtering unsafe actions but also for conditional action generation. Videos are available at constrained-robot-fms.github.io

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces SafeDec, a constrained decoding framework for autoregressive, transformer-based robot navigation foundation models. It enforces safety specifications expressed as Signal Temporal Logic (STL) formulas during decoding to ensure that generated actions provably satisfy the STL specifications under assumed dynamics at runtime, without retraining the model and while remaining agnostic to the underlying policy. The approach is evaluated on tasks from the CHORES benchmark for state-of-the-art embodied navigation policies across hundreds of procedurally generated environments, demonstrating utility for both filtering unsafe actions and conditional action generation.

Significance. If the central claims hold, this work offers a practical runtime mechanism to add formal safety guarantees to black-box robot foundation models using STL, which could be significant for safe real-world deployment of general-purpose navigation policies. The policy-agnostic and no-retraining properties are strengths that could enable broad adoption. The scale of the evaluation across hundreds of environments is a positive indicator of generality, though the absence of detailed quantitative results limits the demonstrated impact.

major comments (2)
  1. [Abstract and Evaluation section] Abstract and Evaluation section: The claim that generated actions 'provably satisfy STL specifications under assumed dynamics' is load-bearing on the fidelity of the assumed dynamics model used to simulate future states during decoding. The manuscript provides no robustness analysis, sensitivity experiments, or discussion of mismatches due to parameter errors, unmodeled effects, or disturbances, which is required to establish that the guarantee transfers beyond simulation.
  2. [Evaluation section] Evaluation section: The abstract states that SafeDec is evaluated on the CHORES benchmark across hundreds of environments and shows usefulness for filtering and conditional generation, but no quantitative metrics (e.g., success rates, violation rates, or comparison baselines), error analysis, or details on how post-hoc dynamics assumptions affect the reported outcomes are provided. This absence makes it difficult to substantiate the practical effectiveness of the decoding interventions.
minor comments (2)
  1. [Abstract] The video link is given as constrained-robot-fms.github.io; provide a complete, clickable URL and ensure supplementary material includes example STL formulas and decoding traces for reproducibility.
  2. Clarify the exact form of the STL formulas employed in the CHORES tasks and the precise mechanism by which they are checked during autoregressive token generation (e.g., horizon length, predicate definitions).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and for recognizing the potential significance of SafeDec in providing runtime safety guarantees for robot foundation models. We address each major comment below and outline the revisions planned for the next version of the manuscript.

read point-by-point responses
  1. Referee: [Abstract and Evaluation section] Abstract and Evaluation section: The claim that generated actions 'provably satisfy STL specifications under assumed dynamics' is load-bearing on the fidelity of the assumed dynamics model used to simulate future states during decoding. The manuscript provides no robustness analysis, sensitivity experiments, or discussion of mismatches due to parameter errors, unmodeled effects, or disturbances, which is required to establish that the guarantee transfers beyond simulation.

    Authors: We agree that the provable satisfaction of STL specifications is conditional on the fidelity of the assumed dynamics model. The manuscript already states this assumption explicitly, but we acknowledge the value of additional analysis. In the revised version, we will add a dedicated paragraph in the Evaluation section (and a brief note in the abstract if space permits) discussing potential mismatches arising from parameter errors, unmodeled effects, and disturbances. We will also include a sensitivity study that perturbs key dynamics parameters (e.g., friction coefficients and mass) within realistic ranges and reports the resulting STL satisfaction rates. This will clarify the scope of the guarantees without overstating transfer to real-world conditions. revision: partial

  2. Referee: [Evaluation section] Evaluation section: The abstract states that SafeDec is evaluated on the CHORES benchmark across hundreds of environments and shows usefulness for filtering and conditional generation, but no quantitative metrics (e.g., success rates, violation rates, or comparison baselines), error analysis, or details on how post-hoc dynamics assumptions affect the reported outcomes are provided. This absence makes it difficult to substantiate the practical effectiveness of the decoding interventions.

    Authors: We accept that the current presentation would be strengthened by explicit quantitative reporting. Although the evaluation spans hundreds of procedurally generated CHORES environments and demonstrates both filtering and conditional generation through concrete examples, we will revise the Evaluation section to include aggregated metrics such as task success rates, STL violation rates (with and without SafeDec), and comparisons against unconstrained baselines. We will also add a short error analysis and a discussion of how the post-hoc dynamics assumptions influence the observed outcomes. These additions will provide clearer evidence of practical effectiveness. revision: yes

Circularity Check

0 steps flagged

No circularity: enforcement uses external STL formulas and assumed dynamics independent of model parameters

full rationale

The paper presents SafeDec as a runtime constrained decoding method that filters or generates action sequences to satisfy given STL specifications under separately assumed robot dynamics. This construction does not define any quantity in terms of itself, rename a fitted parameter as a prediction, or rely on a load-bearing self-citation chain whose prior result is unverified. The central guarantee is explicitly conditional on the accuracy of the external dynamics model and the provided STL formula; neither is derived from the foundation model's weights or training data by construction. The derivation therefore remains self-contained against external benchmarks and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on standard domain assumptions about robot dynamics and the ability of STL to capture relevant safety properties; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption Robot follows known dynamics for forward simulation during decoding
    Invoked to provably check STL satisfaction at runtime.
