Comparing Model-based Control Strategies for a Quadruple Tank System: Decentralized PID, LMPC, and NMPC

T0 review · 4 major / 5 minor · reviewed 2026-08-04 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read MPC’s advantage over a tuned PID lies in anticipating setpoints, not in rejecting disturbances.

desk verdict A solid, honest engineering comparison; the key claim that MPC's advantage over a SIMC-tuned PID is mostly anticipatory holds up, but the numeric magnitudes are tuning-dependent. read the letter →

arxiv 2509.11235 v1 pith:GP67EDML submitted 2025-09-14 math.OC cs.SYeess.SY

Anders H. D. Christensen , Tobias K. S. Ritschel , Jan Lorenz Svensen , Steen H{o}rsholt , Jakob Kj{o}bsted Huusom , John Bagterp J{o}rgensen This is my paper · ORCID
classification math.OCcs.SYeess.SY
keywords QuadrupletanksystemDecentralizedPIDLinearmodelpredictivecontrolNonlinearML-PEMparameterestimationSIMCtuningContinuous-discreteKalmanfilterAnticipatory
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper compares three control strategies on a physical quadruple tank system and in simulation: a decentralized PID tuned by SIMC rules, a linear MPC, and a nonlinear MPC. It finds that the MPCs track pre-announced time-varying setpoints far better than the PID, but only slightly better for disturbance rejection. The central claim is that the MPC advantage is mainly anticipatory: when future setpoint information is removed and only current setpoints are given, the PID actually achieves better tracking errors in simulation. The paper matters because it quantifies when the extra complexity of MPC pays off in a realistic benchmark.

What carries the argument

The comparison is carried by a common stochastic continuous-discrete-time model of the four-tank process, identified with a maximum-likelihood prediction-error method (ML-PEM). The NMPC uses the nonlinear model in its optimal control problem with a continuous-discrete extended Kalman filter (CD-EKF) for state and disturbance estimation; the LMPC uses the same model linearized, with a continuous-discrete Kalman filter (CD-KF). The PID is tuned from transfer functions of the same linearized model using SIMC rules. The decisive mechanism is the MPC prediction horizon: with a 13-minute horizon and pre-announced setpoints, the optimizer can move valves before the setpoint change arrives, which a

What would settle it

On the physical quadruple tank, run the same setpoint sequence with the LMPC and NMPC given only current setpoints (setpoint held constant over the prediction horizon); if either MPC still achieves lower NISE/NIAE than the SIMC-tuned PID, the claim that the primary MPC advantage is anticipatory is falsified.

Watch

Extended reading notes

Core claim

The paper claims that on the quadruple tank system, the performance gap between model predictive control and a well-tuned decentralized PID is driven by the MPC's ability to incorporate future setpoint information, not by superior feedback disturbance rejection. Experimentally, LMPC and NMPC achieve markedly lower tracking-error norms (NISE about 1.6 and 1.4 vs PID's 9.1) and much lower input movement (NISΔU about 12–29 vs PID's 249) on a preset setpoint sequence. In simulation, when the MPCs are only given current setpoints, the PID's tracking errors become smaller than the MPCs'. For large deterministic disturbances the MPCs are only slightly better, and for stochastic disturbances they ar

Load-bearing premise

The comparison's conclusions rest on the identified stochastic model being accurate enough that the simulated no-future-setpoint case faithfully represents real closed-loop behavior, yet that model depends on a manually inflated measurement noise covariance (factor 1000) whose correctness is untested.

Editorial extensions

If this is right

  • In industrial loops where setpoint changes are known in advance (batch transitions, grade changes, scheduled trajectories), MPC can deliver large reductions in both tracking error and valve wear compared with a well-tuned decentralized PID.
  • When disturbances are unmeasured and no future information exists, a SIMC-tuned decentralized PID with integral action is competitive with MPC; spending on MPC for pure regulatory control may yield little tracking benefit.
  • NMPC vs LMPC: nonlinearity pays only a small tracking dividend on this rig in the tested operating range, while roughly doubling the input movement; linear MPC may be the cost-effective choice for mildly nonlinear tank systems.
  • The large reduction in input rate of movement (NISΔU) with MPCs suggests that MPC can extend actuator life and reduce wear even when tracking gains over PID are modest.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper's logic suggests a testable general rule: for any well-modeled process, the tracking advantage of MPC over tuned PID scales with the amount and reliability of future setpoint information, not with model complexity; an optimization-based PID tuned on the same objective as the MPC would be a sharper baseline.
  • Because the simulation studies assume the controller and estimator know the true noise covariances, the 'no-future-information' result is an upper bound on PID competitiveness; with model mismatch, the PID's integral action may look even better, so the claim deserves a robustness test with perturbed plant parameters.
  • The manual 1000x inflation of upper-tank measurement noise variances in Section 4.2.2 is a fragile identification step; re-estimating the model with proper noise modeling (e.g., estimating separate sensor variances without inflation) and re-running the comparison would show whether the MPC advantage is sensitive to the identification procedure.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper compares a decentralized SIMC-tuned PID, an LMPC, and an NMPC on a quadruple tank system, using both physical experiments and simulations. The QTS is modeled as a stochastic nonlinear continuous-discrete-time system with parameters estimated by maximum-likelihood prediction-error methods. The central empirical claim is that the LMPC and NMPC outperform the decentralized PID for tracking pre-announced time-varying setpoints, that this advantage essentially disappears when future setpoint information is withheld from the MPCs, and that for disturbance rejection the MPCs provide only marginal improvements over the PID. The NMPC yields slightly better tracking than the LMPC at the cost of higher input activity. The paper also provides a structured comparison of the three controllers under identical setpoint sequences and discusses the tuning dependence of its conclusions.

Significance. If the claim holds, the paper provides a useful and fairly comprehensive benchmark: on a standard QTS, the measurable advantage of MPC over a well-tuned decentralized PID is primarily anticipatory, not regulatory. The study is valuable for its systematic experimental protocol, the use of the same identified model as the basis for all three controller designs, and the explicit acknowledgment of the limitations of the comparison. However, the strength of the central claim is currently limited by the use of one experimental run per controller, a single PID tuning, a manually manipulated measurement-noise covariance in the identification, and an ambiguity about the parameters used in the simulation plant.

major comments (4)
  1. [Sec. 6.1.2, Tables 4-5] The experimental comparison is based on one run per controller (Sec. 6.1.2). The headline NISE values in Table 4 (PID 9.063, LMPC 1.637, NMPC 1.423) are point estimates from single trajectories. Given the stochastic dynamics in (1) and the process disturbances, these differences could lie within run-to-run variability. The paper should provide repeated experiments or Monte Carlo simulations using the identified stochastic model, with confidence intervals for NISE, NIAE, and NISΔU. Without such an uncertainty analysis, the central claim rests on a single realization.
  2. [Secs. 5.1.1, 5.2, 5.3, 6.3.5] The PID is tuned once with SIMC using Tc=50, while the MPC weights (Q=10I, S=I) and horizon N=160 are chosen by trial-and-error. Section 6.3.5 itself concedes that different tunings could change the results and that the performance measures in Eq. (44) mirror the MPC cost. This makes the reported performance gap a property of the chosen tuning configurations rather than of the algorithms as such. The authors should add a sensitivity analysis over Tc and Q/S, or use optimization-based tuning of both designs under the same objective, before claiming that the MPCs 'perform better' than the PID. This is load-bearing for the paper's main conclusion.
  3. [Sec. 4.2.2, Table 3] The measurement noise covariance for the upper tanks is manually inflated by a factor 1000 (Sec. 4.2.2), and the subsequent ML-PEM estimation yields r_3^2 = r_4^2 = 1e-5, effectively giving zero weight to the upper-tank measurements. The estimated parameters A3, A4, and gamma1 differ substantially from the nominal values (Table 1). Since the same identified model is used to tune the PID and to design the MPCs and their state estimators, the controller comparison may be influenced by this ad hoc identification choice. Please validate the noise covariance on an independent steady-state data set, or demonstrate that the conclusions are invariant to a range of plausible R values.
  4. [Sec. 6.2] The text states that 'we apply the nominal parameters in Table 1 for all four simulation studies', while the controllers were designed using the estimated parameters in the same table. This plant-model mismatch is not discussed, and the claim in Sec. 6.2.1 that the CD-KF and CD-EKF have 'perfect knowledge about the systems' is misleading if the plant uses the nominal parameters. Specify explicitly which parameter set is used for the simulated plant and which is used in the controllers and estimators, and discuss the implications of any mismatch for the interpretation of Simulations 1-4.
minor comments (5)
  1. [Table 3] The units of r^2 are given as [m^2], but the measurement equation (1b) uses y in cm; the covariance units should be reconciled.
  2. [Eq. (44)] The measures are called 'normalized' NISE/NIAE, but the definitions are simple averages of squared/absolute errors; clarify the normalization or rename the quantities.
  3. [Sec. 4.2.2] The factor 1000 used to inflate the upper-tank measurement variances is introduced with only a qualitative turbulence argument; provide a quantitative justification or a sensitivity check.
  4. [Abstract / Sec. 5.1.1] The abstract describes the PID as 'well-tuned'; given the single SIMC tuning and the paper's own caveats, consider wording such as 'SIMC-tuned' to avoid overstatement.
  5. [Throughout] There are typographical issues (e.g., 'di fferent' in several places, 'Futhermore' in Sec. 6.3.4, 'tutotorial' in the Pannocchia reference). A careful proofread is recommended.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: empirical benchmark with independently validated models.

full rationale

This paper is an experimental/computational benchmark, not a derivation chain whose conclusions are equivalent to its inputs. The QTS model is identified by ML-PEM on a separate estimation data set and checked against a validation data set (GOF 80.41%/74.20% vs 47.91%/57.28%, Table 2), so the model used by the MPCs is not constructed from the claimed comparison outcome. The PID, LMPC, and NMPC are distinct algorithms with explicit tunings (SIMC with Tc=50 for PID; Q=diag(10,10), S=diag(1,1), N=160 for both MPCs). The central tracking claim is supported by one physical run per controller plus simulations; no fitted parameter is renamed as a prediction. The anticipatory-advantage claim is tested by toggling future setpoint information in Simulation 1 vs Simulation 2, a controlled ablation rather than a tautology. Section 6.3.5 explicitly concedes that the performance measure (44) is aligned with MPC objectives and that tuning was not optimization-based; these are benchmarking limitations that affect robustness and fairness, not circular reasoning. The manual 1000x inflation of the measurement noise covariance (Sec. 4.2.2) is an identification assumption that may bias estimation, but it does not define the compared outcomes. Self-citations (Andersen et al. 2023a,b, and the group's NMPC application list) are contextual or software-description references and are not load-bearing for the comparison. Hence no circular step is identifiable from the paper's own equations or argument.

Assumptions & free parameters 8 free parameters · 5 assumptions · 1 invented entities

The paper rests on a standard grey-box model of the quadruple tank system, an integrated-white-noise disturbance model, and several tuning choices (SIMC Tc=50, MPC weights Q/S, horizons, augmented noise covariances). Most of these are explicitly stated. The manual inflation of measurement variances by 1000 is the most fragile choice.

free parameters (8)
  • Measurement noise covariance R (manual inflation and ML-PEM) = r1=1.44e-2, r2=1.34e-2, r3=1.00e-5, r4=1.00e-5
    Steady-state variances multiplied by 1000 by hand, then re-estimated via ML-PEM (Table 3).
  • Diffusion coefficients sigma_i = 10.07e-3, 13.09e-3, 12.50e-3, 16.62e-3 g/sqrt(s)
    Estimated by ML-PEM from estimation data (Table 1).
  • Disturbance diffusion coefficients sigma_d,i = 0.47, 3.08, 3.92, 3.42 g/sqrt(s)
    Estimated by ML-PEM for the augmented model (Table 3).
  • SIMC closed-loop time constant Tc = 50 s
    Chosen by hand for both PID loops (Section 5.1.1).
  • MPC weights Q and S = Q=diag([10,10]), S=diag([1,1])
    Tuned by trial-and-error (Section 5.2, 5.3).
  • Prediction horizon N = 160 steps (800 s)
    Chosen for both MPCs (Section 5.2).
  • PID filter constant N and windup time constant tau_t = N=5, tau_t=0.5*tau_i
    Chosen by hand (Section 5.1.1).
  • Simulation noise covariances = sigma_a=1.0, R=0.02 for simulations 1-3; sigma=20, sigma_a(d)=20 for simulation 4
    Assigned for the simulation studies (Section 6.2).
assumptions (5)
  • domain assumption Quadruple tank model: mass balances with Torricelli outflow, Eq. (2)-(4)
    The plant model assumes constant density, ideal valve splits, and square-root outflow laws.
  • domain assumption Unknown disturbances modeled as integrated white noise, Eq. (18)
    No prior information on disturbance dynamics; the paper uses Brownian motion integrators.
  • domain assumption Disturbances constant over the MPC prediction horizon, Eq. (35c) and (39c)
    Needed to keep the OCPs tractable; may be inaccurate for fast-varying disturbances.
  • domain assumption Linearized model at the operating point is adequate for LMPC and PID tuning, Eq. (9)
    The LMPC and SIMC transfer functions are derived from this linearization.
  • domain assumption Steady-state measurement distributions are representative for the noise covariance R
    Used as the starting point for R before manual inflation and ML-PEM re-estimation.
invented entities (1)
  • Augmented disturbance states d_i(t)
    purpose: Enable offset-free state and disturbance estimation in CD-KF and CD-EKF
    These unmeasured states are postulated to model plant-model mismatch; they have no falsifiable handle outside the paper.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Comparing Model-based Control Strategies for a Quadruple Tank System: Decentralized PID, LMPC, and NMPC." pith.science (2026). https://pith.science/paper/GP67EDML

@misc{pith2026250911235,
  author       = {Pith},
  title        = {Pith review of: Comparing Model-based Control Strategies for a Quadruple Tank System: Decentralized PID, LMPC, and NMPC},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GP67EDML}},
  note         = {Machine review of arXiv:2509.11235}
}
read the original abstract

This paper compares the performance of a decentralized proportional-integral-derivative (PID) controller, a linear model predictive controller (LMPC), and a nonlinear model predictive controller (NMPC) applied to a quadruple tank system (QTS). We present experimental data from a physical setup of the QTS as well as simulation results. The QTS is modeled as a stochastic nonlinear continuous-discrete-time system, with parameters estimated using a maximum-likelihood prediction-error-method (ML-PEM). The NMPC applies the stochastic nonlinear continuous-discrete-time model, while the LMPC uses a linearized version of the same model. We tune the decentralized PID controller using the simple internal model control (SIMC) rules. The SIMC rules require transfer functions of the process, and we obtain these from the linearized model. We compare the controller performances based on systematic tests using both the physical setup and the simulated QTS. We measure the performance in terms of tracking errors and rate of movement in the manipulated variables. The LMPC and the NMPC perform better than the decentralized PID control system for tracking pre-announced time-varying setpoints. For disturbance rejection, the MPCs perform only slightly better than the decentralized PID controller. The primary advantage of the MPCs is their ability to use the information of future setpoints. We demonstrate this by providing simulation results of the MPCs with and without such information. Finally, the NMPC achieves slightly improved tracking errors compared to the LMPC but at the expense of having a higher input rate of movement.

Figures

Figures reproduced from arXiv: 2509.11235 by the authors.

Figure 1
Figure 1. Squeeze and shift principle: Improving the nominal control system [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Illustration of the reactive and anticipatory behavior in control sys [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

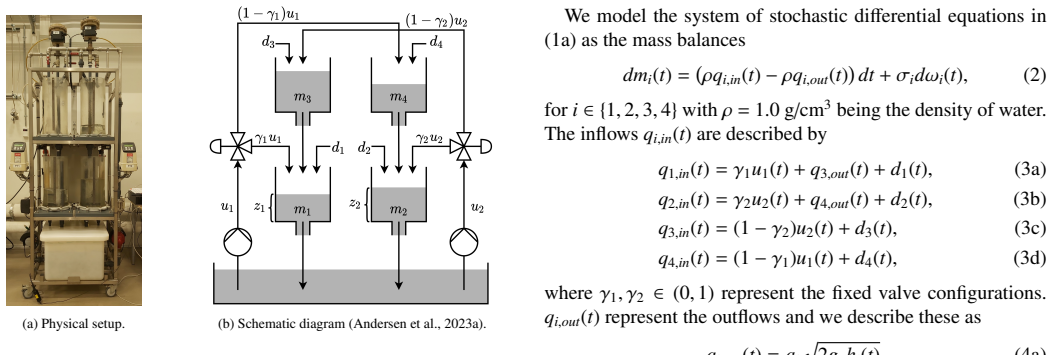

Figure 3. The quadruple tank system. Finally, we present conclusions in Section 7. 2. Modeling the quadruple tank system We consider the QTS shown in [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: Data used for estimation and simulations with nominal and estimated [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: Data used for validation and simulations with nominal and estimated [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Schematic diagram of the software framework used to implement the three control algorithms (PID, LMPC, NMPC) to the QTS. [PITH_FULL_IMAGE:figures/full_fig_p011_6.png]
Figure 7
Figure 7. Figure 7: Data for experiments of decentralized PID, LMPC, and NMPC on the physical QTS. [PITH_FULL_IMAGE:figures/full_fig_p011_7.png]
Figure 9
Figure 9. Figure 9: Simulation 1: Tracking predefined time-varying setpoints. The MPCs [PITH_FULL_IMAGE:figures/full_fig_p012_9.png]
Figure 10
Figure 10. Figure 10: Simulation 2: Tracking predefined time-varying setpoints. The [PITH_FULL_IMAGE:figures/full_fig_p013_10.png]
Figure 11
Figure 11. Figure 11: Simulation 3: Constant setpoints with large deterministic distur [PITH_FULL_IMAGE:figures/full_fig_p013_11.png]

Discussion (0). Continue with ORCID to comment.
