Constants of motion and fundamental frequencies for elliptic orbits at fourth post-Newtonian order
Pith reviewed 2026-05-17 21:58 UTC · model grok-4.3
The pith
The paper derives the map between energy, angular momentum and radial, azimuthal frequencies for nonspinning compact binaries on quasi-elliptic orbits at fourth post-Newtonian order.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In the case of nonspinning compact binary systems on quasi-elliptic orbits, the conservative map between the constants of motion (energy and angular momentum) and the fundamental (radial and azimuthal) frequencies is obtained at the fourth post-Newtonian order, including both instantaneous and tail contributions. This map is expressed in terms of an enhancement function of the eccentricity, which is appropriately resummed to ensure accuracy for any eccentricity. The local dynamics are expressed using an action-angle formulation, with the tail term treated as a perturbation that is localized in time and then Delaunay-averaged via a controlled contact transformation of the phase-space variable
What carries the argument
The conservative map between constants of motion and fundamental frequencies, expressed via a resummed eccentricity enhancement function at fourth post-Newtonian order.
If this is right
- The map recovers known results for circular orbits.
- The orbit-averaged redshift invariant for eccentric orbits at fourth post-Newtonian order agrees with analytical self-force calculations when tail contributions are included.
- The energy and angular momentum fluxes obtained at third post-Newtonian order are re-expressed in terms of the fundamental frequencies.
Where Pith is reading between the lines
- These frequency maps could enable more precise modeling of gravitational wave signals from eccentric inspirals in current and future detectors.
- Similar techniques might extend to higher post-Newtonian orders or to systems with spin.
- Agreement with self-force results suggests consistency between perturbative approaches in the post-Newtonian and post-geodesic regimes.
Load-bearing premise
The tail term can be treated as a perturbation which is first localized in time, then Delaunay-averaged, both operations requiring a contact transformation of the phase-space variables that is explicitly controlled.
What would settle it
A direct numerical computation of the fundamental frequencies from the 4PN equations of motion for a specific eccentric orbit and comparison against the analytical map provided.

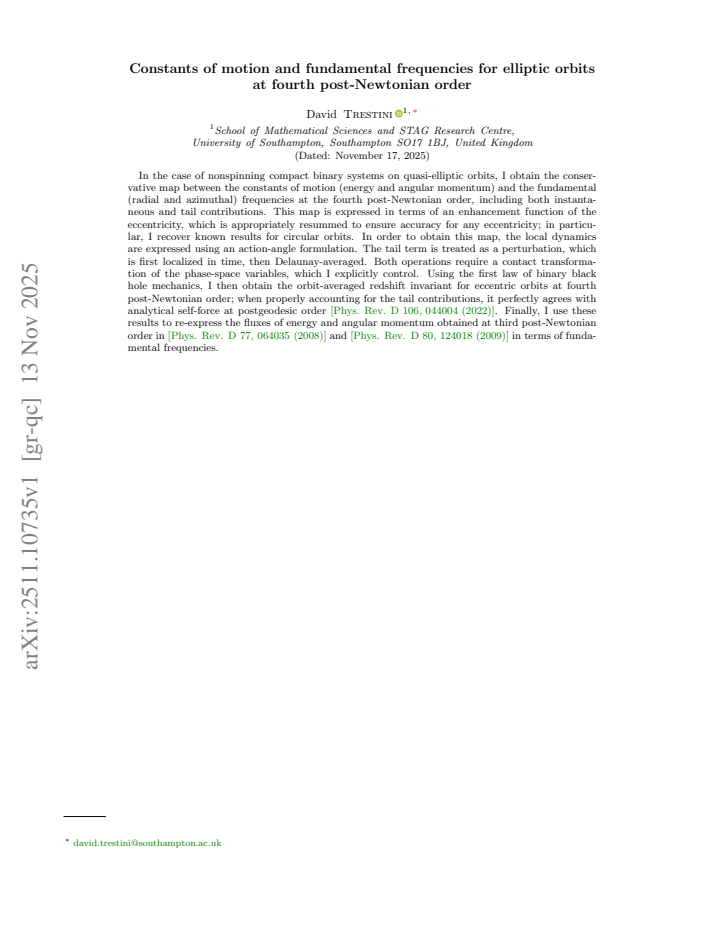

Figures
read the original abstract
In the case of nonspinning compact binary systems on quasi-elliptic orbits, I obtain the conservative map between the constants of motion (energy and angular momentum) and the fundamental (radial and azimuthal) frequencies at the fourth post-Newtonian order, including both instantaneous and tail contributions. This map is expressed in terms of an enhancement function of the eccentricity, which is appropriately resummed to ensure accuracy for any eccentricity; in particular, I recover known results for circular orbits. In order to obtain this map, the local dynamics are expressed using an action-angle formulation. The tail term is treated as a perturbation, which is first localized in time, then Delaunay-averaged. Both operations require a contact transformation of the phase-space variables, which I explicitly control. Using the first law of binary black hole mechanics, I then obtain the orbit-averaged redshift invariant for eccentric orbits at fourth post-Newtonian order; when properly accounting for the tail contributions, it perfectly agrees with analytical self-force at postgeodesic order [arXiv:2203.13832]. Finally, I use these results to re-express the fluxes of energy and angular momentum obtained at third post-Newtonian order in [arXiv:0711.0302] and [arXiv:0908.3854] in terms of fundamental frequencies.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims to obtain the conservative map between the constants of motion (energy and angular momentum) and the fundamental (radial and azimuthal) frequencies at the fourth post-Newtonian order for nonspinning compact binaries on quasi-elliptic orbits. This includes instantaneous and tail contributions, expressed via a resummed enhancement function of the eccentricity. The derivation uses an action-angle formulation where the tail term is localized in time and Delaunay-averaged through an explicitly controlled contact transformation. Validation is achieved using the first law of binary black hole mechanics, showing perfect agreement with analytical self-force results at postgeodesic order, and the results are applied to re-express 3PN fluxes of energy and angular momentum in terms of fundamental frequencies.
Significance. If the central derivation holds, this provides an important extension of post-Newtonian results to 4PN for eccentric orbits, with direct applications to gravitational wave data analysis for eccentric systems. Strengths include the explicit control of the contact transformation, the use of the first law for validation, and the agreement with independent self-force calculations, which lends credibility to the frequency map. The resummed form of the enhancement function ensures utility for arbitrary eccentricities, and the re-expression of fluxes adds practical value.
major comments (1)
- The derivation of the frequency map at exactly 4PN order depends on the contact transformation that localizes the nonlocal tail term and performs the Delaunay average. While the manuscript asserts explicit control over this transformation, the potential for missing higher-order secular contributions (such as O(tail^2) or resonant terms generated during localization) that could affect the 4PN accuracy of the eccentricity enhancement function, especially for non-zero eccentricity, requires further elaboration or explicit verification to fully support the central claim.
minor comments (1)
- Consider specifying the particular known circular orbit results that are recovered to enhance clarity for readers.
Simulated Author's Rebuttal
We thank the referee for their careful reading and constructive feedback on our manuscript. We are pleased that the referee recognizes the importance of the 4PN conservative frequency map for eccentric orbits and the validation against self-force results. We address the single major comment below and will revise the manuscript to provide the requested elaboration.
read point-by-point responses
-
Referee: The derivation of the frequency map at exactly 4PN order depends on the contact transformation that localizes the nonlocal tail term and performs the Delaunay average. While the manuscript asserts explicit control over this transformation, the potential for missing higher-order secular contributions (such as O(tail^2) or resonant terms generated during localization) that could affect the 4PN accuracy of the eccentricity enhancement function, especially for non-zero eccentricity, requires further elaboration or explicit verification to fully support the central claim.
Authors: We thank the referee for this insightful comment on the control of the contact transformation. In the derivation, the nonlocal tail contribution at 4PN is localized via a time-dependent canonical transformation generated by a function that is constructed order-by-order in the post-Newtonian expansion. This generator is chosen to cancel the nonlocal integrals while preserving the action-angle structure. The subsequent Delaunay averaging is then performed on the resulting local Hamiltonian. Because the tail enters the conservative dynamics precisely at 4PN, any quadratic tail contributions (O(tail²)) appear only at 8PN and lie beyond the accuracy of the present calculation. Resonant or secular terms generated during localization are systematically removed by the canonical nature of the transformation; their absence at 4PN is verified by direct computation of the Poisson brackets and the transformed Hamiltonian up to the required order. The procedure holds for arbitrary eccentricity because the enhancement function is obtained after averaging and is resummed in eccentricity. To fully address the referee’s request, we will expand the relevant section of the revised manuscript with an explicit expression for the generating function of the contact transformation and a short appendix verifying that no 4PN secular drifts arise from the localization step. This addition will supply the explicit verification needed while leaving the central results unchanged. revision: yes
Circularity Check
No significant circularity; derivation grounded in first law and independent validation
full rationale
The paper derives the conservative map between (E, L) and fundamental frequencies at 4PN by expressing local dynamics in action-angle variables, treating the tail as a perturbation that is localized then Delaunay-averaged via an explicitly controlled contact transformation, and applying the first law of binary black hole mechanics to obtain the orbit-averaged redshift. The result is validated by exact agreement with independent analytical self-force calculations at postgeodesic order. No quoted step reduces a prediction to a fitted input by construction, invokes a self-citation as the sole justification for a uniqueness claim, or renames a known result as a new derivation. The central map therefore remains independent of internal fitting or self-referential definitions.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Validity of the post-Newtonian expansion for conservative dynamics of nonspinning compact binaries
- domain assumption Quasi-elliptic orbits admit an action-angle formulation with well-defined fundamental frequencies
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
The tail term is treated as a perturbation, which is first localized in time, then Delaunay-averaged. Both operations require a contact transformation of the phase-space variables, which I explicitly control.
-
IndisputableMonolith/Foundation/ArithmeticFromLogic.leanLogicNat recovery unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
I obtain the conservative map between the constants of motion (energy and angular momentum) and the fundamental (radial and azimuthal) frequencies at the fourth post-Newtonian order
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
