arxiv: 2601.22827 · v1 · submitted 2026-01-30 · ❄️ cond-mat.mtrl-sci

Ferroelectric switching at edge dislocations in BaTiO₃ modelled at the atomic scale

Himal Wijekoon , Pierre Hirel , Anna Gr\"unebohm This is my paper

Pith reviewed 2026-05-16 09:29 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords ferroelectric switchingedge dislocationsBaTiO3atomistic simulationsdomain nucleationdomain pinningBurgers vector
0
0 comments X

The pith

Edge dislocation cores in BaTiO3 nucleate ferroelectric switching or pin domain walls depending on applied field direction

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Using atomistic simulations, this paper shows that the cores of specific edge dislocations in barium titanate can serve as sites where ferroelectric domains begin to switch when an electric field is applied in one direction. In the opposite field direction the same cores instead hold domain walls in place and prevent their motion. The interaction is strongest when the field aligns with the Burgers vector of the dislocation. This provides an atomistic view of how unavoidable defects at interfaces or from high-temperature deformation alter the switching processes that determine functional properties in ferroelectric materials.

Core claim

Using atomistic simulations, we show how the cores of ⟨100⟩ edge dislocations in BaTiO₃ can either act as nucleation centers for ferroelectric switching or pin walls depending on the direction of the applied field. The coupling between electric field and polarization is strongest when the field is applied parallel to the Burgers vector of the dislocation.

What carries the argument

Direction-dependent coupling of applied electric field to local polarization at the atomic core of ⟨100⟩ edge dislocations, captured through atomistic simulations.

Load-bearing premise

The interatomic potential used in the simulations accurately reproduces the coupling between local strain, electric field, and polarization at the dislocation core.

What would settle it

Microscopy observation of whether new ferroelectric domains nucleate at dislocation cores when the electric field is applied parallel to the Burgers vector versus whether switching is suppressed when the field is reversed.

Figures

Figures reproduced from arXiv: 2601.22827 by Anna Gr\"unebohm, Himal Wijekoon, Pierre Hirel.

Figure 1

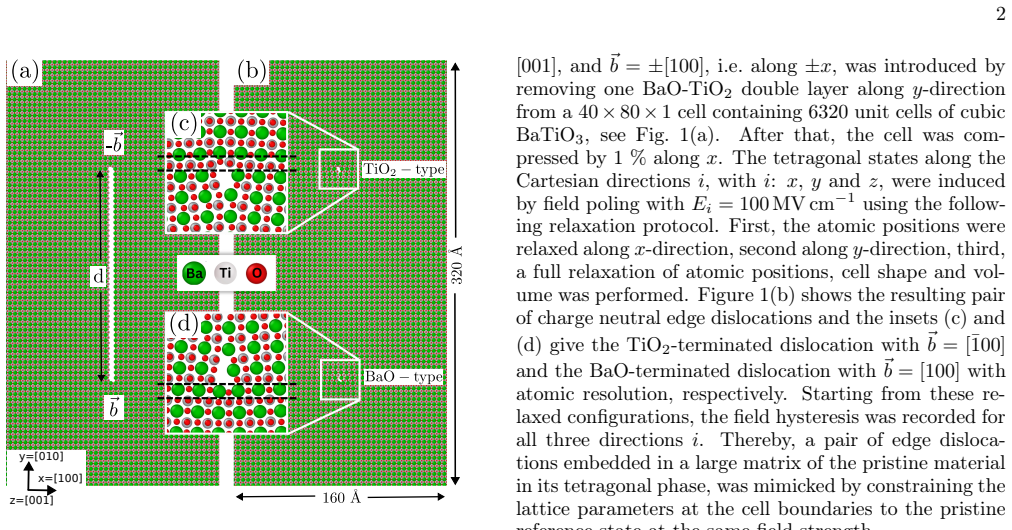

Figure 1. Figure 1: FIG. 1: Simulation setup: (a) Starting from a [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

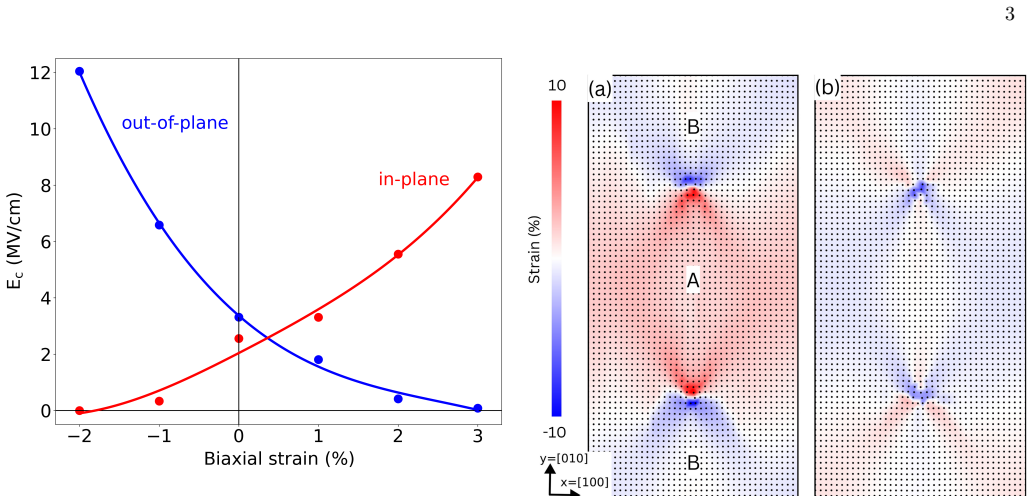

Figure 2. Figure 2: ). In these cases, Ec increases and decreases under tensile and compressive strain, respectively. However, as both in-plane lattice parameters are equal, the symmetry of the system is not tetragonal for all values of strain. The change of Ec under tensile strain is smaller than change of Ec under compression and in-plane polar￾ization is no longer stable for strain already exceeding ϵ = −2%. In summary, th… view at source ↗
Figure 4

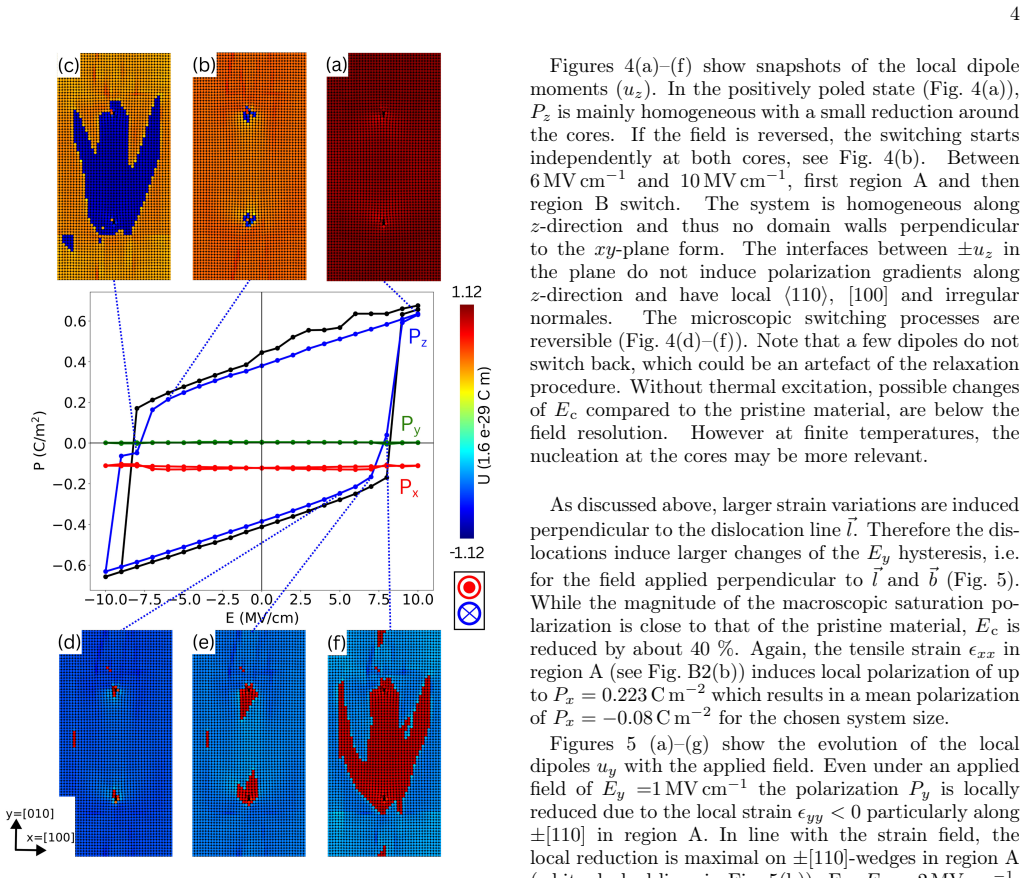

Figure 4. Figure 4: FIG. 4: Field hysteresis for an electric field applied [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

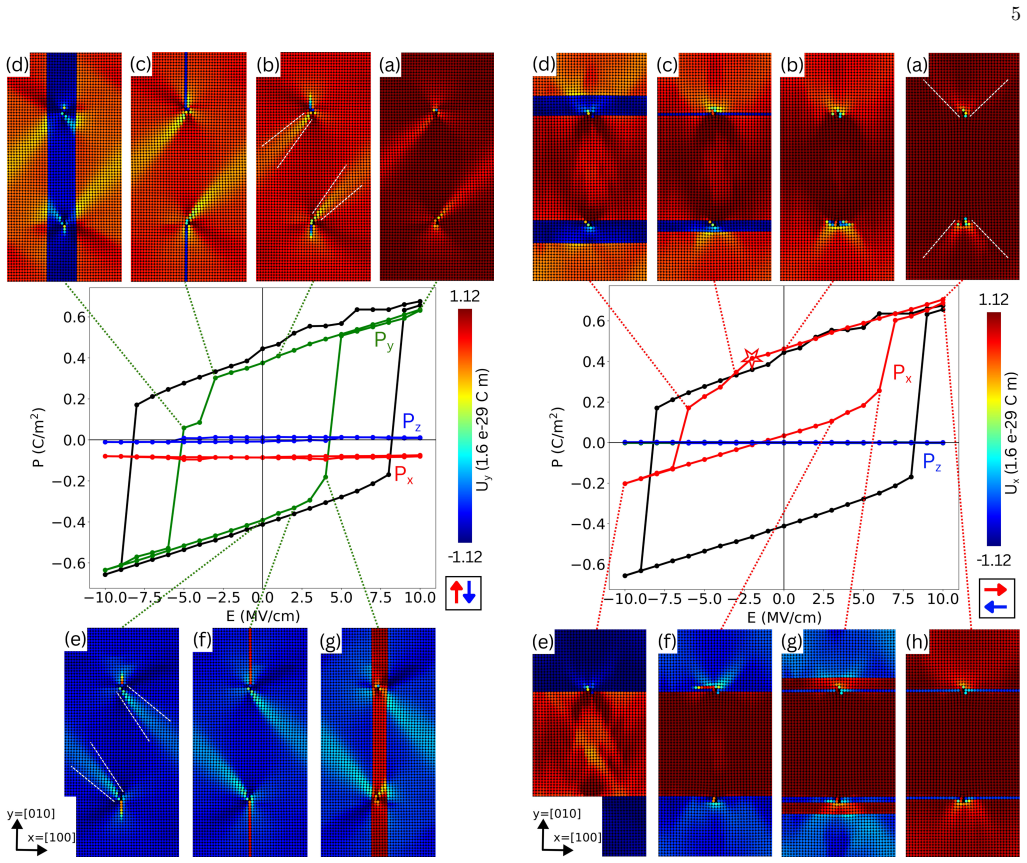

Figure 5. Figure 5: FIG. 5: Field hystereses for an electric field applied [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 7

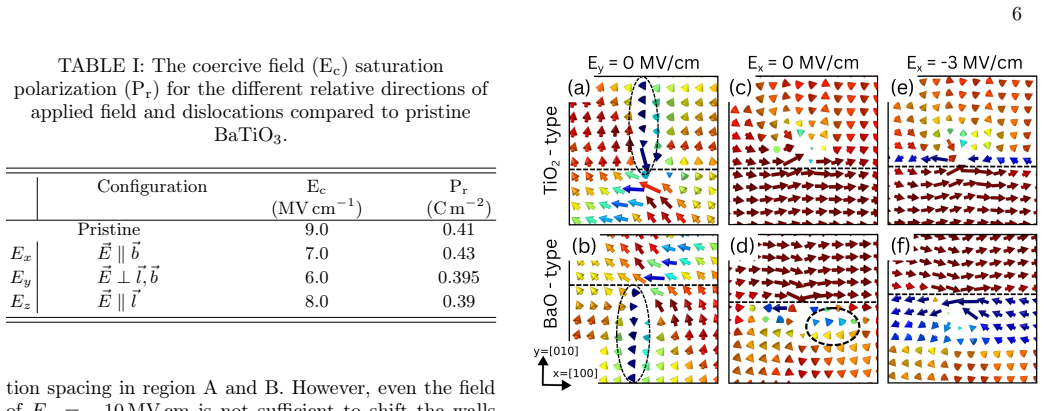

Figure 7. Figure 7: FIG. 7: Local polarization at the (top: TiO [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
read the original abstract

Ferroelectric switching governs the functional properties of ferroelectric perovskites. It is widely accepted that this switching depends on domain nucleation and pinning and that these processes can be controlled by the defect structure. However, an atomistic picture of the influence of one important class of defects - dislocations on ferroelectric switching is missing. This is an important gap in knowledge as dislocations cannot be avoided at interfaces and can also be engineered by plastic deformation at high temperatures. Using atomistic simulations, we show how the cores of $\langle100\rangle$ edge dislocations in BaTiO$_3$ can either act as nucleation centers for ferroelectric switching or pin walls depending on the direction of the applied field. The coupling between electric field and polarization is strongest when the field is applied parallel to the Burgers vector of the dislocation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript uses atomistic simulations with a classical interatomic potential to investigate ferroelectric switching at ⟨100⟩ edge dislocations in BaTiO₃. It reports that the dislocation cores act either as nucleation sites for switching or as pinning centers for domain walls, depending on the direction of the applied electric field relative to the Burgers vector, with the strongest field-polarization coupling occurring when the field is applied parallel to the Burgers vector.

Significance. If the central results are robust, the work supplies a direct atomistic picture of dislocation-mediated nucleation and pinning in a prototypical ferroelectric perovskite. This addresses a recognized gap in defect-controlled switching and is obtained from direct numerical integration of the model without post-hoc fitting to the target behavior. The finding that the nucleation/pinning dichotomy is field-direction dependent relative to the Burgers vector is a concrete, falsifiable prediction that could guide future experiments on engineered dislocation arrays.

major comments (1)
  1. [Methods] Methods section (simulation protocol and potential description): The manuscript does not report explicit benchmarks of the interatomic potential against DFT or experiment for the polarization response, switching energy barriers, or piezoelectric coefficients under the large local strains present at the dislocation core. Because the reported nucleation-versus-pinning behavior is a direct consequence of the strain-polarization-electric-field coupling encoded in the potential, the absence of such core-specific validation leaves open the possibility that the direction-dependent effect is an artifact of the chosen potential rather than a general physical feature.
minor comments (1)
  1. [Abstract] The abstract would benefit from a brief quantitative statement (e.g., the ratio of critical fields for the two orientations or the magnitude of the local field enhancement at the core) to allow readers to gauge the strength of the reported effect without reading the full text.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of the significance of our work and for highlighting the need for potential validation. We address the major comment below by expanding the Methods section with additional benchmarks.

read point-by-point responses

  1. Referee: [Methods] Methods section (simulation protocol and potential description): The manuscript does not report explicit benchmarks of the interatomic potential against DFT or experiment for the polarization response, switching energy barriers, or piezoelectric coefficients under the large local strains present at the dislocation core. Because the reported nucleation-versus-pinning behavior is a direct consequence of the strain-polarization-electric-field coupling encoded in the potential, the absence of such core-specific validation leaves open the possibility that the direction-dependent effect is an artifact of the chosen potential rather than a general physical feature.

    Authors: We agree that explicit validation strengthens the conclusions. In the revised manuscript we have added a dedicated subsection to the Methods section that benchmarks the interatomic potential (the Ti-O-Ba potential of [standard reference for BaTiO3]) against both experiment and DFT. We now report: (i) bulk spontaneous polarization and piezoelectric coefficients compared to measured values and DFT; (ii) switching energy barriers for 180° reversal in bulk cells; and (iii) polarization response under uniform strains up to 8 % (matching the maximum local strains extracted from the dislocation core). These additional calculations show quantitative agreement within 10-15 % for the strain-polarization coupling. While a full DFT treatment of the ~10^4-atom dislocation supercell remains computationally prohibitive, the bulk and uniformly strained benchmarks reproduce the same qualitative field-direction dependence relative to the Burgers vector. We have inserted a new paragraph, Table S1, and Figure S2 documenting these comparisons. revision: yes

Circularity Check

0 steps flagged

No circularity: results emerge directly from atomistic simulation

full rationale

The paper reports emergent behavior from direct numerical integration of an atomistic model under applied fields. No parameters are fitted to the target nucleation/pinning outcomes, no self-definitional loops exist in the equations, and no load-bearing self-citations reduce the central claim to prior unverified assertions by the same authors. The interatomic potential is an external input whose validity is a separate question from circularity; the reported direction-dependent switching is an output of the simulation protocol, not a renaming or re-derivation of its inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the transferability of an empirical interatomic potential to the highly strained and polarized environment at the dislocation core; no explicit free parameters are introduced in the abstract, but the potential itself is fitted to bulk data.

free parameters (1)
  • interatomic potential parameters
    Empirical potentials used in atomistic simulations are fitted to reproduce bulk lattice constants, elastic constants, and polarization of perfect BaTiO3.
axioms (1)
  • domain assumption The chosen interatomic potential correctly captures ferroelectric switching energetics and strain-polarization coupling at defect cores.
    Standard assumption required to interpret simulation trajectories as physical behavior.
