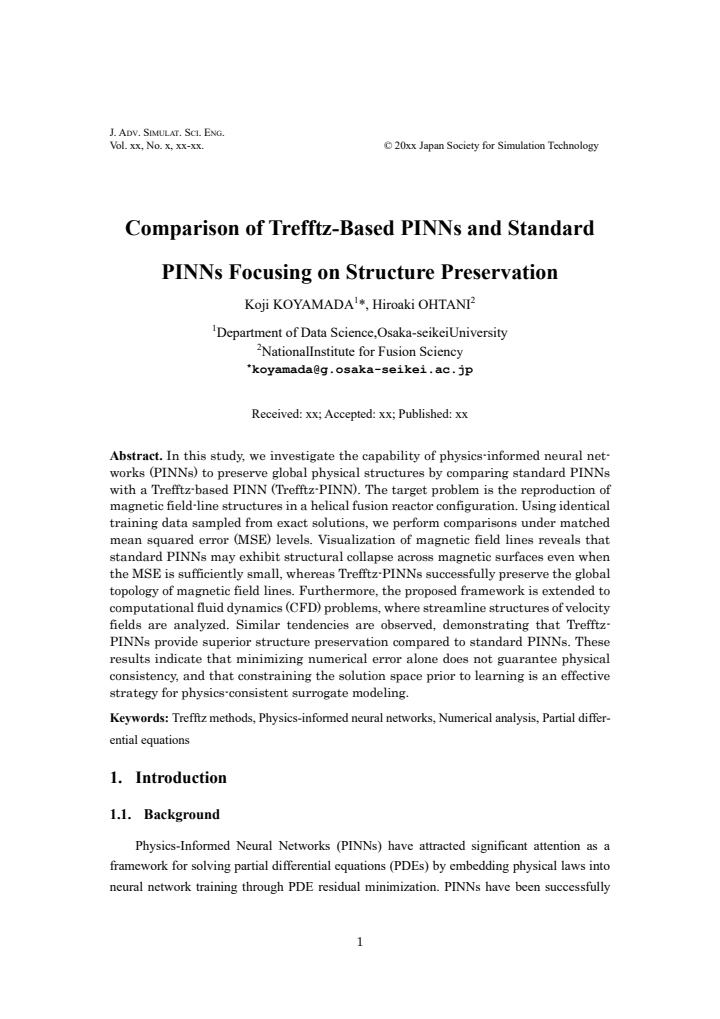

Comparison of Trefftz-Based PINNs and Standard PINNs Focusing on Structure Preservation

Koji Koyamada This is my paper

Pith reviewed 2026-05-16 08:07 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords physics-informed neural networksTrefftz methodmagnetic field linesstructure preservationtopologyfusion reactorcomputational fluid dynamics
0
0 comments X

The pith

Trefftz-based PINNs preserve global magnetic field line topology while standard PINNs allow structural collapse even at low mean squared error.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether physics-informed neural networks can reproduce the correct global structure of magnetic field lines in a helical fusion reactor when trained on data from exact solutions. Standard PINNs and Trefftz-based PINNs are compared at the same low error levels. Visualizations show that standard networks frequently produce field lines that cross magnetic surfaces incorrectly, breaking the expected topology. Trefftz-PINNs keep the lines on the proper surfaces. The same pattern appears in velocity streamlines for fluid flow problems, indicating that error reduction by itself does not guarantee physically consistent geometry.

Core claim

Using identical training data sampled from exact solutions and matched mean squared error levels, visualization of magnetic field lines reveals that standard PINNs may exhibit structural collapse across magnetic surfaces even when the MSE is sufficiently small, whereas Trefftz-PINNs successfully preserve the global topology of magnetic field lines. The framework is extended to CFD problems, where similar advantages appear in the preservation of streamline structures.

What carries the argument

Trefftz-based PINNs, which constrain the neural network solution space to a basis that satisfies the governing equations before training begins.

If this is right

  • Minimizing pointwise numerical error alone does not guarantee preservation of global physical structures such as magnetic surfaces.
  • Constraining the solution space prior to learning improves the chance of obtaining physics-consistent surrogate models.
  • Trefftz-PINNs extend successfully from magnetohydrodynamic field-line problems to velocity streamline problems in CFD.
  • Standard PINNs can produce topologically incorrect outputs that would be invisible to MSE-based training criteria.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Embedding analytical constraints at the architecture level may reduce reliance on post-training fixes for conservation properties in plasma and fluid surrogates.
  • The same constraint strategy could be tested on other structured fields such as electrostatic potentials or incompressible flows where topology matters.
  • Quantitative topology diagnostics would be a natural next step to turn the visual evidence into a reproducible metric.

Load-bearing premise

That visual inspection of field lines at matched MSE levels is enough to prove better structure preservation without needing quantitative topology measures.

What would settle it

A calculation of the number of field-line crossings between magnetic surfaces or a topological invariant such as linking numbers that shows no difference between the two networks once MSE falls below a chosen threshold.

read the original abstract

In this study, we investigate the capability of physics-informed neural networks (PINNs) to preserve global physical structures by comparing standard PINNs with a Trefftz-based PINN (Trefftz-PINN). The target problem is the reproduction of mag-netic field-line structures in a helical fusion reactor configuration. Using identical training data sampled from exact solutions, we perform comparisons under matched mean squared error (MSE) levels. Visualization of magnetic field lines reveals that standard PINNs may exhibit structural collapse across magnetic surfaces even when the MSE is sufficiently small, whereas Trefftz-PINNs successfully preserve the global topology of magnetic field lines. Furthermore, the proposed framework is extended to computational fluid dynamics (CFD) problems, where streamline structures of veloc-ity fields are analyzed. Similar tendencies are observed, demonstrating that Trefftz-PINNs provide superior structure preservation compared to standard PINNs. These results indicate that minimizing numerical error alone does not guarantee physical consistency, and that constraining the solution space prior to learning is an effective strategy for physics-consistent surrogate modeling.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper compares standard Physics-Informed Neural Networks (PINNs) with Trefftz-based PINNs on the task of reproducing magnetic field-line structures in a helical fusion reactor configuration and, secondarily, velocity streamlines in CFD problems. Using identical training data sampled from exact solutions and comparisons performed at matched mean-squared-error (MSE) levels, the authors report that visualizations of field lines show standard PINNs can exhibit structural collapse across magnetic surfaces while Trefftz-PINNs preserve global topology; similar tendencies are claimed for the CFD extension.

Significance. If the reported visual differences can be substantiated by quantitative topology invariants, the result would indicate that a priori restriction of the function space via a Trefftz basis can enforce global physical consistency beyond what residual minimization alone achieves. This would be relevant for surrogate modeling in plasma physics and fluid dynamics where preservation of topological features (e.g., nested surfaces or streamline connectivity) is more important than pointwise error.

major comments (3)
  1. Abstract: The central claim that Trefftz-PINNs preserve global topology while standard PINNs exhibit collapse rests exclusively on qualitative visualization of field lines. No quantitative topology metrics (rotational transform profiles, Poincaré-section statistics, or flux-surface integrals) are reported to objectify the distinction between 'structural collapse' and 'preservation' at matched MSE.
  2. Abstract: The manuscript provides no description of how the Trefftz basis is constructed or how it is incorporated into the PINN architecture. Without these details it is impossible to determine whether the observed advantage arises from the basis constraining the solution space a priori or from some other mechanism.
  3. Abstract: Training data are sampled directly from exact solutions rather than generated in a purely residual-driven, unsupervised regime. This supervised setting may conflate the effect of the Trefftz basis with the effect of providing high-quality labeled data, weakening the claim that the improvement demonstrates superior physics consistency of the Trefftz-PINN formulation.
minor comments (2)
  1. Abstract: Typographical hyphenation artifacts appear ('mag-netic', 'veloc-ity').
  2. The specific helical fusion reactor configuration (e.g., device name or equilibrium parameters) should be stated explicitly so that the magnetic-field example can be reproduced.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which highlight important aspects for improving the rigor and clarity of our work. We address each major comment point by point below.

read point-by-point responses

  1. Referee: Abstract: The central claim that Trefftz-PINNs preserve global topology while standard PINNs exhibit collapse rests exclusively on qualitative visualization of field lines. No quantitative topology metrics (rotational transform profiles, Poincaré-section statistics, or flux-surface integrals) are reported to objectify the distinction between 'structural collapse' and 'preservation' at matched MSE.

    Authors: We agree that quantitative topology metrics would strengthen the evidence. In the revised manuscript we will add rotational transform profiles along selected field lines and Poincaré-section statistics (including counts of closed vs. open orbits and surface-crossing metrics) computed at the matched MSE levels to provide objective quantification of the observed structural differences. revision: yes

  2. Referee: Abstract: The manuscript provides no description of how the Trefftz basis is constructed or how it is incorporated into the PINN architecture. Without these details it is impossible to determine whether the observed advantage arises from the basis constraining the solution space a priori or from some other mechanism.

    Authors: We thank the referee for noting this omission in clarity. Section 2 of the manuscript describes the Trefftz basis (constructed from analytic solutions of the homogeneous Maxwell equations for the magnetic field case and the homogeneous Stokes equations for the CFD case) and its incorporation via a custom linear layer that replaces the standard output layer. To improve accessibility we will expand this section with explicit basis-function formulas, a pseudocode listing of the layer implementation, and an architecture diagram in the revised version. revision: yes

  3. Referee: Abstract: Training data are sampled directly from exact solutions rather than generated in a purely residual-driven, unsupervised regime. This supervised setting may conflate the effect of the Trefftz basis with the effect of providing high-quality labeled data, weakening the claim that the improvement demonstrates superior physics consistency of the Trefftz-PINN formulation.

    Authors: We respectfully maintain that the supervised setting with exact solutions does not weaken the central claim. By training both architectures on identical data and comparing them only at matched MSE values, the experimental design isolates the effect of the a-priori function-space restriction imposed by the Trefftz basis. This controlled comparison directly demonstrates that equivalent pointwise accuracy does not guarantee equivalent topology preservation. We will add a short clarifying paragraph in the methods section explaining this rationale and will note the limitation regarding fully unsupervised regimes as a direction for future work. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected in empirical comparison

full rationale

The paper conducts a direct empirical comparison of standard PINNs versus Trefftz-PINNs on magnetic field-line reproduction and CFD streamlines. Training data are sampled from independent exact solutions, performance is matched on MSE, and superiority is asserted via visualization of global topology. No derivation step reduces a claimed prediction to a fitted parameter by construction, no self-citation chain supplies the central uniqueness or ansatz, and no equation equates the output topology metric to the input sampling procedure. The evaluation therefore remains externally benchmarked rather than self-referential.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are introduced beyond the standard PINN loss formulation and the known Trefftz method; the work relies on existing mathematical machinery.

pith-pipeline@v0.9.0 · 5480 in / 994 out tokens · 55573 ms · 2026-05-16T08:07:39.794403+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

19 extracted references · 19 canonical work pages

  1. [1]

    Raissi, P

    M. Raissi, P. Perdikaris, G. E. Karniadakis: Physics-informed neural networks: A deep learning framework for solving forward and inverse problems involving nonlinear partial differential equations, Journal of Computational Physics, 378:1 (2019), 686–707

    work page 2019

  2. [2]

    Raissi, A

    M. Raissi, A. Yazdani, G. E. Karniadakis: Hidden physics models: Machine learning of nonlinear partial differential equations, Journal of Computational Physics, 357:15 (2018), 125–141

    work page 2018

  3. [3]

    S. Wang, X. Yu, P. Perdikaris: When and why PINNs fail to train: A neural tan- gent kernel perspective, Journal of Computational Physics, 449:15 (2022), 110768

    work page 2022

  4. [4]

    S. Wang, Y. Teng, P. Perdikaris: Understanding and mitigating gradient patholo- gies in physics-informed neural networks, SIAM Journal on Scientific Compu- ting, 43:5 (2021), A3055–A3081

    work page 2021

  5. [5]

    L. D. McClenny, U. Braga-Neto: Self-adaptive physics-informed neural networks using a soft attention mechanism, Journal of Computational Physics, 474:1 (2023), 111722

    work page 2023

  6. [6]

    Z. Q. J. Xu, Y. Zhang, Y. Luo, Y. Xiao, Z. Ma: Frequency principle: Fourier analy- sis sheds light on deep neural networks, Communications in Computational Physics, 28:5 (2020), 1746–1767

    work page 2020

  7. [7]

    S. Wang, S. Sankaran, P. Perdikaris: Respecting causality is all you need for training physics-informed neural networks, arXiv:2203.07404 (2022)

    work page arXiv 2022

  8. [8]

    A. S. Krishnapriyan, A. Gholami, S. Zhe, R. M. Kirby, M. W. Mahoney: Charac- terizing possible failure modes in physics-informed neural networks, in Proc. NeurIPS, Virtual Only, 2021

    work page 2021

  9. [9]

    Mishra, R

    S. Mishra, R. Molinaro: Estimates on the generalization error of physics-in- formed neural networks, ESAIM: Mathematical Modelling and Numerical Anal- ysis, 55:5 (2021), 1943–1965

    work page 2021

  10. [10]

    G. E. Karniadakis, I. G. Kevrekidis, L. Lu, et al.: Physics-informed machine learning, Nature Reviews Physics, 3 (2021), 422–440

    work page 2021

  11. [11]

    Akbarian Bafghi, et al.: Predictions and Corrections: Neural Predictors with Solver-Based Correction for ODEs and PDEs., in Proceedings of NeurIPS (Work- shop), 2025

    R. Akbarian Bafghi, et al.: Predictions and Corrections: Neural Predictors with Solver-Based Correction for ODEs and PDEs., in Proceedings of NeurIPS (Work- shop), 2025

    work page 2025

  12. [12]

    E. Clement, et al: A Novel A.I Enhanced Reservoir Characterization with a Journal of Advanced Simulation in Science and Engineering 16 Combined Mixture of Experts -- NVIDIA Modulus based Physics Informed Neu- ral Operator Forward Model, arXiv:2012.04426 (2024)

    work page arXiv 2012

  13. [13]

    Holmes, J

    P. Holmes, J. L. Lumley, G. Berkooz: Turbulence, coherent structures, dynamical systems and symmetry, Cambridge University Press, Cambridge, 1996

    work page 1996

  14. [14]

    C. W. Rowley, S. T. M. Dawson: Model reduction for flow analysis and control, Annual Review of Fluid Mechanics, 49 (2017), 387–417

    work page 2017

  15. [15]

    Trefftz: Ein Gegenstück zum Ritzschen Verfahren, in Proc

    E. Trefftz: Ein Gegenstück zum Ritzschen Verfahren, in Proc. the 2nd Interna- tional Congress of Applied Mechanics, Zürich, 1926, 131-137

    work page 1926

  16. [16]

    C., & Lu, T

    Li, Z. C., & Lu, T. T. (2008). The Trefftz Method for Partial Differential Equa- tions. CRC Press, ISBN 978-1584887539

    work page 2008

  17. [17]

    Hiptmair, A

    R. Hiptmair, A. Moiola, I. Perugia: Trefftz methods for the Helmholtz equation, Journal of Computational Physics, 230:7 (2011), 2423–2440

    work page 2011

  18. [18]

    L. Lu, R. Pestourie, W. Yao, Z. Wang, F. Verdugo, S. G. Johnson, Physics-in- formed neural networks with hard constraints for inverse design, arXiv:2102.04626 (2021)

    work page arXiv 2021

  19. [19]

    Koyamada, Y

    K. Koyamada, Y. Long, T. Kawamura, K. Konishi: Data-driven derivation of par- tial differential equations using neural network model, International Journal of Modeling, Simulation, and Scientific Computing, 12:2 (2021), 2140001

    work page 2021
