Semantic-Contact Fields for Category-Level Generalizable Tactile Tool Manipulation

Kevin Yuchen Ma , Heng Zhang , Weisi Lin , Mike Zheng Shou , Yan Wu
Authors on Pith no claims yet

Pith reviewed 2026-05-15 22:16 UTC · model grok-4.3

classification 💻 cs.RO
keywords semantic contact fieldstactile sensingtool manipulationsim-to-real transfercategory-level generalizationdiffusion policycontact estimationrobot manipulation
0
0 comments X

The pith

Semantic-Contact Fields fuse visual semantics with dense contact probability and force estimates to support category-level generalization in tactile tool manipulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to give robots both high-level semantic understanding and low-level physical contact awareness for tasks like scraping, drawing, and peeling. It does so by learning a single 3D representation that combines camera semantics with tactile contact signals, trained first in large-scale simulation and then adapted to real sensors with only a small amount of pseudo-labeled data. A reader should care because current vision-language policies lack reliable physical grounding while pure tactile methods stay tied to one specific tool shape. If the approach works, robots could apply the same learned policy to many unseen tools within a category without collecting new real-world data for each one.

Core claim

SCFields is a unified 3D representation that fuses visual semantics with dense extrinsic contact estimates, including both contact probability and force magnitude. It is obtained via a two-stage pipeline: pre-training on large-scale simulation to acquire geometry-aware contact priors, followed by fine-tuning on a modest real dataset whose labels are generated by geometric heuristics and force optimization to align real tactile readings. The resulting force-aware field is then supplied as dense observation to a diffusion policy that performs the manipulation, producing category-level generalization to unseen tool instances.

What carries the argument

Semantic-Contact Fields (SCFields), a 3D representation that merges visual semantics with dense estimates of contact probability and force; it supplies the observation to the diffusion policy.

If this is right

  • The same learned representation supports multiple contact-rich tasks (scraping, crayon drawing, peeling) across different tool shapes without retraining.
  • Performance exceeds both vision-only and raw-tactile baselines on the reported real-robot experiments.
  • Only a small amount of real data is required after large-scale simulation pre-training.
  • The force component of the field improves physical control beyond what contact probability alone provides.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same representation could be attached to existing vision-language-action models to supply missing physical grounding without retraining the entire policy.
  • Extending the two-stage pipeline to additional sensor types or dynamic contact scenarios would test whether the alignment method generalizes beyond the three tasks shown.
  • If the force estimates prove reliable, they could support downstream planning that reasons explicitly about expected reaction forces rather than treating contact as binary.

Load-bearing premise

The geometric heuristics plus force optimization used to pseudo-label the small real dataset can correctly align real tactile signals with simulation despite the nonlinear deformation of soft sensors.

What would settle it

A controlled test in which a new tool geometry produces systematically mismatched contact-force predictions between the simulated priors and the real sensor readings, causing the diffusion policy to fail on the same task that succeeded in simulation.

Figures

Figures reproduced from arXiv: 2602.13833 by Heng Zhang, Kevin Yuchen Ma, Mike Zheng Shou, Weisi Lin, Yan Wu.

Figure 1
Figure 1. Figure 1: Semantic-Contact Fields (SCFields) Overview. 1. Multimodal Inputs: The system takes RGB-D observations and tactile readings from GelSight sensors. 2. SCFields Generation: Our unified perception module fuses these inputs into a dense point cloud representation containing both category-level semantics (blue/green heatmap) and extrinsic contact force vectors (green arrows). 3. Policy Execution: A diffusion po… view at source ↗
Figure 2
Figure 2. Figure 2: Method Overview. Left: Contact Field Learning (III-B) Stage 1 learns general geometry-aware contact priors from simulated data; Stage 2 aligns the model to real tactile sensor responses using pseudo-labeled real data. Right: Policy Learning (III-C) A Diffusion Policy is conditioned on the resulting SCFields to achieve robust tool manipulation. at the sensor surface, rather than grounding contact on the ext… view at source ↗
Figure 3
Figure 3. Figure 3: Contact field model architecture. The network fuses [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

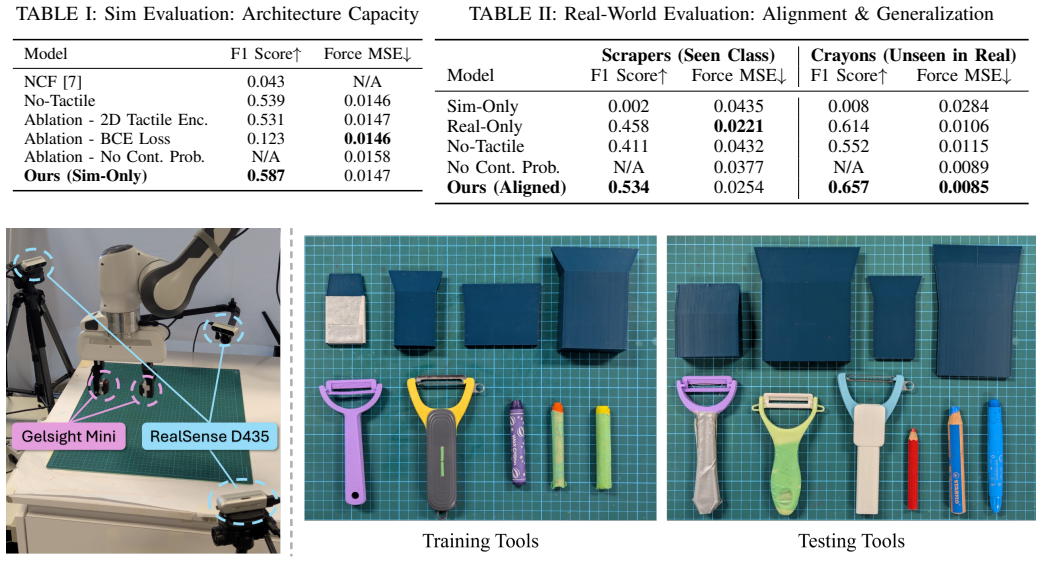

Figure 4. Figure 4: Left: Real robot experiment setup: We use a Franka Emika Panda robot with 2 GelSight Mini tactile sensors mounted on the gripper fingers, and 3 RealSense D435 cameras to capture RGB-D observations. Right: Training and Testing Tools • Ablation - Loss Function: Replaces Focal Loss with standard BCE Loss to evaluate robustness to class imbal￾ance. 1) Evaluation 1: Architecture Validation (Sim-to-Sim): We firs… view at source ↗
Figure 5
Figure 5. Figure 5: Qualitative comparison of contact-field estimation on the Peeler. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Rollouts of contact-rich tasks with unseen tools. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Example failure modes of baseline/ablation methods. [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Peeler meshes used in simulation Listing 1: Key Simulation and TacSL parameters. TacSL: compliance_stiffness_range: [1400, 1500] compliant_damping_range: [1.5, 2.5] elastomer_friction: 5.0 IsaacGym: substeps: 4 physx: num_pos_iterations: 32 num_vel_iterations: 2 contact_offset: 0.002 max_depenetration_vel: 1.0 friction_corr_dist: 0.001 Robot_Control: gripper_prop_gains: [800, 800] gripper_deriv_gains: [4, … view at source ↗
Figure 9
Figure 9. Figure 9: Illustration of the crayon picking setup, Semantic Field visualization, and successful rollouts on both seen and unseen [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Qualitative results in simulation. The predicted contact probabilities (bottom row) closely match the ground truth fields [PITH_FULL_IMAGE:figures/full_fig_p016_10.png] view at source ↗
Figure 11

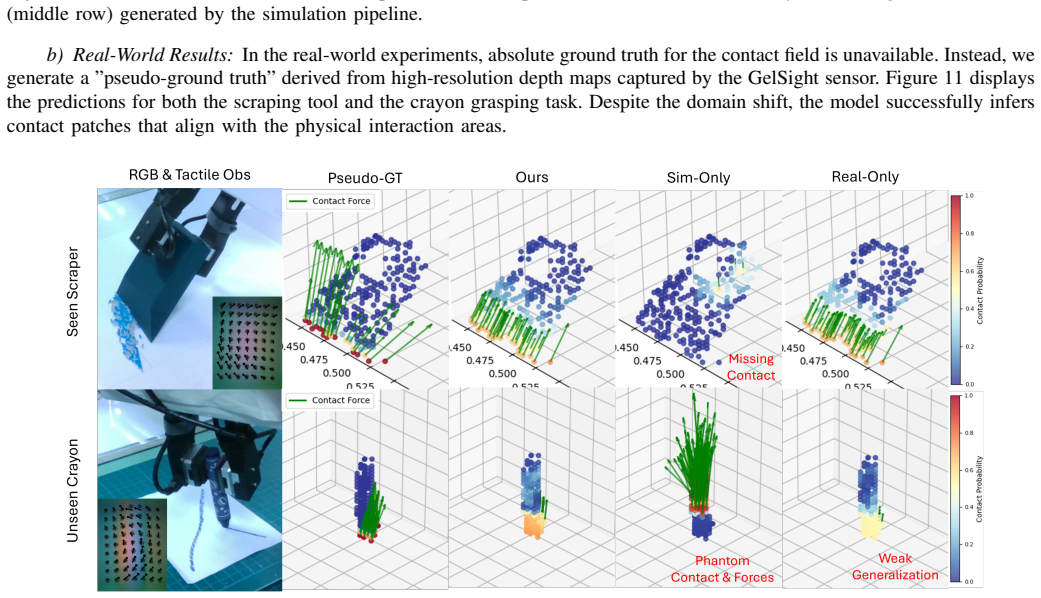

Figure 11. Figure 11: Qualitative results in the real world. We compare the predicted contact fields by [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗
read the original abstract

Generalizing tool manipulation requires both semantic planning and precise physical control. Modern generalist robot policies, such as Vision-Language-Action (VLA) models, often lack the physical grounding required for contact-rich tool manipulation. Conversely, existing contact-aware policies that leverage tactile or haptic sensing are typically instance-specific and fail to generalize across diverse tool geometries. Bridging this gap requires learning representations that are both semantically transferable and physically grounded, yet a fundamental barrier remains: diverse real-world tactile data are prohibitive to collect at scale, while direct zero-shot sim-to-real transfer is challenging due to the complex nonlinear deformation of soft tactile sensors. To address this, we propose Semantic-Contact Fields (SCFields), a unified 3D representation that fuses visual semantics with dense extrinsic contact estimates, including contact probability and force. SCFields is learned through a two-stage Sim-to-Real Contact Learning Pipeline: we first pre-train on large-scale simulation to learn geometry-aware contact priors, then fine-tune on a small set of real data pseudo-labeled via geometric heuristics and force optimization to align real tactile signals. The resulting force-aware representation serves as the dense observation input to a diffusion policy, enabling physical generalization to unseen tool instances. Experiments on scraping, crayon drawing, and peeling demonstrate robust category-level generalization, significantly outperforming vision-only and raw-tactile baselines. Project page: https://kevinskwk.github.io/SCFields/.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes Semantic-Contact Fields (SCFields), a unified 3D representation fusing visual semantics with dense extrinsic contact probability and force estimates. SCFields are learned via a two-stage Sim-to-Real Contact Learning Pipeline (simulation pre-training on geometry-aware priors followed by fine-tuning on a small real dataset whose labels are generated by geometric heuristics plus force optimization). The resulting representation is fed as dense observation to a diffusion policy, with experiments on scraping, crayon drawing, and peeling claimed to show robust category-level generalization that significantly outperforms vision-only and raw-tactile baselines.

Significance. If the pseudo-labels prove accurate, the approach would meaningfully advance category-level tactile tool manipulation by enabling physically grounded representations with limited real data, addressing the sim-to-real gap for soft sensors and the semantic-physical disconnect in current VLA models. The explicit separation of simulation pre-training from heuristic-based real fine-tuning is a pragmatic strength that could generalize beyond the three demonstrated tasks.

major comments (2)
  1. [Two-stage Sim-to-Real Contact Learning Pipeline] Two-stage pipeline (abstract and method description): no quantitative validation (IoU, force MSE, or similar) of the geometric-heuristic pseudo-labels against independent real-world ground truth on the same soft-sensor hardware is reported. Without such checks, it is impossible to confirm that the diffusion policy receives physically accurate dense observations, directly undermining attribution of the reported outperformance to SCFields rather than to heuristic artifacts.
  2. [Experiments] Experiments section: the claim of 'significantly outperforming' vision-only and raw-tactile baselines is stated without any numerical metrics, ablation tables, error bars, or statistical tests. This absence prevents verification of the central generalization result and makes the superiority claim unverifiable from the provided evidence.
minor comments (1)
  1. The abstract and method description would benefit from an explicit statement of the number of real-world trajectories used for fine-tuning and the precise form of the force-optimization objective.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address the two major comments below and will revise the manuscript to strengthen the validation and presentation of results.

read point-by-point responses

  1. Referee: [Two-stage Sim-to-Real Contact Learning Pipeline] Two-stage pipeline (abstract and method description): no quantitative validation (IoU, force MSE, or similar) of the geometric-heuristic pseudo-labels against independent real-world ground truth on the same soft-sensor hardware is reported. Without such checks, it is impossible to confirm that the diffusion policy receives physically accurate dense observations, directly undermining attribution of the reported outperformance to SCFields rather than to heuristic artifacts.

    Authors: We agree that direct quantitative validation of the pseudo-labels would strengthen the paper. In the revised manuscript we will add a dedicated subsection reporting IoU for contact probability and MSE for force estimates, obtained by comparing the heuristic-generated labels against a small set of manually annotated real-world ground-truth data collected on the same soft-sensor hardware. This will allow readers to assess label accuracy and support attribution of policy gains to SCFields. revision: yes

  2. Referee: [Experiments] Experiments section: the claim of 'significantly outperforming' vision-only and raw-tactile baselines is stated without any numerical metrics, ablation tables, error bars, or statistical tests. This absence prevents verification of the central generalization result and makes the superiority claim unverifiable from the provided evidence.

    Authors: We acknowledge that the current draft presents the outperformance claim without sufficient numerical detail. In the revision we will expand the experiments section with explicit success-rate tables (including means and standard deviations), ablation studies isolating semantic versus contact components, error-bar visualizations, and statistical significance tests (e.g., paired t-tests or Wilcoxon tests) across tool instances. These additions will make the category-level generalization results fully verifiable. revision: yes

Circularity Check

0 steps flagged

No circularity: pipeline uses independent simulation pre-training and external geometric heuristics

full rationale

The paper's central derivation chain consists of pre-training SCFields on large-scale simulation to obtain geometry-aware contact priors, followed by fine-tuning on a small real dataset whose contact probability and force labels are generated by geometric heuristics plus force optimization. These heuristics are described as independent external procedures, not derived from or equivalent to the SCFields model itself. The resulting representation is then fed as dense observation to a diffusion policy. No equation reduces the claimed category-level generalization to a fitted parameter defined by the same equations, no self-citation chain is load-bearing for the uniqueness of the representation, and the experimental results are presented as empirical outcomes rather than mathematical necessities. The derivation therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim depends on the feasibility of sim-to-real transfer for nonlinear tactile sensor deformations and the accuracy of heuristic-based pseudo-labeling; no free parameters are explicitly named in the abstract.

axioms (1)
  • domain assumption Sim-to-real transfer remains feasible for soft tactile sensors despite complex nonlinear deformations
    The abstract identifies this as the fundamental barrier yet assumes the two-stage pipeline solves it.
invented entities (1)
  • Semantic-Contact Fields (SCFields) no independent evidence
    purpose: Unified 3D representation that fuses visual semantics with dense contact probability and force estimates
    Newly proposed construct serving as the core observation for the diffusion policy.
