Accessibility of doping ranges of semiconductors by terahertz spectroscopy

Daniel Molter; Georg von Freymann; Jens Klier; Joachim Jonuscheit; Joshua Hennig; Mirco Kutas; Stefan Duran

arxiv: 2602.21094 · v2 · submitted 2026-02-24 · ⚛️ physics.optics

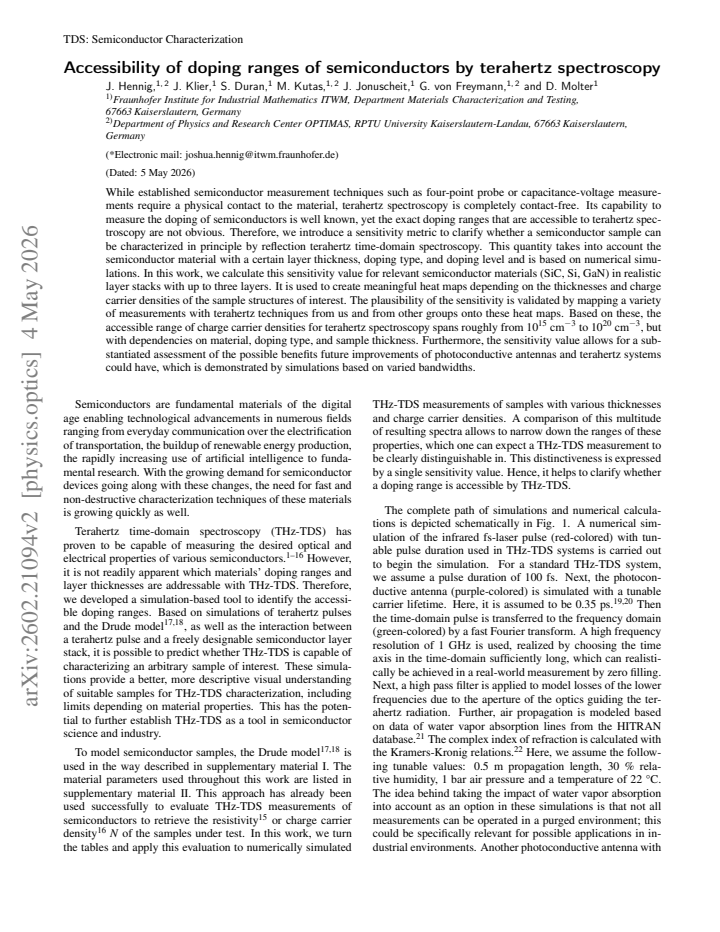

Accessibility of doping ranges of semiconductors by terahertz spectroscopy

Joshua Hennig , Jens Klier , Stefan Duran , Mirco Kutas , Joachim Jonuscheit , Georg von Freymann , Daniel Molter This is my paper

Pith reviewed 2026-05-15 19:47 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords terahertz time-domain spectroscopysemiconductor dopingcharge carrier densitysensitivity metricreflection spectroscopysilicon carbidegallium nitridesilicon

0 comments

The pith

Reflection terahertz spectroscopy can determine semiconductor doping levels from roughly 10^15 to 10^20 cm^{-3} without contact, as mapped by a new simulation-based sensitivity metric.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a sensitivity metric calculated from numerical simulations of reflection terahertz time-domain spectroscopy to identify which combinations of semiconductor material, layer thickness, and charge carrier density produce a detectable change in the reflected signal. This metric generates heat maps for common materials such as silicon, silicon carbide, and gallium nitride in realistic multilayer stacks, showing the practical doping ranges that can be accessed. The authors validate the metric by overlaying published and new experimental data onto the maps, confirming that the accessible window spans approximately 10^{15} to 10^{20} cm^{-3} with clear dependence on material properties and sample geometry. They further use the same framework to project how increased system bandwidth would widen those ranges.

Core claim

By defining a sensitivity value from finite-difference time-domain or equivalent simulations of the electromagnetic response of doped semiconductor layers, the work shows that reflection terahertz time-domain spectroscopy can in principle resolve charge carrier densities between 10^{15} cm^{-3} and 10^{20} cm^{-3} in silicon, SiC, and GaN stacks; the metric produces thickness-versus-density heat maps whose boundaries match measured spectra from multiple groups.

What carries the argument

The sensitivity metric, a scalar derived from the simulated difference in terahertz reflection spectra between doped and undoped multilayer structures that quantifies whether the doping-induced change exceeds typical measurement noise.

If this is right

For any given layer thickness the metric directly indicates whether a target doping level will produce a measurable reflection change.
The resulting heat maps allow rapid pre-experiment assessment of feasible doping-thickness combinations for silicon, SiC, and GaN.
Widening the terahertz bandwidth in future systems is projected to extend the lower and upper doping limits shown on the maps.
The same simulation framework can be reused to evaluate new layer stacks or different doping types without new hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Device fabs could incorporate these maps into process-control protocols to decide when contact-free terahertz checks replace probe measurements.
The sensitivity approach could be adapted to transmission-mode terahertz or to other contactless techniques such as microwave reflectometry.
Extending the model to include temperature dependence or magnetic fields would test whether the same doping window holds under operating conditions.

Load-bearing premise

The numerical simulations of the reflection spectra correctly capture the electromagnetic behavior of real samples without significant unmodeled contributions from surface states, interfaces, or material inhomogeneities.

What would settle it

A controlled reflection terahertz measurement on a silicon or SiC layer with carrier density near 10^{15} cm^{-3} that shows no detectable spectral difference from an undoped reference would falsify the lower boundary of the claimed accessible range.

read the original abstract

While established semiconductor measurement techniques such as four-point probe or capacitance-voltage measurements require a physical contact to the material, terahertz spectroscopy is completely contact-free. Its capability to measure the doping of semiconductors is well known, yet the exact doping ranges that are accessible to terahertz spectroscopy are not obvious. Therefore, we introduce a sensitivity metric to clarify whether a semiconductor sample can be characterized in principle by reflection terahertz time-domain spectroscopy. This quantity takes into account the semiconductor material with a certain layer thickness, doping type, and doping level and is based on numerical simulations. In this work, we calculate this sensitivity value for relevant semiconductor materials (SiC, Si, GaN) in realistic layer stacks with up to three layers. It is used to create meaningful heat maps depending on the thicknesses and charge carrier densities of the sample structures of interest. The plausibility of the sensitivity is validated by mapping a variety of measurements with terahertz techniques from us and from other groups onto these heat maps. Based on these, the accessible range of charge carrier densities for terahertz spectroscopy spans roughly from 10$^{15}$ cm$^{-3}$ to 10$^{20}$ cm$^{-3}$, but with dependencies on material, doping type, and sample thickness. Furthermore, the sensitivity value allows for a substantiated assessment of the possible benefits future improvements of photoconductive antennas and terahertz systems could have, which is demonstrated by simulations based on varied bandwidths.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper delivers a practical sensitivity metric and heat maps that map out measurable doping ranges for THz reflection spectroscopy on SiC, Si, and GaN stacks, with validation against existing data.

read the letter

The core point is that the authors define a sensitivity metric from numerical simulations of reflection THz time-domain signals on realistic multi-layer stacks, then use it to generate heat maps that show which charge carrier densities are accessible for SiC, Si, and GaN. The maps indicate a broad window from roughly 10^15 to 10^20 cm^{-3}, with shifts depending on material, doping type, and layer thickness. They also run a quick check on how wider system bandwidth would push the lower limit down. This is the new piece: turning the forward model into a decision tool rather than just reporting isolated measurements. The validation step maps published THz results onto the heat maps and finds reasonable consistency, which keeps the claim grounded without circular fitting. The work is straightforward on the simulation side, using standard conductivity models for the layers. One soft spot is the assumption of uniform bulk properties and sharp interfaces. Surface states or doping gradients could move the effective response, especially near the low-density edge where skin depth reaches layer thickness. The paper would be stronger if it quantified how sensitive the metric is to those deviations or to the exact material parameters chosen. This is aimed at people who need quick, non-contact guidance on doping characterization in semiconductor processing or device testing. A reader working on metrology or THz hardware would find the heat maps directly usable for planning experiments. It deserves peer review because the metric is reproducible from the described simulations and the validation provides an external check, even if the model assumptions need some tightening in revision.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces a sensitivity metric computed from numerical simulations of reflection THz time-domain spectroscopy on multilayer semiconductor structures (SiC, Si, GaN) to delineate accessible charge-carrier density ranges. The metric is visualized in heat maps versus layer thickness and doping level; existing experimental data are overlaid for validation, supporting the claim that THz spectroscopy can access doping from roughly 10^{15} cm^{-3} to 10^{20} cm^{-3} with material-, type-, and thickness-dependent boundaries. The same metric is used to quantify gains from increased THz bandwidth.

Significance. If the forward simulations faithfully reproduce experimental reflection spectra, the work supplies a practical, quantitative framework for predicting when contact-free THz spectroscopy can characterize semiconductor doping and for estimating the value of future instrument improvements.

major comments (2)

[§3] §3 (electromagnetic model): the simulations employ bulk Drude conductivity with abrupt interfaces and uniform doping; no quantitative assessment is given of how surface accumulation layers or dopant segregation—known to shift plasma frequency and damping—would displace the sensitivity contours, especially near the 10^{15} cm^{-3} lower bound where skin depth approaches layer thickness.
[§4] §4 (validation): published measurements are mapped onto the heat maps as a consistency check, yet no direct comparison of simulated versus measured complex reflection coefficients, no reported RMS deviation, and no propagation of material-parameter uncertainties are provided, leaving the precise location of the sensitivity threshold unverified.

minor comments (2)

[Abstract] The abstract states that the sensitivity metric is 'based on numerical simulations' but does not name the solver (FDTD, transfer-matrix, etc.) or give its explicit mathematical definition.
[Figures] Figure captions for the heat maps should state the numerical threshold value adopted to separate 'accessible' from 'inaccessible' regions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the scope and limitations of our sensitivity metric. We address each major comment below and have revised the manuscript to incorporate additional discussion and caveats where appropriate.

read point-by-point responses

Referee: §3 (electromagnetic model): the simulations employ bulk Drude conductivity with abrupt interfaces and uniform doping; no quantitative assessment is given of how surface accumulation layers or dopant segregation—known to shift plasma frequency and damping—would displace the sensitivity contours, especially near the 10^{15} cm^{-3} lower bound where skin depth approaches layer thickness.

Authors: We agree that surface accumulation layers and dopant segregation represent real effects that can modify the effective plasma frequency and damping, particularly near the lower doping bound where skin depth becomes comparable to layer thickness. Our electromagnetic model deliberately employs the standard bulk Drude description with uniform doping and abrupt interfaces to establish a baseline sensitivity metric applicable to idealized structures. This provides a practical first-order framework for delineating accessible ranges. In the revised manuscript we have added an explicit discussion of these limitations, noting that deviations from the predicted contours may occur in real samples and that more advanced models incorporating surface states would be required for quantitative refinement near the 10^{15} cm^{-3} threshold. The overall delineated doping ranges remain unchanged but are now presented with this important caveat. revision: yes
Referee: §4 (validation): published measurements are mapped onto the heat maps as a consistency check, yet no direct comparison of simulated versus measured complex reflection coefficients, no reported RMS deviation, and no propagation of material-parameter uncertainties are provided, leaving the precise location of the sensitivity threshold unverified.

Authors: We acknowledge that a direct, quantitative comparison of simulated versus measured complex reflection coefficients (including RMS deviations and uncertainty propagation) would strengthen the validation. For the majority of literature data points overlaid on the heat maps, however, the raw complex spectra are not available, precluding such a comparison. Our validation instead shows that experimentally reported doping levels and thicknesses consistently lie within the regions our metric identifies as accessible, thereby supporting the plausibility of the contours. In the revision we have added a paragraph explicitly stating this limitation, included a brief propagation of typical material-parameter uncertainties for the simulated cases, and clarified that the heat maps serve as a practical guide rather than a precisely calibrated threshold. We believe this approach remains transparent while preserving the utility of the presented framework. revision: partial

Circularity Check

0 steps flagged

No significant circularity: sensitivity metric derived from independent forward simulations

full rationale

The paper computes a sensitivity metric directly from numerical simulations (transfer-matrix or FDTD) of THz reflection spectra on layered semiconductor structures using the Drude model for conductivity. Heat maps are generated by thresholding this simulated quantity across material, thickness, and doping parameters. Existing experimental measurements are then overlaid on the maps solely as a post-hoc consistency check; they are not used to fit parameters, define the metric, or calibrate thresholds. No self-citations are invoked as load-bearing premises, no ansatz is smuggled via prior work, and no fitted input is relabeled as a prediction. The accessible doping range (10^15–10^20 cm^{-3}) follows from the simulation contours, with the validation serving only to confirm plausibility rather than to close a definitional loop.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim depends on the accuracy of electromagnetic simulations of THz reflection whose material parameters and boundary conditions are taken from standard literature values rather than fitted here.
