arxiv: 2603.00234 · v1 · submitted 2026-02-27 · 🌌 astro-ph.HE

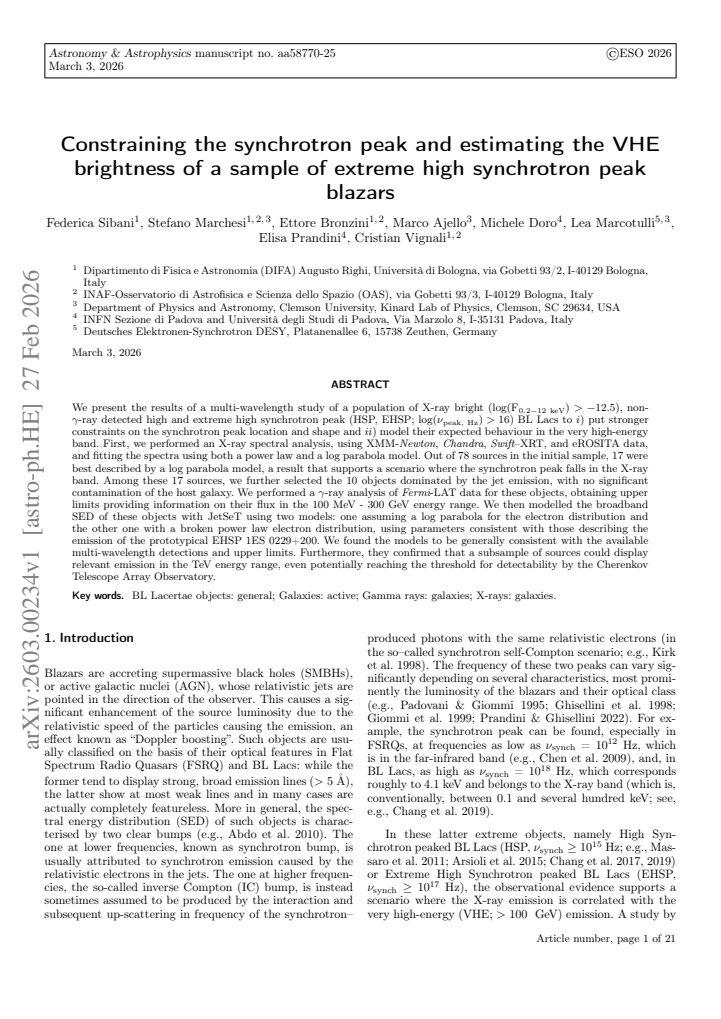

Constraining the synchrotron peak and estimating the VHE brightness of a sample of extreme high synchrotron peak blazars

Federica Sibani , Stefano Marchesi , Ettore Bronzini , Marco Ajello , Michele Doro , Lea Marcotulli , Elisa Prandini , Cristian Vignali This is my paper

Pith reviewed 2026-05-15 17:48 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords blazarssynchrotron peakextreme high synchrotron peakVHE emissionSED modelingX-ray spectraCTABL Lacs
0
0 comments X

The pith

X-ray spectra locate synchrotron peaks in extreme blazars and predict detectable TeV emission for some targets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper analyzes X-ray bright but gamma-ray undetected high and extreme synchrotron peak BL Lacs to tighten constraints on where their synchrotron peaks occur. X-ray spectral fits with log-parabola models for 17 sources place the peak in the X-ray band. From these, ten jet-dominated objects are selected and their broadband SEDs are modeled with JetSeT using electron distributions matched to the prototype 1ES 0229+200. The resulting models stay consistent with multi-wavelength detections and LAT upper limits while indicating that a subsample produces relevant TeV output. This positions those sources as potential new targets for very high energy observations.

Core claim

For ten selected EHSP BL Lacs, broadband SED models that adopt either a log-parabola or broken power-law electron distribution with parameters taken from 1ES 0229+200 reproduce the available X-ray, optical, and radio data together with LAT upper limits, and show that several objects should emit at levels potentially detectable in the TeV band by the Cherenkov Telescope Array Observatory.

What carries the argument

Broadband SED modeling performed with JetSeT that applies electron distribution parameters taken directly from the prototypical EHSP 1ES 0229+200 to predict very high energy emission.

If this is right

  • Seventeen sources are best described by log-parabola X-ray spectra, locating the synchrotron peak inside the X-ray band.
  • Ten sources are shown to be dominated by jet emission with negligible host-galaxy contribution.
  • LAT upper limits in the 100 MeV–300 GeV range remain consistent with the constructed SED models.
  • A subsample of the sources is predicted to reach relevant emission levels in the TeV band.
  • Some objects approach the sensitivity threshold of the Cherenkov Telescope Array Observatory.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The sources identified here could become priority targets for pointed CTA observations to test the predicted fluxes.
  • If the shared-parameter approach continues to work, similar modeling can be applied to additional EHSP candidates found in future X-ray surveys.
  • Confirmation of the TeV predictions would link extreme synchrotron-peak locations more directly to higher very high energy output in blazar jets.

Load-bearing premise

Electron distribution parameters measured for the single source 1ES 0229+200 can be applied unchanged to the ten other selected targets.

What would settle it

TeV observations of any of the ten sources that either detect emission well above the modeled flux or return strict upper limits well below the predicted level would falsify the claim.

Figures

Figures reproduced from arXiv: 2603.00234 by Cristian Vignali, Elisa Prandini, Ettore Bronzini, Federica Sibani, Lea Marcotulli, Marco Ajello, Michele Doro, Stefano Marchesi.

Figure 1
Figure 1. Figure 1: Synchrotron peak frequency as a function of 0.2-12 keV flux for the 1007 blazars with X-ray counterpart and without a counterpart in the 4FGL catalogue (Marchesi et al. (2025)). The subsample of sources analysed in this work is plotted in orange; the three FSRQs excluded from the analysis are instead plotted in green. Finally, the rest of the Marchesi et al. (2025) sample is shown in blue. ported. In [PIT… view at source ↗
Figure 2
Figure 2. Figure 2: From left to right, top to bottom: Results of the log parabola fitting of the blazars 5BZBJ0333-3619 (Swift-XRT data), 5BZGJ1510+3335 (Chandra data), 5BZBJ1253+3826 (Swift-XRT data), 5BZBJ1636–1248 (Swift-XRT data), 5BZBJ1251-2958 (XMM-Newton data), 5BZBJ0040-2719 (XMM-Newton data), 5BZGJ1201-0011 (Swift-XRT data), 5BZBJ1302+5056 (Swift-XRT data) and 5BZBJ1057+2303 (Swift-XRT data). In the inset, we report… view at source ↗
Figure 4
Figure 4. Figure 4: Distribution of the ∆Cstat of the analysed sources plotted against their synchrotron peak. The blue triangles represent the results for all the analysed sources, whereas the orange circles represent the sources favouring a log parabola fit, having ∆Cstat > 2.7 and -1 < β < 1.5. The dotted lines represent the quartiles and median distribution for the two populations. As it can be seen, the sources best fitt… view at source ↗
Figure 5
Figure 5. Figure 5: Models for different broadband SEDs of the blazar 1ES0229+200, assuming a log parabola distribution for elec￾trons, z=0.139, and γ0 of the order of 105 , varying in the range 2.8×105 -3.9×105 , due to the different values of B used in each model, as reported in [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Models for different broadband SEDs of the blazar 1ES0229+200, assuming a broken power law distribution for electrons, z=0.139, and γbreak of the order of 106 , varying in the range 1.5×106 -2.3×106 , due to the different values of B used in each model, as reported in [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
read the original abstract

We present the results of a multi-wavelength study of a population of X-ray bright ($\rm log(F_{0.2-12 \ keV})>-12.5$), non-$\gamma$-ray detected high and extreme high synchrotron peak (HSP, EHSP; $\rm log(\nu_{\rm peak,\ Hz})>16$) BL Lacs to $i$) put stronger constraints on the synchrotron peak location and shape and $ii$) model their expected behaviour in the very high-energy band. First, we performed an X-ray spectral analysis, using XMM-Newton, Chandra, Swift-XRT, and eROSITA data, and fitting the spectra using both a power law and a log parabola model. Out of 78 sources in the initial sample, 17 were best described by a log parabola model, a result that supports a scenario where the synchrotron peak falls in the X-ray band. Among these 17 sources, we further selected the 10 objects dominated by the jet emission, with no significant contamination of the host galaxy. We performed a $\gamma$-ray analysis of \lat\ data for these objects, obtaining upper limits providing information on their flux in the 100 MeV - 300 GeV energy range. We then modelled the broadband SED of these objects with JetSeT using two models: one assuming a log parabola for the electron distribution and the other one with a broken power law electron distribution, using parameters consistent with those describing the emission of the prototypical EHSP 1ES 0229+200. We found the models to be generally consistent with the available multi-wavelength detections and upper limits. Furthermore, they confirmed that a subsample of sources could display relevant emission in the TeV energy range, even potentially reaching the threshold for detectability by the Cherenkov Telescope Array Observatory.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper analyzes X-ray spectra (XMM-Newton, Chandra, Swift-XRT, eROSITA) of 78 X-ray bright, non-Fermi-detected HSP/EHSP BL Lacs using power-law and log-parabola models, identifying 17 sources with synchrotron peaks in the X-ray band. From these, 10 jet-dominated objects are selected; Fermi-LAT upper limits are derived; and broadband SEDs are modeled in JetSeT with log-parabola and broken-power-law electron distributions whose parameters are set consistent with the prototypical EHSP 1ES 0229+200. The models are stated to be consistent with multi-wavelength data, and a subsample is predicted to reach CTAO-detectable TeV fluxes.

Significance. If the transferred electron parameters prove appropriate, the work supplies useful VHE brightness predictions and synchrotron-peak constraints for a population of EHSP blazars that can inform CTAO target selection. The X-ray spectral comparison and LAT upper-limit procedure follow standard practice and are not load-bearing concerns.

major comments (1)
  1. [Broadband SED modeling section] Broadband SED modeling section: the log-parabola and broken-power-law electron distributions are assigned parameters 'consistent with' those of 1ES 0229+200 without per-source optimization, reported uncertainties, or goodness-of-fit metrics against the individual X-ray spectra of the 10 targets. Because the inverse-Compton component (and therefore the predicted VHE flux) is sensitive to the electron index, break energy, and high-energy cutoff, this single shared assumption carries the central claim that a subsample reaches CTAO-detectable TeV levels while still satisfying the X-ray and LAT constraints.
minor comments (1)
  1. [Abstract] The abstract states that 'a subsample' could be CTAO-detectable but does not identify which sources or quantify how many; this should be stated explicitly in the results.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The central concern regarding the broadband SED modeling is addressed point-by-point below, and we outline revisions that will strengthen the presentation of our results and their limitations.

read point-by-point responses

  1. Referee: [Broadband SED modeling section] Broadband SED modeling section: the log-parabola and broken-power-law electron distributions are assigned parameters 'consistent with' those of 1ES 0229+200 without per-source optimization, reported uncertainties, or goodness-of-fit metrics against the individual X-ray spectra of the 10 targets. Because the inverse-Compton component (and therefore the predicted VHE flux) is sensitive to the electron index, break energy, and high-energy cutoff, this single shared assumption carries the central claim that a subsample reaches CTAO-detectable TeV levels while still satisfying the X-ray and LAT constraints.

    Authors: We agree that the modeling approach relies on a shared set of electron-distribution parameters drawn from the prototype 1ES 0229+200. This choice was made to maintain a uniform, physically motivated baseline across the sample, allowing a direct comparison of predicted VHE fluxes under the hypothesis that these EHSP sources share similar jet conditions. Per-source optimization was not performed because the available multi-wavelength coverage (particularly in the optical/UV and GeV bands) is sparse for most targets, which would introduce strong degeneracies. In the revised manuscript we will: (i) explicitly list the adopted parameter values and their origin, (ii) add a dedicated paragraph quantifying the sensitivity of the predicted TeV flux to variations in the electron index, break energy, and cutoff (using the X-ray data as anchor), and (iii) report simple goodness-of-fit indicators (e.g., reduced chi-squared) for the X-ray spectra under the adopted models. These additions will clarify the exploratory nature of the predictions while preserving the manuscript’s focus on population-level constraints. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper performs X-ray spectral fitting to select the sample and constrain the synchrotron peak, obtains Fermi-LAT upper limits, and then runs JetSeT SED modeling with electron-distribution parameters stated to be consistent with the external prototypical source 1ES 0229+200. The resulting VHE flux estimates are model outputs under those fixed external parameters; they are not obtained by fitting the current sample's data, nor are they defined in terms of the predictions themselves. No equation reduces to an input by construction, no self-citation chain carries the central claim, and the consistency checks against multi-wavelength data are reported separately. The derivation therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard blazar jet emission models and the transfer of parameters from one reference source; no new physical entities are postulated.

free parameters (1)
  • electron distribution parameters
    Log parabola or broken power law indices and break energies set to values consistent with 1ES 0229+200 rather than fitted to each target.
axioms (2)
  • domain assumption Jet emission dominates the X-ray flux in the ten selected sources
    Used to filter the sample after initial spectral fitting.
  • domain assumption JetSeT one-zone models accurately capture the broadband SED
    Standard assumption in blazar modeling invoked for the two electron distributions.
