An accelerated direct solver for scalar wave scattering by multiple transmissive inclusions in two dimensions

Yasuhiro Matsumoto
Authors on Pith no claims yet

Pith reviewed 2026-05-15 13:35 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords wave scatteringboundary integral equationsdirect solverHelmholtz transmissionmultiple inclusionslow-rank approximationproxy methodPMCHWT formulation
0
0 comments X

The pith

A proxy-based direct solver for wave scattering by many inclusions compresses the linear system to size O(ω D) with O(N^{1.5}) cost on grids.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents a fast direct solver for scalar wave scattering by multiple transmissive inclusions in two dimensions that relies on boundary integral equations for the Helmholtz transmission problem. It applies low-rank approximations through the proxy method to handle interactions between separate inclusions efficiently, with a key speedup coming from skipping interior integral terms in the PMCHWT formulation. The approach reduces the size of the compressed algebraic system to O(ω D) where ω is the frequency and D is the bounding box diameter. For inclusions arranged on a grid at fixed frequency the total computational cost scales as O(N^{1.5}), and the PMCHWT version runs roughly six times faster while halving the compressed system size relative to the Burton-Miller version.

Core claim

The solver applies boundary integral equations to Helmholtz transmission problems with many disjoint inclusions and uses the proxy method for low-rank approximations of inter-scatterer interactions that omit internal terms in the PMCHWT case. This compresses the linear algebraic system to size O(ω D) and yields total cost at most O(N^{1.5}) when inclusions lie on a grid at fixed frequency. The PMCHWT formulation is approximately six times faster than Burton-Miller when each inclusion is treated as a cell and produces a system half as large in the same setting.

What carries the argument

Low-rank approximation via the proxy method for interactions between disjoint scatterers, omitting internal integral representation terms in the PMCHWT formulation.

If this is right

  • The linear system compresses to size O(ω D).
  • Total computational cost scales as O(N^{1.5}) for fixed frequency when inclusions form a grid.
  • PMCHWT runs approximately six times faster than Burton-Miller when each inclusion is treated as a cell.
  • PMCHWT halves the compressed system size compared with Burton-Miller in the same grid setting.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could allow direct solution of scattering problems with thousands of inclusions where iterative solvers become impractical.
  • Omitting interior terms might be adapted to other second-kind integral formulations for similar efficiency gains.
  • Irregular or clustered inclusion layouts may still benefit from the direct approach even if the O(N^{1.5}) scaling softens.
  • Extending the same proxy compression to three dimensions would test whether the O(ω D) size reduction persists.

Load-bearing premise

The proxy method delivers accurate low-rank approximations of interactions between separate inclusions without using internal integral terms, an advantage that works for PMCHWT but fails for Burton-Miller.

What would settle it

A test on a grid of inclusions at fixed frequency that measures whether the compressed matrix size grows beyond linear in ω D or the runtime exceeds O(N^{1.5}) scaling.

Figures

Figures reproduced from arXiv: 2603.09381 by Yasuhiro Matsumoto.

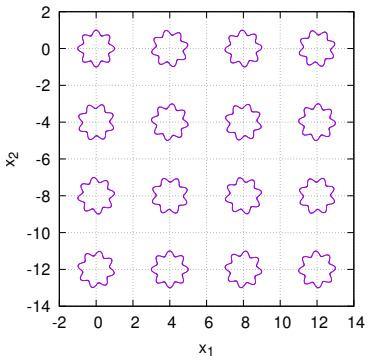

Figure 1
Figure 1. Figure 1: Multiple star-shaped scatterers. This figure corresponds to [PITH_FULL_IMAGE:figures/full_fig_p012_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Comparison of the absolute value of the numerical solution [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Comparison of the numerical solution on the boundary [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison of the numerical solution on the boundary [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗

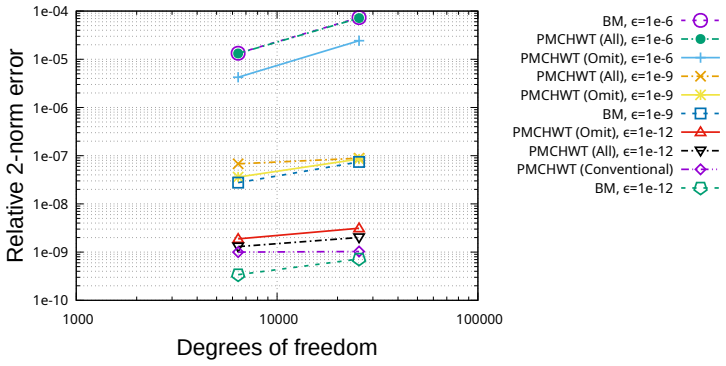

Figure 5
Figure 5. Figure 5: Relative 2-norm error defined in (27). Plots are sorted in descending order [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Computational time of the fast direct solver based on PMCHWT (Omit) and [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Computational time at threshold ϵ = 10−12. The labels “PMCHWT (Omit)”, “PMCHWT (All)” and “BM” correspond to the fast direct solver based on (10), (9) and (11), respectively. In the labels, ϵ represents the threshold of the column-pivoted QR decomposition in the fast direct solver. The labels “PMCHWT (Conventional)”, “BM (Conventional)” correspond to (10) and (11), respectively, and are solved by a standar… view at source ↗
Figure 8
Figure 8. Figure 8: Degrees of freedom of original system versus compressed system with respect to [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗

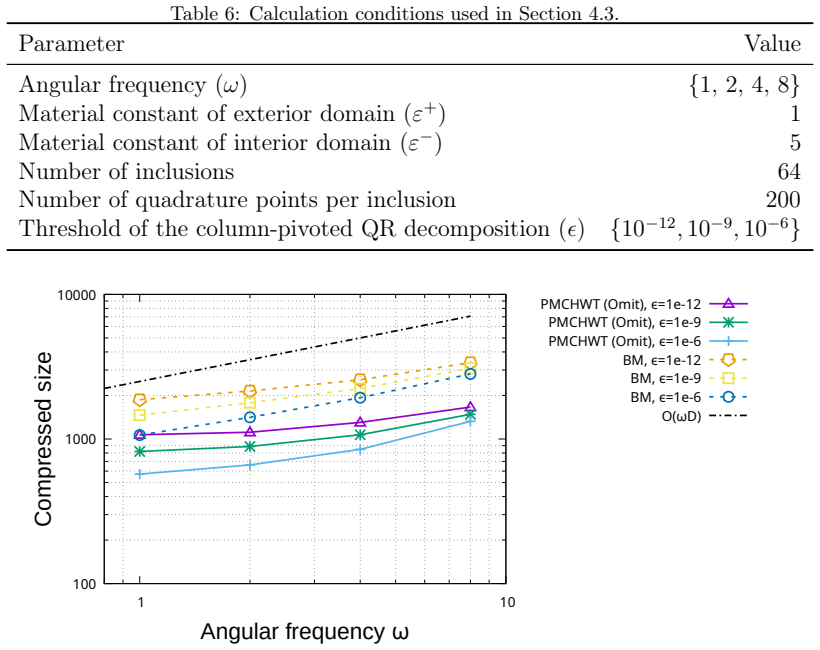

Figure 9
Figure 9. Figure 9: Degrees of freedom of compressed system with respect to increasing the fre [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Relative 2-norm error for various frequencies for a fixed degrees of freedom [PITH_FULL_IMAGE:figures/full_fig_p023_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Computational time for various frequencies for a fixed degrees of freedom 25600. [PITH_FULL_IMAGE:figures/full_fig_p024_11.png] view at source ↗

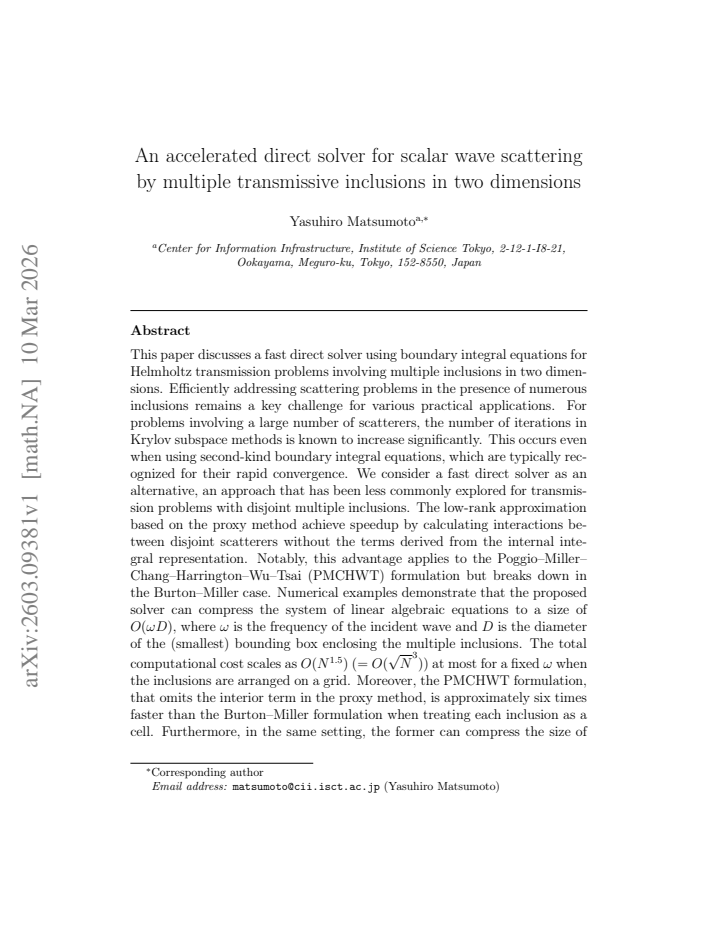

read the original abstract

This paper discusses a fast direct solver using boundary integral equations for Helmholtz transmission problems involving multiple inclusions in two dimensions. Efficiently addressing scattering problems in the presence of numerous inclusions remains a key challenge for various practical applications. For problems involving a large number of scatterers, the number of iterations in Krylov subspace methods is known to increase significantly. This occurs even when using second-kind boundary integral equations, which are typically recognized for their rapid convergence. We consider a fast direct solver as an alternative, an approach that has been less commonly explored for transmission problems with disjoint multiple inclusions. The low-rank approximation based on the proxy method achieve speedup by calculating interactions between disjoint scatterers without the terms derived from the internal integral representation. Notably, this advantage applies to the Poggio--Miller--Chang--Harrington--Wu--Tsai (PMCHWT) formulation but breaks down in the Burton--Miller case. Numerical examples demonstrate that the proposed solver can compress the system of linear algebraic equations to a size of $O(\omega D)$, where $\omega$ is the frequency of the incident wave and $D$ is the diameter of the (smallest) bounding box enclosing the multiple inclusions. The total computational cost scales as $O(N^{1.5})$ $(= O(\sqrt{N}^3))$ at most for a fixed $\omega$ when the inclusions are arranged on a grid. Moreover, the PMCHWT formulation, that omits the interior term in the proxy method, is approximately six times faster than the Burton--Miller formulation when treating each inclusion as a cell. Furthermore, in the same setting, the former can compress the size of the system of linear algebraic equations by half compared to the latter.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript presents a fast direct solver for 2D Helmholtz transmission scattering by multiple disjoint inclusions. It uses standard boundary-integral formulations (PMCHWT and Burton-Miller) together with a proxy-based low-rank compression of inter-scatterer interactions. The key technical observation is that, for the PMCHWT formulation, the interior integral-representation terms can be omitted from the proxy without destroying the low-rank structure, yielding a compressed system of size O(ωD) and total cost O(N^{1.5}) for grid arrangements at fixed frequency; numerical timings show the PMCHWT version is roughly six times faster and produces a matrix half the size of the Burton-Miller version.

Significance. If the reported scaling and accuracy are rigorously verified, the work supplies a practical direct solver for a class of transmission problems that are otherwise expensive for iterative methods. The explicit comparison of the two formulations and the observation that interior-term omission is admissible only for PMCHWT are useful contributions to the literature on fast BIE solvers for multiple scatterers.

major comments (3)
  1. [Abstract / proxy-method section] Abstract and the section describing the proxy compression: the claim that omitting the interior integral-representation terms from the proxy still produces a numerically low-rank interaction matrix of size O(ωD) while preserving solution accuracy is asserted but not supported by any error analysis, rank bound, or consistency proof. Because the PMCHWT operator couples interior and exterior fields, dropping the interior proxy contribution is an approximation whose validity depends on separation distance, contrast, and frequency; without a quantitative bound this step is load-bearing for both the O(ωD) compression claim and the reported 6× speedup.
  2. [Numerical examples] Numerical-examples section: the O(N^{1.5}) scaling and O(ωD) compressed size are supported only by timing plots and matrix-size counts; no convergence tables, residual histories, or error bars versus a reference solution are supplied, nor is there explicit verification that the post-processing steps (e.g., local corrections) preserve the claimed complexity and accuracy.
  3. [Numerical examples / formulation comparison] Comparison of PMCHWT versus Burton-Miller: the factor-of-six speedup and factor-of-two compression advantage are reported for the grid-arrangement test, yet the manuscript does not quantify how the omitted interior proxy terms affect solution accuracy across the range of contrasts and frequencies used in the experiments.
minor comments (2)
  1. [Abstract] Notation for the proxy radius and tolerance should be introduced once and used consistently; the abstract refers to “proxy rank / tolerance” without defining the symbols.
  2. [Figures] Figure captions for the timing and compression plots should state the precise definition of N (total degrees of freedom) and whether the reported times include factorization or only compression.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough review and constructive feedback. We address each major comment below, indicating where revisions will be made to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract / proxy-method section] Abstract and the section describing the proxy compression: the claim that omitting the interior integral-representation terms from the proxy still produces a numerically low-rank interaction matrix of size O(ωD) while preserving solution accuracy is asserted but not supported by any error analysis, rank bound, or consistency proof. Because the PMCHWT operator couples interior and exterior fields, dropping the interior proxy contribution is an approximation whose validity depends on separation distance, contrast, and frequency; without a quantitative bound this step is load-bearing for both the O(ωD) compression claim and the reported 6× speedup.

    Authors: We agree that the manuscript would benefit from a more explicit discussion of the approximation. The omission is admissible for PMCHWT because the interior representation is already accounted for in the local block and the proxy only needs to capture the exterior radiating field; this is not true for Burton-Miller. While we do not supply a rigorous rank bound, the numerical evidence in the grid-arrangement experiments shows that the numerical rank remains O(ωD) with negligible effect on accuracy for the tested separations and contrasts. In the revision we will add a short subsection with a heuristic argument based on the Green's function decay and additional rank plots versus separation distance. revision: partial

  2. Referee: [Numerical examples] Numerical-examples section: the O(N^{1.5}) scaling and O(ωD) compressed size are supported only by timing plots and matrix-size counts; no convergence tables, residual histories, or error bars versus a reference solution are supplied, nor is there explicit verification that the post-processing steps (e.g., local corrections) preserve the claimed complexity and accuracy.

    Authors: The referee is correct that the current numerical section relies primarily on timing and size data. We will add convergence tables comparing the solver output against a reference solution obtained by direct dense assembly on smaller instances, together with residual histories and error bars. We will also include a brief complexity verification for the local-correction post-processing step to confirm it does not alter the overall O(N^{1.5}) scaling. revision: yes

  3. Referee: [Numerical examples / formulation comparison] Comparison of PMCHWT versus Burton-Miller: the factor-of-six speedup and factor-of-two compression advantage are reported for the grid-arrangement test, yet the manuscript does not quantify how the omitted interior proxy terms affect solution accuracy across the range of contrasts and frequencies used in the experiments.

    Authors: We will extend the numerical comparison section with additional runs that vary the contrast ratio and frequency while reporting both timing/compression metrics and solution accuracy (relative L2 error on the boundary) for both formulations. This will explicitly quantify the accuracy impact of the interior-term omission in the PMCHWT proxy. revision: yes

Circularity Check

0 steps flagged

No circularity: scalings emerge from numerical experiments on standard BIE + proxy compression

full rationale

The derivation relies on established PMCHWT and Burton-Miller boundary-integral operators together with the proxy low-rank technique for inter-scatterer interactions. The O(ω D) compressed size and O(N^{1.5}) cost for grid arrangements are reported as observed outcomes of the algorithm applied to concrete examples, not as quantities fitted or predicted from the same data by construction. No load-bearing step reduces to a self-citation, ansatz smuggled via prior work, or renaming of a known result; the distinction between formulations follows directly from the differing integral operators. The method is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The approach relies on the standard well-posedness of the Helmholtz transmission problem for smooth disjoint inclusions and on the empirical accuracy of the proxy-point low-rank approximation for far-field interactions; no new physical constants or entities are introduced.

free parameters (1)
  • proxy rank / tolerance
    The number or accuracy threshold of proxy points used to build the low-rank blocks is chosen to meet a target error; its value is not reported in the abstract.
axioms (2)
  • domain assumption The inclusions are disjoint and sufficiently separated for the proxy method to produce accurate low-rank far-field interactions without interior terms.
    Invoked when the authors state that the speedup applies to interactions between disjoint scatterers.
  • domain assumption The PMCHWT formulation remains stable and the Burton-Miller formulation does not admit the same interior-term omission.
    Stated directly in the comparison of the two formulations.
