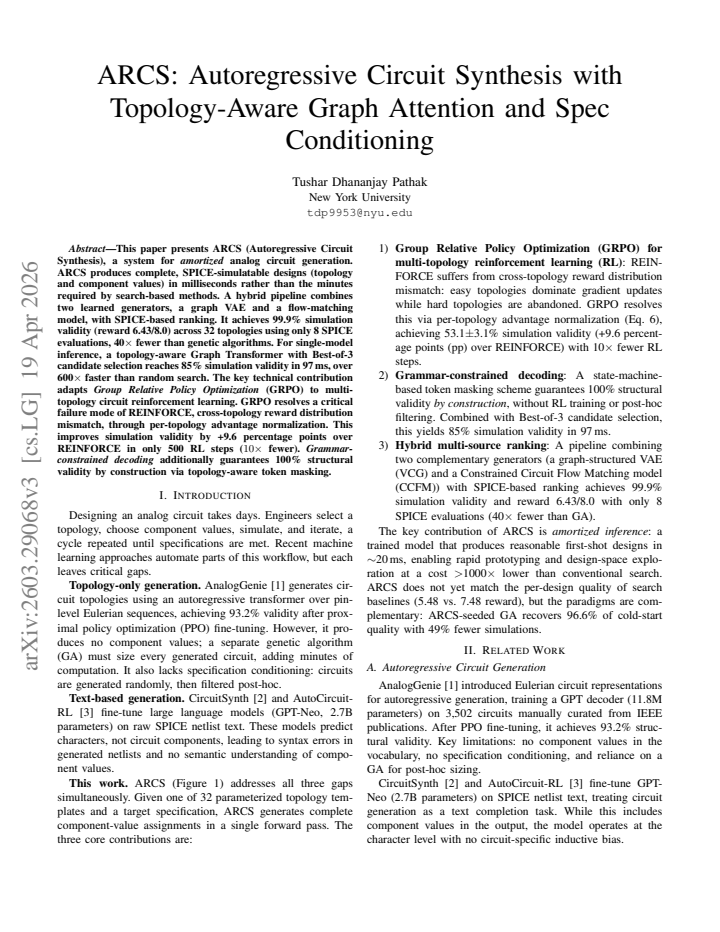

ARCS: Autoregressive Circuit Synthesis with Topology-Aware Graph Attention and Spec Conditioning

Tushar Dhananjay Pathak

Authors on Pith no claims yet

Pith reviewed 2026-05-14 21:08 UTC · model grok-4.3

classification 💻 cs.LG cs.AR

keywords analog circuit synthesisautoregressive generationgraph attentionreinforcement learningSPICE simulationcircuit topologypolicy optimizationflow matching

0 comments

The pith

ARCS generates SPICE-valid analog circuits across 32 topologies with 99.9 percent success using only 8 evaluations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents ARCS, an autoregressive system that produces complete analog circuit topologies and component values ready for simulation. It combines a graph variational autoencoder, a flow-matching model, and a topology-aware graph transformer with a custom reinforcement learning step to output designs in milliseconds. The method reaches 99.9 percent simulation validity and a reward of 6.43 out of 8.0 across 32 topologies while requiring 40 times fewer SPICE runs than genetic algorithms. A key adaptation called Group Relative Policy Optimization normalizes rewards within each topology to avoid the reward mismatch that breaks standard REINFORCE across different structures. Grammar-constrained token masking further ensures every output is structurally valid without post-filtering.

Core claim

ARCS achieves 99.9 percent simulation validity across 32 topologies with only 8 SPICE evaluations by combining hybrid learned generators with Group Relative Policy Optimization, which applies per-topology advantage normalization to fix cross-topology reward distribution mismatch, improving validity by 9.6 percentage points over REINFORCE in 500 steps while grammar-constrained decoding guarantees 100 percent structural validity.

What carries the argument

Group Relative Policy Optimization (GRPO) adapted for multi-topology circuit reinforcement learning, which performs per-topology advantage normalization to resolve reward distribution mismatch.

If this is right

Single-model inference reaches 85 percent simulation validity in 97 milliseconds, more than 600 times faster than random search.
Only 8 SPICE evaluations suffice for 99.9 percent validity, 40 times fewer than genetic algorithms require.
Grammar-constrained decoding guarantees 100 percent structural validity by construction via topology-aware token masking.
The approach works across 32 topologies while delivering an average reward of 6.43 out of 8.0.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Fast amortized generation could enable iterative circuit design loops inside larger electronic systems without waiting minutes per candidate.
The per-topology normalization trick may transfer to other design domains where search spaces contain distinct structural families with incompatible reward scales.
If simulation validity holds up in silicon, the method could shorten the path from specification to working prototype by orders of magnitude.
Extending the grammar to mixed-signal or higher-order constraints would test whether the same autoregressive pipeline scales without losing validity guarantees.

Load-bearing premise

That models trained on a limited set of topologies will generalize to new specifications and that SPICE simulation validity reliably predicts performance after fabrication.

What would settle it

Measuring simulation validity on a held-out set of 10 new topologies never seen during training, or fabricating a generated circuit and comparing its measured metrics against the simulation predictions.

Figures

Figures reproduced from arXiv: 2603.29068 by Tushar Dhananjay Pathak.

**Figure 1.** Figure 1: ARCS system overview. Top: Training pipeline. SPICE templates generate data, supervised pre-training learns the sequence distribution, and GRPO with SPICE-in-the-loop per-topology advantages refines value quality. Bottom: Inference pipeline. A target specification is tokenized, the trained model autoregressively generates component tokens with grammarconstrained masking, producing a valid circuit in ∼20 m… view at source ↗

**Figure 2.** Figure 2: Example ARCS-generated buck converter. Top: Token sequence with spec values and component values . Bottom: Decoded SPICE netlist fragment. The model generates the full sequence in ∼20 ms; grammar constraints ensure structural validity at each step. be electrically valid and meet the target specification when simulated. B. Tokenizer The tokenizer defines a domain-specific vocabulary of 706 tokens organized … view at source ↗

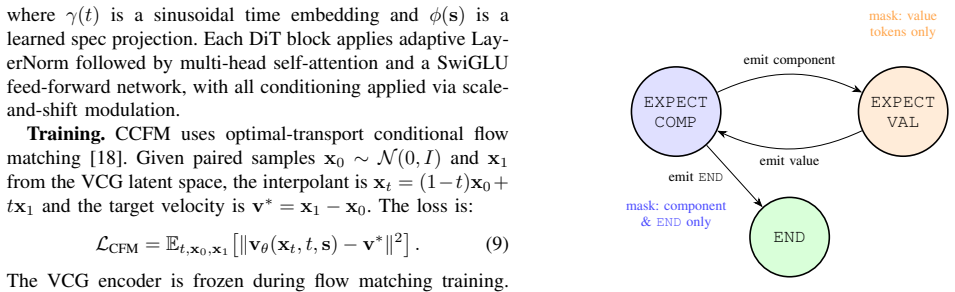

**Figure 3.** Figure 3: Grammar state machine for constrained decoding. At [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
