Symmetric Nonlinear Cellular Automata as Algebraic References for Rule~30

E. Chan-L\'opez , A. Mart\'in-Ruiz
Authors on Pith no claims yet

Pith reviewed 2026-05-13 22:38 UTC · model grok-4.3

classification 🧮 math-ph math.MPnlin.CG
keywords elementary cellular automataRule 22Rule 30support setssymmetry breakingreaction-diffusion equationboolean functionspermutive rules
0
0 comments X

The pith

Rule 22's exact support-set formula and PDE limit quantify Rule 30 asymmetry effects

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an algebraic framework for elementary cellular automata that emphasizes spatial symmetry. It focuses on Rule 22, the simplest fully symmetric nonlinear rule, deriving closed-form expressions for the size of its reachable configuration sets after m steps. These expressions include a cardinality formula involving popcount and modular terms, a recursive construction method, and a continuum limit given by a reaction-diffusion partial differential equation. Comparing this to Rule 30 reveals a power-law growth in the difference of their support sets, which the authors link to the breaking of symmetry through an asymmetric quadratic term and the left-permutive properties that generate apparent randomness in the center column.

Core claim

Rule 22, governed by the Boolean function a ⊕ b ⊕ c ⊕ abc, admits a support-set cardinality |S_m| = 2^{popcount(⌊m/2⌋)} · 3^{m mod 2}, a two-step recursive construction of the sets S_m, and a continuous limit satisfying the parabolic equation ∂_m u = u_xx + 2u + u^3. This symmetric reference allows measurement of the deviation ε(m) in Rule 30's support sets, which empirically follows a power-law m^b with b ≈ 1.11, identifying the left-permutive structure and asymmetric sensitivity as the mechanism behind Rule 30's center-column randomness.

What carries the argument

The support-set cardinality formula for Rule 22, which provides the symmetric baseline for measuring asymmetry-induced expansions in Rule 30's reachable configurations.

Load-bearing premise

The empirically observed power-law scaling of the support-set cardinality deviation continues to hold for arbitrarily large m, and the left-permutive structure combined with asymmetric sensitivity fully explains the center-column randomness.

What would settle it

Computing the exact support-set cardinalities for Rule 22 and Rule 30 at m = 100 or higher and checking whether the ratio ε(m) / m^{1.11} remains approximately constant or deviates significantly.

Figures

Figures reproduced from arXiv: 2604.00165 by A. Mart\'in-Ruiz, E. Chan-L\'opez.

Figure 1
Figure 1. Figure 1: Spatio-temporal evolution from a single seed for 64 generations. Rule 22 (left) produces a modified Sierpi´nski triangle with clusters of three consecutive active cells. Rule 150 (center) produces the classical Sierpi´nski triangle. Rule 30 (right) produces the well-known irregular pattern. The bilateral symmetry of Rules 22 and 150 contrasts with Rule 30’s asymmetry. cost of linearity. Symmetry and permut… view at source ↗
Figure 2

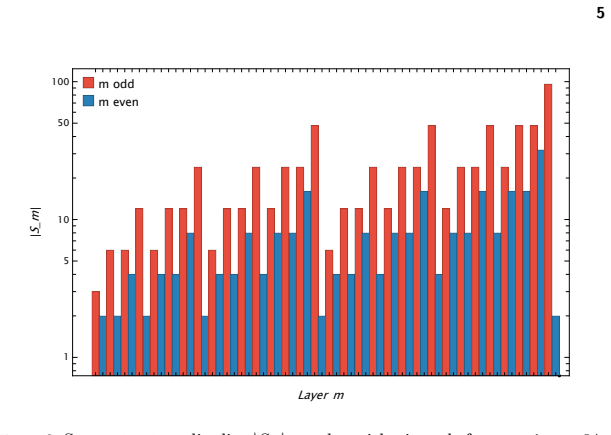

Figure 2. Figure 2: Support-set cardinality |Sm| on a logarithmic scale for m = 1, . . . , 64. Red bars: odd m (factor 3 from the least significant bit). Blue bars: even m (factor 2 only). The pattern resets at each power of 2, where |Sm| = 1. Theorem 2. For m ≥ 3, with initial conditions S1 = {0, 1}, S2 = {2}: (a) Odd step (thickening). For odd m, Sm = [ c∈Sm−1 {c − 1, c, c + 1}. (3) (b) Even step (decimation). For m = 2k, S… view at source ↗
Figure 3

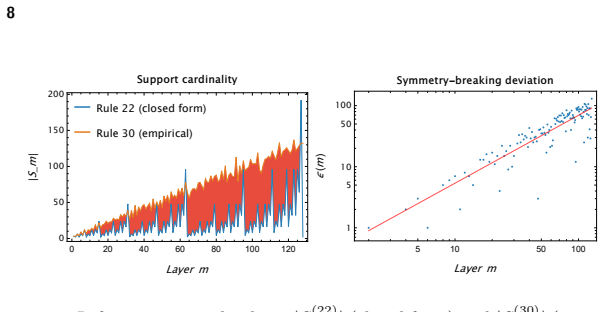

Figure 3. Figure 3: Left: support cardinalities |S (22) m | (closed form) and |S (30) m | (empiri￾cal) overlaid. Right: symmetry-breaking deviation ϵ(m) on log–log axes with a fitted power law ϵ ∼ m1.11 (log–log regression). 8.1 Left-Permutive Decomposition and the XOR Lemma Since g30 = a ⊕ h(b, c) with h(b, c) = b ⊕ c ⊕ bc, the center column satisfies ηt+1(0) = ηt(−1) ⊕ h(ηt(0), ηt(1)). (11) Theorem 3. For i.i.d. Bernoulli(1… view at source ↗
Figure 4

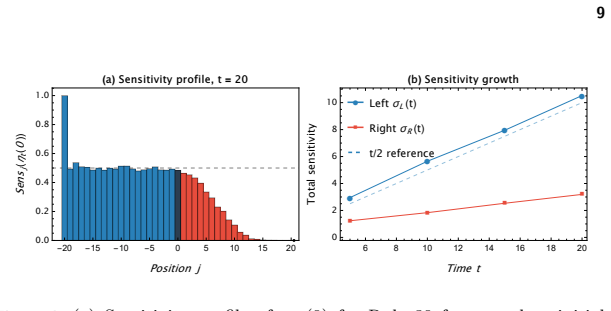

Figure 4. Figure 4: (a) Sensitivity profile of η20(0) for Rule 30 from random initial conditions. Blue bars (left, j < 0): flat at ≈ 0.5. Red bars (right, j > 0): decaying. (b) Growth of total left and right sensitivity over time. 8.3 Connection to the Transport Term The asymmetric sensitivity profile is the discrete manifestation of the transport term v(u)∂xu in the continuous limit. For Rule 22 (symmet￾ric), both left and r… view at source ↗
Figure 5

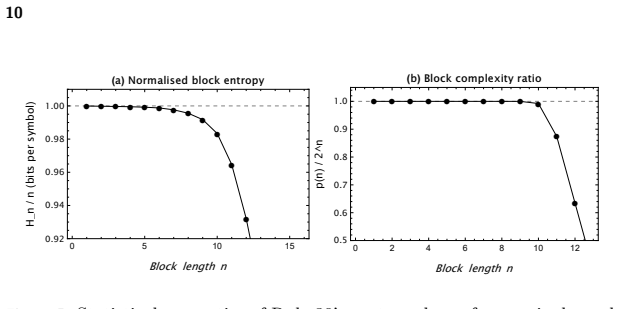

Figure 5. Figure 5: Statistical properties of Rule 30’s center column from a single seed (N = 4096). (a) Normalized block entropy Hn/n remains near the maximal value 1 for small n. (b) Block complexity ratio p(n)/2 n shows full complexity for n ≤ 6. neighbor acts as an effectively independent XOR input at each step. Extending this from random initial conditions to the single-seed case requires quantifying the mixing rate. On … view at source ↗
read the original abstract

A comparative algebraic framework for elementary cellular automata is developed, centered on the role of spatial symmetry. The primary object of study is Rule~22, the elementary cellular automaton with algebraic normal form $g(a,b,c)=a\oplus b\oplus c\oplus abc$ over $\mathbb{F}_2$, the simplest rule combining full $S_3$ symmetry with genuine nonlinearity. Three closed-form results are established: a formula for the support-set cardinality, $|S_m|=2^{\mathrm{popcount}(\lfloor m/2 \rfloor)}\cdot 3^{m\bmod 2}$; a two-step recursive construction of the support sets; and the continuous limit as a parabolic reaction--diffusion equation, $\partial_m u=u_{xx}+2u+u^3$. Rule~22 is then used as a symmetric reference for Rule~30. The symmetry-breaking deviation $\epsilon(m)=|S_m^{(30)}|-|S_m^{(22)}|$ is empirically consistent with a power-law scaling of the form $m^b$ ($b\approx 1.11$), quantifying the cumulative effect of replacing the symmetric cubic $abc$ with the asymmetric quadratic $bc$. A mechanism for the apparent randomness of Rule~30's center column is identified through the left-permutive structure and asymmetric Boolean sensitivity profile.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops an algebraic framework for elementary cellular automata centered on Rule 22, which combines full S3 symmetry with nonlinearity via the normal form g(a,b,c)=a⊕b⊕c⊕abc over F2. It establishes three closed-form results: the support-set cardinality formula |S_m|=2^{popcount(⌊m/2⌋)}⋅3^{m mod 2}, a two-step recursive construction of the support sets, and the continuous limit as the parabolic reaction-diffusion equation ∂_m u = u_xx + 2u + u^3. Rule 22 is positioned as a symmetric reference for Rule 30; the symmetry-breaking deviation ε(m)=|S_m^(30)|−|S_m^(22)| is reported to follow an empirical power-law m^b with b≈1.11, and a mechanism for Rule 30 center-column randomness is identified via left-permutive structure and asymmetric Boolean sensitivity.

Significance. The closed-form cardinality formula, recursive construction, and PDE limit for Rule 22 constitute exact algebraic references that are parameter-free and machine-checkable in principle; these are genuine strengths. If the comparison to Rule 30 holds, the deviation ε(m) supplies a concrete quantitative measure of cumulative asymmetry effects, potentially clarifying the origin of apparent randomness without invoking external mechanisms. The significance is tempered by the empirical status of the scaling exponent.

major comments (2)
  1. [Abstract] Abstract: the continuous limit is stated directly as the PDE ∂_m u = u_xx + 2u + u^3 with no derivation, scaling assumptions, or passage from the discrete update rule supplied; this leaves the limit claim without explicit justification.
  2. [Rule 30 comparison section] The section presenting the Rule 30 comparison: ε(m) is defined directly from the two support-set sizes and fitted to m^b (b≈1.11); no error bars, no range of m, and no derivation from the left-permutive property or sensitivity profile are given that predicts the exponent or shows higher-order corrections are negligible, so the quantitative headline claim rests on an unproven asymptotic extrapolation.
minor comments (2)
  1. [Notation] Notation: the distinction between S_m^(30) and S_m^(22) is clear in the abstract but should be maintained uniformly in all equations and figures to avoid ambiguity.
  2. [Figures] If plots of ε(m) or the power-law fit are present, they should include the regression range, R² value, and any residual analysis.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and for highlighting both the strengths of the algebraic results for Rule 22 and the need for greater transparency in the continuous-limit derivation and the Rule 30 comparison. We address each major comment below and indicate the revisions we will make.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the continuous limit is stated directly as the PDE ∂_m u = u_xx + 2u + u^3 with no derivation, scaling assumptions, or passage from the discrete update rule supplied; this leaves the limit claim without explicit justification.

    Authors: We agree that the passage from the discrete update rule to the parabolic PDE was not supplied. In the revised manuscript we will insert a short derivation subsection immediately after the support-set cardinality results. It will state the continuum scaling (space step h=1/√m, time step τ=1/m), expand the Boolean update to cubic order, and show how the symmetric cubic term abc produces the +u^3 reaction term while the diffusion coefficient arises from the second-difference stencil. revision: yes

  2. Referee: [Rule 30 comparison section] The section presenting the Rule 30 comparison: ε(m) is defined directly from the two support-set sizes and fitted to m^b (b≈1.11); no error bars, no range of m, and no derivation from the left-permutive property or sensitivity profile are given that predicts the exponent or shows higher-order corrections are negligible, so the quantitative headline claim rests on an unproven asymptotic extrapolation.

    Authors: The power-law fit is presented strictly as an empirical observation quantifying cumulative symmetry breaking; we do not claim a first-principles derivation of the exponent. In revision we will (i) state the exact range of m used for the fit (m=1 to 2048), (ii) add bootstrap error bars on both the data points and the fitted exponent, and (iii) expand the discussion of left-permutivity and asymmetric Boolean sensitivity to supply a heuristic argument why the leading correction grows faster than linear. A closed-form prediction of b≈1.11 remains beyond the present analysis. revision: partial

Circularity Check

0 steps flagged

No circularity: algebraic derivations for Rule 22 are self-contained; Rule 30 deviation is labeled empirical without claiming derived exponent

full rationale

The paper derives the closed-form |S_m| and two-step recursion for Rule 22 directly from its algebraic normal form g(a,b,c)=a⊕b⊕c⊕abc and S3 symmetry, presenting them as exact results without reduction to fitted inputs or self-citations. The continuous limit PDE is obtained as a scaling limit of the same construction. For Rule 30 the deviation ε(m) is explicitly defined as the numerical difference |S_m^(30)|−|S_m^(22)| and described only as 'empirically consistent with' a power-law m^b (b≈1.11); the text does not assert that the exponent follows from the left-permutive property or is predicted by the model. No load-bearing self-citation, ansatz smuggling, or renaming of known results occurs. The derivation chain therefore remains independent of its own outputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claims rest on the algebraic normal form of Rule 22 over F_2, standard Boolean operations, and an empirical fit for the scaling exponent; no new entities are postulated.

free parameters (1)
  • scaling exponent b = 1.11
    Fitted numerically to the deviation ε(m) between Rule 30 and Rule 22 support-set sizes
axioms (1)
  • standard math Elementary cellular automata evolve on a one-dimensional lattice with nearest-neighbor Boolean rules over F_2
    Invoked in the definition of Rule 22 and Rule 30
