Stochastically-constrained Koiter shell models
Pith reviewed 2026-05-13 21:49 UTC · model grok-4.3
The pith
A suitably chosen family of noise coefficients makes a stochastic Koiter shell prototype converge pathwise to the deterministic viscoelastic shell model with viscous damping.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
If a weak pathwise solution of the stochastically-constrained linearised Koiter shell prototype is parametrized by a suitably chosen family of noise coefficients, the stochastic model converges in the parameter limit to the deterministic viscoelastic shell model with viscous damping.
What carries the argument
The stochastically-constrained prototype for the simplified linearised Koiter shell model, which embeds stochastic effects through noise coefficients while retaining curvature, bending, membrane stresses, and buckling terms.
If this is right
- The stochastic prototype provides a framework for modeling random buckling and force fluctuations in thin shells while retaining the ability to recover classical deterministic behavior.
- Pathwise solutions of the stochastic model can serve as approximations to viscoelastic damping when noise parameters are tuned appropriately.
- The derivation extends the SALT approach from fluids to shell structures, allowing stochastic constraints on both membrane and flexural energies.
Where Pith is reading between the lines
- Similar noise-tuning strategies might be applied to other constrained elastic models, such as plates or rods, to recover viscous damping limits.
- Numerical schemes for the stochastic prototype could be tested against deterministic benchmarks to validate the convergence under chosen noise families.
- The abstract noise coefficients might correspond to physical fluctuations in material properties or external loading in real shell systems.
Load-bearing premise
A suitable family of noise coefficients exists that forces the pathwise convergence of the stochastic prototype to the deterministic viscoelastic model.
What would settle it
Explicit computation or numerical simulation showing that no choice of noise coefficients produces pathwise convergence of the stochastic prototype to the deterministic viscoelastic shell equations.
Figures
read the original abstract

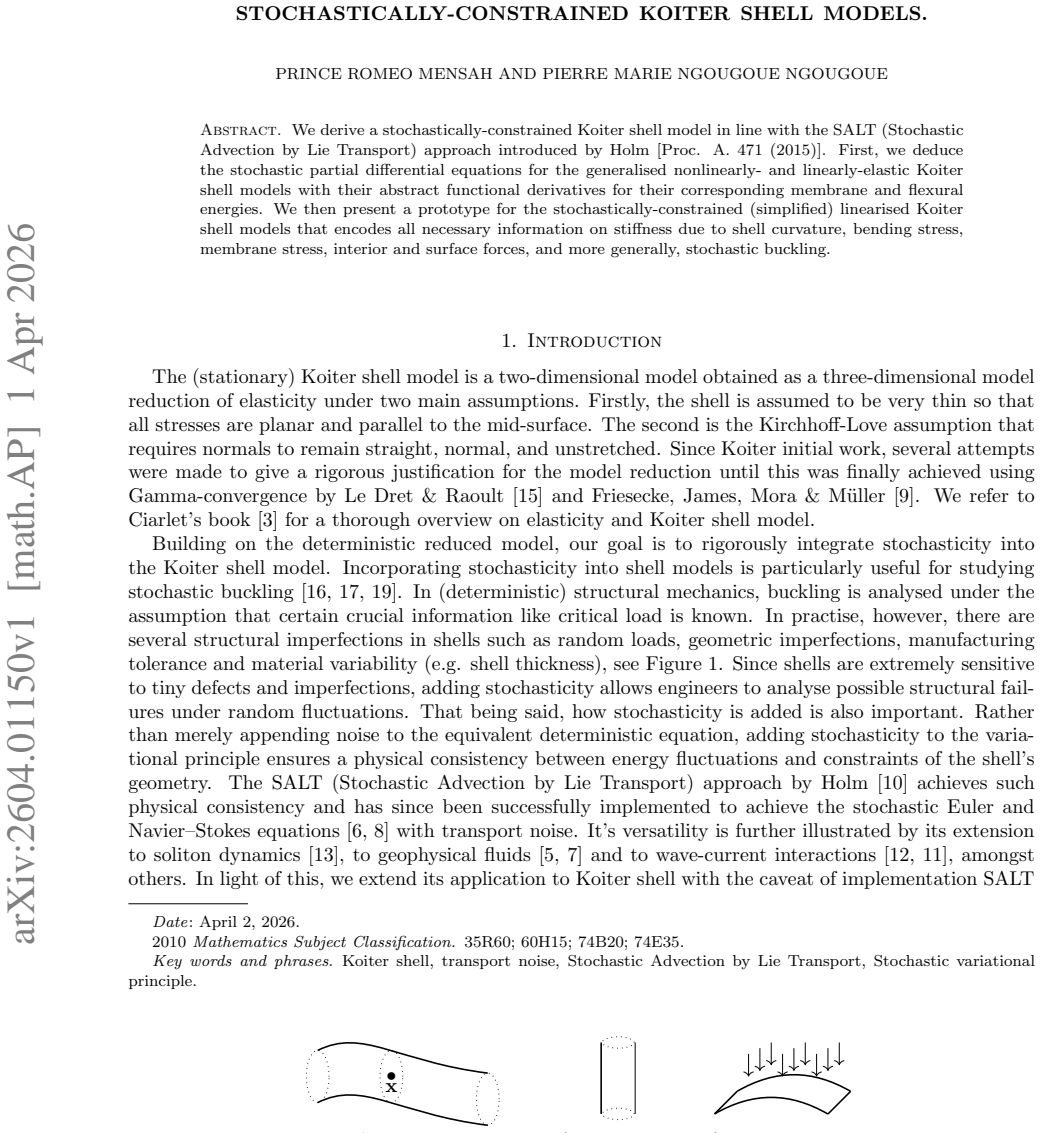

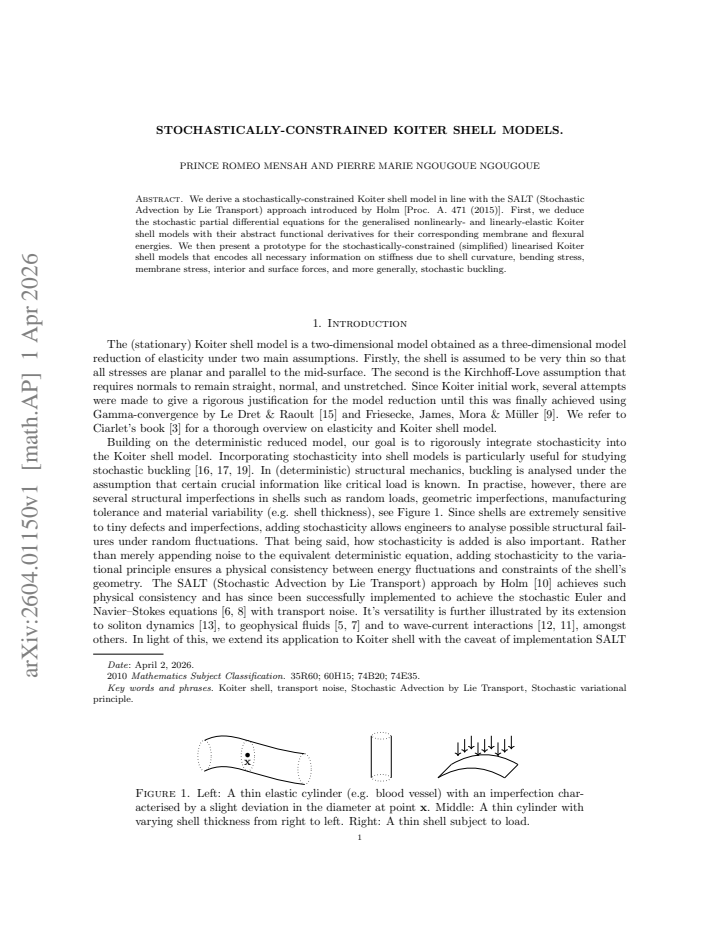

We derive stochastically-constrained Koiter shell models in line with the SALT (Stochastic Advection by Lie Transport) approach introduced by Holm [Proc. A. 471 (2015)]. First, we deduce the stochastic partial differential equations for the generalised nonlinear elastic and linear elastic Koiter shell models with abstract functional derivatives of their corresponding membrane and flexural energies. We then present a prototype for a stochastically-constrained (simplified) linearised Koiter shell model that captures stiffness effects arising from shell curvature, bending and membrane stresses, interior and surface forces, and, more generally, stochastic buckling. Finally, we show that if a weak pathwise solution of this prototype is parametrised by a suitably chosen family of noise coefficients, we obtain in the parameter limit, the deterministic viscoelastic shell model with viscous damping.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript derives stochastically-constrained Koiter shell models via the SALT (Stochastic Advection by Lie Transport) framework. It obtains stochastic PDEs for the generalised nonlinear elastic and linear elastic Koiter models from abstract functional derivatives of the membrane and flexural energies. A prototype stochastic linearised model is introduced that incorporates curvature-induced stiffness, bending and membrane stresses, interior/surface forces, and stochastic buckling. The central claim is that, when a weak pathwise solution of this prototype is parametrised by a suitably chosen family of noise coefficients, the parameter limit recovers the deterministic viscoelastic Koiter shell model with viscous damping.
Significance. If the limit passage is made rigorous, the work supplies a stochastic embedding of classical shell models that can recover deterministic viscoelasticity as a special case. This could be useful for incorporating uncertainty into buckling and damping analyses of thin shells while preserving known deterministic limits. The SALT-based derivation from variational principles is a natural extension of existing stochastic fluid and solid mechanics literature.
major comments (2)
- [Abstract / prototype section] Abstract and the section presenting the prototype model: the convergence statement asserts that a suitably chosen family of noise coefficients yields pathwise convergence to the deterministic viscoelastic model with viscous damping, yet no explicit construction of this family, no verification that the viscous term is recovered, and no passage-to-the-limit argument are supplied. This renders the central claim an existence assertion rather than a derived result.
- [Derivation of stochastic PDEs] The derivation of the stochastic PDEs relies on abstract functional derivatives of the energies. Without at least one concrete example (e.g., explicit membrane/flexural energy, the resulting stochastic terms, and the noise structure), it is difficult to assess whether the SALT transport is correctly implemented for the shell geometry.
minor comments (2)
- [Abstract / prototype section] The abstract refers to 'weak pathwise solution' without defining the precise function space or notion of solution used for the prototype; this should be stated explicitly when the prototype is introduced.
- [Prototype model] Notation for the noise coefficients and the parameter limit should be introduced with clear symbols rather than the descriptive phrase 'suitably chosen family'.
Simulated Author's Rebuttal
We thank the referee for the positive evaluation of the work's significance and for the constructive major comments. We respond point by point below and will incorporate the suggested clarifications and additions in the revised manuscript.
read point-by-point responses
-
Referee: [Abstract / prototype section] Abstract and the section presenting the prototype model: the convergence statement asserts that a suitably chosen family of noise coefficients yields pathwise convergence to the deterministic viscoelastic model with viscous damping, yet no explicit construction of this family, no verification that the viscous term is recovered, and no passage-to-the-limit argument are supplied. This renders the central claim an existence assertion rather than a derived result.
Authors: We agree that the current text states the convergence without an explicit construction of the noise-coefficient family or a detailed limit argument. In the revision we will supply an explicit one-parameter family of noise coefficients (indexed by ε>0) for which the stochastic forcing terms converge pathwise to the viscous damping term of the deterministic viscoelastic Koiter model. We will also add a concise passage-to-the-limit argument for weak pathwise solutions, relying on uniform energy bounds and compactness that are already available from the prototype analysis. These additions will convert the claim from an assertion into a derived result. revision: yes
-
Referee: [Derivation of stochastic PDEs] The derivation of the stochastic PDEs relies on abstract functional derivatives of the energies. Without at least one concrete example (e.g., explicit membrane/flexural energy, the resulting stochastic terms, and the noise structure), it is difficult to assess whether the SALT transport is correctly implemented for the shell geometry.
Authors: We accept that a concrete illustration is needed. The revised manuscript will contain an explicit example using the standard membrane and flexural energies for a cylindrical shell. We will compute the functional derivatives, write out the resulting stochastic Lie-transport terms, and specify the noise vector fields, thereby verifying that the SALT structure is correctly realized on the shell manifold. revision: yes
Circularity Check
Convergence to deterministic viscoelastic model relies on suitably chosen noise coefficients selected to force the limit
specific steps
-
fitted input called prediction
[Abstract, final sentence]
"we show that if a weak pathwise solution of this prototype is parametrised by a suitably chosen family of noise coefficients, we obtain in the parameter limit, the deterministic viscoelastic shell model with viscous damping."
The noise coefficients are not obtained from the SALT derivation or from first-principles analysis of the shell energies; they are introduced as a 'suitably chosen' family whose sole purpose is to make the stochastic prototype converge pathwise to the deterministic viscoelastic model. Selecting the noise parameters to enforce the desired limit renders the convergence statement true by construction of the input rather than by an independent limiting argument.
full rationale
The paper derives the stochastic Koiter shell prototype via SALT and abstract functional derivatives of the energies. The central claim then states that a weak pathwise solution, when parametrized by a suitably chosen noise family, converges in the parameter limit to the deterministic model with viscous damping. Because the noise coefficients are introduced only as 'suitably chosen' to produce exactly this limit (with no explicit construction, no independent verification of pathwise convergence, and no detailed passage to the limit shown), the claimed recovery of the viscous damping term reduces to a consequence of the parameter selection itself. This matches the fitted-input-called-prediction pattern: the noise parameters are adjusted to match the target deterministic behavior and the convergence is then presented as a derived result.
Axiom & Free-Parameter Ledger
free parameters (1)
- family of noise coefficients
axioms (2)
- domain assumption SALT (Stochastic Advection by Lie Transport) preserves the geometric structure of the deterministic shell equations
- domain assumption Weak pathwise solutions exist for the stochastic prototype
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
if a weak pathwise solution of this prototype is parametrised by a suitably chosen family of noise coefficients, we obtain in the parameter limit, the deterministic viscoelastic shell model with viscous damping
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
the stochastically constrained variational principle (Hamilton’s principle) states that the actual motion η(t,y) of the shell makes the Action Integral stationary
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Breit, D., Mensah, P.R., Moyo, T.C.: Martingale solutions in stochastic fluid-structure interaction. J. Non- linear Sci.34(2), Paper No. 34, 45 (2024). DOI 10.1007/s00332-023-10012-4. URLhttps://doi.org/10.1007/ s00332-023-10012-4
-
[2]
Comptes Rendus de l’Acad´ emie des Sciences-Series I-Mathematics331(5), 405–410 (2000)
Ciarlet, P.G.: Un mod` ele bi-dimensionnel non lin´ eaire de coque analogue ` a celui de wt koiter. Comptes Rendus de l’Acad´ emie des Sciences-Series I-Mathematics331(5), 405–410 (2000)
work page 2000
-
[3]
Journal of elasticity78(1), 1–215 (2005)
Ciarlet, P.G.: An introduction to differential geometry with applications to elasticity. Journal of elasticity78(1), 1–215 (2005)
work page 2005
-
[4]
Ciarlet, P.G., Roquefort, A.: Justification of a two-dimensional nonlinear shell model of Koiter’s type. Chinese Ann. Math. Ser. B22(2), 129–144 (2001). DOI 10.1142/S0252959901000139. URLhttps://doi-org.univaq.clas.cineca. it/10.1142/S0252959901000139
-
[5]
Cotter, C., Crisan, D., Holm, D., Pan, W., Shevchenko, I.: Data assimilation for a quasi-geostrophic model with circulation-preserving stochastic transport noise. J. Stat. Phys.179(5-6), 1186–1221 (2020). DOI 10.1007/ s10955-020-02524-0. URLhttps://doi.org/10.1007/s10955-020-02524-0
-
[6]
Cotter, C., Crisan, D., Holm, D.D., Pan, W., Shevchenko, I.: Numerically modeling stochastic Lie transport in fluid dynamics. Multiscale Model. Simul.17(1), 192–232 (2019). DOI 10.1137/18M1167929. URLhttps://doi.org/10. 1137/18M1167929
-
[7]
Crisan, D., Holm, D.D., Lang, O., Mensah, P.R., Pan, W.: Theoretical analysis and numerical approximation for the stochastic thermal quasi-geostrophic model. Stoch. Dyn.23(5), Paper No. 2350,039, 57 (2023). DOI 10.1142/ S0219493723500399. URLhttps://doi.org/10.1142/S0219493723500399
-
[8]
Drivas, T.D., Holm, D.D.: Circulation and energy theorem preserving stochastic fluids. Proc. Roy. Soc. Edinburgh Sect. A150(6), 2776–2814 (2020). DOI 10.1017/prm.2019.43. URLhttps://doi.org/10.1017/prm.2019.43
-
[9]
Friesecke, G., James, R.D., Mora, M.G., M¨ uller, S.: Derivation of nonlinear bending theory for shells from three- dimensional nonlinear elasticity by Gamma-convergence. C. R. Math. Acad. Sci. Paris336(8), 697–702 (2003). DOI 10.1016/S1631-073X(03)00028-1. URLhttps://doi.org/10.1016/S1631-073X(03)00028-1
-
[10]
Holm, D.D.: Variational principles for stochastic fluid dynamics. Proc. A.471(2176), 20140,963, 19 (2015). DOI 10.1098/rspa.2014.0963. URLhttps://doi.org/10.1098/rspa.2014.0963
-
[11]
Holm, D.D., Hu, R.: Stochastic effects of waves on currents in the ocean mixed layer. J. Math. Phys.62(7), Paper No. 073,102, 31 (2021). DOI 10.1063/5.0045010. URLhttps://doi.org/10.1063/5.0045010
-
[12]
Holm, D.D., Luesink, E.: Stochastic wave-current interaction in thermal shallow water dynamics. J. Non- linear Sci.31(2), Paper No. 29, 56 (2021). DOI 10.1007/s00332-021-09682-9. URLhttps://doi.org/10.1007/ s00332-021-09682-9
-
[13]
Holm, D.D., Tyranowski, T.M.: Variational principles for stochastic soliton dynamics. Proc. A.472(2187), 20150,827, 24 (2016). DOI 10.1098/rspa.2015.0827. URLhttps://doi.org/10.1098/rspa.2015.0827
-
[14]
Koiter, W.T.: On the nonlinear theory of thin elastic shells. Proc. Koninkl. Ned. Akad. van Wetenschappen, Series B 69, 1–54 (1966)
work page 1966
-
[15]
Le Dret, H., Raoult, A.: The membrane shell model in nonlinear elasticity: a variational asymptotic derivation. J. Nonlinear Sci.6(1), 59–84 (1996). DOI 10.1007/s003329900003. URLhttps://doi.org/10.1007/s003329900003
-
[16]
International Journal of Solids and Structures46(14-15), 2800–2808 (2009)
Papadopoulos, V., Stefanou, G., Papadrakakis, M.: Buckling analysis of imperfect shells with stochastic non-gaussian material and thickness properties. International Journal of Solids and Structures46(14-15), 2800–2808 (2009)
work page 2009
-
[17]
Thin-Walled Structures215, 113,319 (2025)
Reuter, N., Kriegesmann, B.: Probabilistic analysis of cylindrical shells under continuously varying load combinations. Thin-Walled Structures215, 113,319 (2025)
work page 2025
-
[18]
Roquefort, A.: Sur quelques questions li´ ees aux mod´ eles non lin´ eaires de coques minces. Ph.D. thesis, Paris 6 (2001) STOCHASTICALLY-CONSTRAINED KOITER SHELL MODELS. 11
work page 2001
-
[19]
Schafer, B., Graham-Brady, L.: Stochastic post-buckling of frames using koiter’s method. International Journal of Structural Stability and Dynamics6(03), 333–358 (2006) F aculty of Mathematics, University of Duisburg-Essen, Thea-Leymann-Strasse 9, 45127 Essen, Germany F aculty of Mathematics, University of Duisburg-Essen, Thea-Leymann-Strasse 9, 45127 Ess...
work page 2006
