arxiv: 2604.02483 · v1 · submitted 2026-04-02 · ⚛️ physics.flu-dyn · cs.AI

Recognition: 2 theorem links

· Lean Theorem

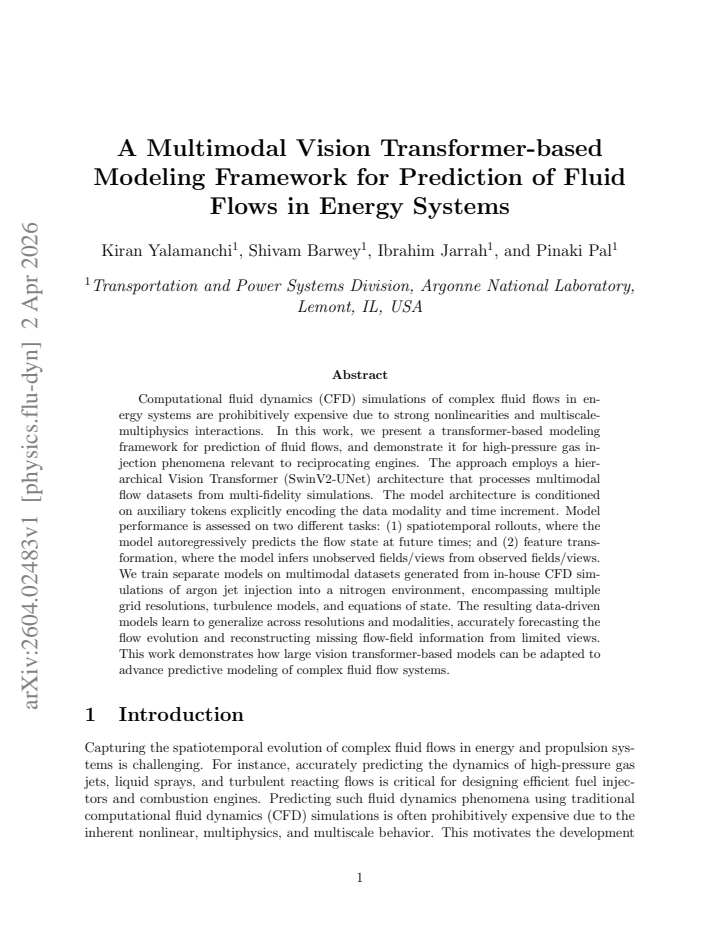

A Multimodal Vision Transformer-based Modeling Framework for Prediction of Fluid Flows in Energy Systems

Kiran Yalamanchi , Shivam Barwey , Ibrahim Jarrah , Pinaki Pal

Authors on Pith no claims yet

Pith reviewed 2026-05-13 20:25 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn cs.AI

keywords fluid dynamicsvision transformermultimodal modelingCFD predictionflow forecastingenergy systemsSwinV2-UNet

0 comments

The pith

A vision transformer trained on multimodal CFD data generalizes across resolutions to forecast fluid flows and reconstruct missing fields.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a transformer-based framework to predict complex fluid flows in energy systems like engine injectors, where traditional CFD is too slow. It uses a hierarchical vision transformer architecture that handles data from different simulation resolutions, turbulence models, and equations of state by conditioning on special tokens for modality and time steps. The model is tested on two tasks: rolling out future flow states autoregressively and inferring missing flow information from partial observations. If successful, this could reduce reliance on expensive high-fidelity simulations for designing energy systems. The approach shows generalization across the training variations in the datasets.

Core claim

The paper claims that a multimodal Vision Transformer (SwinV2-UNet) architecture, conditioned on auxiliary tokens encoding data modality and time increment, trained on datasets from multi-fidelity CFD simulations of argon jet injection into nitrogen, can generalize across resolutions and modalities to accurately predict spatiotemporal flow evolution and reconstruct missing flow-field information from limited views.

What carries the argument

The hierarchical Vision Transformer (SwinV2-UNet) architecture conditioned on auxiliary tokens for data modality and time increment, which processes multimodal flow datasets to enable both forecasting and feature transformation.

If this is right

Models can autoregressively predict flow states at future times from current states.
Models can infer unobserved fields from observed ones, reconstructing complete flow information from limited views.
The framework generalizes across different grid resolutions, turbulence models, and equations of state used in the simulations.
Data-driven models can advance predictive modeling of complex fluid flow systems in energy applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Such models might be extended to incorporate real experimental data to improve robustness beyond simulation assumptions.
Generalization across modalities could allow combining data from different sensor types in physical experiments.
Reducing computational cost of CFD could accelerate design iterations for engines and other energy systems.

Load-bearing premise

That the in-house CFD simulation datasets at varying resolutions and setups are representative enough for the model to generalize to unseen physical conditions or real-world experiments.

What would settle it

Testing the trained model on flow data from a different physical setup, such as a real engine experiment or a simulation with a new turbulence model not used in training, and checking if prediction accuracy holds.

Figures

Figures reproduced from arXiv: 2604.02483 by Ibrahim Jarrah, Kiran Yalamanchi, Pinaki Pal, Shivam Barwey.

**Figure 2.** Figure 2: Spatiotemporal prediction results for longitudinal projected flow variables. Each [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗

**Figure 3.** Figure 3: Spatiotemporal prediction results for longitudinal slice variables. Layout as in [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗

**Figure 4.** Figure 4: Spatiotemporal prediction results for density on transverse planes at [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗

**Figure 5.** Figure 5: Feature transformation results for Case 1: longitudinal projected density to velocity [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗

**Figure 6.** Figure 6: Feature transformation results for Case 1: longitudinal slice density to velocity [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗

**Figure 7.** Figure 7: Feature transformation results for Case 2: longitudinal projected density to trans [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗

**Figure 8.** Figure 8: Feature transformation results for Case 3: longitudinal projected density + velocity [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗

**Figure 9.** Figure 9: Feature transformation results for Case 4: longitudinal slice density + velocity [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗

**Figure 10.** Figure 10: Feature transformation results for Case 5: transverse slice density at [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗

**Figure 13.** Figure 13: Multi-step rollout prediction for transverse slice density at [PITH_FULL_IMAGE:figures/full_fig_p022_13.png] view at source ↗

**Figure 14.** Figure 14: Multi-step rollout prediction for transverse slice density at [PITH_FULL_IMAGE:figures/full_fig_p023_14.png] view at source ↗

read the original abstract

Computational fluid dynamics (CFD) simulations of complex fluid flows in energy systems are prohibitively expensive due to strong nonlinearities and multiscale-multiphysics interactions. In this work, we present a transformer-based modeling framework for prediction of fluid flows, and demonstrate it for high-pressure gas injection phenomena relevant to reciprocating engines. The approach employs a hierarchical Vision Transformer (SwinV2-UNet) architecture that processes multimodal flow datasets from multi-fidelity simulations. The model architecture is conditioned on auxiliary tokens explicitly encoding the data modality and time increment. Model performance is assessed on two different tasks: (1) spatiotemporal rollouts, where the model autoregressively predicts the flow state at future times; and (2) feature transformation, where the model infers unobserved fields/views from observed fields/views. We train separate models on multimodal datasets generated from in-house CFD simulations of argon jet injection into a nitrogen environment, encompassing multiple grid resolutions, turbulence models, and equations of state. The resulting data-driven models learn to generalize across resolutions and modalities, accurately forecasting the flow evolution and reconstructing missing flow-field information from limited views. This work demonstrates how large vision transformer-based models can be adapted to advance predictive modeling of complex fluid flow systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This applies SwinV2-UNet with modality and time tokens to multimodal CFD data for engine injection flows, but the generalization claims need the full paper's metrics and split details to hold up.

read the letter

The paper adapts a hierarchical vision transformer to handle fluid flow data from multiple CFD fidelities. It adds auxiliary tokens for modality and time increment, then trains separate models on argon jet injection simulations that vary grid resolution, turbulence closure, and equation of state. The two tasks are autoregressive rollout of future states and reconstruction of missing fields from partial observations. The engineering target—high-pressure gas injection in reciprocating engines—is concrete and relevant to design work where full CFD is too slow. Using in-house multi-fidelity data is a reasonable step toward robustness rather than single-regime training. The soft spot is the missing evidence. The abstract states that the models generalize and forecast accurately, yet supplies no error norms, no baseline comparisons, and no description of whether entire resolution classes or turbulence models were held out of training. Without those numbers it is impossible to tell whether the results reflect true extrapolation or just interpolation inside the mixed training distribution. The stress-test concern lands here. This is for readers already working on transformer surrogates for fluids or CFD practitioners who want faster design-space exploration. It deserves a serious referee because the setup is specific and the tasks matter, even if the current write-up needs clearer validation sections. I would send it for review and ask for the quantitative results and split protocol in the first round.

Referee Report

2 major / 0 minor

Summary. The manuscript introduces a SwinV2-UNet vision transformer architecture conditioned on modality and time tokens for multimodal prediction of fluid flows. It trains separate models on in-house CFD datasets of argon jet injection into nitrogen, spanning multiple grid resolutions, turbulence models, and equations of state, and claims these models generalize across resolutions and modalities to perform accurate autoregressive spatiotemporal rollouts and feature transformations that reconstruct unobserved fields from limited views.

Significance. If the generalization and accuracy claims hold under proper held-out validation, the work could provide a useful data-driven surrogate for expensive multiphysics CFD in energy systems, demonstrating how large vision transformers can be adapted to handle multimodal simulation data with auxiliary conditioning. The empirical approach on multi-fidelity datasets is a reasonable step toward reducing computational costs, though its impact depends on demonstrated extrapolation performance.

major comments (2)

[Abstract] Abstract: the central claims that the models 'learn to generalize across resolutions and modalities' and 'accurately forecasting the flow evolution' are unsupported because the abstract (and described experiments) supply no quantitative metrics, normalized L2 errors on velocity/pressure fields, validation splits, or baseline comparisons.
[Methods/Results] Methods/Results: no description is given of whether entire resolution classes, turbulence closures, or equations of state were held out from training to test true extrapolation rather than interpolation within mixed distributions; per-regime error metrics are also absent, which directly undermines the generalization statement.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We have revised the abstract and methods/results sections to include the requested quantitative metrics, validation details, and per-regime error breakdowns, thereby strengthening support for the generalization and forecasting claims.

read point-by-point responses

Referee: [Abstract] Abstract: the central claims that the models 'learn to generalize across resolutions and modalities' and 'accurately forecasting the flow evolution' are unsupported because the abstract (and described experiments) supply no quantitative metrics, normalized L2 errors on velocity/pressure fields, validation splits, or baseline comparisons.

Authors: We agree that the original abstract was insufficiently quantitative. In the revised manuscript we have updated the abstract to report normalized L2 errors on velocity and pressure fields for both spatiotemporal rollout and feature-transformation tasks, along with explicit mention of the held-out validation splits and baseline comparisons (U-Net and CNN). These additions directly support the generalization and forecasting statements. revision: yes
Referee: [Methods/Results] Methods/Results: no description is given of whether entire resolution classes, turbulence closures, or equations of state were held out from training to test true extrapolation rather than interpolation within mixed distributions; per-regime error metrics are also absent, which directly undermines the generalization statement.

Authors: We acknowledge the lack of explicit description. The revised Methods section now details that entire resolution classes, specific turbulence closures (e.g., RANS vs. LES), and equations of state were held out as test sets to evaluate extrapolation. We have added per-regime normalized L2 error tables broken down by these held-out categories, confirming performance on true out-of-distribution cases rather than interpolation. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical NN training on CFD data with no derivations or self-referential reductions

full rationale

The paper describes training a SwinV2-UNet vision transformer on in-house multimodal CFD simulation datasets for autoregressive rollouts and feature transformations. No mathematical derivations, fitted parameters, or equations are presented. Claims of generalization across resolutions/modalities rest on standard train/test evaluation of the learned model, not on any reduction of outputs to inputs by construction, self-citation chains, or renamed ansatzes. This is a self-contained empirical ML study with no load-bearing steps that collapse to prior fitted quantities.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The framework rests on the assumption that the generated multimodal CFD data sufficiently samples the physics of interest and that standard neural network training will produce generalizable predictors; no new physical entities are introduced.

free parameters (2)

neural network weights and biases
All model parameters are fitted to the multimodal simulation datasets during training.
architecture hyperparameters
Choices such as number of layers, token dimensions, and conditioning token sizes are selected to fit the fluid flow data.

axioms (1)

domain assumption CFD simulations at multiple grid resolutions, turbulence models, and equations of state capture the relevant multiscale physics of gas injection
Invoked to justify training on these datasets for generalization across modalities.

pith-pipeline@v0.9.0 · 5528 in / 1249 out tokens · 44806 ms · 2026-05-13T20:25:08.928661+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

The approach employs a hierarchical Vision Transformer (SwinV2-UNet) architecture that processes multimodal flow datasets from multi-fidelity simulations. The model architecture is conditioned on auxiliary tokens explicitly encoding the data modality and time increment.
IndisputableMonolith/Foundation/DimensionForcing.lean alexander_duality_circle_linking unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

We train separate models on multimodal datasets generated from in-house CFD simulations of argon jet injection into a nitrogen environment, encompassing multiple grid resolutions, turbulence models, and equations of state.

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
