arxiv: 2604.02818 · v1 · submitted 2026-04-03 · ⚛️ physics.ao-ph

Recognition: 2 theorem links

· Lean Theorem

MAG-Net: Physics-Aware Multi-Modal Fusion of Geostationary Satellite and Radar for Severe Convective Precipitation Nowcasting

Anyuan Xiong, Dandan Chen, Enda Zhu, Yaqiang Wang

Authors on Pith no claims yet

Pith reviewed 2026-05-13 18:38 UTC · model grok-4.3

classification ⚛️ physics.ao-ph
keywords precipitation nowcastingmulti-modal fusiongeostationary satelliteradarconvective stormsdeep learningmodel interpretability
0
0 comments X

The pith

Fusing radar with three geostationary satellite channels extends severe convective precipitation nowcasting skill past 30 minutes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces MAG-Net to merge radar echo dynamics with infrared and water-vapor satellite observations so that thermodynamic and microphysical signals can support longer-range forecasts of intense storms. Radar-only methods lose accuracy rapidly because they lack these precursors, while existing neural networks produce blurred outputs and unstable training. MAG-Net uses separate encoding streams for each data type, an uncertainty-weighted loss that balances reflectivity regression against event probability, and an inference-time fusion step that preserves fine texture. On a multi-year southeastern China dataset the model raises critical success index at 40 dBZ from 0.172 to 0.255 relative to prior networks. Integrated-gradients attribution shows the network shifts reliance onto satellite inputs as lead time grows and convection strengthens.

Core claim

MAG-Net integrates radar dynamics with the IR 10.8, WV 7.1, and brightness-temperature-difference satellite channels inside a dual-stream encoder and symmetric dual-head decoder. An uncertainty-weighted multi-task objective trains reflectivity regression and probabilistic event detection together, while a gradient-preserving fusion step at inference retains high-frequency detail from the regression head. On the 2018-2023 southeastern China dataset the network improves CSI40 by 0.083 over CPrecNet and raises detection of intense echoes, with Integrated Gradients confirming that satellite dependence grows with forecast horizon and convective intensity.

What carries the argument

The Dual-Stream Encoder that processes radar and satellite modalities separately before attention-guided fusion, paired with the Gradient-Preserving Fusion inference strategy that combines probabilistic constraints and regression outputs.

If this is right

  • Nowcasting skill for intense convective events improves at lead times beyond 30 minutes where radar-only methods degrade.
  • The model can be interpreted post hoc to show when satellite data supplies critical precursors for severe weather.
  • Uncertainty-weighted multi-task training stabilizes learning across regression and probability outputs.
  • High-frequency echo texture is retained at inference without sacrificing probabilistic calibration.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same fusion pattern could be tested on other satellite instruments or ground-based sensors where radar coverage is incomplete.
  • Extending the lead time further might reveal whether additional thermodynamic variables become necessary once satellite signals saturate.
  • Operational warning systems could use the per-pixel attribution maps to flag forecasts that depend heavily on satellite inputs.

Load-bearing premise

The three chosen satellite channels already contain enough thermodynamic and microphysical information to extend nowcasting skill without needing additional channels or independent validation.

What would settle it

Retraining the identical architecture on the same radar data but with the three satellite channels removed and checking whether CSI40 at 60-minute lead time falls back to the CPrecNet baseline value.

Figures

Figures reproduced from arXiv: 2604.02818 by Anyuan Xiong, Dandan Chen, Enda Zhu, Yaqiang Wang.

Figure 1
Figure 1. Figure 1: Schematic overview of the proposed MAG-Net (Multi-modal [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Overall performance evaluation. (a) Mean Absolute Error (MAE) and [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 5

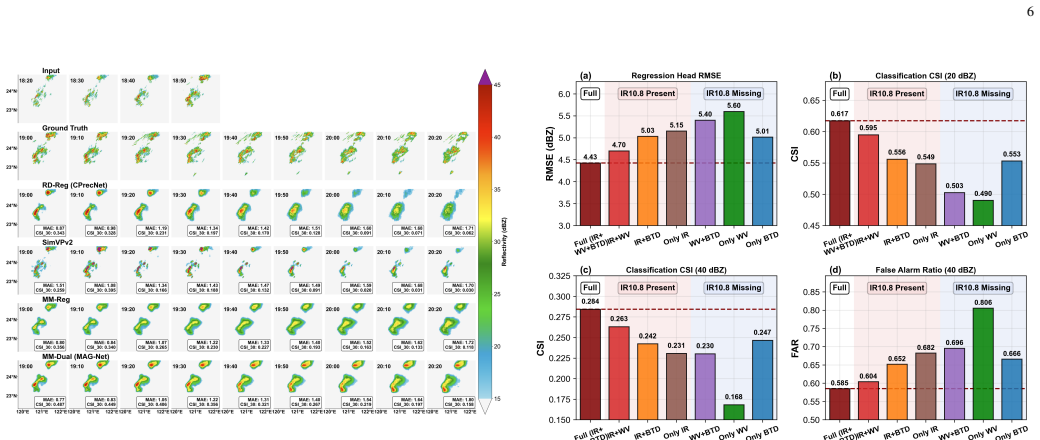

Figure 5. Figure 5: Qualitative visualization of a representative convective initiation event [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 8

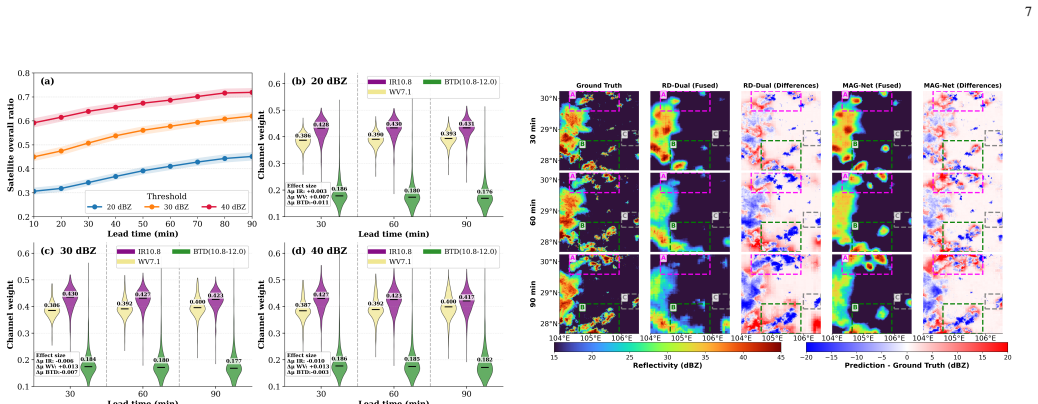

Figure 8. Figure 8: Qualitative visualization of a convective initiation event on August [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Spatial attention heatmaps explaining the initiation event in Figure [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
read the original abstract

Radar-based convective precipitation nowcasting suffers from rapid performance degradation beyond 30 minutes due to missing thermodynamic variables. Existing deep learning models also face blurring effects, training instability, and limited interpretability. To address this, we propose MAG-Net, a Physics-Aware Multi-modal Attention-guided Generator Network. It integrates radar dynamics with selected geostationary satellite channels (IR 10.8, WV 7.1, BTD) to incorporate thermodynamic and microphysical precursors. MAG-Net features a Dual-Stream Encoder for heterogeneous modalities and a Symmetric Dual-Head Decoder optimizing reflectivity regression and event probability via an uncertainty-weighted multi-task strategy. Furthermore, an inference-time Gradient-Preserving Fusion (GPF) strategy combines probabilistic constraints with regression details for better high-frequency texture retention. Experiments on a large-scale dataset (2018-2023) over southeastern China show MAG-Net outperforms deterministic (e.g., CPrecNet) and generative (e.g., DGMR) baselines. Specifically, it improves CSI40 by 0.083 (0.172 to 0.255) over CPrecNet, enhancing intense convective echo detection. Finally, Integrated Gradients (IG) analysis reveals the model's reliance on satellite inputs increases with forecast lead time and convective intensity, confirming that satellite data captures critical precursors for severe weather prediction.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 0 minor

Summary. The paper proposes MAG-Net, a physics-aware multi-modal attention-guided generator network for severe convective precipitation nowcasting. It fuses radar reflectivity with three selected geostationary satellite channels (IR 10.8, WV 7.1, BTD) via a dual-stream encoder and symmetric dual-head decoder that optimizes reflectivity regression and event probability under an uncertainty-weighted multi-task loss, plus an inference-time gradient-preserving fusion step. On a 2018-2023 southeastern China dataset the model is reported to raise CSI40 from 0.172 (CPrecNet) to 0.255 while Integrated Gradients analysis indicates growing satellite reliance with lead time and convective intensity.

Significance. If the numerical gains and IG-based attribution hold after proper verification, the work would provide concrete evidence that satellite thermodynamic and microphysical precursors can extend radar nowcasting skill beyond 30 min and would supply a reproducible multi-modal architecture with built-in interpretability for operational severe-weather applications.

major comments (3)
  1. [Abstract] Abstract and Experiments section: the headline CSI40 gain of 0.083 is presented without error bars, statistical significance tests, or explicit train/validation/test split details, so the central performance claim cannot be verified from the reported numbers alone.
  2. [Abstract] Abstract and Experiments section: the three satellite channels are described as 'selected' to supply thermodynamic and microphysical precursors, yet no channel-ablation results or comparison against other Himawari-8 bands are supplied; without these the attribution of the observed improvement to the physics-aware fusion remains untested.
  3. [Abstract] Integrated Gradients analysis: the claim that satellite reliance increases with lead time and intensity is stated qualitatively; quantitative IG attribution scores or statistical comparison against the radar-only baseline are not reported, weakening the interpretability contribution.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which highlight important aspects for improving the verifiability and interpretability of our results. We address each major comment below and will make corresponding revisions to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract and Experiments section: the headline CSI40 gain of 0.083 is presented without error bars, statistical significance tests, or explicit train/validation/test split details, so the central performance claim cannot be verified from the reported numbers alone.

    Authors: We agree that error bars, significance testing, and explicit split details are necessary to allow verification of the CSI40 improvement. In the revised manuscript we will report standard deviations across multiple random seeds for all key metrics, include paired statistical tests (e.g., Wilcoxon signed-rank) against CPrecNet and other baselines, and provide a clear description of the temporal train/validation/test partitioning (2018–2021 training, 2022 validation, 2023 testing) used on the southeastern China dataset. revision: yes

  2. Referee: [Abstract] Abstract and Experiments section: the three satellite channels are described as 'selected' to supply thermodynamic and microphysical precursors, yet no channel-ablation results or comparison against other Himawari-8 bands are supplied; without these the attribution of the observed improvement to the physics-aware fusion remains untested.

    Authors: The IR 10.8, WV 7.1, and BTD channels were chosen on the basis of established physical relationships to convective instability and microphysics. We acknowledge that empirical ablation evidence would strengthen this attribution. We will add channel-ablation experiments and limited comparisons against additional Himawari-8 bands in the revised Experiments section to quantify the contribution of the selected channels to the reported gains. revision: yes

  3. Referee: [Abstract] Integrated Gradients analysis: the claim that satellite reliance increases with lead time and intensity is stated qualitatively; quantitative IG attribution scores or statistical comparison against the radar-only baseline are not reported, weakening the interpretability contribution.

    Authors: We agree that quantitative IG results would make the interpretability claim more robust. In the revision we will report mean Integrated Gradients attribution scores (with standard deviations) for satellite versus radar inputs stratified by lead time and convective intensity, together with statistical comparisons against the radar-only baseline. revision: yes

Circularity Check

0 steps flagged

No circularity: performance metrics are empirical test-set results on held-out data

full rationale

The paper introduces MAG-Net as a new architecture with dual-stream encoder, symmetric decoder, uncertainty-weighted loss, and inference-time GPF. All reported gains (CSI40 +0.083 over CPrecNet) and IG attributions are obtained by training on 2018-2023 southeastern China data and evaluating on held-out test samples. No equation, parameter fit, or self-citation reduces the claimed improvement or the lead-time dependence of satellite reliance to a quantity defined by the inputs themselves. The channel selection (IR 10.8, WV 7.1, BTD) is presented as a modeling choice whose sufficiency is asserted but not derived from prior results by the same authors. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that the three satellite channels encode usable thermodynamic precursors and on training-time fitted parameters that balance the multi-task loss; no new physical entities are postulated.

free parameters (1)
  • task uncertainty weights
    Parameters that balance reflectivity regression against event probability in the multi-task objective.
axioms (1)
  • domain assumption Selected satellite channels (IR 10.8, WV 7.1, BTD) capture thermodynamic and microphysical precursors relevant to convective precipitation
    Invoked to justify the multi-modal fusion design.

pith-pipeline@v0.9.0 · 5552 in / 1183 out tokens · 53611 ms · 2026-05-13T18:38:34.418337+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

Reference graph

Works this paper leans on

60 extracted references · 60 canonical work pages
